DAK-2S

Dual Adaptor Kit for 2 Station Systems

DAK-2S Includes: 2 component modules

OPERATION NOTES:

• 1. Only one master can be used at a time.
• 2. If both masters are activated, a feedback will be heard through the system when either TALK button is pressed.
• 3. If feedback occurs, press the OFF button on one of the LEM-1DL masters.

INSTALLATION GUIDELINES:

• 1. Use 2 conductor wire from the door station to the first master, then to the second master.
• 2. Install the units at the desired locations.
• 3. Separate PT-1210N power supplies are required for each master station.
• 4. Install the bare wire leg of the component module directly onto the "1" terminal of the LEM-1DL's.
• 5. Attach the wire coming from the "1" terminal of the LE-D to the colored wire end of the component modules at both masters. (The component modules will easily fit within the space available.)
• 6. Connect the "E" terminals between the door station and master stations.
• 7. If door release is included, use a separate 2-conductor wire from the "EL" terminals of the masters through an AC transformer and to the door strike.
• 8. The EL-9S is designed for a standard wood framed door, and for light and medium usage. If a different type of door is used, install a strike appropriate for the door.
• 9. The door release button on the master station is a "Normally Open" contact closure.

Aiphone Communication Systems 1700 130th Ave. N.E. Bellevue, WA 98005 (425) 455-0510 FAX (425) 455-0071

TOLL FREE TECHNICAL SUPPORT:

(800) 692-0200 TOLL FREE FAX LINE: (800) 832-3765 E-MAIL: tech-serv@aiphone.com

DAK-2S

Dual Adaptor Kit for 2 Station Systems

DAK-2S Includes: 2 component modules

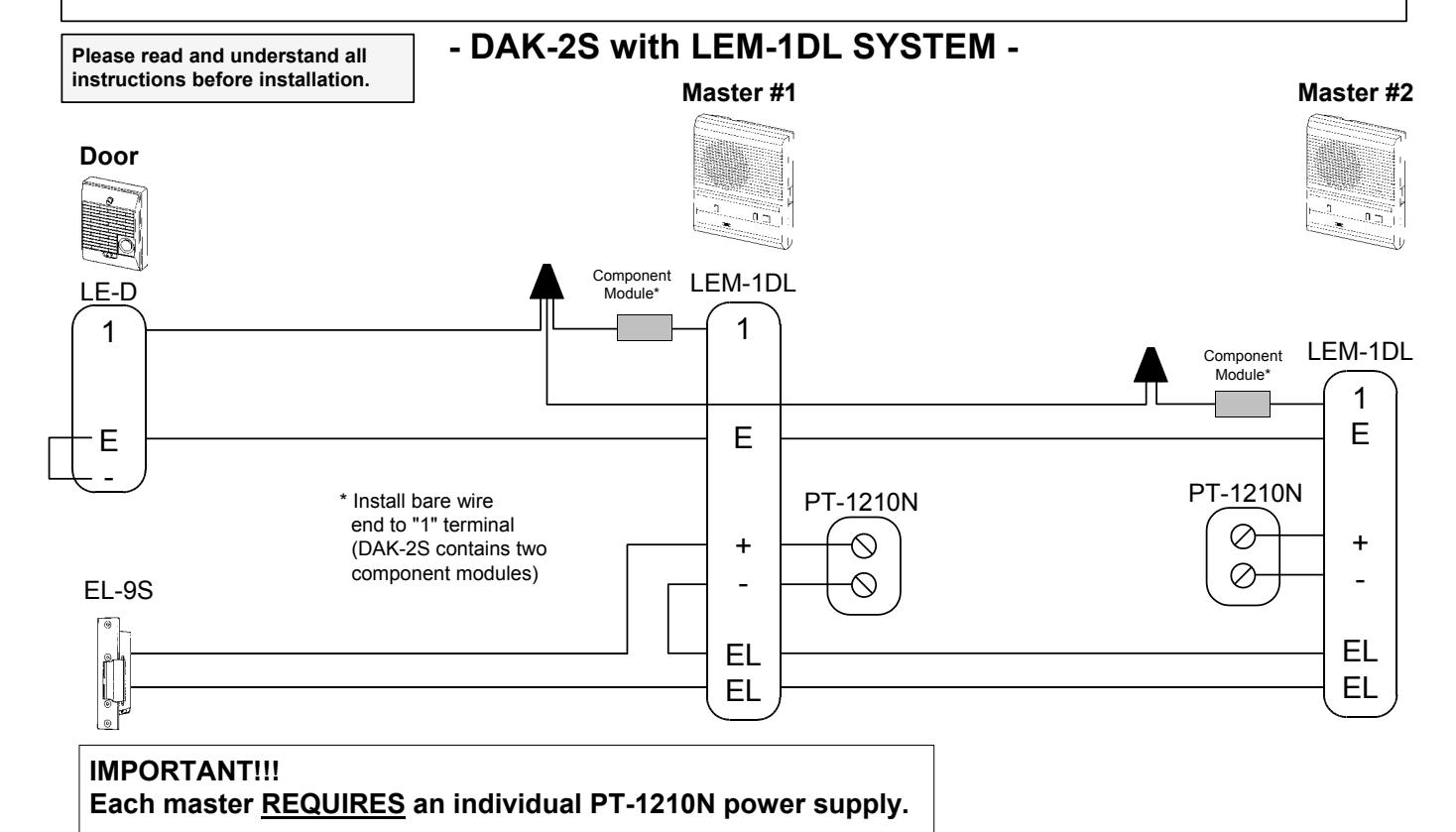

C-D 1 E + - SKK-620 1 E + - L L C-ML/A + - SKK-620 1 E + - L L C-ML/A Door Master #1 Master #2 EL-9S PT-1210N (AC Transformer) Please read and understand all instructions before installation. * Install bare wire end to "1" terminal (DAK-2S contains two component modules) Component Module* Component Module* - DAK-2S with C-ML/A SYSTEM -

IMPORTANT!!!

Each master REQUIRES an SKK-620 power supply (or 4 "C"batteries).

OPERATION NOTES :

• 1. Only one master can be used at a time.
• 2. If both masters are activated, a feedback will be heard through the system when either TALK button is pressed.
• 3. If feedback occurs, wait approximately 15 seconds, or until the master turns off automatically. At that time, communication can continue normally.

INSTALLATION GUIDELINES:

• 1. Use 2 conductor wire from the door station to the first master, then to the second master.
• 2. Install the units at the desired locations.
• 3. Separate SKK-620 power supplies, or four "C" batteries are required for each master station.
• 4. DO NOT install both a power supply and batteries at any one master.
• 5. Install the bare wire leg of the component module directly onto the "1" terminal of the C-ML/A's.
• 6. Attach the wire coming from the "1" terminal of the C-D to the colored wire end of the component modules at both masters. (The component modules will easily fit within the space available.)
• 7. Connect the "E" terminals between the door station and master stations.
• 8. If door release is included, use a separate 2-conductor wire from the "L" terminals of the masters through an AC transformer and to the door strike.
• 9. The EL-9S is designed for a standard wood framed door, and for light and medium usage. If a different type of door is used, install a strike appropriate for the door.
• 10. The door release button on the master station is a "Normally Open" contact closure.

Aiphone Communication Systems 1700 130th Ave. NE Bellevue, WA 98005 (425) 455-0510 FAX (425) 455-0071

TOLL FREE TECHNICAL SUPPORT:

(800) 692-0200 TOLL FREE FAX LINE: (800) 832-3765

E-MAIL: tech-serv@aiphone.com
