Aiphone DA Series Brochure

Open the original PDF document

View PDF

Features & Benefits

  • Access control
    • Provide entry security for up to four tenants sharing a common entrance
  • Visitor screening
    • Safely and conveniently speak with visitors to determine their intent before unlocking the door
  • Replaces doorbell, easy to install

Reduce installation costs by using existing doorbell wire. No doorbell? No problem! The system only requires two wires, making installation a snap!

Door release powered by system

Have the convenience of door release without needing to purchase additional power

Simple to use

Answer calls and unlock the entrance with simple, intuitive operation

Reliable and designed to last

Have trouble-free use for vears to come, even after the warranty expires!

Components

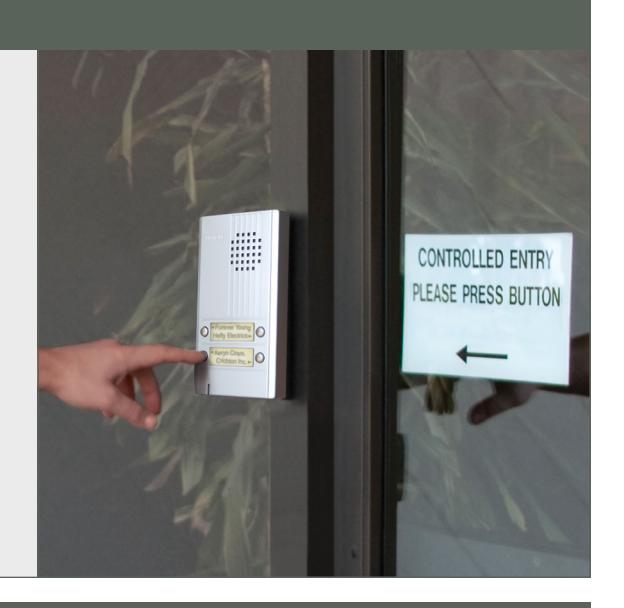

Entrance Stations - Select 1

DA-1DS 1-Call Audio Entrance Station

DA-2DS 2-Call Audio Entrance Station

DA-4DS 4-Call Audio Entrance Station

  • Weather resistant
  • Direct select button(s)
  • Backlit directory
  • ยท Connects to door strike
  • Hands-free communication
  • Surface mount

6-7/8" H 3-15/16" W 7/8" D

Master Station & Power Supply

DA-1MD

Audio Tenant Station

Handset for privacy 7-7/8" H

PT-1211C 15V AC Transformer 3-1/16" H

2-3/8" W 1-7/8" D

Box Set - Includes:

  • 1 DA-1DS (Door Station)
  • 1 DA-1MD (Master Station)
  • 1 PT-1211C (Power Supply)

DA-1AS Single Tenant Box Set

Accessories

EL-12S Electric Door Strike

4-1/8" H 1" W 1-1/4" D

Specifications

15V AC - use PT-1211C 9.5~20V AC, 70\Omega or higher resistance - use EL-12S Power Source Door Release Communication Handset (full-duplex) Calling Electronic tone with adjustable volume or mute Entrance Station to Tenant Station: 2-cond., overall shield - use Aiphone #822202 or 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802 Wire Type Power Supply to Tenant Station: 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802 Door Station / Door Strike to Tenant Station / Power Supply (cumulative): 360'(22AWG) 1,020'(18AWG) Wire Distance Power Supply to Tenant Station: 180'(22AWG) 510'(18AWG)

DA Series Brochure 08/2016 Digital Copy

ISO-14001

ISO 9001:2008

Aiphone Corp.
