ChimeCom2

Door Answering and Audio Monitoring Set

For Residential and Commercial Applications

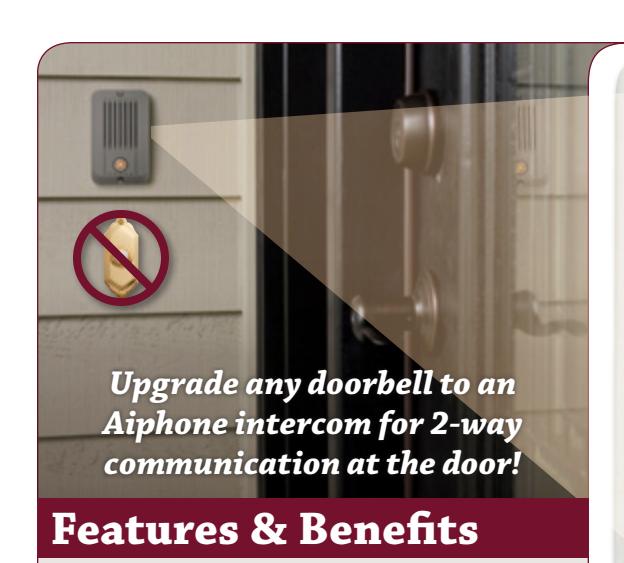

• Can replace doorbell

Keep installation costs low by using existing doorbell wire and/or power

Easy to install

No doorbell? No problem! Install the ChimeCom2 system using only two wires, making installation a snap!

Secure door answering

Safely and conveniently speak with visitors before letting them inside

Audio monitoring

Discreetly listen to activity at the door station with the push of a button

Simple to use

Answer calls with simple push-to-talk and release-tolisten operation

• Reliable and designed to last

Have trouble-free use for years to come, even after the warranty expires!

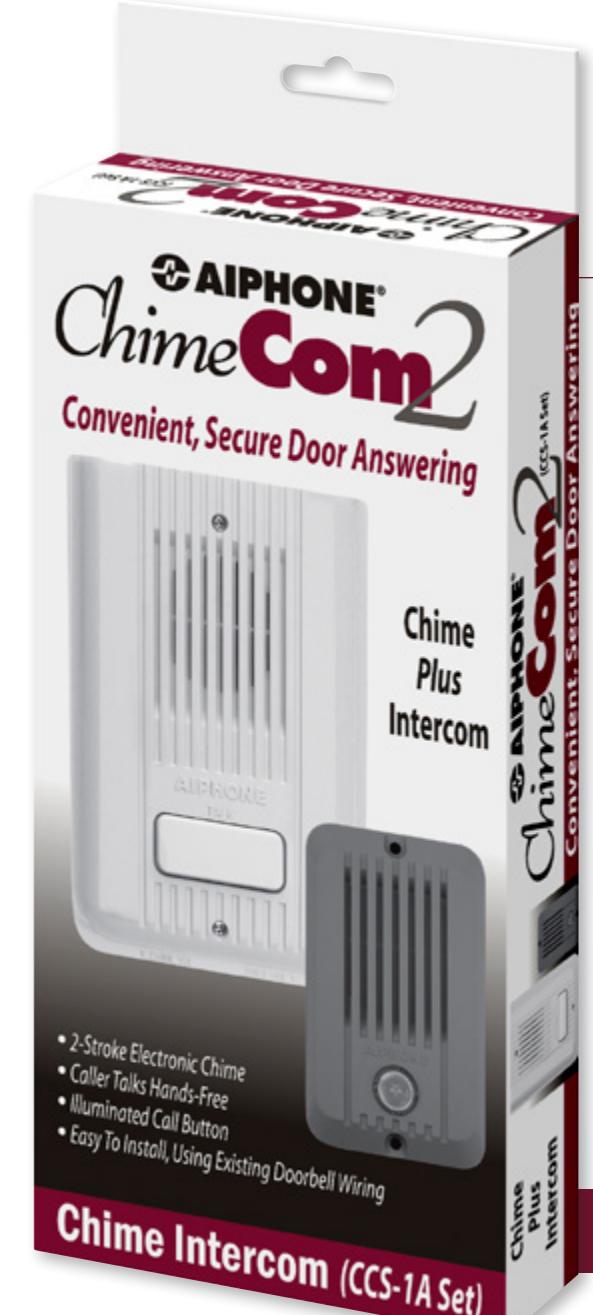

Box Set (ccs-1A)

Includes:

1 CC-DA (Door Station)

1 CC-1M (Master Station)

CC-DA Audio Only Door Station (not sold separately)

• · Plastic chassis
• Surface mount

4-1/2" H 2-3/4" W 1-3/16" D

CC-1M

Audio Only Master Station (not sold separately)

• · Chime and voice volume controls
• Surface mount 7-1/16" H 4-13/16" W 1-5/16" D

Power Transformer (not included with CCS-1A)

CC-1M

PT-1210N 12V AC Transformer (sold separately)

Products shown at actual size.

NOTE: PT-1210N is only required if an equivalent bell transformer is not available.

Specifications

Wire Distance

CC-DA

12~16V AC (with no-load voltage Power Source rating, 20V or less) - use PT-1210N or equivalent bell transformer Call Signal 2-stroke electric chime Push-to-talk (simplex) at Communication master, hands-free at door Door to Master: 2-cond., overall shield - Wire Type use Aiphone #822202 or Aiphone #821802

ChimeCom2 Brochure 08/2016

Digital Copy

Aiphone Co. Ltd.

ISO 9001:2008

Door to Master: 245'(22AWG) 590'(18AWG)
