ChimeCom

Door Answering and Audio Monitoring Sets

Features & Benefits

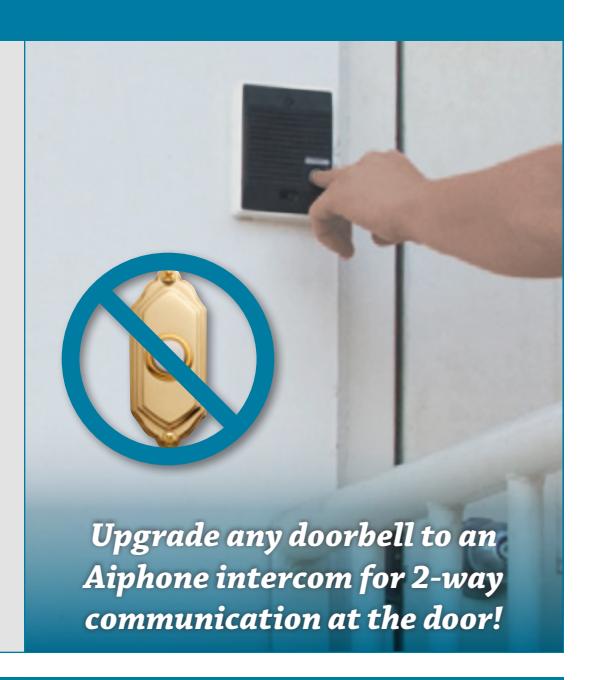

• Replaces doorbell, easy to install

Reduce installation costs by using existing doorbell wire. No doorbell? No problem! The system only requires two wires, making installation a snap!

• DC powered or battery operated

Choose your preferred method to power the system: a 6V DC power supply or 4 C batteries

• Pull cord included

Mount the master station in the exact location of an existing doorbell chime and use the pull cord to communicate

• Door release

Push the door release button to conveniently unlock the entrance directly from the master station

• Audio monitoring

Discreetly listen to activity at the door station with either the push of a button or the pull of a cord

• Affordable system

DAK-2S Dual Master Adaptor Kit (required for 2 C‑ML/As to be used in a dual master system) • Included with C-ML/A and C‑123LW

Maintain your budget with this affordable, simple to use system

• Reliable and designed to last Install the system and have trouble‑free use for years to come!

Components

Door Station, Master Station, and Adaptor Kit

C-D Audio Only Door Station (included with both C‑123 box sets – not sold separately)

• Plastic chassis
• Surface mount 4-3/4" H

3-7/16" W 1-1/8" D

C-ML/A*

Audio Only Master Station (1 included with C‑123L/A box set and 2 included with C‑123LW box set)

• Pull cord included
• Dual master adaptor kit included (DAK-2S)
• Plastic cover
• Surface mount

7-1/2" H 5-1/8" W 1-3/4" D

Power Supply

SKK-620C 6V DC Power Supply (1 required per C‑ML/A)

or

4 C Batteries (not included – 4 batteries required x4

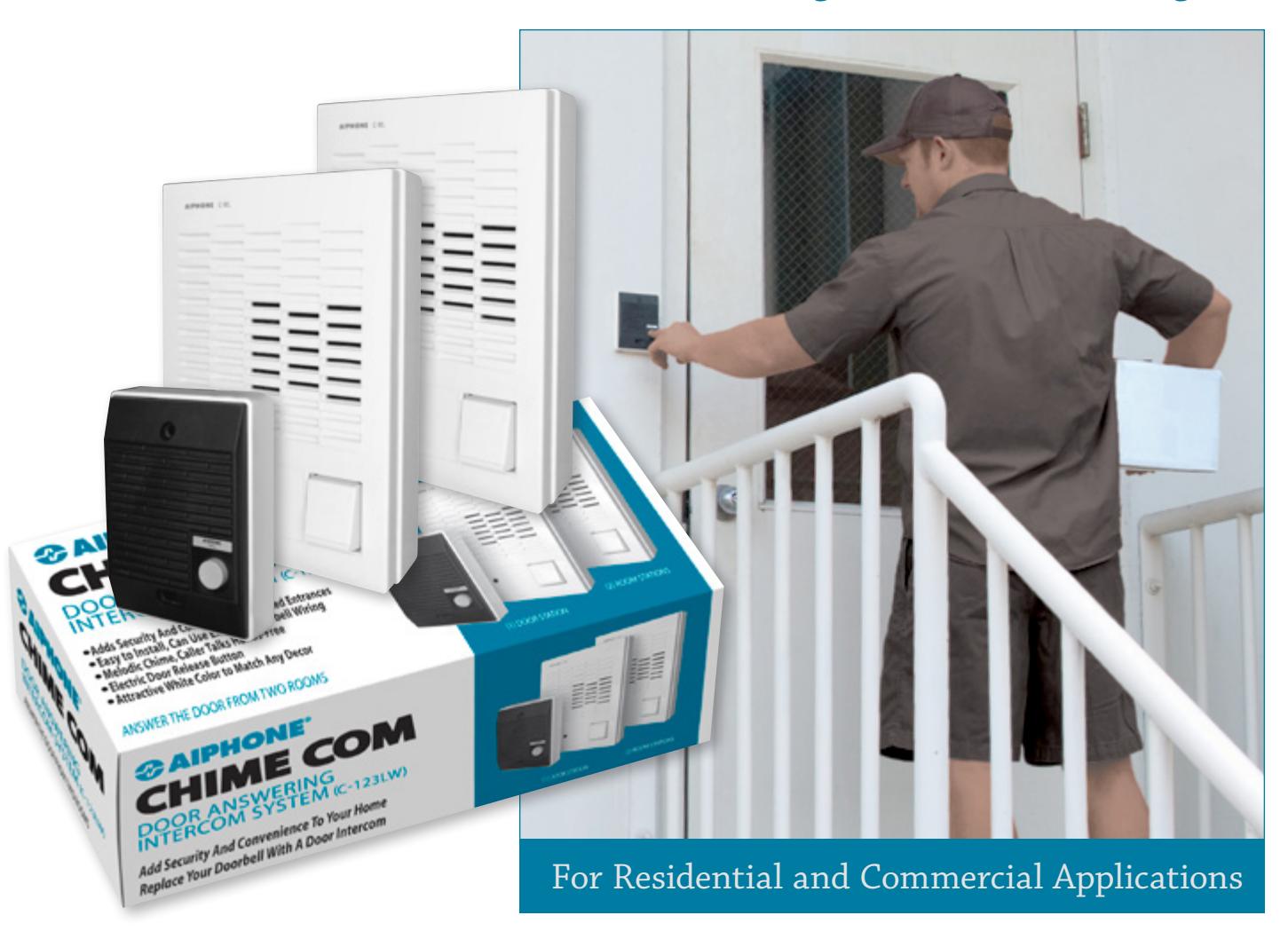

Box Sets

C-123L/A Single Master Station Box Set Includes:

• 1 C‑D (Door Station)
• 1 C‑ML/A (Master Station)

Select C-123L/A for a 1x1 system or C-123LW for a 1x2 system.

C-123LW

Dual Master Station Box Set Includes:

• 1 C‑D (Door Station)
• 2 C‑ML/A (Master Stations)
• 1 DAK‑2S (Dual Master Adaptor Kit)

* If the C‑123L/A box set is selected, 1 C‑ML/A can be purchased separately for a dual master station system.

Accessories

EL-12S

Electric Door Strike (requires PT‑1210N)

PT-1210N 12V AC Transformer (required for EL‑12S)

Specifications

per C‑ML/A)

Power Source	6V DC – use SKK‑620C or 4 C batteries
Communication	Push-to-talk (simplex) at master, hands-free at door
Door Release	N/O dry contact, 50V AC, 1A – use EL-12S
Wire Type	Door to Master: 2‑cond., overall shield – use Aiphone #822202 or Aiphone #821802
Wire Distance	Door to farthest Master: 245'(22AWG) 590'(18AWG)
