Paging Adaptor

Use with:

- INSTRUCTIONS -

The BA-1 Paging Adaptor allows paging to external speakers from the NEM, LAF, LEF, LDF and LEM series master stations. For each zone of paging, use a BA-1 with the appropriate sized amplifier. The BA-1 provides outgoing paging only. Talkback is not available.

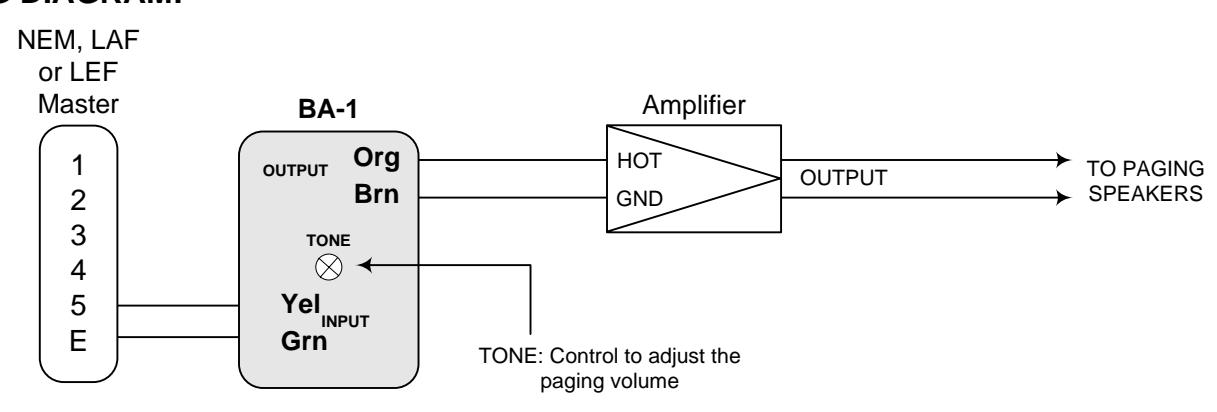

WIRING DIAGRAM:

NOTES:

• 1. The above example shows station 5 accessing the paging zone. Any unused station can be used for a paging zone.
• 2. The colored wires at each end of the BA-1 are the Input and Output. Connect them to the intercom and amplifier as shown.
• 3. Only wiring concerning the BA-1 is shown here. For complete installation information see the system's instruction manual.
• 4. The TONE control is located on the top of the BA-1, and requires a screwdriver for adjustment.

SPECIFICATIONS:

Power Source: Supplied by master

Input: 20 ohms Output: 10K ohms

Amplifier input

requirements: Aux input (10K ohms) Dimensions: 4-1/8"H x 2-1/2"W x 1-1/2"D

BA-1 COLOR CODE DEFINITIONS:

Org: Hot side of output

(Connect to amplifier input)

Brn: Ground side of output

(Connect to amplifier input)

Yel: Hot side of BA-1 input

(Connect to station # on master)

Grn: Ground side of input

(Connect to "E" terminal on master)

Aiphone Communication Systems 1700 130th Ave. N.E. Bellevue, WA 98005 (425) 455-0510 FAX (425) 455-0071

TOLL FREE TECHNICAL SUPPORT:

(800) 692-0200 TOLL FREE FAX LINE: (800) 832-3765 E-MAIL: tech-serv@aiphone.com

BA-1 Instr. 0705jdjs
