AX SERIES

Hands-Free Video Security Intercom with Integration

Versatile Intercom Communication for any Security Demand

COMPLETE SECURITY

AX SERIES

gives you the power to ...

entry security and regulate access into a building

easily and efficiently while keeping your facility secure

• CONFIRM

identity with crisp audio and clear, up-close video

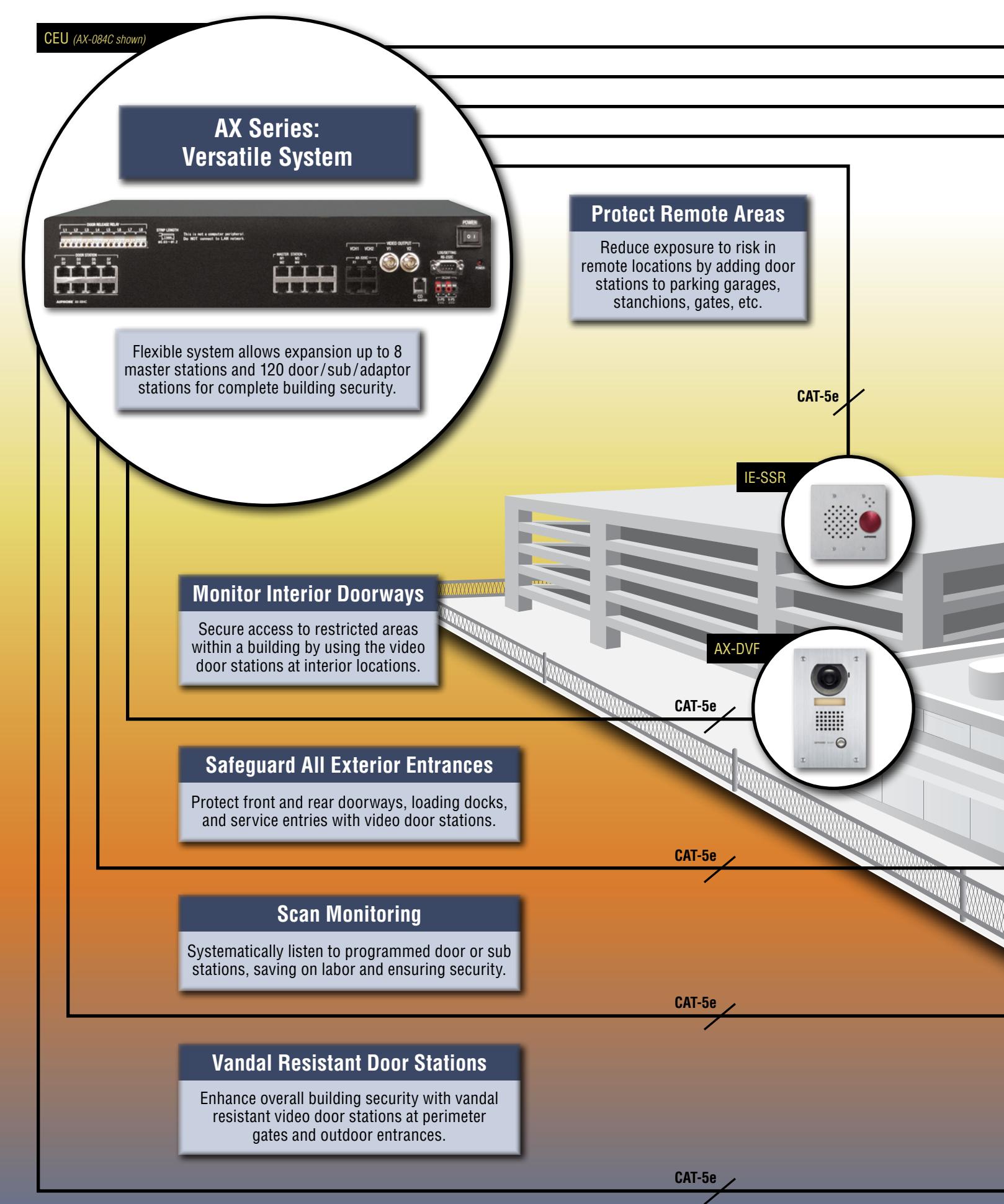

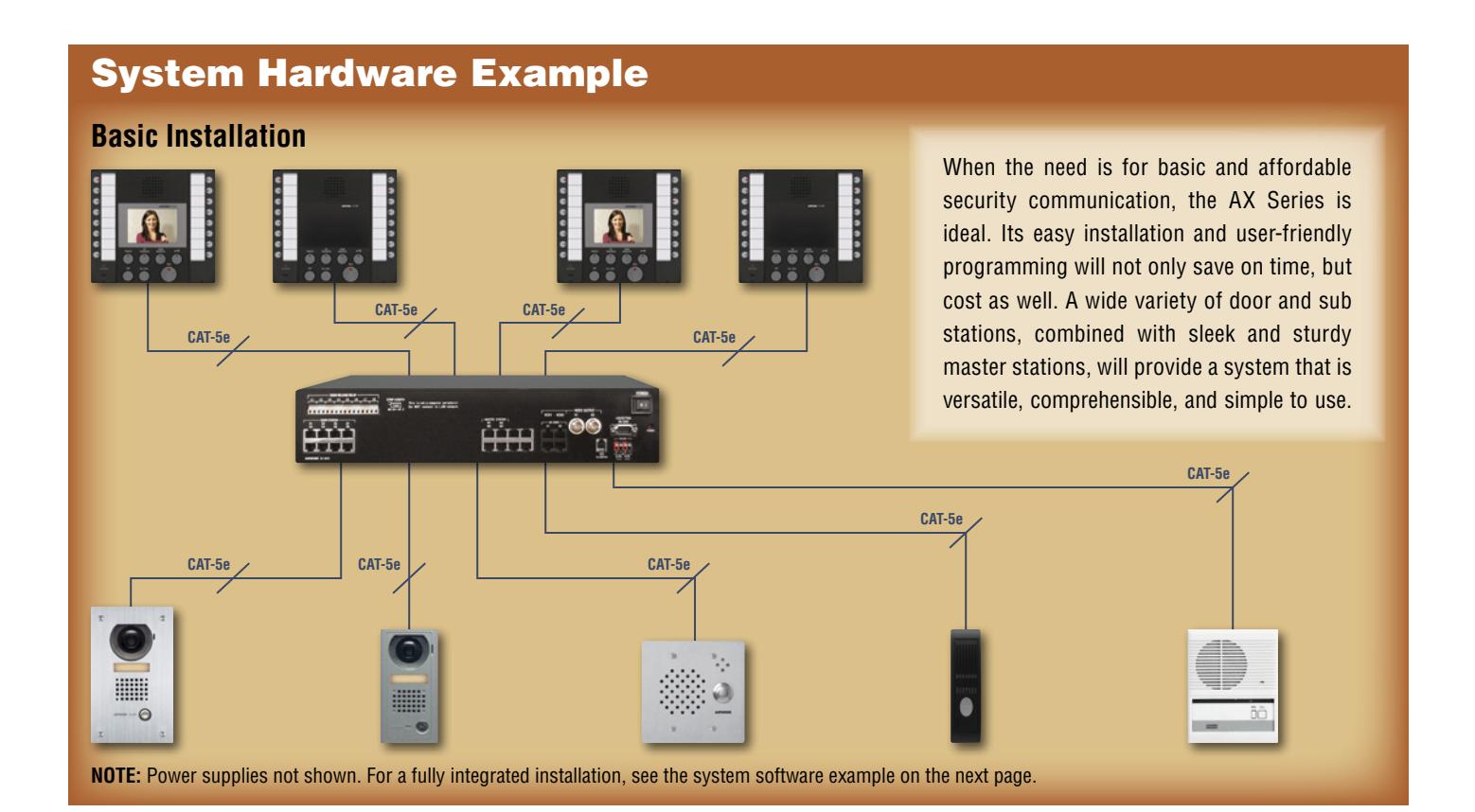

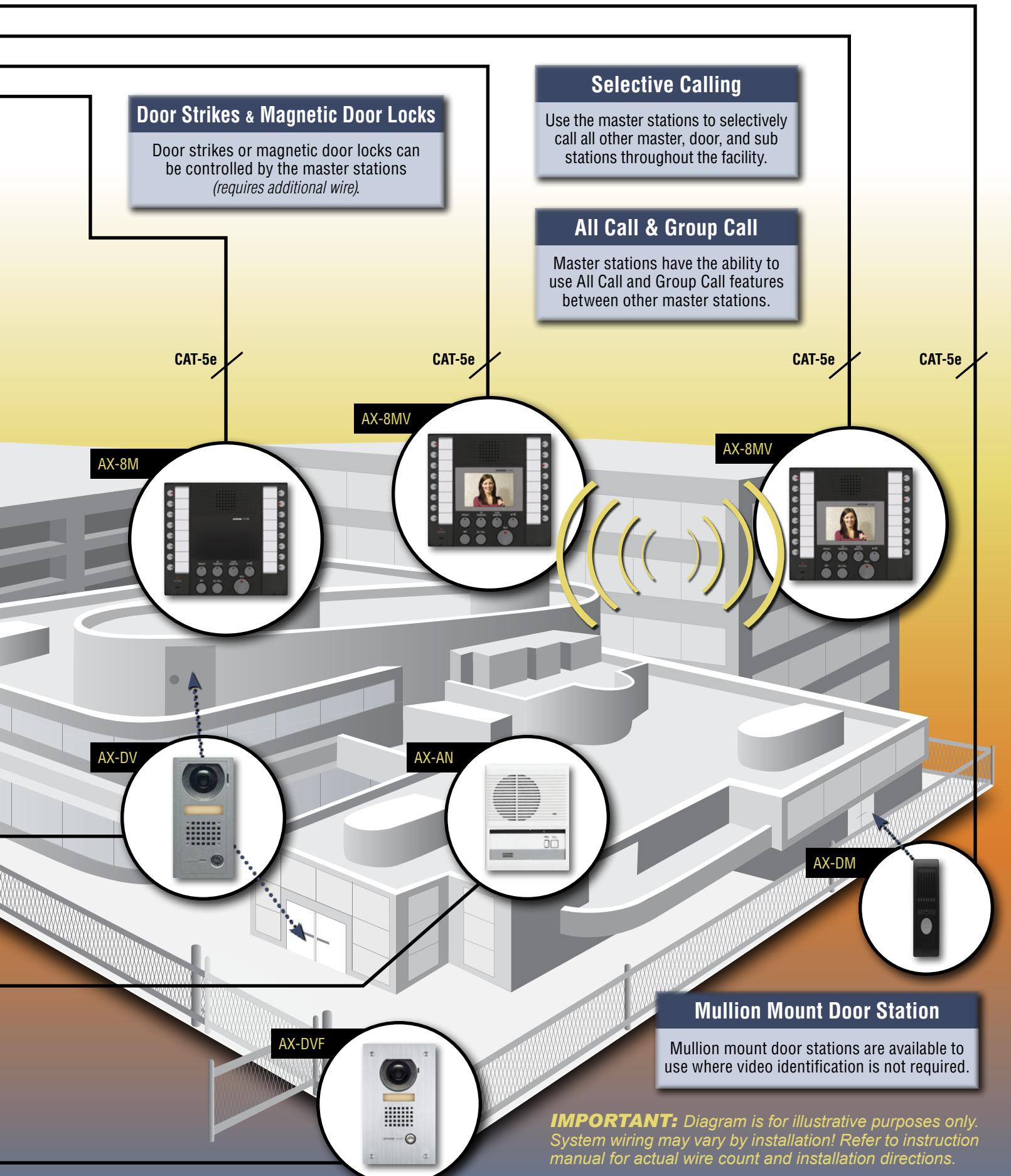

SYSTEM L AYOUT: STANDARD

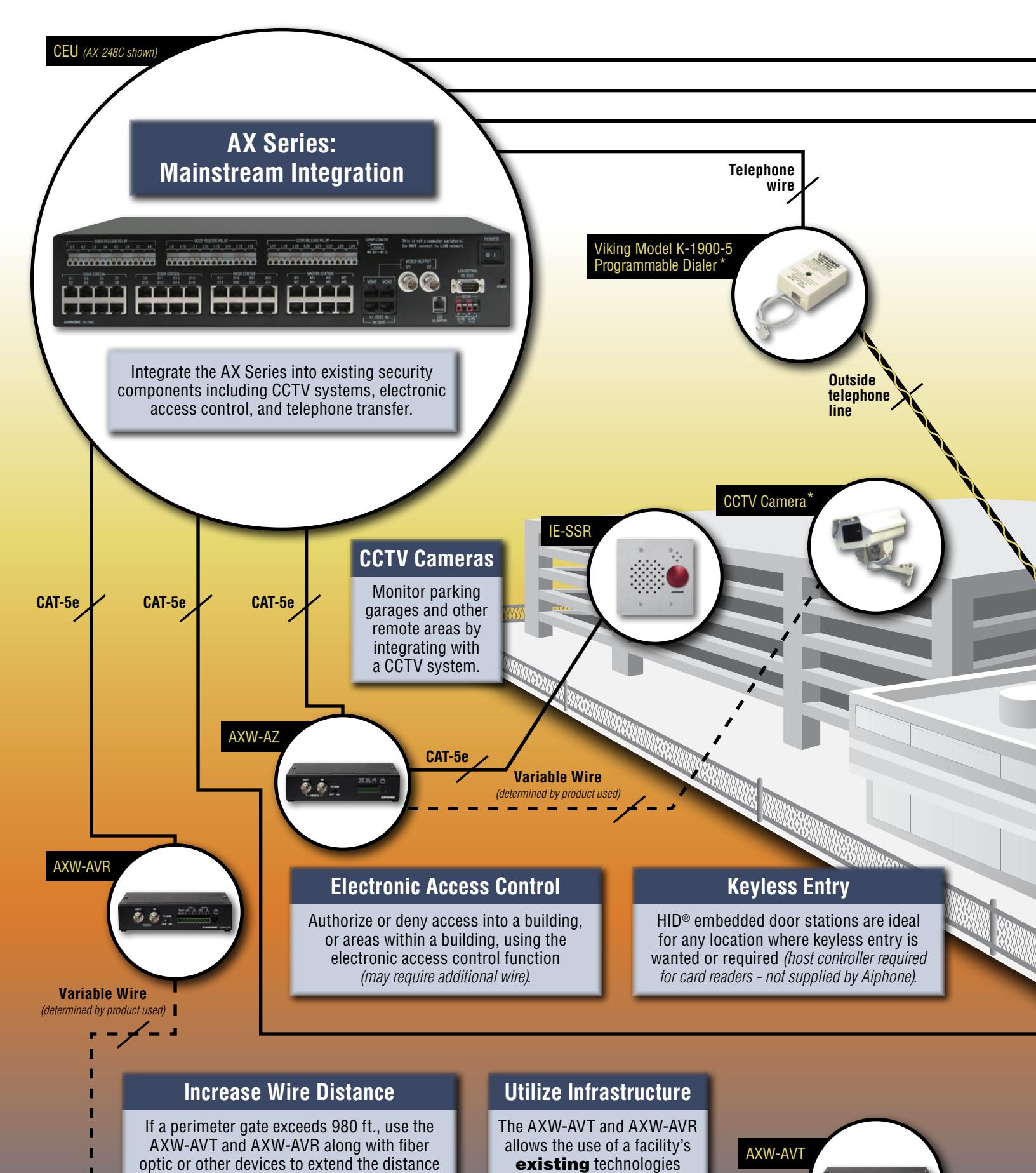

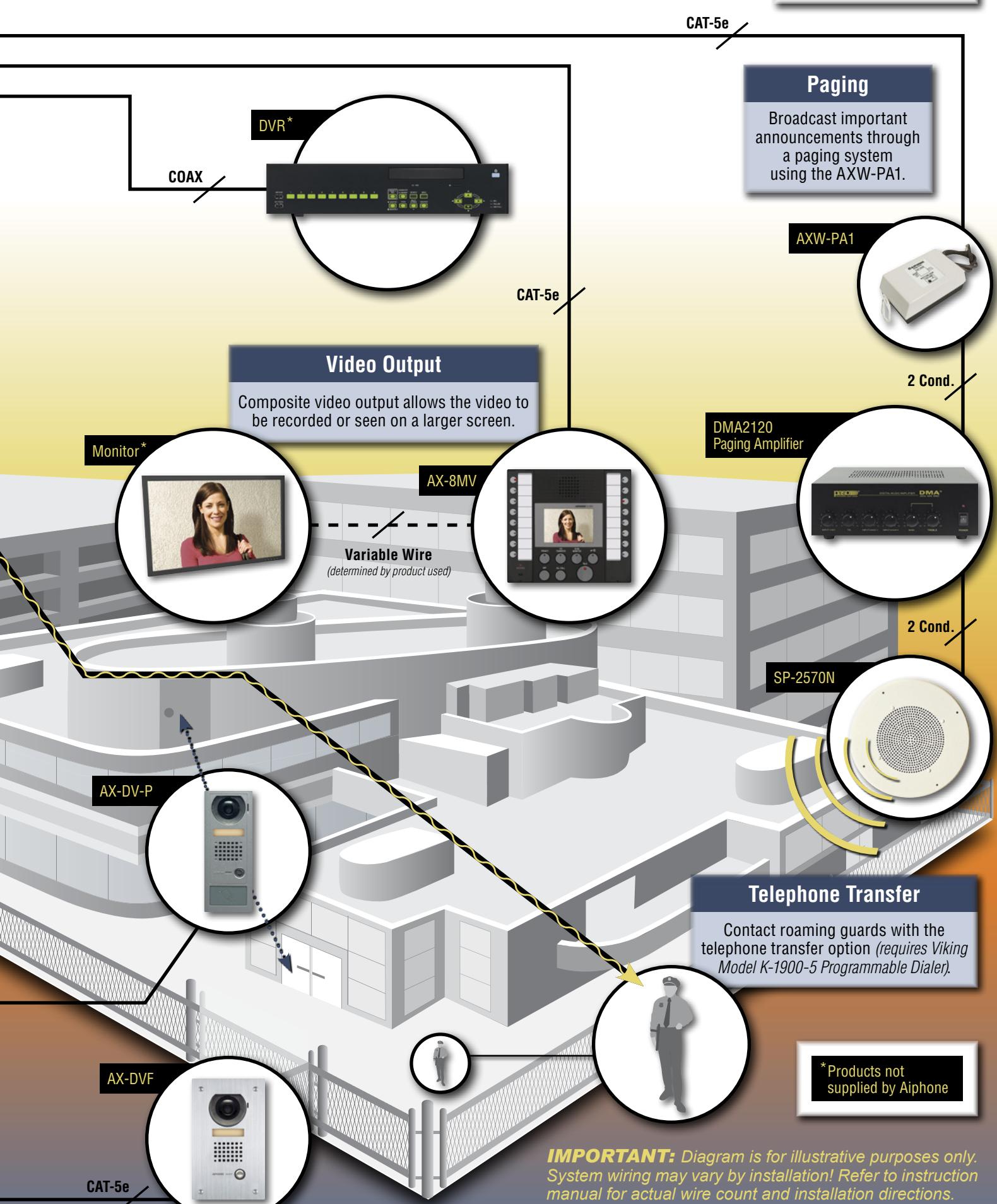

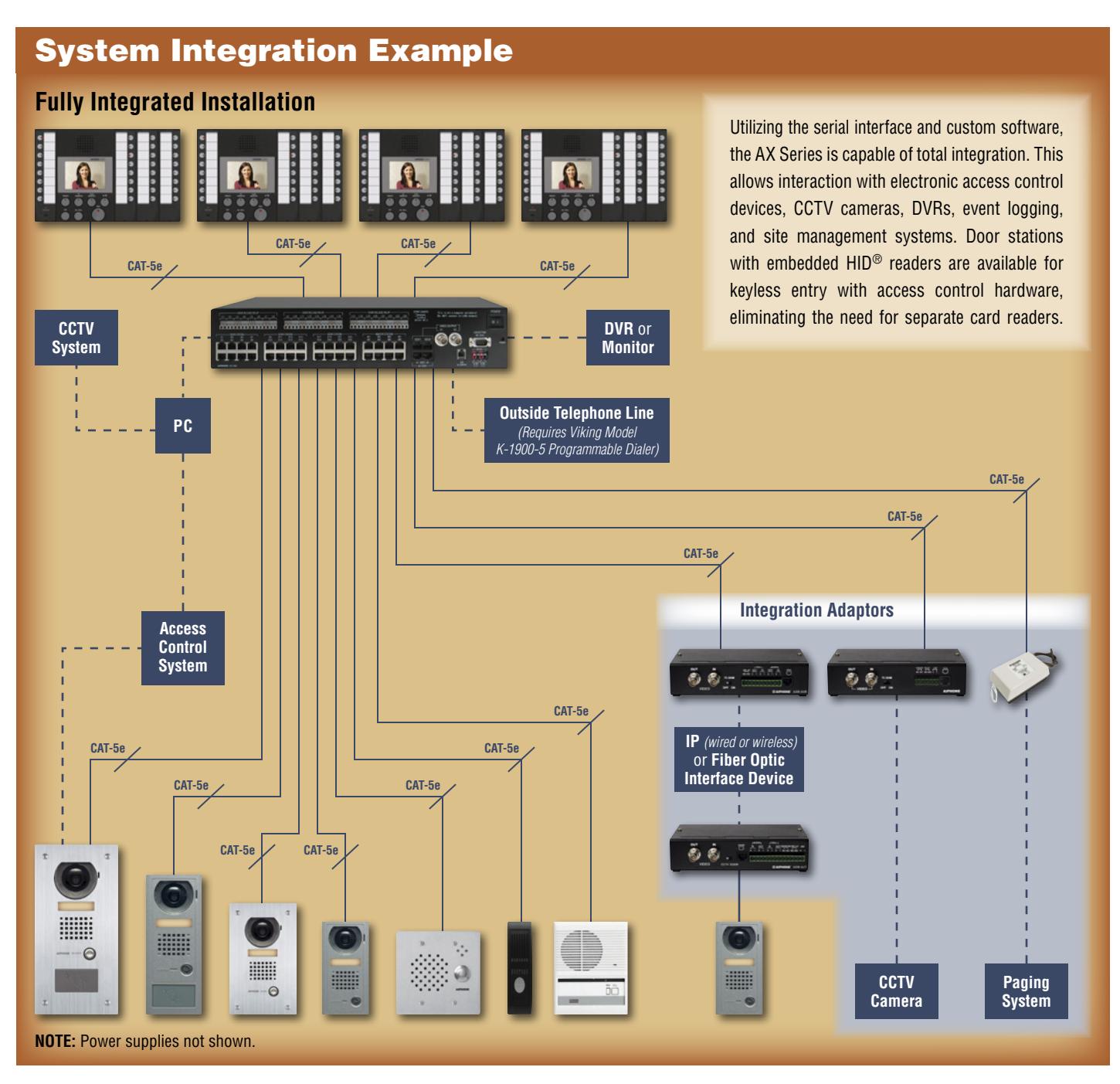

SYSTEM L AYOUT: INTEGRATED

and wiring systems.

(see page 11 for a current list of compatible devices) .

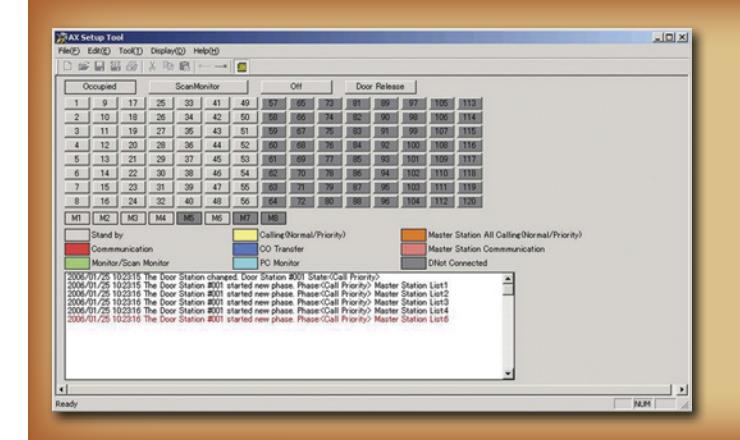

System Software

Features and functions are programmed using the custom software, included with the CEU. It is intuitive to use and allows you to set individual door stations' call-in length (10 seconds to 10 minutes, or infinite), call-in priority levels, scan monitoring inclusion, and door release relay activation and timing. In addition, the software features an easy to use interface for gathering log data, setting the communication method at the master (VOX or PTT), and data up/down loading.

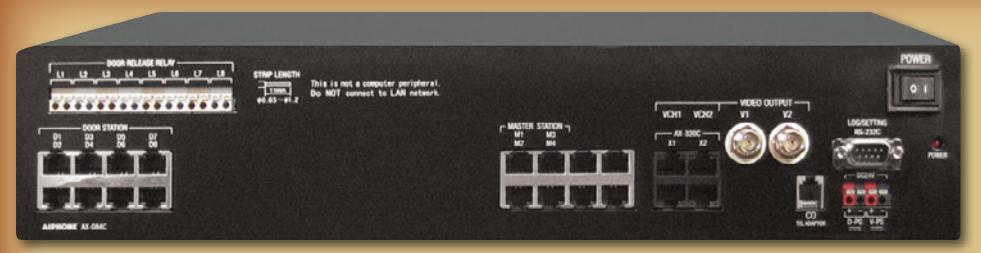

Central Exchange Units

AX-084C

Central Exchange Unit

• Supports up to 4 master stations and 8 door/sub stations

AX-248C (not shown)

Central Exchange Unit

• Supports up to 8 master stations and 24 door/subs stations

AX-320C (not shown)

Add‑On Central Exchange Unit

• Supports up to 32 door/sub stations

Additional CEU Features:

• • RJ-45 connectors for master and door stations
• Composite video output (BNC)
• RS-232 serial output
• • Selective door release (programmable to N/O or N/C)
• CCTV and access integration
• PC programmed
• Rack mountable (2U)

Master Stations

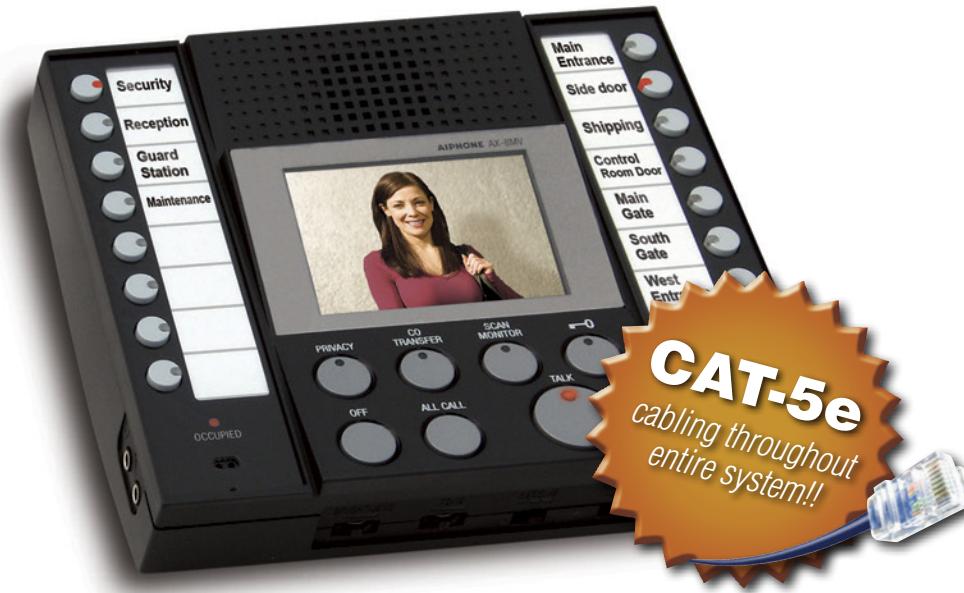

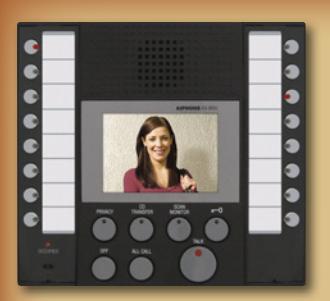

AX-8MV

Video Master Station

• Wall or desk mount

AX-8MV-W

Video Master Station (recommended for an 8 x 8 system only)

• White finish

• Wall or desk mount

AX-8M

Audio Master Station

• Wall or desk mount

AX-16SW

16‑Call Add‑On Selector for AX‑8MV or AX‑8M

(max. 7 per master)

• Provides channels for additional door stations
• Aesthetically matches AX‑8M and AX‑8MV (not recommended for AX-8MV-W)

Additional Master Station Features:

• • 3.5" color TFT LCD monitor (AX-8MV and AX-8MV-W)
• • Hands-free (VOX) or pushto-talk (PTT) communication
• All Call to master stations
• Scan monitoring
• Selective door release
• Privacy and mute functions
• • Connection for headset and footswitch

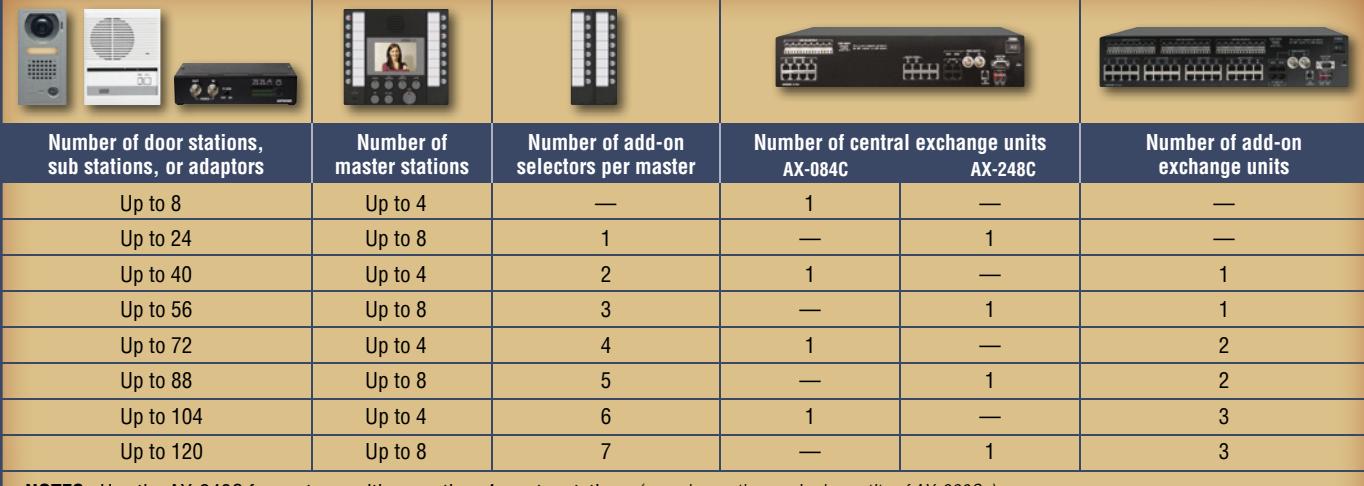

Component Matrix

NOTES: Use the AX-248C for systems with more than 4 master stations (may change the required quantity of AX-320Cs). Two PS-2420UL power supplies are required per system.

Door Stations

Weather & Vandal Resistant Video Door Stations – Surface Mount

AX-DV Video Door Station

• Fixed camera
• Aluminum die cast
• Surface mount

AX-DV-P*

Card Access Video Door Station

• HID® ProxPoint® Plus Proximity Card Reader
• Fixed camera
• Aluminum die cast
• Surface mount

IF-DA Audio Door Station • Plastic cover • Surface mount

Weather & Vandal Resistant Video Door Stations – Flush Mount

AX-DVF

Video Door Station

• Fixed camera
• Stainless steel
• Flush mount
• Back box included

AX-DVF-P*

Card Access Video Door Station

• HID® ProxPoint® Plus Proximity Card Reader
• Fixed camera
• Stainless steel
• Flush mount
• Back box included

* HID® stations require a 3rd party host. Power for

card reader and door strike require additional wire.

Weather & Vandal Resistant Audio Door Stations –

Flush Mount

IE-SS/A

Audio Door Station

• Stainless steel
• Flush mount
• Fits 2‑gang box

IE-SSR

Audio Door Station

• Red mushroom call button
• Stainless steel
• Flush mount
• Fits 2‑gang box

Weather Resistant Audio Door Station –

Weather Resistant Audio Door Stations –

Flush Mount

AX-DM Audio Door Station • Plastic cover • Mullion surface mount

Surface Mount

IE-JA

Audio Door Station

• Stainless steel
• Flush mount
• Fits 2‑gang box

Weather & Vandal Resistant Audio Door Station with CCTV Camera – Flush Mount

IE-SSV

Audio Door Station

• Built‑in CCTV camera (requires AXW-AZ)
• Stainless steel
• Flush mount
• Fits 2‑gang box

AX-A (not shown) Audio Sub Station

• Surface mount

AX-AN Privacy Audio Sub Station

• Privacy button
• Surface mount
• AX-B (not shown) Audio Sub Station
• Semi-flush mount

AX-BN (not shown) Privacy Audio Sub Station

• Privacy button
• Semi‑flush mount

Sub Stations Integration Adaptors

Manufacturer Model Type AFI (American Fibertek) MT/MR -1890 Fiber Optic Infinova N3732TA-M/N3732RA-M Fiber Optic Meridian Technologies ST/SR-1W2A2C2G/2A2C2G-X Fiber Optic Approved Devices for AXW-AVT & AXW-AVR

NOTE: This list of approved devices is subject to change. For an updated list, please contact Aiphone Technical Support (Mon.- Fri., 6:00am - 4:30pm) at (800) 692-0200 or e-mail tech@aiphone.com .

AXW-AZ CCTV Input Module

AXW-PA1 Paging Adaptor

AXW-AVT Audio / Video Transmitter

AXW-AVR Audio / Video Receiver

Accessories

HID-SS

Card Access Station with HID® ProxPoint® Plus Proximity Card Reader

SBX-2G

Surface Mount Box for IE-JA IE-SS/A, IE-SSR, or IE-SSV

SBX-2BH

Horizontal Surface Mount Box for HID-SS and one IE-SS/A, IE-SSR, or IE-SSV

SBX-AXDV30 30° Angle Box for AX-DV

SBX-AXDVF Surface Mount Box for AX-DVF

SBX-DVF-P Surface Mount Box for AX-DVF-P

LB-XDVF Security Lock Box for AX-DV or AX-DVF (lock not included)

SBX-LSP Security Lock Box for AX-DVF-P

(lock not included)

BBX-1E Back Box for flush mounting AX-B or AX-BN

EL-12S Electric Door Strike (requires PT-1210N)

RY-ES External Signaling Relay

RY-24L Form C Door Release Relay (1 per door)

IER-2 Call Extension Speaker

MCW-S/A

Desk Stand for AX-8MV, AX-8MV-W, or AX-8M

Unit Dimensions	INCHES				MILLIMETERS
MODEL	HEIGHT	WIDTH	DEPTH	RECESSED	HEIGHT	WIDTH	DEPTH	RECESSED
AX-084C, AX-248C, AX-320C	3-7/16''	18-7/8''	13-3/16''	-	88	480	335	-
AX-16SW	6-7/8''	3-3/8"	1-7/8''	-	175	86	48	-
AX-8MV, AX-8MV-W, AX-8M	6-7/8''	7-5/8''	2-9/16''	-	175	194	65	-
AX-A, AX-AN	7-1/16''	5-5/8''	2-1/8''	-	180	143	53.5	-
AX-B, AX-BN	8-3/16''	6''	2''	9/16''	208	153	50.5	15
AX-DM	6-5/16''	1-11/16''	7/8''	-	160	43	22.5	-
AX-DV	7-11/16''	3-15/16''	1"	-	195	100	25	-
AX-DVF	9-11/16''	5-3/4''	*	-	246	146	*	-
AX-DVF-P	11-5/8''	5-3/4''	*	-	295	146	*	-
AX-DV-P	9-5/8''	3-15/16''	1"	-	245	100	25	-
AXW-AZ, AXW-AVT, AXW-AVR	1-5/8''	7''	4''	-	41	178	102	-
IE-JA	4-1/2''	4-9/16''	*	-	115	116	*	-
IE-SS/A, IE-SSR, IE-SSV	4-3/4''	4-3/4''	*	-	121	121	*	-
IF-DA	5-1/8''	3-7/8''	1-1/8''	-	130	98	28.5	-
*Aiphone recommends a 2-1/2" minimum back box depth for all flush mount stations.

Specifications

Power Source 24V DC – use two PS-2420ULs

Communication Hands-free (VOX) or push-to-talk (simplex)

Video Display 3-1/2" color LCD

Camera Type: 1/4" color CCD

View Area: 2'1" vert. x 3'1" horiz. at 20"

Door Release Programmable dry contact, 24V AC/DC, 500mA -

use EL-12S (use RY-24L for larger contact rating)

Wire Type Between Door / Sub Station, Master Station, and Central Exchange Unit: CAT-5e

Power Supply to Central Exchange Unit

and Add-On Central Exchange Unit: 2-cond., overall shield – use Aiphone 821802

Distance Door/Sub Station to Central Exchange Unit and Add-On Central Exchange Unit: 980'

Central Exchange Unit to Master: 980' Central Exchange Unit to Add-On Central Exchange Unit: 16'

Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 16'(22AWG) 33'(18AWG)

Door Station Features

• · Fixed camera provides clear visitor identification (video door stations)
• · Card access door stations available

Master Station Features

• Masters available with 3.5" color LCD screen
• · Hands-free or push-to-talk communication
• Two talk channels
• · Composite video output from CEU/video masters
• · All Call or Group Call to master stations
• · Scan monitoring

System Features

• Up to 8 masters and 120 doors/subs/adaptors
• CAT-5e wiring homerun from each station

• Selective calling between masters, and from masters to door/sub stations
• · Normal or priority call levels

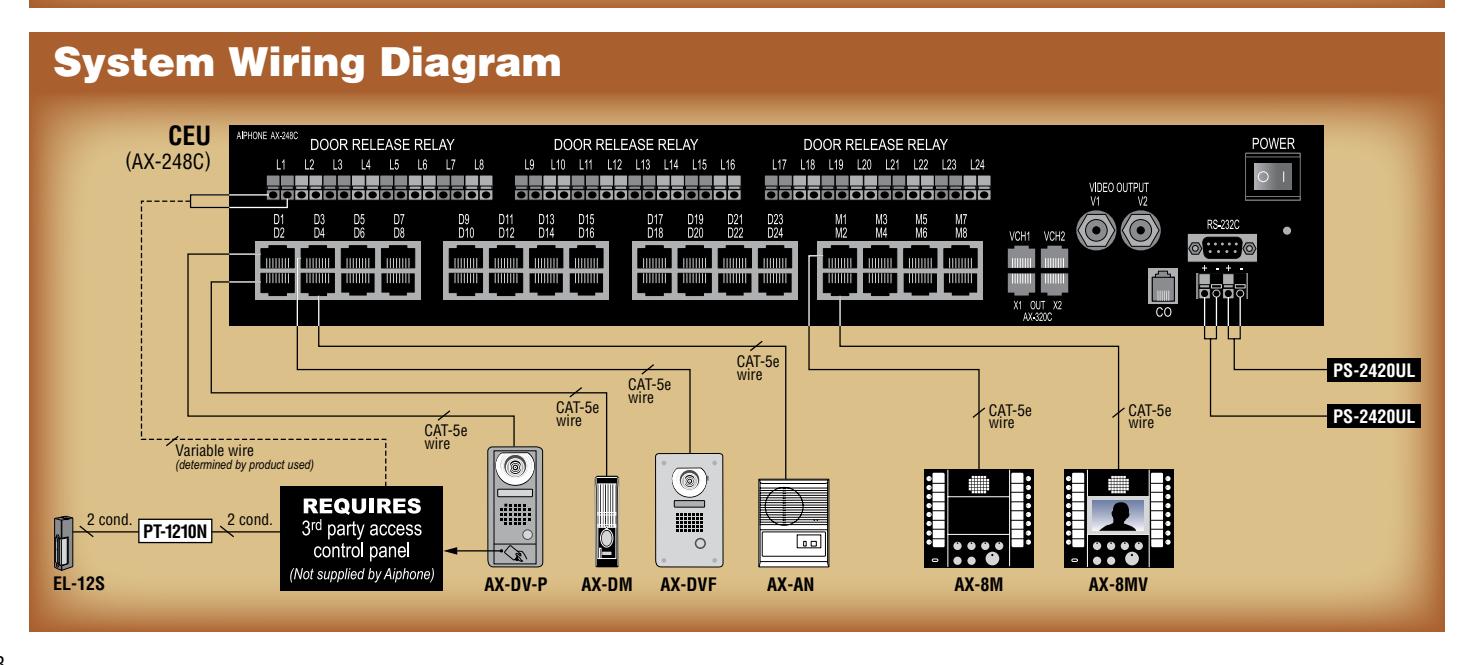

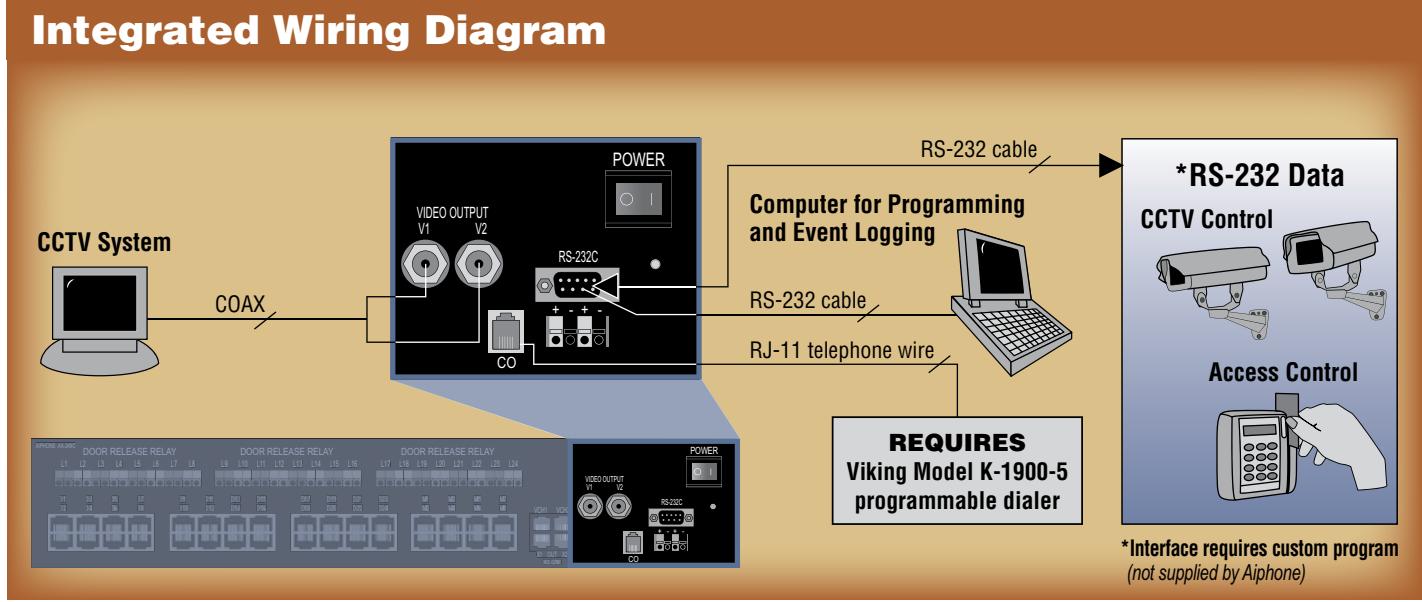

• · Data output on CEU provides custom integration capability with CCTV and access control systems*
• · PC programmable with a large variety of settings
• Transfer calls to an outside phone line (requires Viking Model K-1900-5 programmable dialer)
• Optional features: headset. footswitch, call transfer to telephone, and PC remote control*
• * Interface requires custom software (not supplied by Aiphone)
