Interface Board for Non-Aiphone Speaker and Call Button with AI-900 System

- INSTRUCTIONS -

The AI-CP170 Interface board provides the necessary interface for any standard speaker with a 25V transformer and a Normally Open call button to be used as a remote station on the AI-900 system. Simple wire connections are provided for easy connection. Install the small circuit board behind the remote speaker or call button. Made for indoor use only.

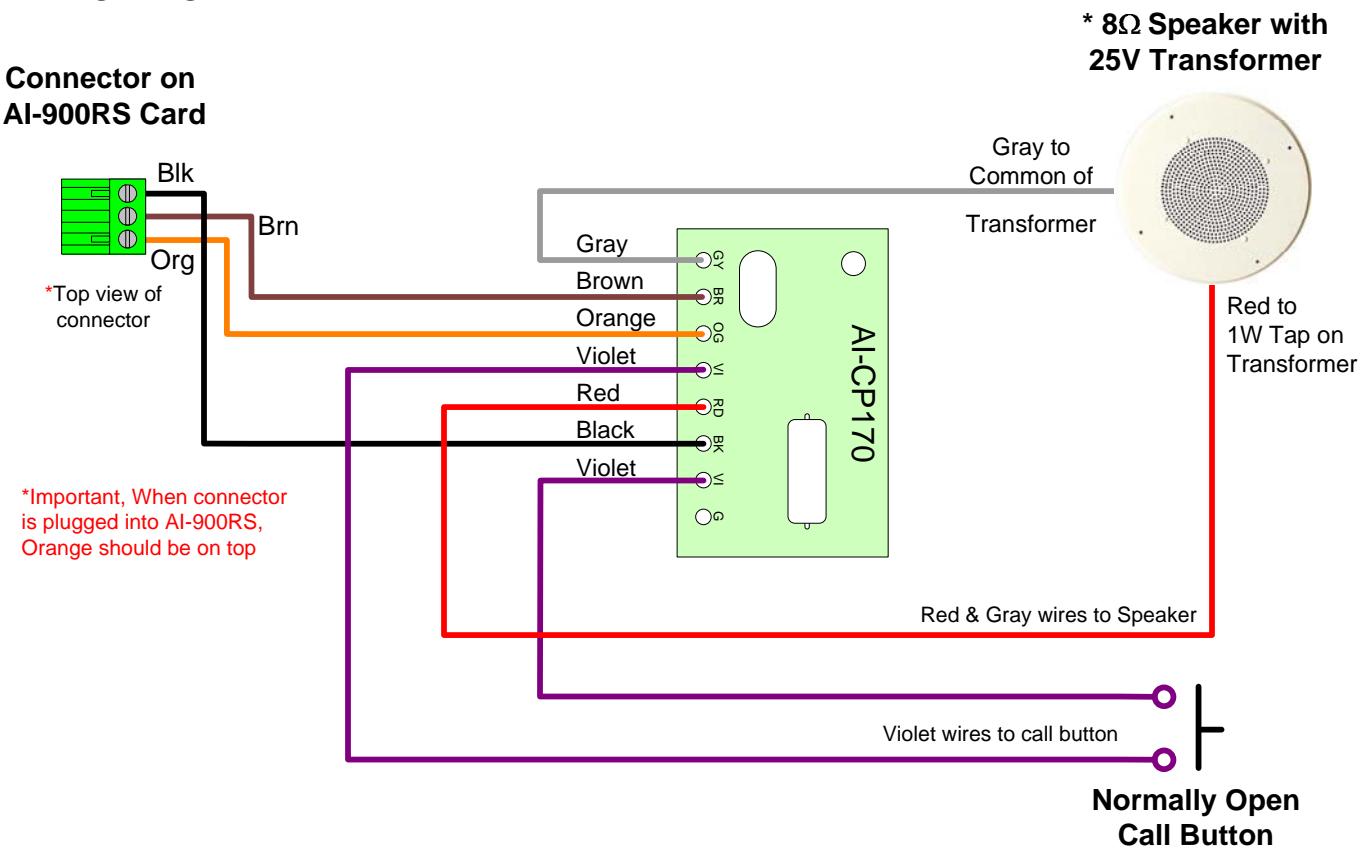

WIRING DIAGRAM:

^* For best acoustics, speaker must be located in the center of the room, mounted in the ceiling

SPECIFICATIONS:

Power Source: Supplied by Main Frame (AI-900MF)

Speaker: Use standard 8 ohm speaker with 25V transformer

Call Button: Normally open momentary contact Mounting: Conceal behind speaker or call button

Terminations: Color-coded prewired pigtails

Wiring: 3 conductor shielded, homerun from Main Frame to each speaker/call button

Wiring Distance: 2,625' w/ 22AWG, 4,265' w/ 18AWG

Dimensions (HxWxD): 1-3/8" x 15/16" x 1/2"
