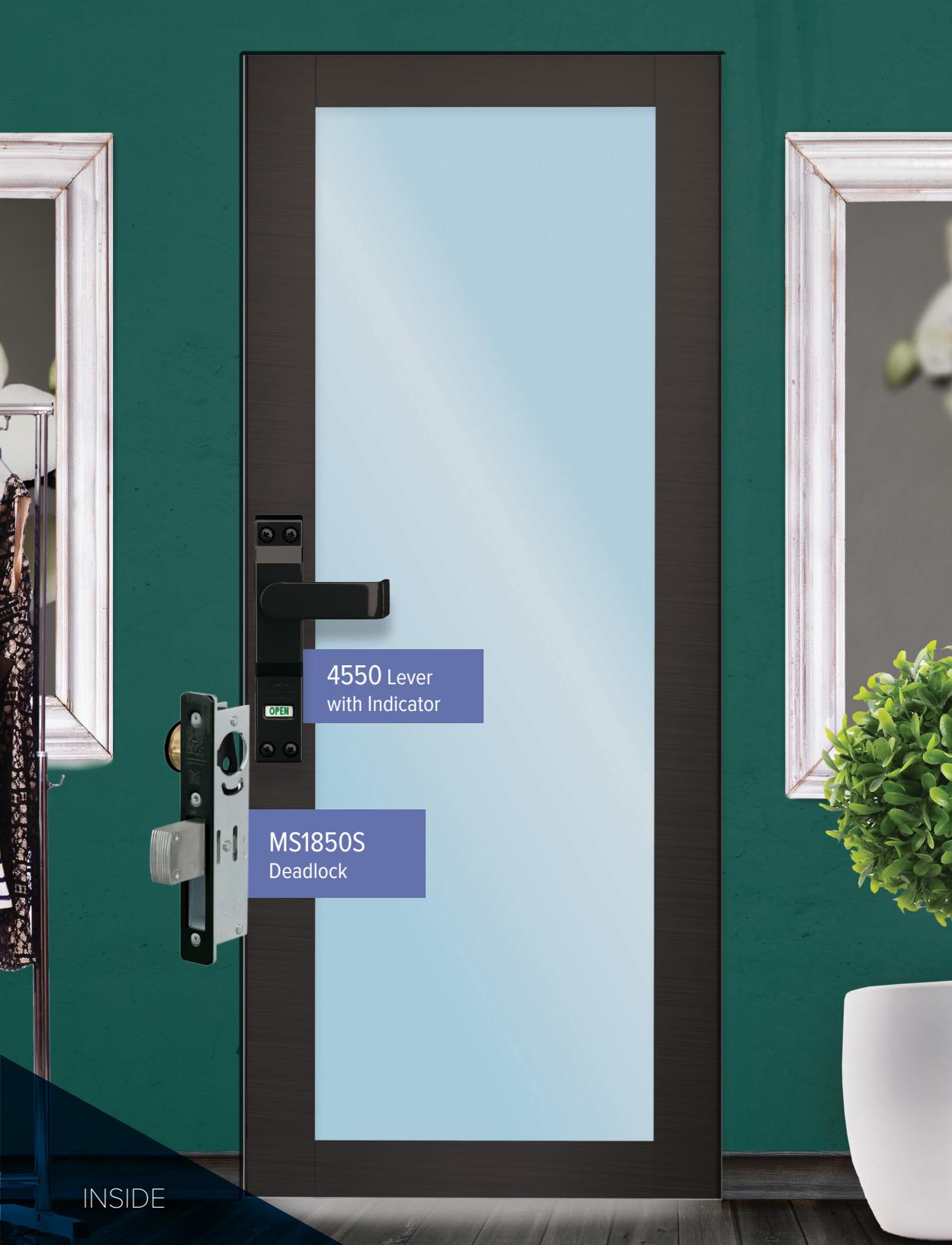

The MS1850S Series MS® Deadlock utilizes a nearly 3" laminated stainless steel bolt to provide maximum security for a single leaf narrow stile aluminum door.
An MS1850S paired with a 4550 lever provides a code compliant solution for DOOR HARDWARE SINGLE MOTION TO EGRESS (ANSI/BHMA A156.41-2017).
4550 Levers are uniquely capable of both lock and unlock functions.
Rockwood RM2230 Door Pull
4036 Cylinder
OUTSIDE
Interconnected Deadbolt/Deadlatch with Electrified Trim
The Dual Force® 2190 Interconnected Deadbolt/ Deadlatch combines the access control capabilities of a deadlatch with the security of a deadbolt. It provides free egress for safe passageway and can be easily integrated into an access control system. The 2190 Series is available in various ANSI/BHMA lock functions and is a code compliant solution for Door Hardware Single Motion to Egress (ANSI/BHMA A156.41).
4036 Cylinder
2190 Trim
Securitron DK-37 Keypad
Electrified Deadlatch

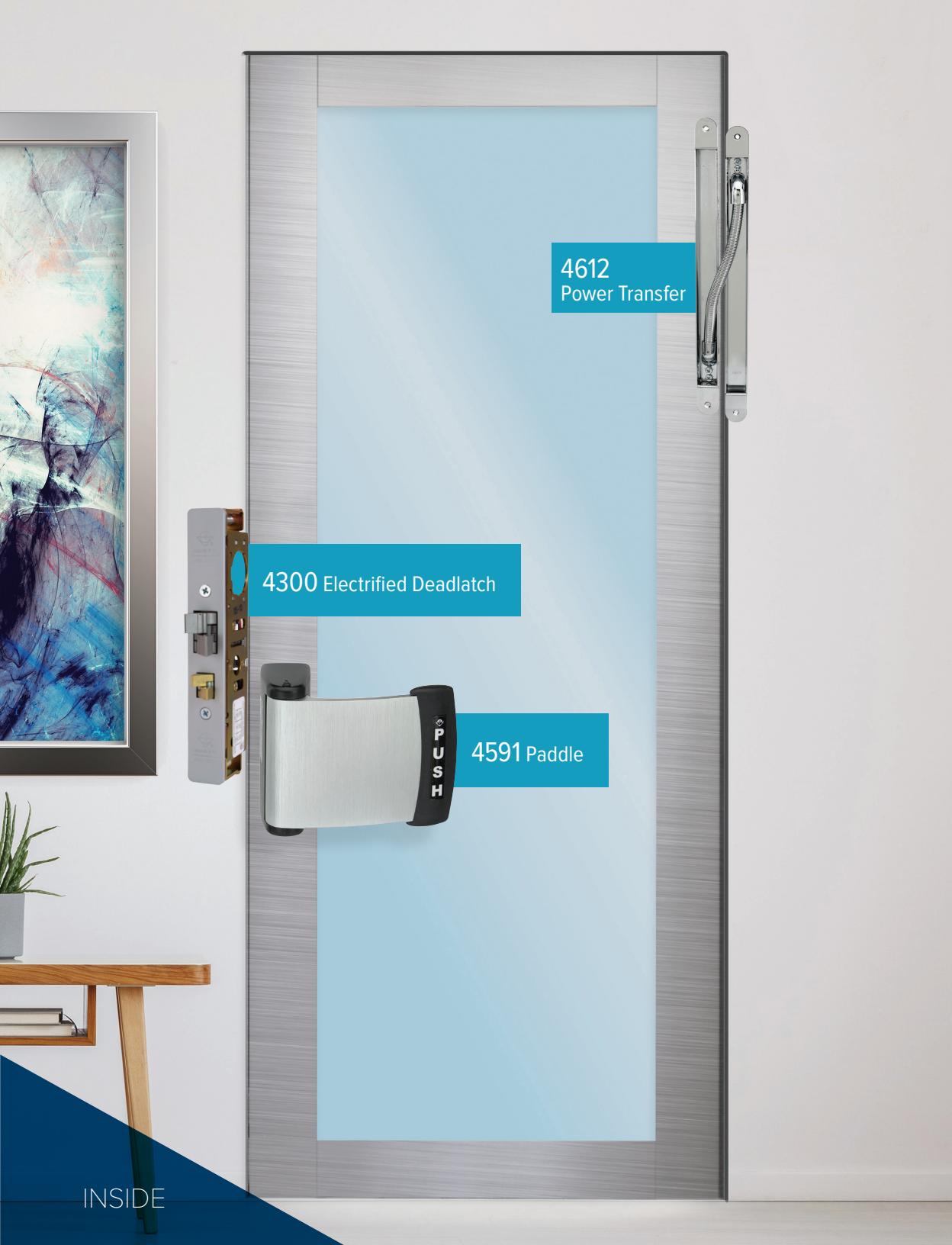

The Steel Hawk® 4300 Electrified Deadlatch is an electrified no-cut replacement for MS® deadlocks and deadlatches and an easy alternative to installing maglocks or exit devices. The 4300 provides compliance to ADA and Single Motion to Egress (ANSI/BHMA A156.41) code requirements when paired with compatible Adams Rite lever or paddle trim including 4600 Handles and 4591 Paddles.
4036 Cylinder
Securitron R100 with Aperio® Hub
628 CLEAR ANODIZED FINISH
4600 Dummy Lever
Mechanical Deadlock/Deadlatch

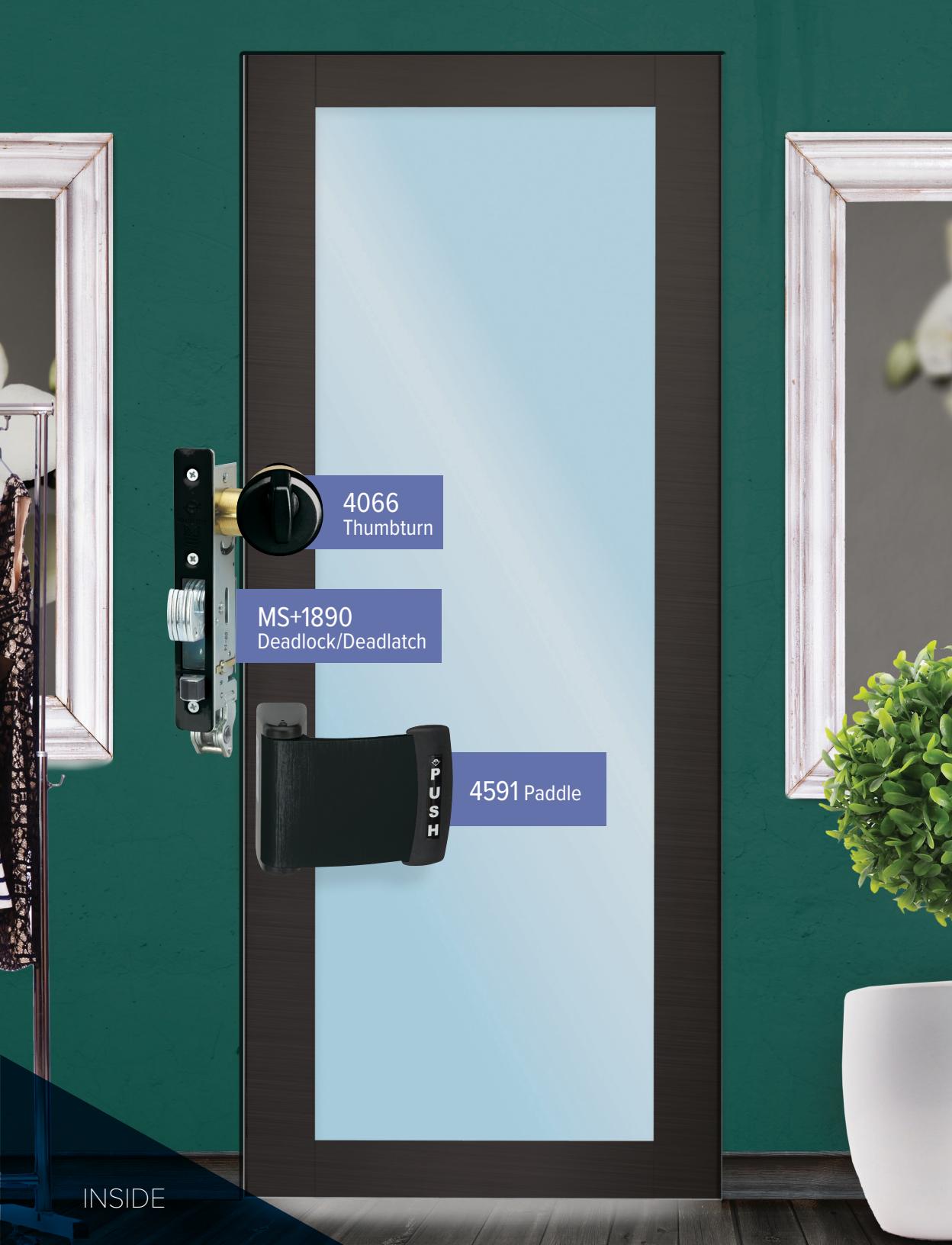

The MS+1890 Series MS Deadlock/Deadlatch provides a maximum security deadlock for after-hours and a deadlatch for traffic control convenience during business hours. It has three modes of door control:
- Both lock and latch bolts retracted for unrestricted entry and exit during business hours
- Handle-operated latch for exit-only traffic just after closing
- Maximum Security hookbolt for overnight lockup.

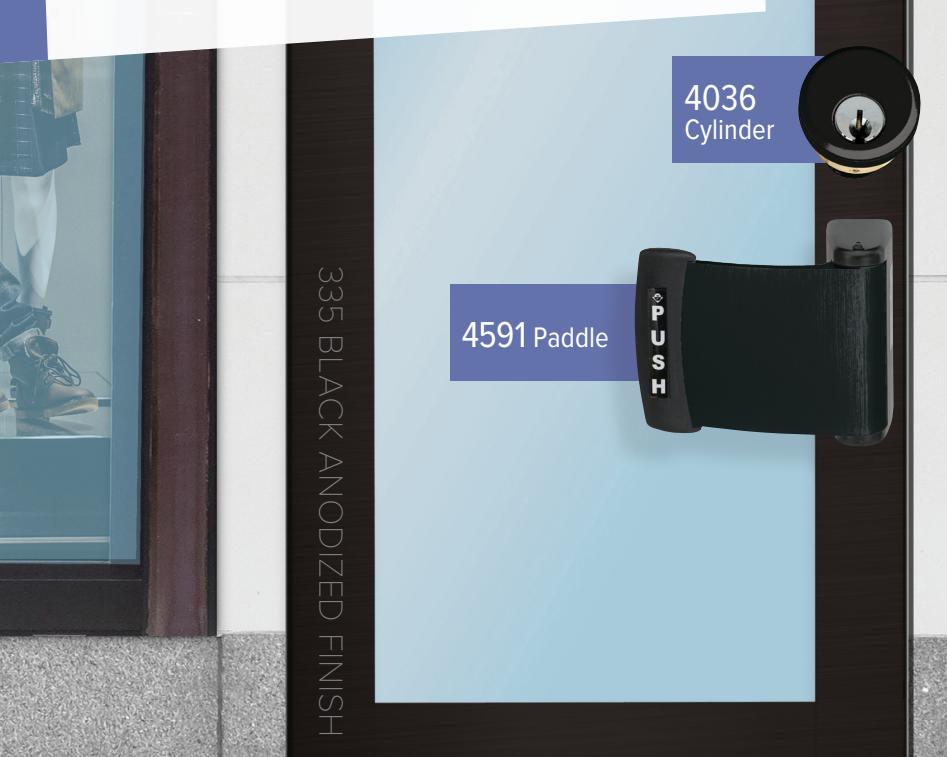

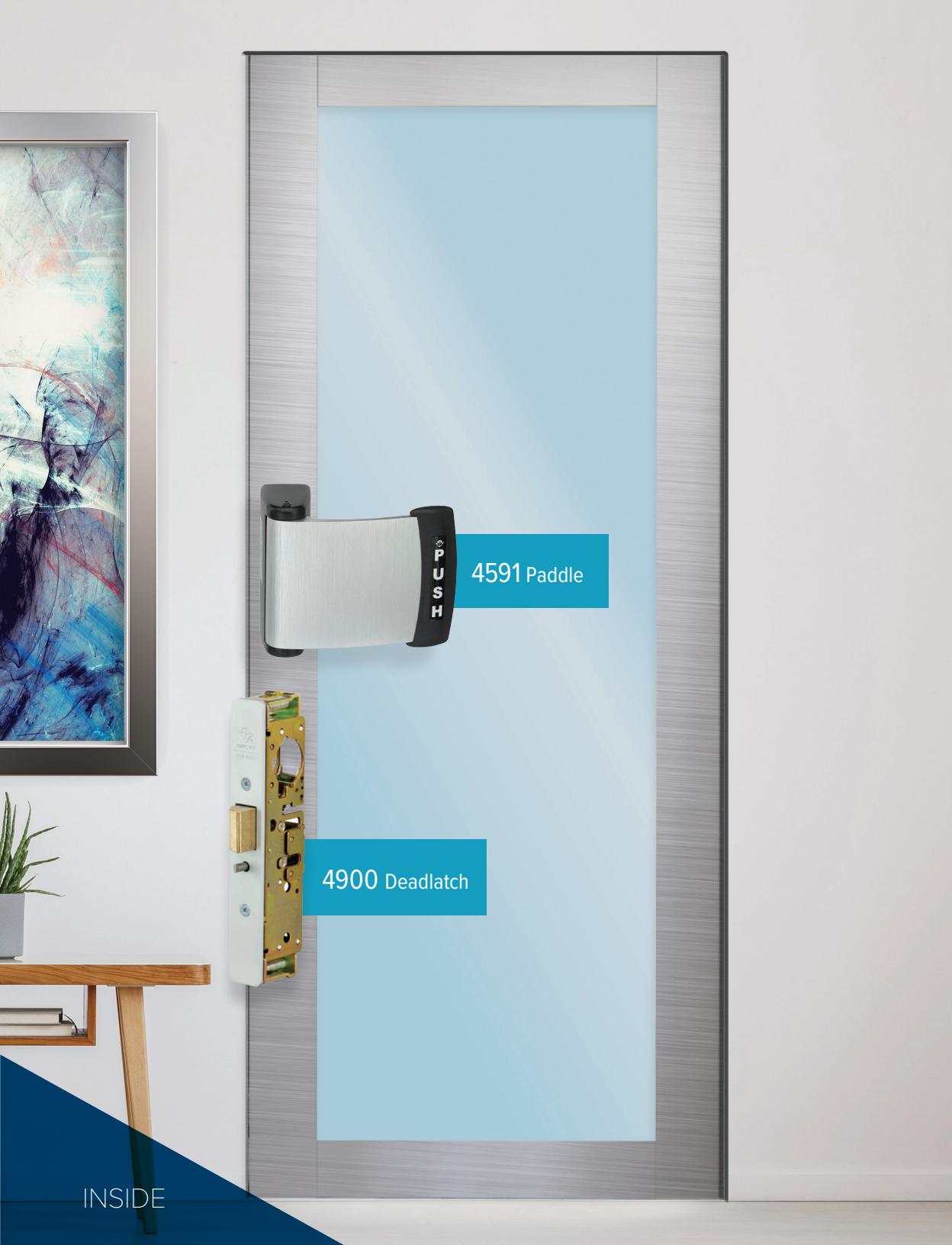

A 4591 Paddle operates the latchbolt only while the deadbolt remains locked.
OUTSIDE
Preload Capable Electric Strike
The UltraLine 7400 Electric Strike features an ultracompact design and an adjustable stainless steel split-jaw with 1500 lbs. of holding force in fail-secure mode and will release electrically with up to 25 lbs. of door "preload". Operates a 4510 Deadlatch. Frame installation of the 7400 Electric Strike provides an easy electrification upgrade. Securitron
7400
Rockwood RM2230
313 DARK BRONZE ANODIZED FINISH
Electrified Entry Trim
The battery-operated eForce® 3090-150 provides basic access control for openings that don't require an audit trail. It can accommodate up to 150 users and features an outdoor-rated keypad. Operates with a 4900 Heavy Duty Deadlatch.
628 CLEAR ANODIZED FINISH
4036 Cylinder
3090 Keyless Entry Trim
Exit Device

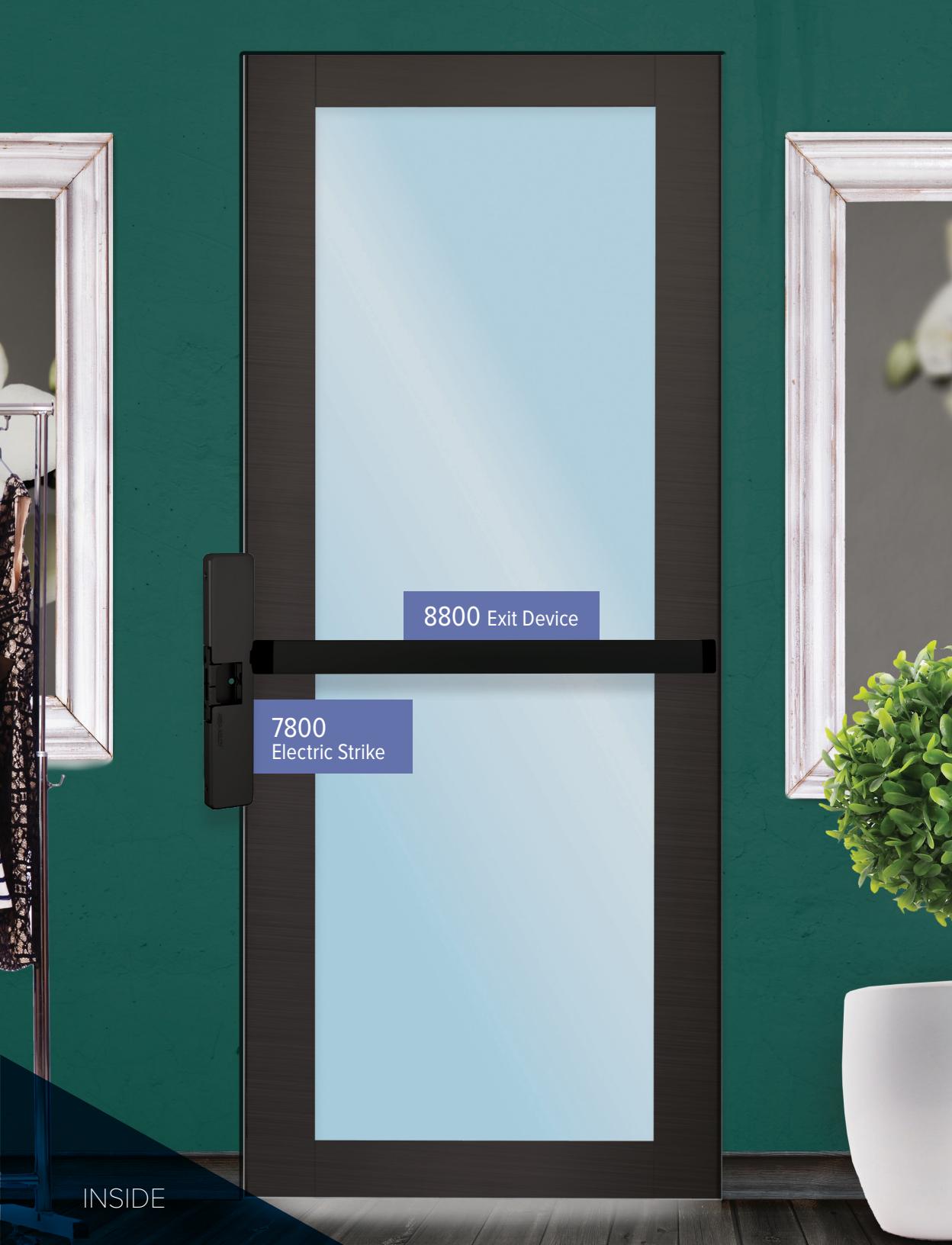

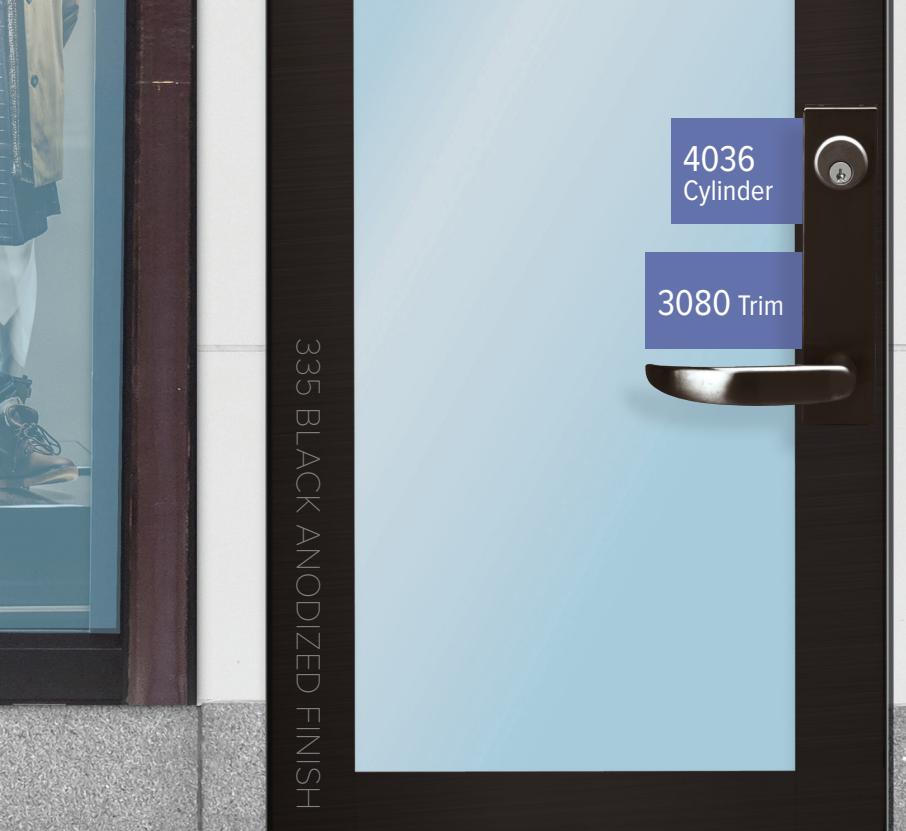

The 8800 Series Starwheel Rim Exit Device features a unique bolt design that interlocks the door to frame for enhanced strength and durability and prevents jamb spreading. Ideal for perimeter and high traffic applications. Compatible with a 7800 Electric Strike and 3080 Entry Trim to provide a fully electrified, aesthetic, and costeffective retrofit solution without modifying the door.
Adams Rite Practical Solutions for Narrow Stile Aluminum Applications
The following is a list of part numbers specific to the solutions included in this brochure. Adams Rite offers a wide range of products for aluminum, hollow metal or wood doors. Please see the Adams Rite catalog to order the compatible model for your door application. For questions regarding code compliance contact your local AHJ.
| DOOR & FINISHES | BRAND | PRODUCT | PART NUMBER |
|---|---|---|---|
|
Mechanical
Deadlock 335 – Black Anodized Finish |
Adams Rite | MS1850S Series MS® Deadlock | MS1850S-310-335 (with straightbolt, 1-1/8" backset) |
| 4550 MS® Deadlock Lever | 4550-R-01-119 (RH, 1-3/4 to 2" backset, 119 finish to match) | ||
| 4036 Mortise Cylinder | 4036-01-01-335 | ||
| Rockwood | Offset Door Pull |
RM2230US10BE (8" CTC, aluminum door, std
door thickness 1-3/4", 10BE finish to match) |
|
|
Interconnected
Deadbolt/ Deadlatch with Trim 313 – Dark Bronze Anodized Finish |
Adams Rite |

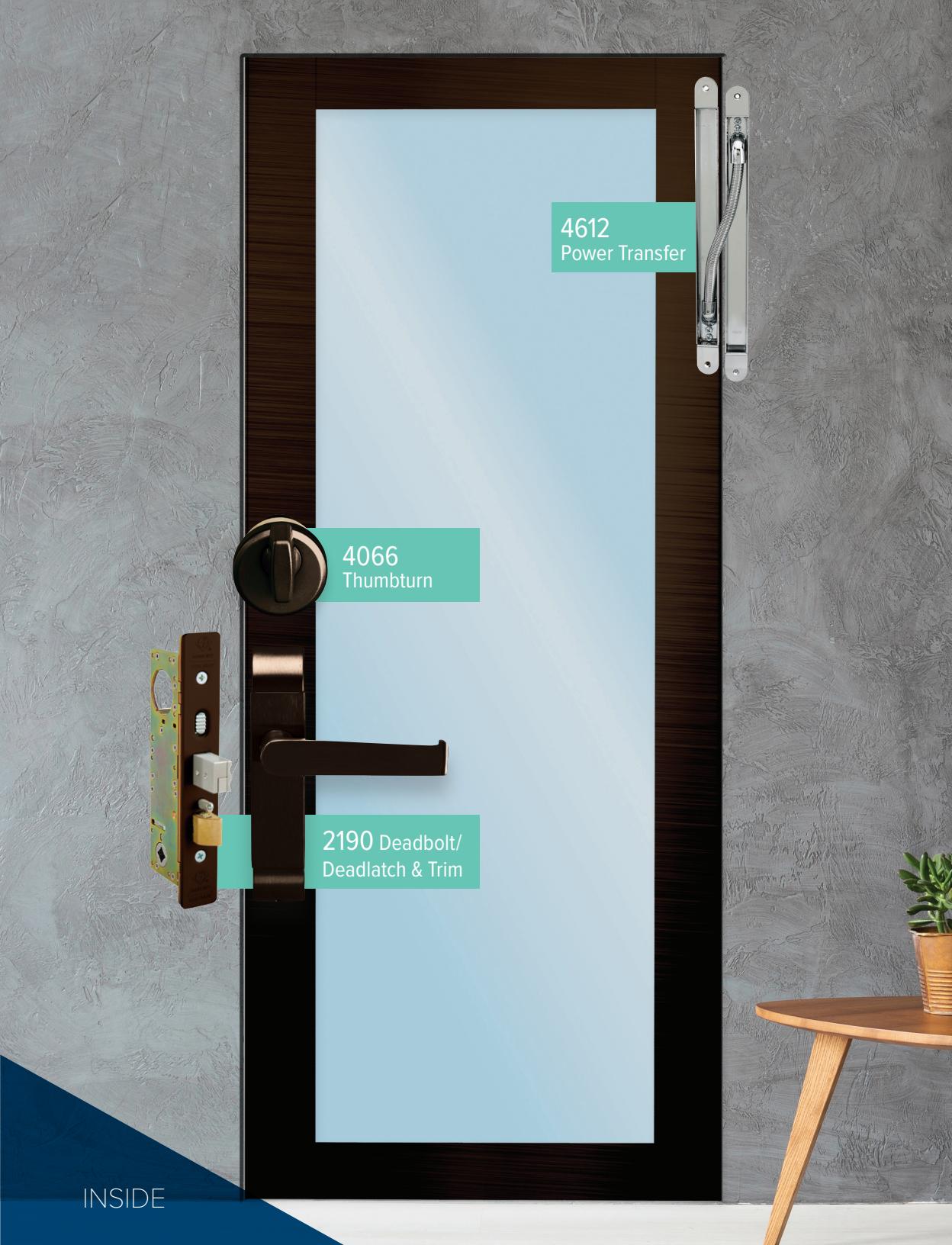

2190 Dual Force® Interconnected
Deadbolt/Deadlatch |
2190-412-201-10B (1-1/2" backset with
electrified trim set, 10B finish to match) |
| 4036 Mortise Cylinder | 4036-01-01-313 | ||
| 4066 Thumbturn | 4066-01-313 | ||
| 4612 Power Transfer | 4612-1 | ||
| PS-1 Power Supply | PS-1 | ||
| Securitron | Securitron DK-37 Narrow Stile Wiegand Keypad | DK-37WBK (Black finish) | |
|
Electrified
Deadlatch 628 – Clear Anodized Finish |
Adams Rite | 4300 Steel Hawk® Electrified Deadlatch | 4300-30-101-628 (1-1/8" backset) |
|
4600 Heavy Duty Designer Deadlatch
Handle (with Fixed Lever) |
4600MV-612-US32D (1-3/4" to 1-7/8" backset, RH) | ||
| DTK-4600 Fixed Lever Dummy Kit | DTK-4600 | ||
| 4036 Mortise Cylinder | 4036-01-01-628 | ||
| 4591 Deadlatch Paddle | 4591-02-00-628 | ||
| 4612 Power Transfer | 4612-1 | ||
| PS-1 Power Supply | PS-1 | ||
| Securitron | Securitron R100 Wireless Reader with Aperio® Hub | R100-IPS-B (Black finish) | |
|
Mechanical
Deadlock/ Deadlatch 335 – Black Anodized Finish |
Adams Rite | MS+1890 Series MS® Deadlock/Deadlatch | MS+1890-301-6-335 (1-18" backset, RH) |
| 4591 Deadlatch Paddle | 4591-13-00-335 (1-3/4" backset, RHR) | ||
| 4036 Mortise Cylinder | 4036-01-01-335 | ||
| 4591 Deadlatch Paddle | 4591-12-00-335 (1-3/4" backset, RHR) | ||
| 4066 Thumbturn | 4066-01-335 | ||
|
Preload Capable
Electric Strike 313 – Dark Bronze Anodized Finish |
Adams Rite | 7400 Series Electric Strike | 7400-313 |

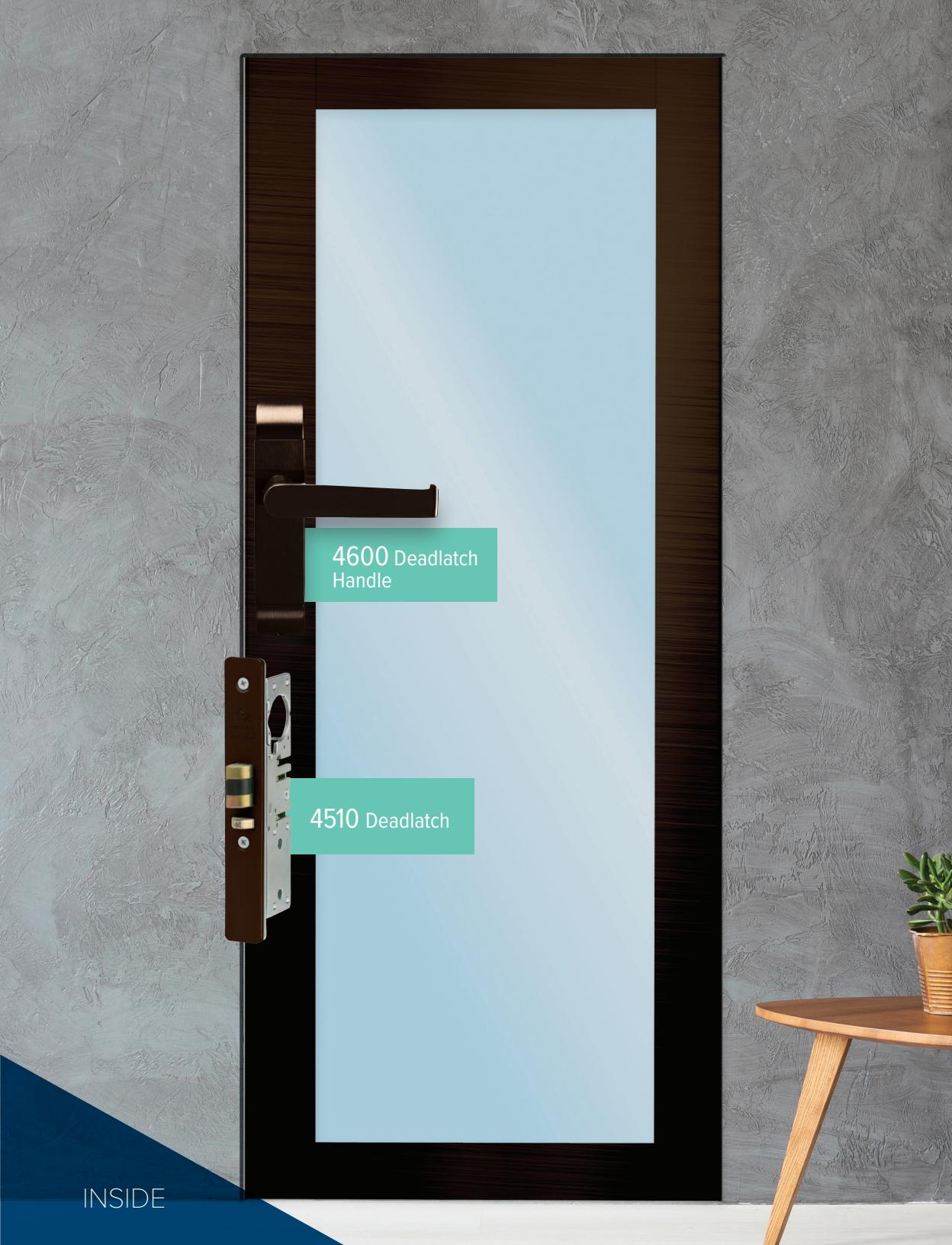

| 4510 Standard Duty Deadlatch | 4510-36-101-313 (1-1/8" backset, RH) | ||
| 4600 Heavy Duty Designer Deadlatch Handle | 4600MV-612-10B (1-3/4" to 1-7/8" backset, RH, 10B finish to match) | ||
| PS-1 Power Supply | PS-1 | ||
| Securitron | Securitron DK-37 Narrow Stile Wiegand Keypad | DK-37WBK (Black finish) | |
| Rockwood | Offset Door Pull |
RM2230US10BE (8" CTC, aluminum door, std
door thickness 1-3/4", 10BE finish to match) |
|
|
Electrified
Entry Trim 628 – Clear Anodized Finish |
Adams Rite | 3090 eForce® Keyless Entry Trim | 3090-01-626 (Satin Chrome finish) |
| 4900 Heavy Duty Deadlatch | 4900-36-101-628 (1-1/8",RH) | ||
| 4036 Mortise Cylinder | 4036-01-01-628 | ||
| 4591 Deadlatch Paddle | 4591-12-00-628 (1-3/4" backset, RHR) | ||
|
Exit Device
335 – Black Anodized Finish |
Adams Rite | 8800 Series Starwheel Rim Exit Device | 8803-36-24 (36" width, 24V) |
| 7800 Series Electric Strike | 7800-BSP (Black Suede Powder finish) | ||
| 3080 Series Entry Trim |
3080-01-0-370M10B (standard curve handle,
no handing, for Rim Exit Device, 10B finish to match) |
||
| PS-1 Power Supply | PS-1 | ||
| 4036 Mortise Cylinder | 4036-01-01-335 | ||
| Securitron | Securitron R100 Wireless Reader with Aperio® Hub | R100-IPS-B (Black finish) |
