Adams Rite MS+1890 Deadlocks Installation Instructions

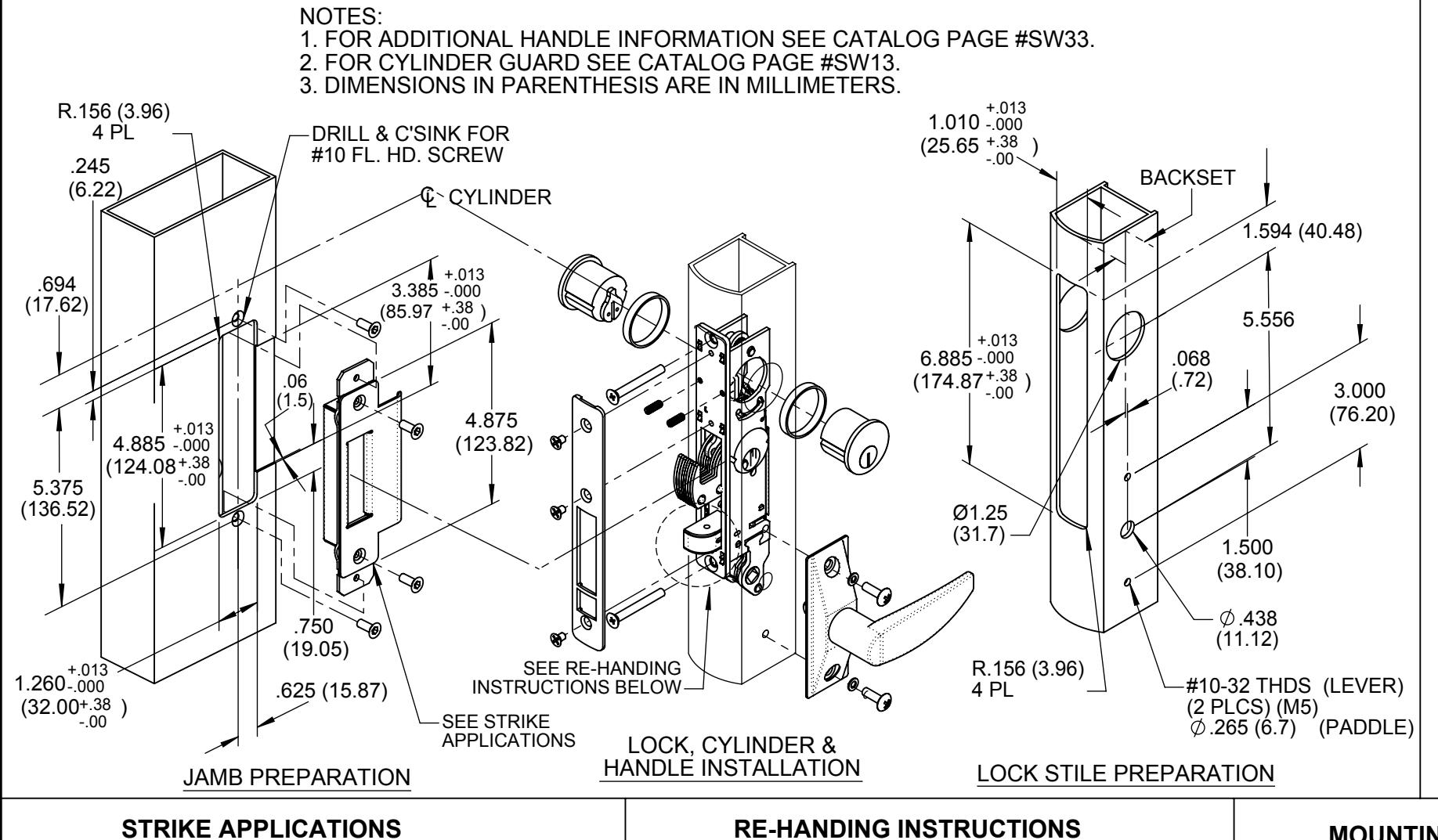

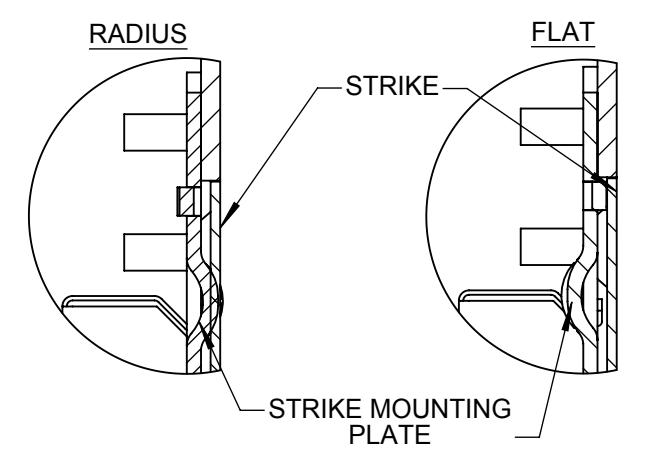

STRIKE MOUNTING PLATE TO BE INSTALLED AS SHOWN WHEN USED ON FLAT JAMB SECTION.

RADIUS: STRIKE MOUNTING PLATE IS TO BE INSTALLED AS SHOWN WHEN USED ON RADIUSED PAIR OF DOORS. (INACTIVE LEAF)

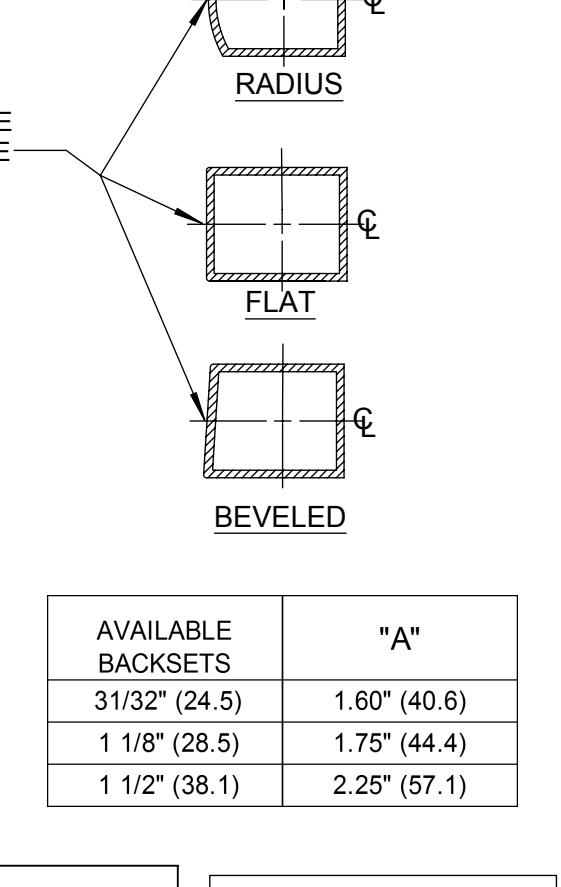

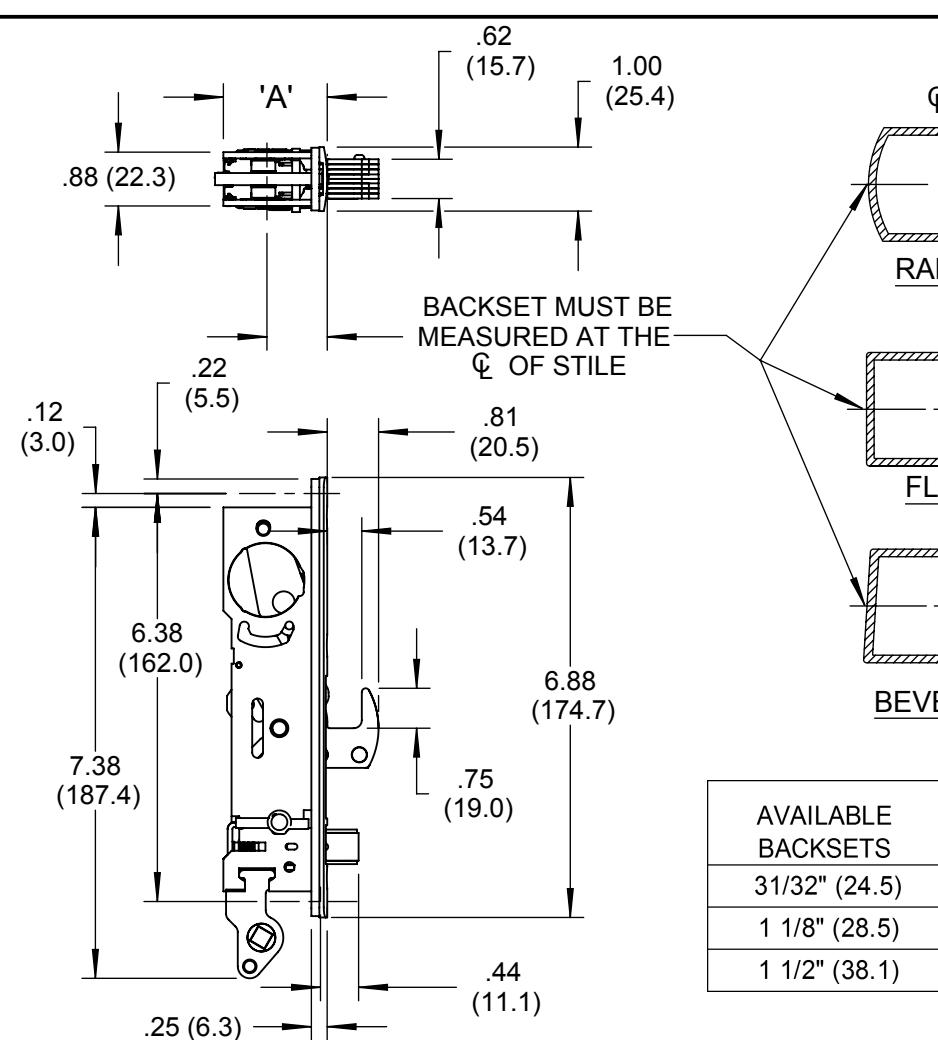

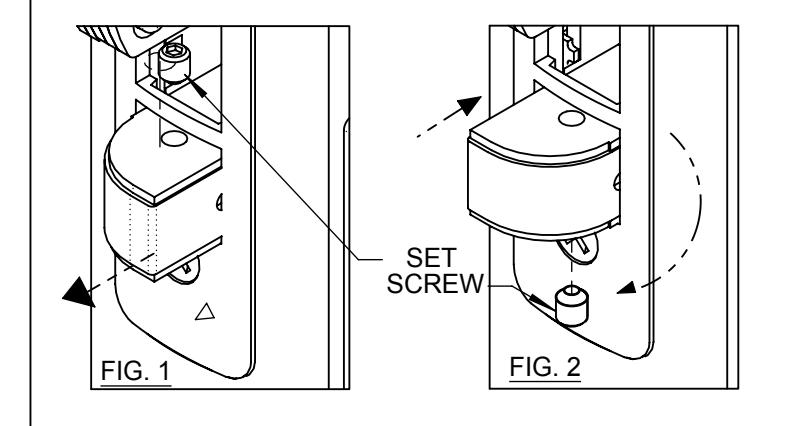

• USING ALLEN HEX KEY, LOOSEN THE SET SCREW AND REMOVE THE BOLT (FIG. 1)
• ROTATE 180°, INSTALL IT BACK AND RE-TIGHTEN THE SET SCREW (FIG. 2)

MOUNTING METHODS

4104 FOR MOUNTING INSTRUCTIONS SEE CATALOG PAGE #SW100

METHOD #1

METHOD #2

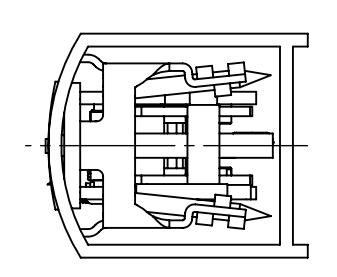

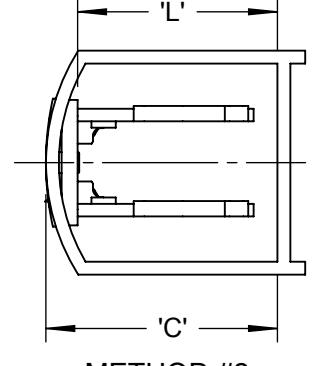

LOCK IS SECURED TO BACK WEB OF STILE BY MEANS OF #10 (M4) FLAT HEAD MACHINE SCREWS & TUBE SPACERS OF PROPER LENGTH TO POSITION LOCK FOR TUBE SPACER LENGTH (L) USE THE FOLLOWING FORMULA:

L = C - .25 (6.35)

SCREWS FURNISHED WILL BE APPROX. 1/4" LONGER THAN THE SPACER.

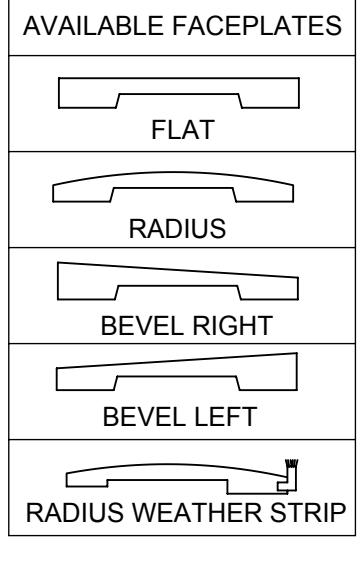

* MINIMUM SINGLE ACTION GAP 1/8" (3.1) WHEN USING WEATHER SEAL FACEPLATE

Adams

ASSA ABLOY

www.adamsrite.com Phone: 800-626-7590 800-872-3267 Fax: 866-582-4641 800-232-7329

INSTALLATION INSTRUCTION MS+1890 SERIES

80-0180-9

Rev. D

ECN: 11955B

Date: 07/06/12

INSTALLATION INSTRUCTIONS

Appvd: MP Date: 07/06/12 Page 1 of 1
