DIMENSIONS INCHES MILLIMETERS Nominal, subject to tolerance extremes. . 719 18.26 THROW 8.125 206.37 1.50 38.1 MS1881 MS1880 . 719 18.26 THROW

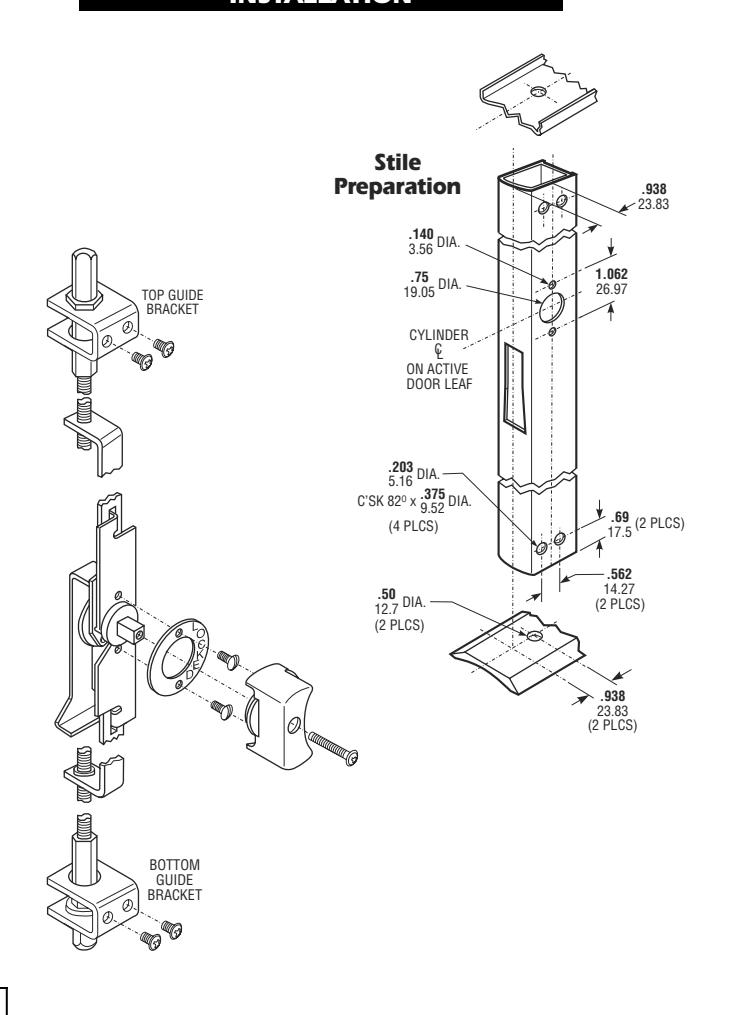

INSTALLATION

260 Santa Fe Street, Pomona, CA 91767 Phone: (909) 632-2300 Fax: (909) 632-2369

MS1880, 1881 Two-Point Flushbolt
