Adams Rite MS1861 Deadlocks Installation Instructions

Open the original PDF document

UNIT ILLUSTRATED IS MS1861-02 (BOTH HORIZONTAL & VERTICAL BOLTS INCLUDED). CATALOG NUMBER FOR VERTICAL BOLT OPERATION

ONLY IS MS1861-01, CONVERSION KIT NO. 4014 AVAILABLE TO CONVERT

[4.6±0.127] MS1861 SERIES LOCKS ARE OPERABLE BY ANY STANDARD 1 5/32" (29.3) DIAMATER MORTISE CYLINDER WITH SPECIAL MS CAM DIMENSIONED AS ABOVE. CYLINDERS WITH MS CAMS CAN BE READILY OBTAINED FROM MOST CYLINDER MANUFACTURERS.

.80±.005

[20.3±0.127]

R.120±.005

[3.04±0.127]

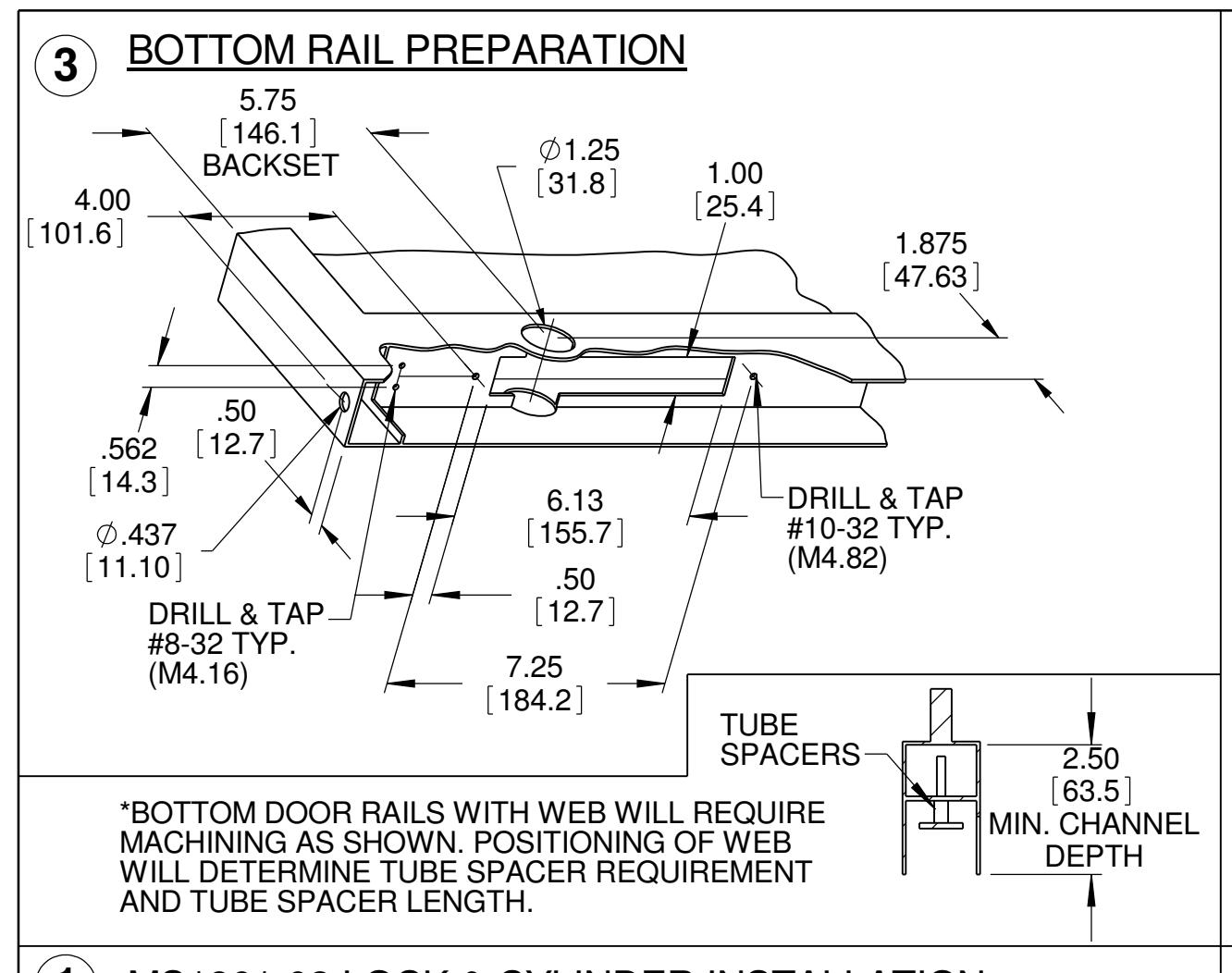

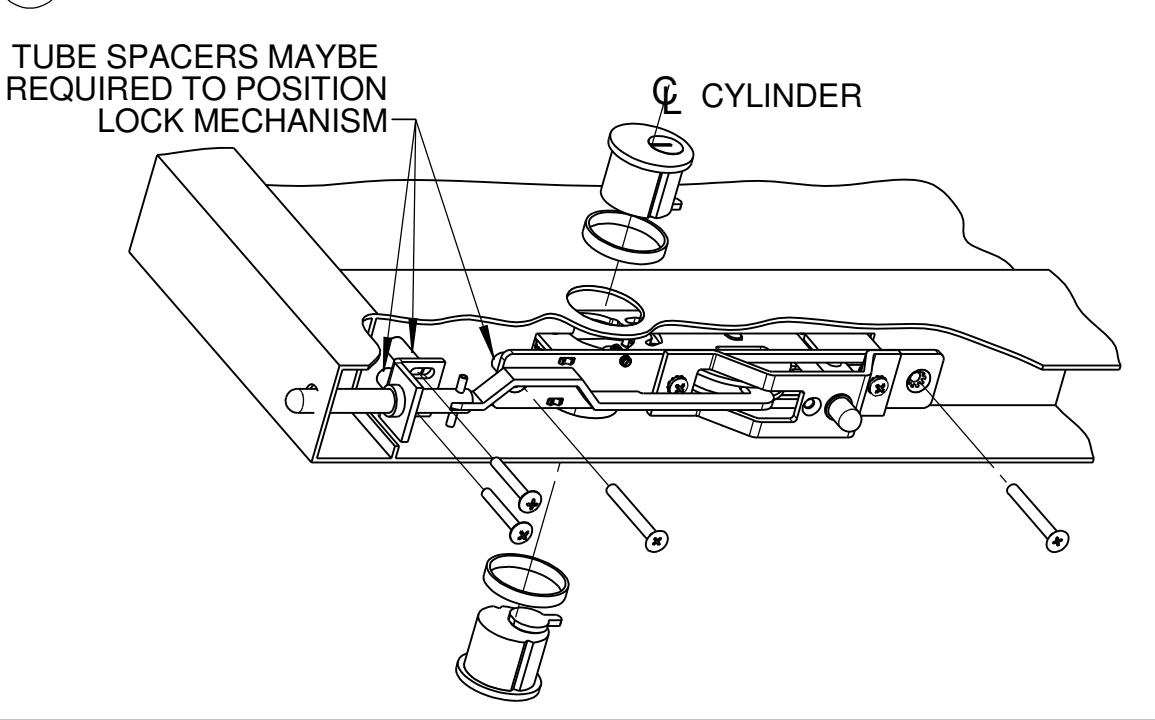

1 MS1861-02 LOCK & CYLINDER INSTALLATION

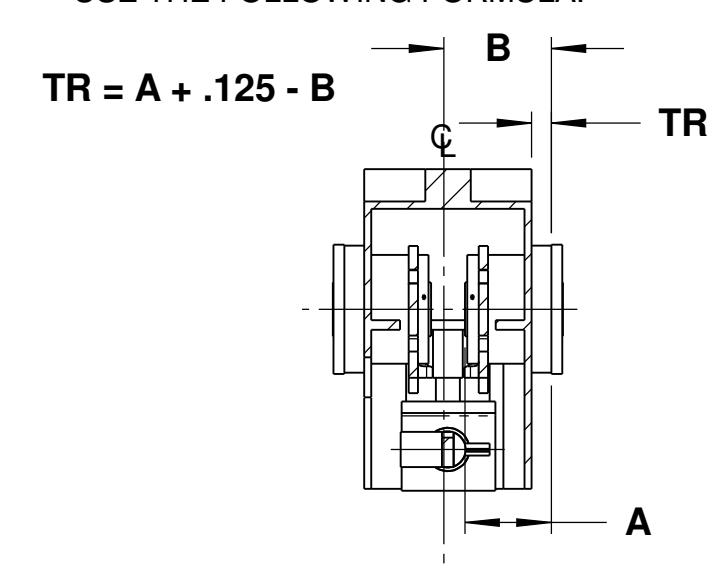

TRIM RING THICKNESS (TR) WILL VARY WITH SPECIFIC CYLINDER MAKE, NUMBER, OF PINS, & BOTTOM RAIL THICKNESS. TO DETERMINE TRIM RING THICKNESS. USE THE FOLLOWING FORMULA.

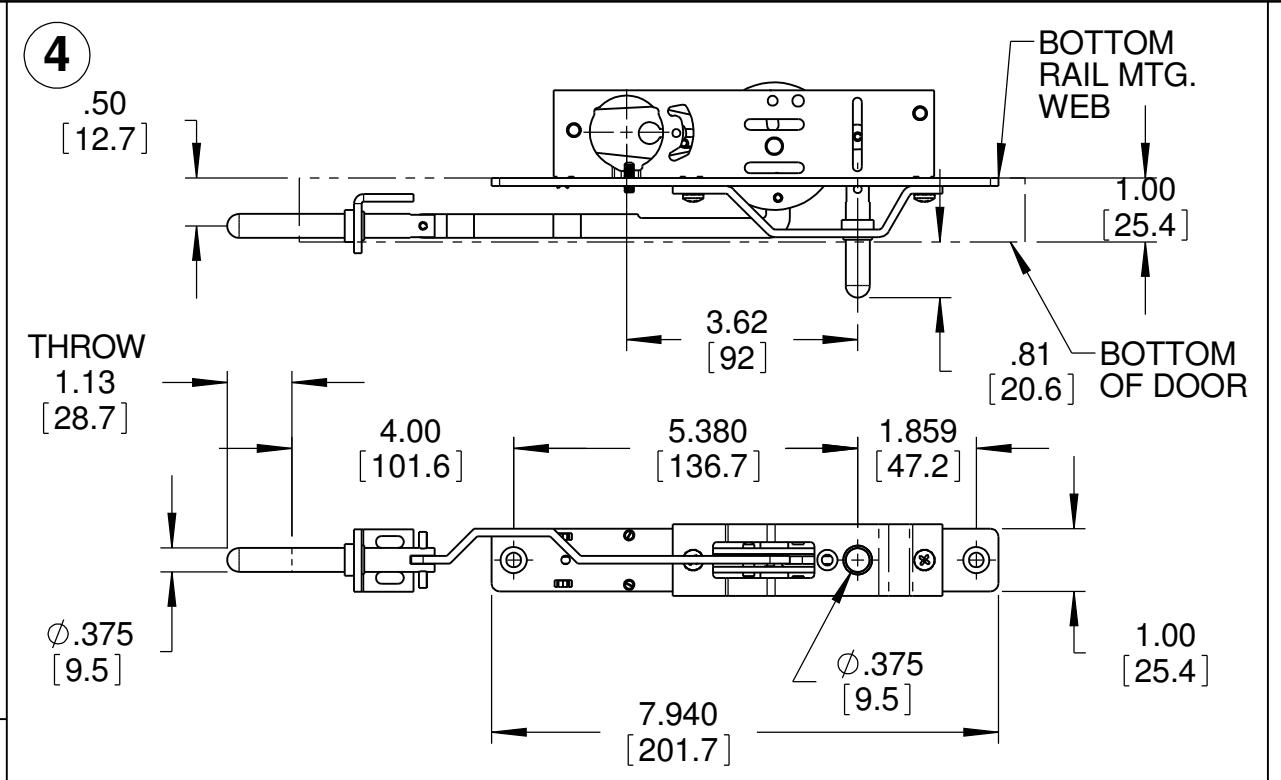

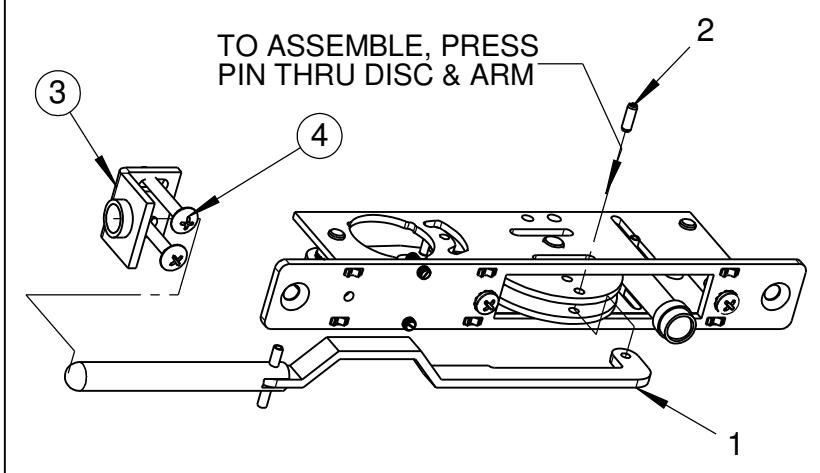

(5) 4014 CONVERSION KIT CONSISTS OF:

₩

.182±.005

1) ARM & BOLT ASSY.
2) ASSEMBLY PIN
3) BOLT GUIDE BRACKET
4) MOUNTING SCREWS

MS1861 SERIES DEADLOCK INSTALLATION INSTRUCTIONS

NOTE:

MS1861-01 TO MS1861-02. SEE SECTION 5 BELOW.

80-0180-7 Re

Rev. B

ECN: 11017

Date: 02/14/07

Page 1 of 1

Appvd:

Date:
