Exit Device Cut Down Matrix

CUT DOWN PROCESS

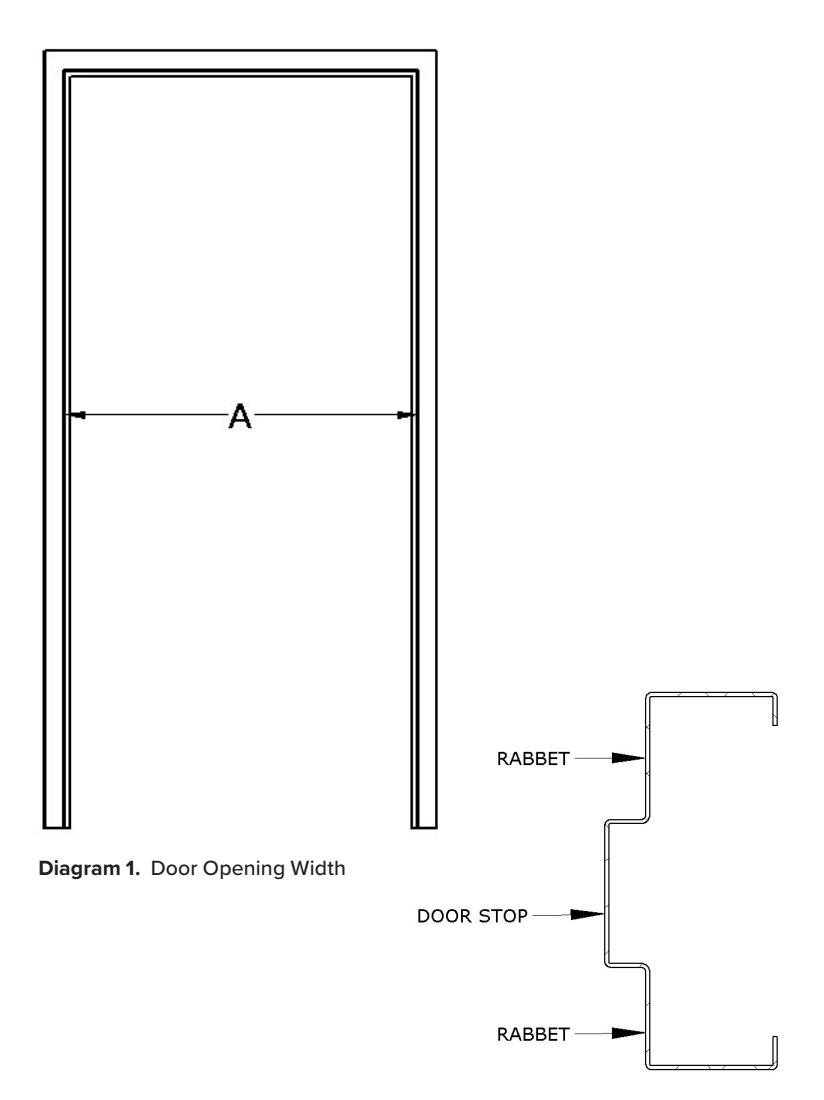

  • 1. Measure door opening width. (Diagram 1) NOTE: Dimension A is measured from Rabbet in frame, not door stop. (Diagram 2)
  • 2. Select Product Series from provided table.
  • 3. Find Standard Door Opening Width that is closest to your measurement (30", 36", 42", 48").
    • Decide how the exit device will be configured with electrification and/or monitoring options.
  • 4. Check if your measured opening width is equal to, or greater than, any of the minimum possible widths for the desired exit configuration.
    • If your measured door opening width is less than the minimum possible width for that exit device configuration, check other possible options. If no options are found, the exit device cannot be cut to fit on that opening.
  • 5. Take your standard door opening width and subtract your measured opening width. The difference will be the length measured from the edge of the back-bar/ push-bar to cut off and scrap. (Diagram 3) NOTE: Standard Door Opening Width minus Measured Door Opening Width equals the DIM "B" cut off amount.

Diagram 2. Rabbet and Blade Stop

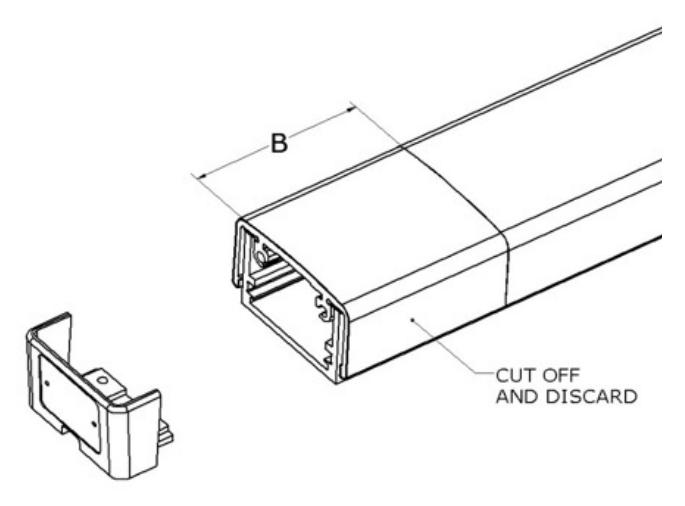

Diagram 3. Cutting Dimensions and Reference

MINIMUM DOOR WIDTHS BREAKDOWN

MINIMUM DOOR OPENING POSSIBLE
(inches)
MLR** STD, LR,** EL** ALARM
Product Series Standard
Door Opening 		NO Monitor WITH Monitor NO Monitor WITH Monitor NO Monitor
3100, 8100 30 N/A N/A N/A N/A N/A
36 N/A N/A 31-5/8 33-1/8 32
42 36-5/8 39-1/8 36 36 36
48 44-3/8 46-7/8 42 42 42
8200, 8600 30 27-3/8 N/A 26-3/4 28-1/4 N/A
36 33-5/8 N/A 30 30 30
42 36 36-1/8 36 36 36
48 42 43-7/8 42 42 42
3300 30 N/A N/A N/A N/A N/A
36 N/A N/A 31-5/8 33-1/8 32
42 36-5/8 39-1/8 36 36 36
48 44-3/8 46-7/8 42 42 42
8300 30 N/A N/A N/A N/A N/A
36 N/A N/A 31-5/8 33-1/8 32
42 36-5/8 39-1/8 36 36 36
48 44-3/8 46-7/8 42 42 42
8400-2 (31/32)*
8400-3 (1-1/8)* 		30 27-1/4 N/A 26-3/4 28-1/4 N/A
36 33-5/8 N/A 30 30 30
42 36 36-1/8 36 36 36
48 42 43-7/8 42 42 42
8400-4 (1-1/2)* 30 28-5/8 28-5/8 28-1/8 N/A N/A
36 33-1/8 N/A 30 31-3/8 32
42 36 37-3/8 36 36 36
48 42-5/8 45-1/8 42 42 42
8500, 8900,
3600, 3900 		30 N/A N/A N/A N/A N/A
36 N/A N/A 30 31-3/8 32
42 36-5/8 39-1/8 36 36 36
48 44-3/8 46-7/8 42 42 42

* Cut down available for specified backset only. **Feature is optional add-on built into exit device.

MINIMUM DOOR WIDTHS BREAKDOWN

MINIMUM DOOR OPENING POSSIBLE
(inches)
MLR STD, LR, EL
Product Series Standard
Door Opening 		NO Monitor WITH Monitor NO Monitor WITH Monitor NO Monitor
3700 30 N/A N/A 28-5/8 N/A N/A
36 33-5/8 N/A 30-3/8 31-7/8 32
42 36 37-7/8 36 36 36
48 43-1/8 45-5/8 42 42 42
8700 30 28-1/2 28-1/2 28 N/A N/A
36 33 N/A 30 31-1/4 32
42 36 37-1/4 36 36 36
48 42-1/2 45 42 42 42
8800 30 27-1/4 N/A 26-3/4 28-1/4 N/A
36 33-1/2 N/A 30 30 30
42 36 36 36 36 36
48 42 43-3/4 42 42 42
8700ELD 30 N/A N/A
36 30 31-1/4
42 36 36
48 42 42
8800ELD 30 N/A N/A
36 30 30
42 36 36
48 42 42
8099-4 30 28-1/8 N/A
36 30 31-3/8
42 36 36
48 42 42
8099-3 30 26-3/4 28-1/4
36 30 30
42 36 36
48 42 42
