Adams Rite Electric Strikes Overview Brochure
Open the original PDF document
View PDF
Full line of electric strikes and related hardware
Adams Rite provides a rounded range of electric strikes compatible with deadlatches, cylindrical and mortise locksets, and rim exit devices in aluminum, hollow metal, and wood applications. From basic, cost-efficient Grade 1 electric strikes to premium preload-capable Ultraline® Series, and with an extensive range of options and finishes, Adams Rite has the electric strike to fit any need with unmatched dependability.
adamsrite.com/electricstrikes
7100 Series
for Adams Rite Deadlatches and Cylindrical Locksets
- ⊲ Designed for use with Adams Rite 4500 and 4900 Series deadlatches and an array of cylindrical locksets with 1/2" to 5/8" latchbolt projection
- ⊲ Factory configured and field selectable fail safe / fail secure
- ⊲ Faceplates available in a variety of size, shape, architectural finishes
Related Products
Deadlatches Exit Devices Power 4510, 4530, 4900, 4920AN Series
8300, 8400 Mortise
PS-1: Provides filtered and regulated voltage output to power electric strikes.

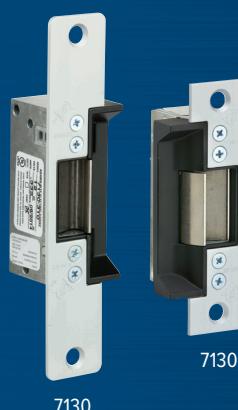

7130
Power Accessories
4605 & 4606 Transformer, 4603 Rectifier, 29-0218 Piezo Horn

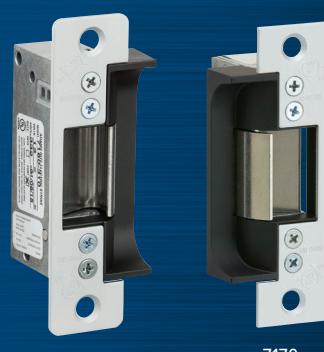

7160, 7170 Series
for Mortise or Cylindrical Locksets
- ⊲ Designed for use with mortise or cylindrical type locksets with up to ¾" latchbolt projection without deadbolt
- ⊲ Factory configured and field selectable fail safe / fail secure
- ⊲ Faceplates available in a variety of size, shape, architectural finishes
Related Products
PS-1: Provides filtered and regulated voltage output to power electric strikes.
Power Power Accessories
4605 & 4606 Transformer, 4603 Rectifier, 29-0218 Piezo Horn 7160 7170
7200 Series
Fire-Rated for Mortise or Cylindrical Locksets
- ⊲ 7240 is designed for cylindrical locksets with up to 5/8" latchbolt projection
- ⊲ 7270 is designed for mortise or cylindrical locksets with up to 3/4" latchbolt projection without deadbolt.
- ⊲ Assembled and fire-rated in fail secure mode only.
Related Products
PS-1: Provides filtered and regulated voltage output to power electric strikes.
Power Power Accessories
4605 & 4606 Transformer, 4603 Rectifier, 29-0218 Piezo Horn
UltraLine® 7400 Series
- ⊲ Designed for use with Adams Rite 4500 and 4900 Series deadlatches and an array of cylindrical locksets with 1/2" to 5/8" latchbolt projection
- ⊲ Opens electrically under 25 lbs of preload
- ⊲ Dual voltage 12/24 VDC
- ⊲ Field selectable fail safe / fail secure
- ⊲ Faceplates available in a variety of size, shape, architectural finishes
Related Products
Deadlatches Exit Devices Power 4510, 4530, 4900, 4920AN Series 8300, 8400 Mortise
PS-1: Provides filtered and regulated voltage output to power electric strikes.

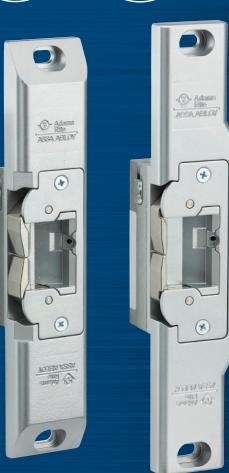

7401
Power Accessories
4605 & 4606 Transformer, 4603 Rectifier, 29-0218 Piezo Horn
UltraLine® 74R1, 74R2 Series
for Rim Exit Devices with Pullman Latchbolts
- ⊲ 74R1 is designed for use with rim exit devices with ¾" Pullman latchbolts
- ⊲ 74R2 is designed for narrow stile rim exit devices with ½" Pullman latchbolts.
- ⊲ Opens electrically under 25 lbs of preload
- ⊲ Dual voltage 12/24 VDC
- ⊲ Field selectable fail safe / fail secure
- ⊲ Faceplate is not separate
Related Products
EX89 Pullman Rim Exit Device
PS-1: Provides filtered and regulated
voltage output to power electric strikes.
Exit Devices Power Power Accessories 4605 & 4606 Transformer,
4603 Rectifier, 29-0218 Piezo Horn
74R1 74R2

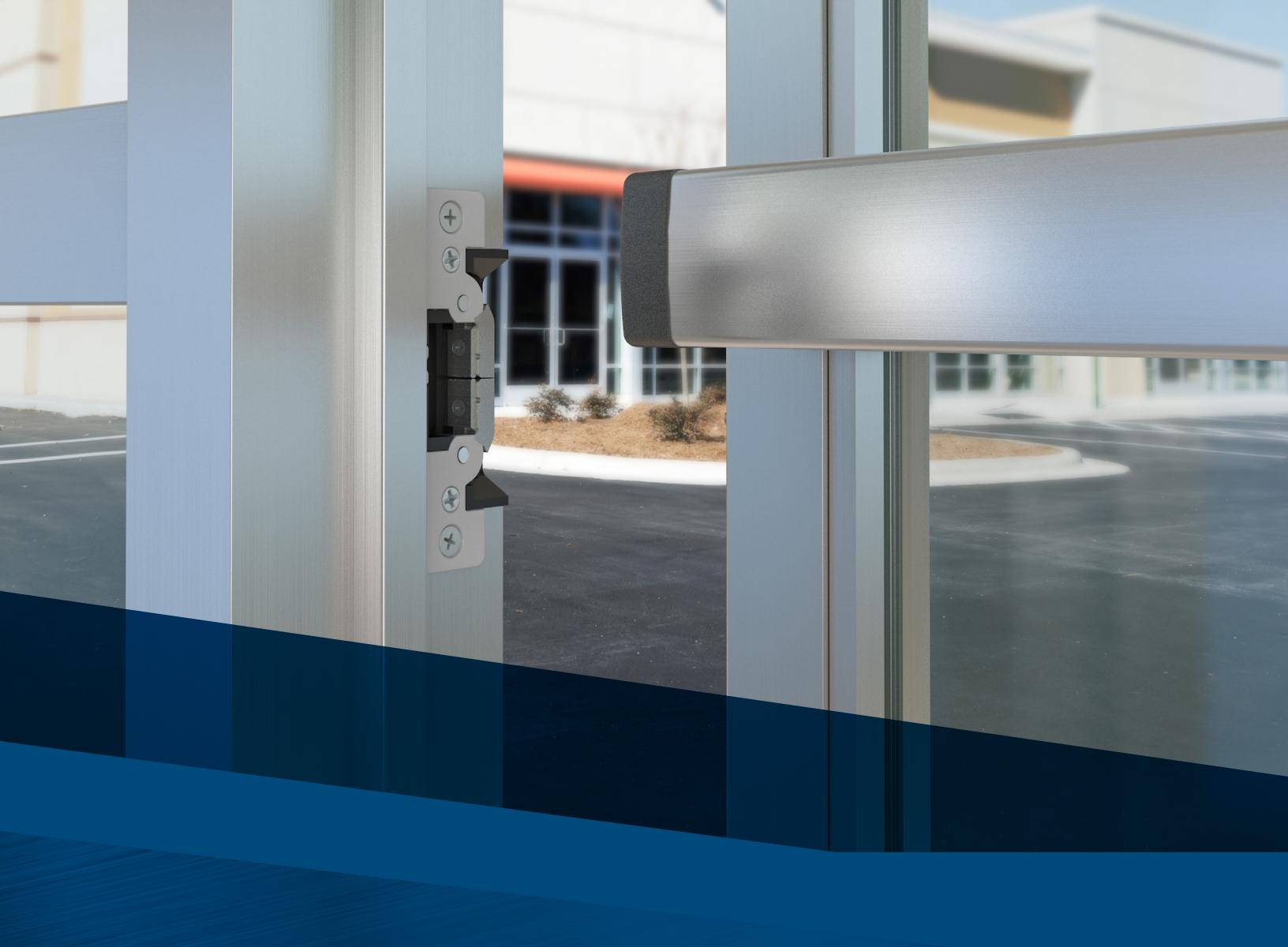

About Preload
Preload is pressure exerted on a door, often by air conditioning systems, warping, or misaligned hardware, which can disable common electric strikes leaving doors unlocked and a building vulnerable.
With a robust and compact design featuring adjustable stainless steel split-jaws and over 1500 lbs of holding force, UltraLine 7400 Series Electric Strikes can release electrically with up to 25 lbs of door preload.
Using jaw inserts of various sizes, the UltraLine Series are adjustable to compensate for door and frame related preload and security problems.
7800 Series (1) (outdoor Rated)
for Rim Exit Devices with Starwheel/Interlocking Type Latchbolts
- ▶ Designed for use only with Adams Rite rim exit devices with a Starwheel or Interlocking latchbolt
- ▶ Dual voltage 12/24 VDC
- ► Field selectable fail safe / fail secure
- ► Faceplate available in a variety of architectural finishes
Related Products
Exit Devices 8700, 8800, EX88 Rim Exit Devices
Power
PS-1: Provides filtered and Starwheel/Interlocking regulated voltage output to power electric strikes.
Power Accessories 4605 & 4606 Transformer. 4603 Rectifier, 29-0218 Piezo Horn
7800
Options & Accessories
| Form 'C' Monitoring Switches | Indicates when latchbolt is engaged in the strike and whether the strike jaw is blocked. Not available on 7130/7131, 7140 |
| Lip Extension Kits | For various dimensions of door centerline to jamb edge; for flat faceplates only. Not available on 7101, 7131 |
| Modular Packaging | Match one strike body kit with one faceplate kit to make a complete electric strike. Faceplate kits contain all hardware to mount electric strike. Not available on 7200 Series. |
| ELX-ElectroLynx® Adapter | Connects Adams Rite electrified products to ElectroLynx system. Available only for 7400, 74R1, 74R2 Series. |
| 16 VDC Adapter | VA7400-16VDC required when using 16 VDC Power for 7400 Series. Available only for 7400, 74R1, 74R2 Series. |
| Wood Door Cover | WDC7400 for use when mounting the 7400 Series Electric Strike on the inactive leaf of a pair of doors. The cover simplifies the mortise prep. Available only for 7400, 74R1, 74R2 Series. |
| 7100 Series | 7160, 7170 | 7200 Series | 7400 Series | 74RX Series | 7800 | ||
|---|---|---|---|---|---|---|---|
|
All All All All All All All All All All | ||||||
| Aluminum |
7100/7101
7110/7111 7130/7131 |
7160 |
7400/7401
7410/7411 7430/7431 |
74R1
74R2 |
• | ||
| Hollow Metal, Wood Wood |
7110/7111
7140 |
7170 | ~ |
7410/7411
7440 |
74R1 | • | |
|
Surface Mounted –
no cutting required |
~ | ||||||
| Strike Body Depth | 1-5/8" | 1-7/8" |
7240: 1-5/8"
7270: 1-7/8" |
1-1/16" |
74R1: 1-1/16"
74R2: 1-1/8" |
9/16" (Installation
Template Available) |
|
| Application | Deadlatches 8 | ~ | * | ||||
| Appli | Cylindrical Lockset | ~ | ~ |
7240
7270 |
~ | ||
|
Mortise
Lockset |
~ | 7270 | |||||
|
Pullman
Rim Exit Device |
74R1 (1/2")
74R2 (3/4") |
||||||
| Starwheel/ Interlocking Rim Exit Device | • | ||||||
|
Holding
Force |
Static Strength | 1500 lbs | 1500 lbs | 1500 lbs | 1500 lbs | 1500 lbs | |
| 호호 | Dynamic Strength | 70 ft lbs | 70 ft lbs | 70 ft lbs | 70 ft lbs | 70 ft lbs | |
| Dual Voltage 12/24 | Must specify vol | tage when ordering: 7100, | 7160/7170, 7200 | * | * | ~ | |
| Electrical | 12 VDC / VAC Current Draw | 0.33A / 1.42A VAC | 0.33A / 1.42A VAC | 0.33A / 1.42A VAC | 0.44A | 0.44A VDC | 0.45A |
|
16 VDC Current Draw /
VAC Current Draw |
0.22A/0.63A VAC | 0.22A/0.63A VAC |
0.46A
Requires 16 DC adapter (P/N VA7400-16VDC) |
0.46A
Requires 16 DC adapter (P/N VA7400-16VDC) |
|||
|
24 VDC Current Draw /
VAC Current Draw |
0.17A / 0.74A VAC | 0.17A / 0.74A VAC | 0.17A / 0.74A VAC | 0.23A | 0.23A | 0.25A | |
|
Field Selectable
(Fail Secure/Fail Safe) |
~ | ~ |
Assembled
fail secure only |
* | * | ~ |
| 7100 Series | 7160, 7170 | 7200 Series | 7400 Series | 74RX Series | 7800 | ||
|---|---|---|---|---|---|---|---|
|
UL 1034 Burglary-Resistant
Listed (indoor) |
Check | Check | Check | Check | Check | ||
| Certifications & Listings |
UL 1034 Burglary-Resistant
Listed (outdoor) |
Check | Check | Check | |||
| UL 294 Listed | Check | Check | Check | Check | Check | ||
| UL 305 listed | Check | ||||||
| ANSI/BHMA A156.23 Grade 1 | Check | Check | |||||
| ANSI/BHMA A156.31, Grade 1 | Check | Check | Check | ||||
|
UL 10C Fire Rated
(3 hour single door) |
Check
fail secure only |
||||||
|
CAN/ULC-S104
Fire Door Conformant |
Check | ||||||
| Rohs Compliant | Check | ||||||
| Preload Capable | Check | Check | |||||
| Cycle Testing | 250 K | 250 K | 250 K | 250 K | 250 K | 1 M | |
| Finish Options | 7 (varies by model) | 4 | 1 | 7 (varies by model) | 3 | 7 | |
| Specifications | Monitoring Type (factory configured) |
Latchbolt +
Strike Status |
Latchbolt +
Strike Status |
Latchbolt +
Strike Status |
Latchbolt +
Strike Status |
Latchbolt +
Strike Status |
Latchbolt +
Strike Status |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years | 5 years | |
| Construction (bolt retaining keeper) | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | |
| Options | Lip Extension Kits | Check | Check | Check | Check | ||
|
Modular Packaging
(1 strike body kit + 1 faceplate kit) |
Check | Check | Check | ||||
| ELX-ElectroLynx® Adapter | Check | Check | |||||
| 16 VDC Adapter | Check | Check | Check | ||||
| Wood Door Cover | Check |
