Adams Rite 8800 Exit Device Trim 20146 Template

ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749

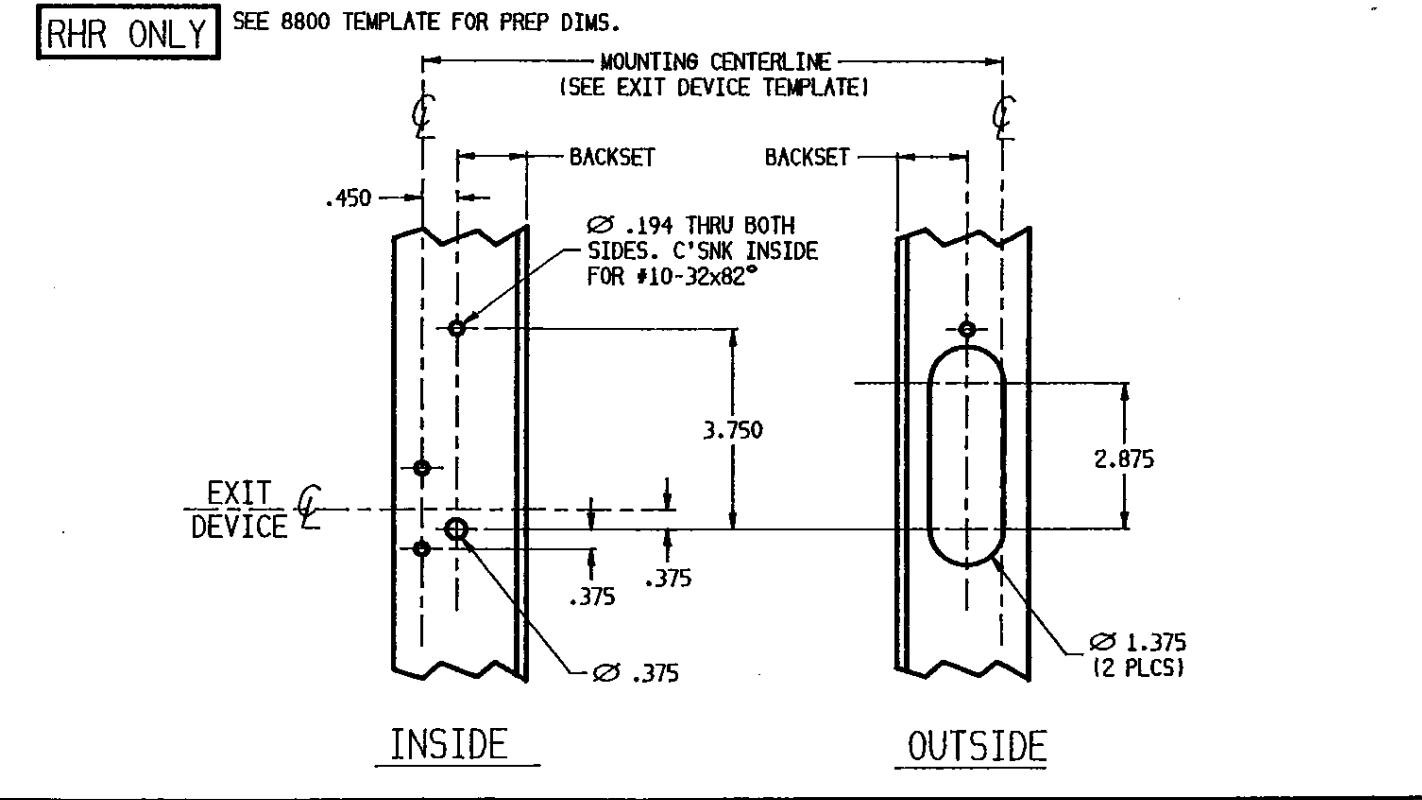

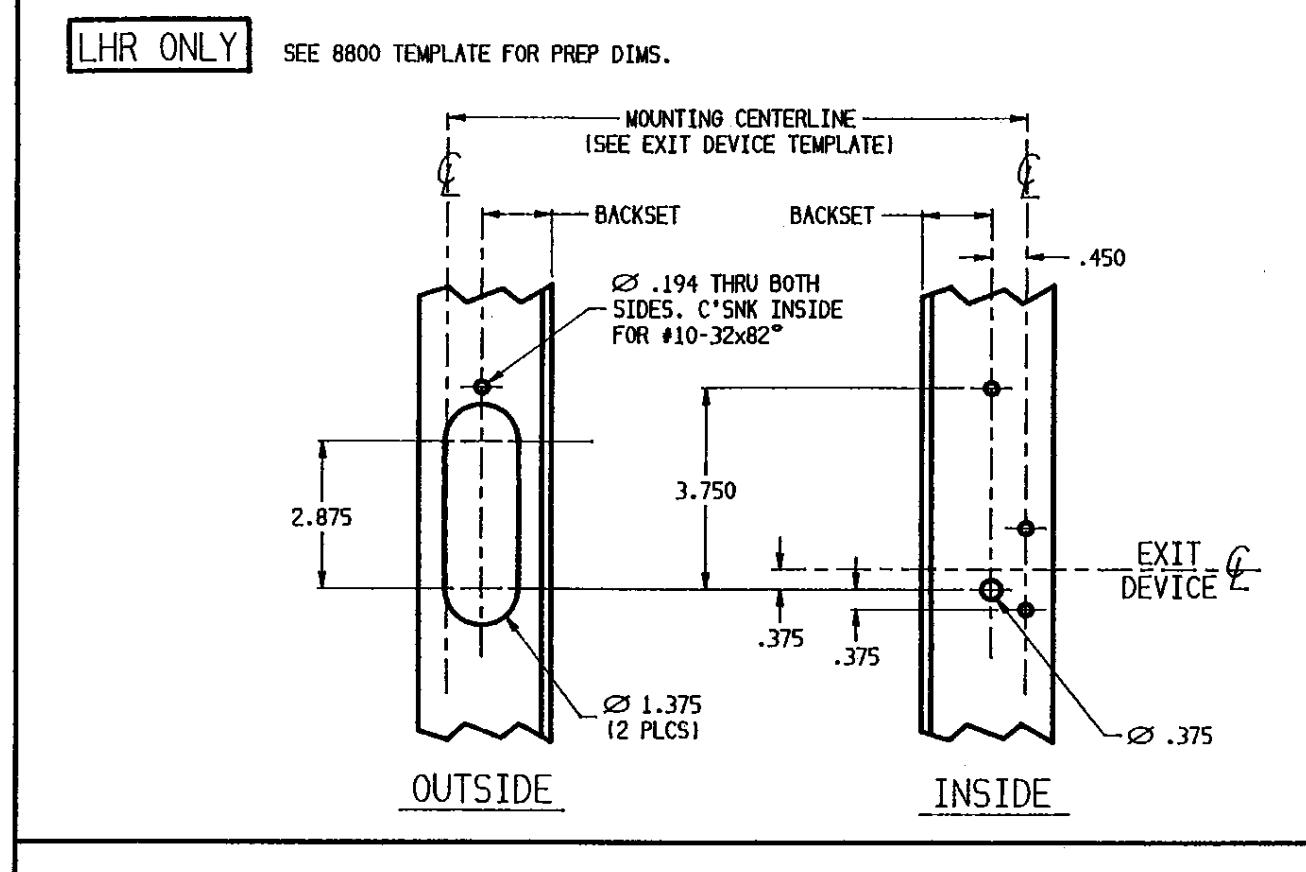

8066 ENTRY FUNCTION FOR 8800 RIM EXIT ALUMINUM DOOR PREPARATION

PART NO.

80-0180-30T

NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT

TEMPLATE NO.:

20146-0

DATE: 10/05/92
