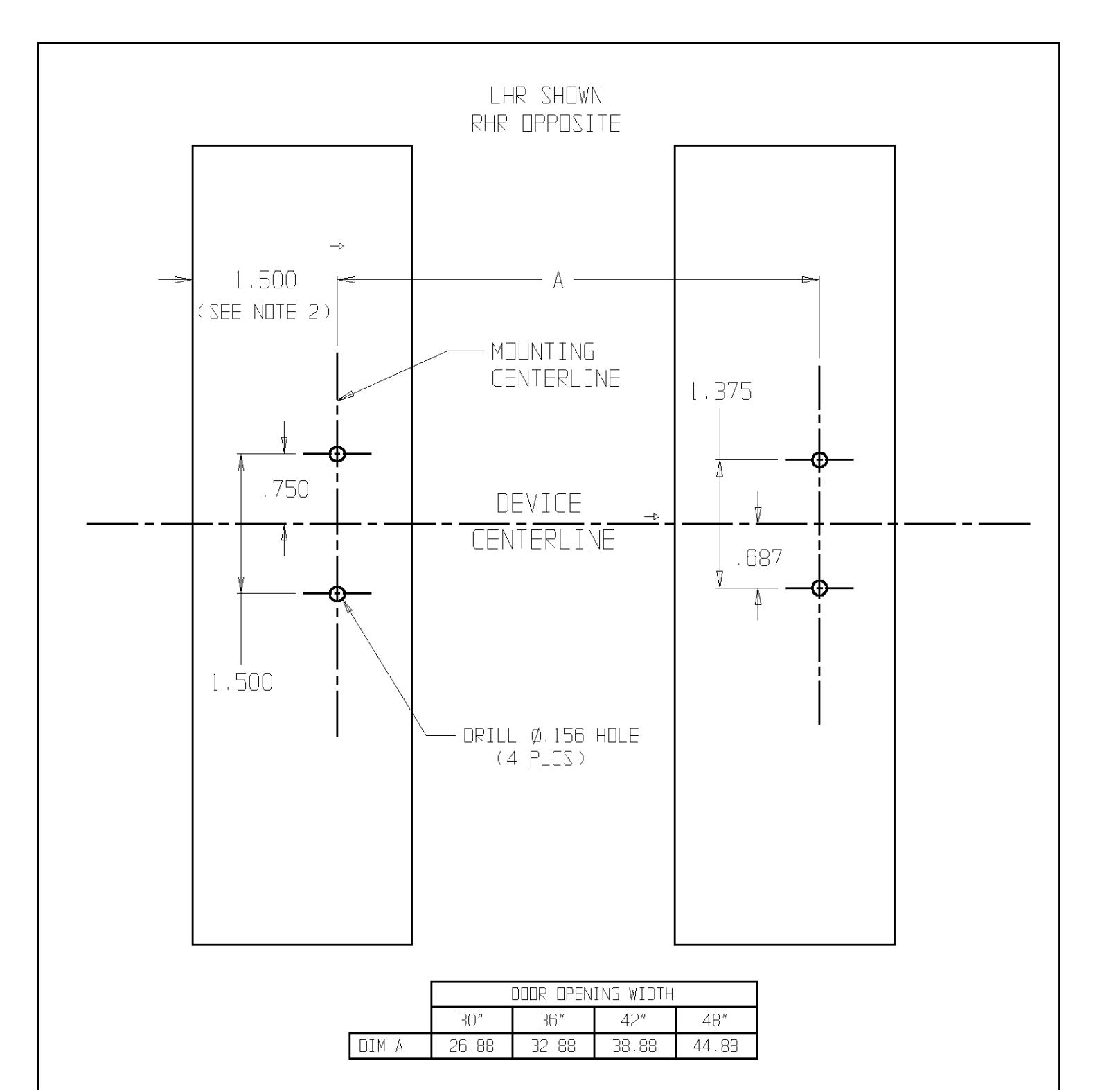

Adams Rite 8800 Exit Device 10140 Template

NOTE 1) THESE DIMENSIONS AND TEMPLATES ASSUME A DOOR THICKNESS OF 1 3/4". FOR DOORS OF OTHER THICKNESS, CONSULT FACTORY.

NOTE 2) WHEN USED WITH MULLION THIS DIMENSION IS 1.500 FROM STRIKE MOUNTING SURFACE. SEE MULLION TEMPLATE.

1 /10/11/0 114	TE MANUFACTURING COMPANY DF INDUSTRY, CA 91749	8800 RIM EXIT FOR ALUMINUM ST	DLIICL
PART NO.:	NOTE: SEE MASTER SHEET 10001	TEMPLATE NO.:	DATE:
80-0180-41T	FOR SUGGESTED REINFORCEMENT	10140-2	08/23/95
