Adams Rite 8700 Exit Device Trim (Metal Door) 20136 Template
Open the original PDF document
View PDF

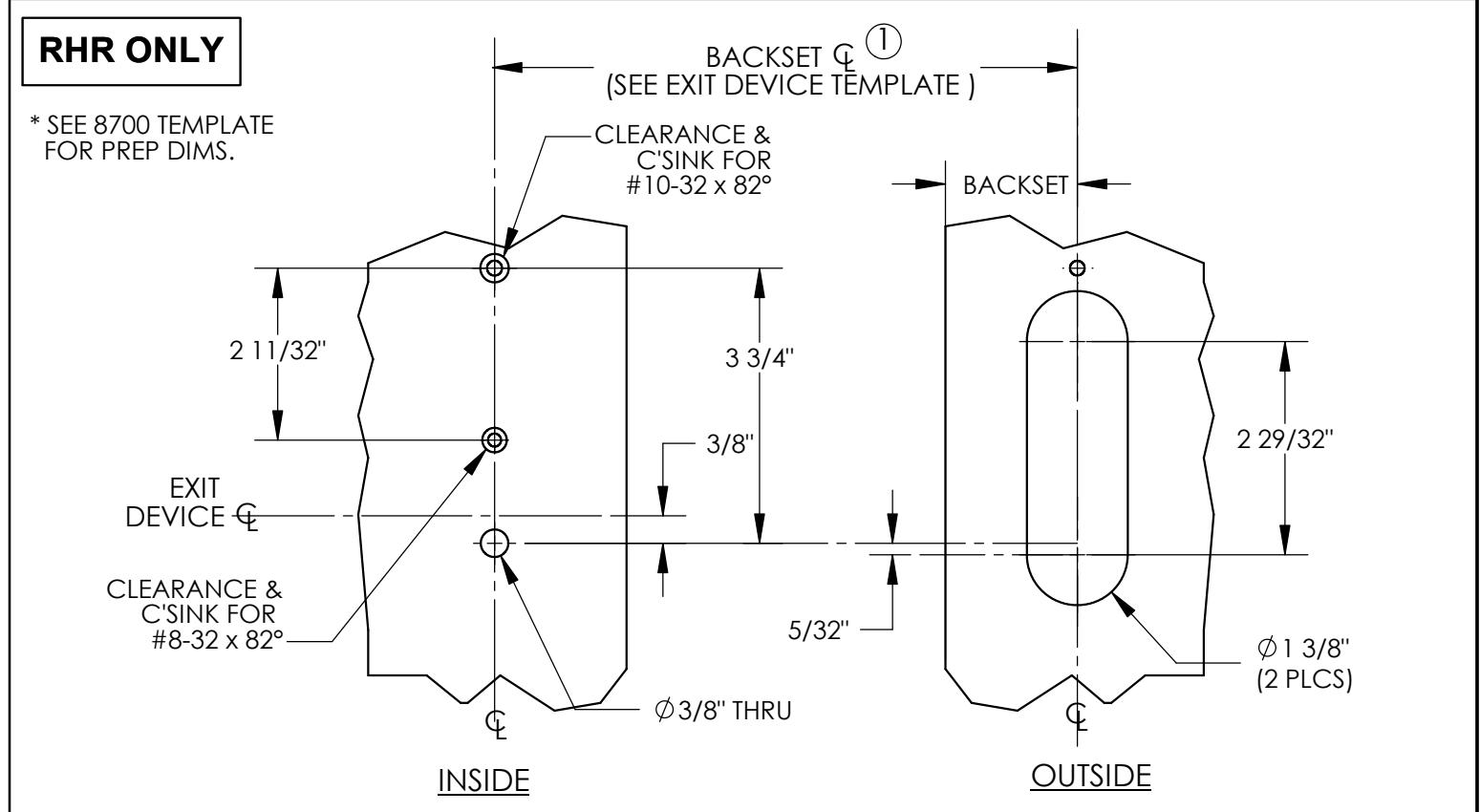

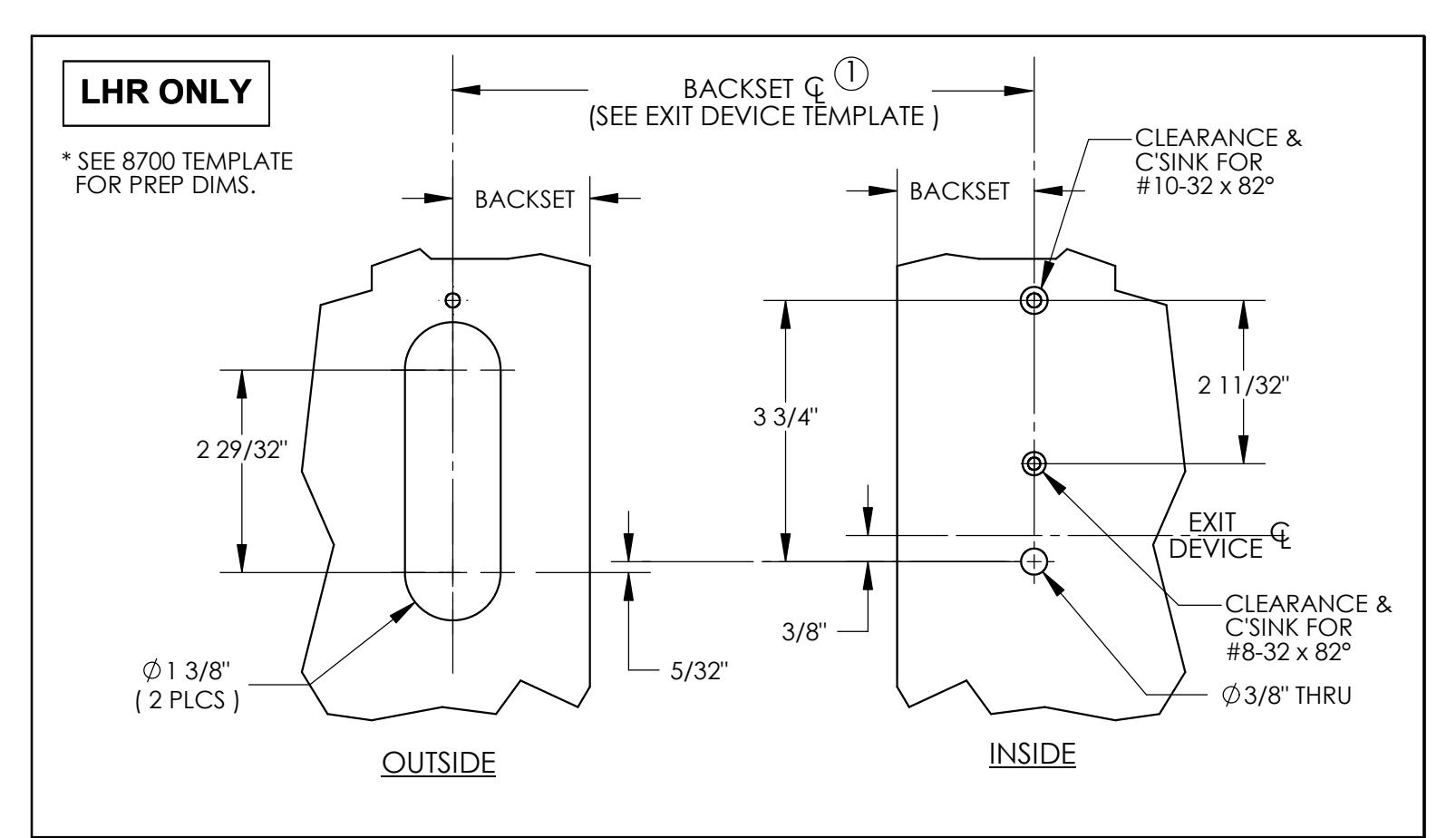

8066 ENTRY FUNCTION FOR 8700 RIM EXIT HOLLOW METAL DOOR PREPARATION
NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT
TEMPLATE NO.: 20136-1
03/08/04
DATE:
