Adams Rite 8700 Exit Device Installation Instructions

	30"	36"	42"	48"	1
оім А	25 5/8	31 5/8	37 5/8	43 5/8

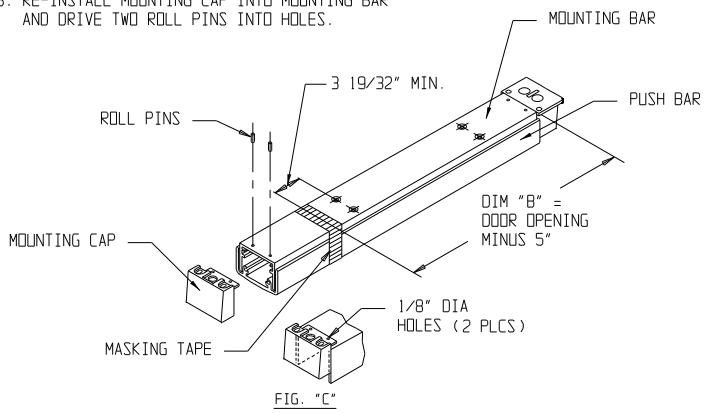

CUT-OFF INSTRUCTIONS FOR NON-STANDARD DOORS

• 1. DRIVE OUT TWO ROLL PINS
• 2. REMOVE MOUNTING CAP
• 3. COLLAPSE BAR AND TAPE DOWN IN THE AREA OF CUT-OFF
• 4. DETERMINE EXTRUSION LENGTH ("B" DIM). (NOTE: 3 19/32" MINIMUM DIMENSION FROM RIVET CENTERLINE TO NEW CUTOFF LENGTH AS SHOWN).
• 5. MEASURE MOUNTING BAR (NOT PUSH BAR), AND MARK EXTRUSION LENGTH ON TAPE.
• 6. SAW DFF EXCESS LENGTH, REMOVE TAPE AND DEBURR.
• 7. LAY MOUNTING CAP OVER MOUNTING BAR (FIG. "C"), AND USE AS A GUIDE TO DRILL TWO 1/8" DIA HOLES.
• 8. RE-INSTALL MOUNTING CAP INTO MOUNTING BAR

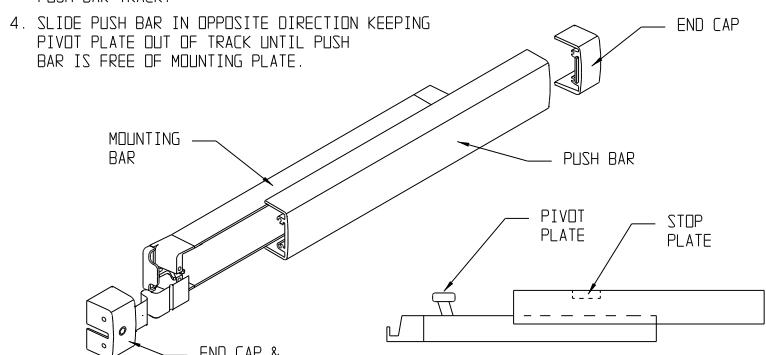

SEPARATING PUSH BAR AND MOUNTING BAR PROCEDURE

• 1. REMOVE BOTH END CAPS. THE RETAINER IS ATTACHED TO THE NOSE END CAP.
• 2. SLIDE PUSH BAR TOWARD HINGE SIDE OF DOOR.
• 3. CONTINUE TO SLIDE THE PUSH BAR PAST THE PIVOT PLATE THAT RIDES IN

INSTALLING PUSH BAR TO MOUNTING BAR

RETAINER ASS'Y

1. WITH PUSH BAR IN HAND AND MOUNTING BAR ATTACHED TO DOOR, FIND STOP PLATE STAKED INTO PUSH BAR. (THIS PLATE IS ON THE LATCH END OF ASSEMBLED UNIT). SLIDE THE PIVOT PLATE NEAREST HINGE INTO TRACK OF PUSH BAR UNTIL SECOND PIVOT PLATE IS EXPOSED. INSERT PIVOT PLATE INTO TRACK ON PUSH BAR AND SLIDE IN OPPOSITE DIRECTION UNTIL PUSH BAR AND MOUNTING BAR ALIGN.

PRODUCT MUST BE INSTALLED ACCORDING TO ALL APPLICABLE BUILDING AND LIFE SAFETY CODES

www.adamsrite.com

Phone: 800-626-7590 800-872-3267

Fax: 866-582-4641 800-232-7329

80-0180-40

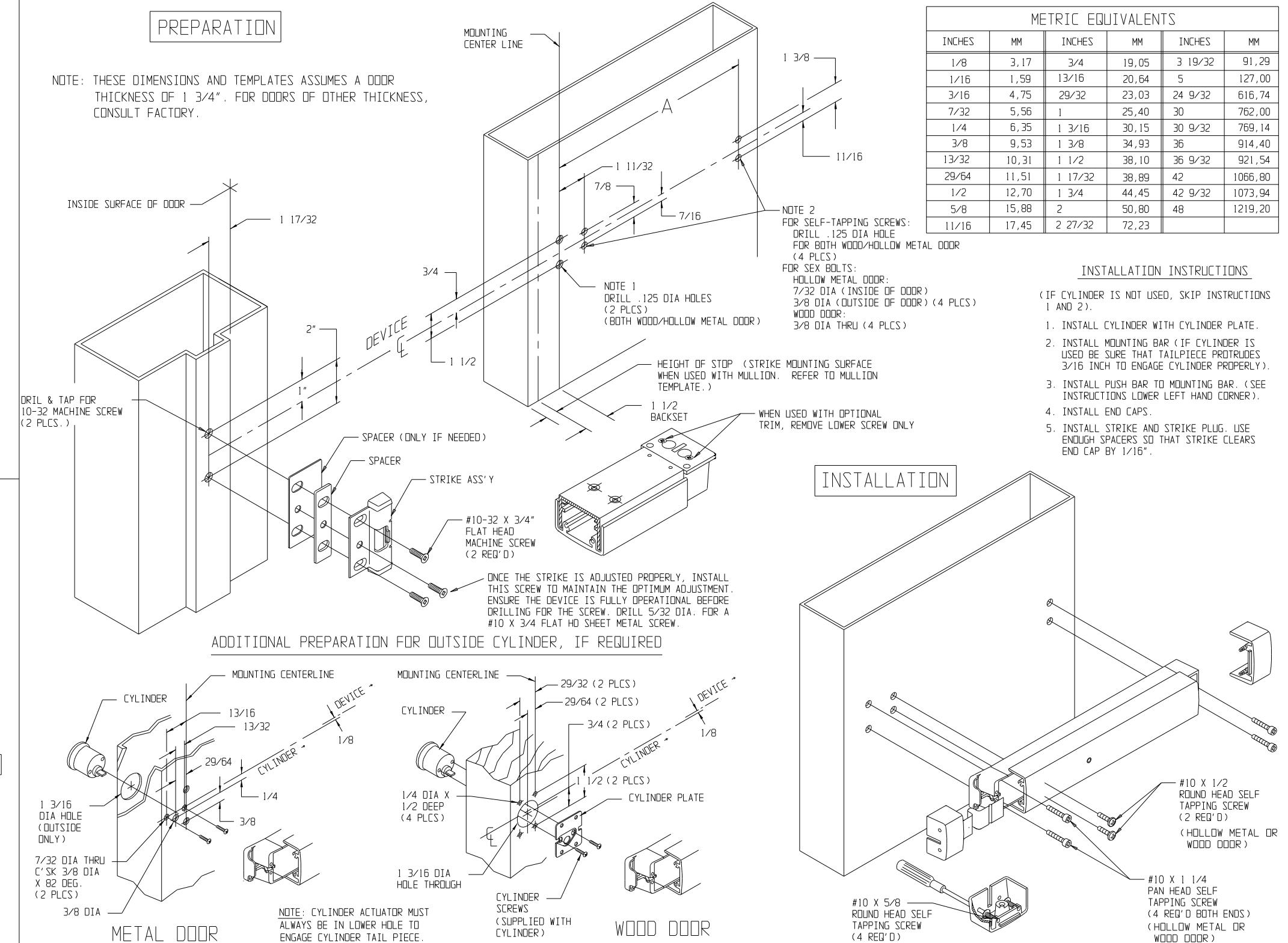

8700 RIM EXIT DEVICE FOR WOOD OR HOLLOW METAL DOOR

INSTALLATION INSTRUCTIONS

Page 1 of 1

Date: 07/06/12

Ecn 11955B

Date: 06/25/12

Rev. $\backslash boldsymbol\{T\}$

Appvd: MP
