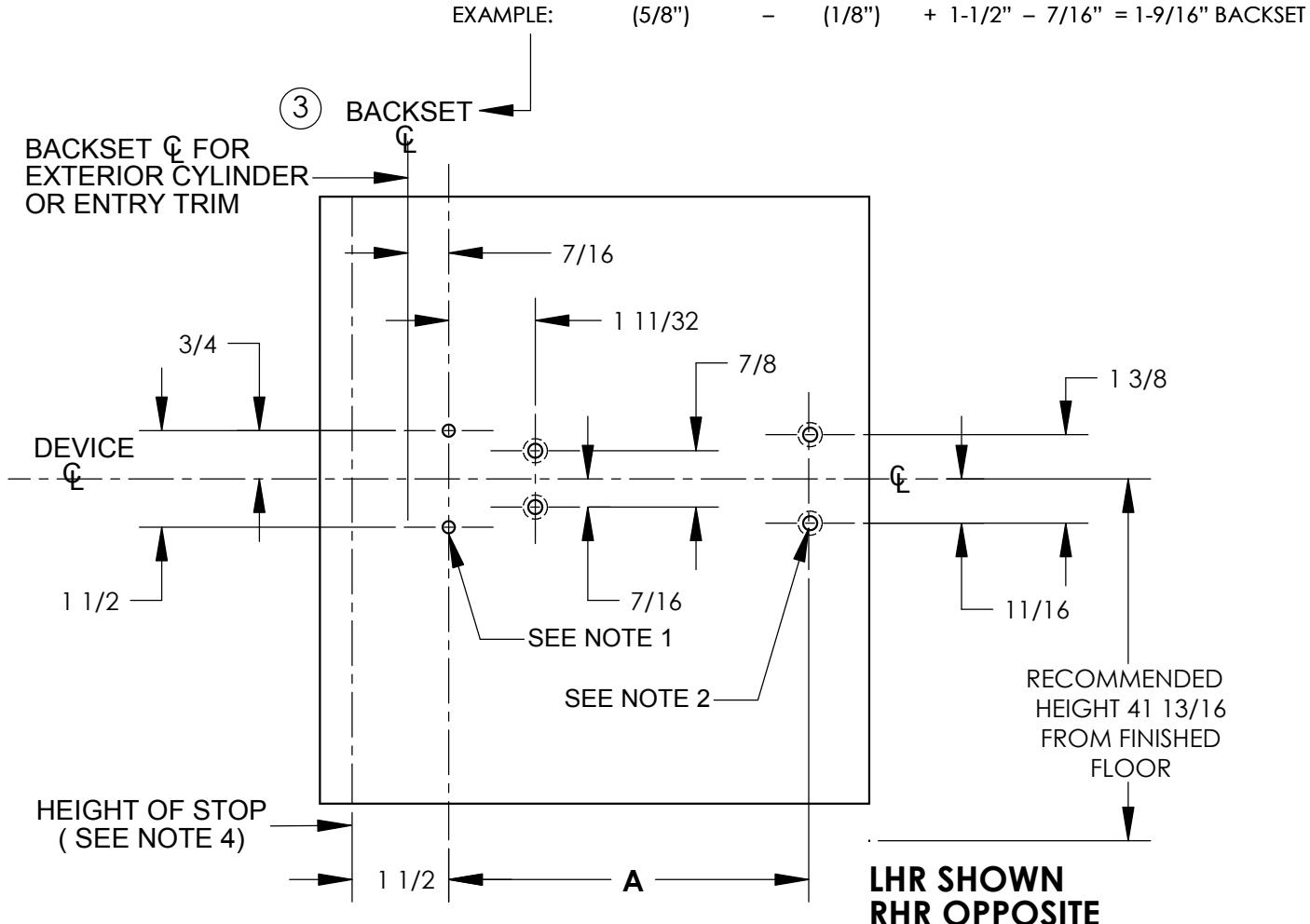

View PDFBACKSET FORMULA
(HEIGHT OF STOP) – (DOOR GAP) + 1-1/2" – 7/16" = BACKSET
| HOLLOW METAL DOOR | WOOD DOOR | |||||
| NOTE 1 | DRILL 1/8" HOLES (6 PLCS) |
DRILL PILOT HOLE FOR #10
WOOD SCREW (1" DEEP) ( 6 PLCS ) |
||||
| NOTE 2 |
FOR SEX BOLTS:
7/32 DIA (INSIDE OF DOOR) 3/8 DIA (OUTSIDE OF DOOR) (4 PLCS) |
FOR SEX BOLTS:
3/8 DIA THROUGH (4 PLCS) |
||||
NOTE 3) IT IS RECOMMENDED THE MOUNTING HOLES BE PREPARED IN THE FIELD.
NOTE 4) WHEN USED WITH MULLION, THIS MEASUREMENT SHOULD BE REFERENCED FROM STRIKE MOUNTING SURFACE. SEE MULLION TEMPLATE.
| DOOR OPENING WIDTH | ||||||
|---|---|---|---|---|---|---|
| 30" | 36" | 42" | 48" | |||
| DIM A | 25 5/8 | 31 5/8 | 37 5/8 | 43 5/8 | ||
8700 RIM EXIT DEVICE FOR WOOD OR HOLLOW METAL DOOR
NOTE: SEE MASTER SHEET 1001 FOR SUGGESTED REINFORCEMENT
TEMPLATE NO.: 10130-3
DATE: 03/03/04
