Adams Rite 8600 Exit Device (RHR) 10110 Template

NOTE: THESE DIMENSIONS AND TEMPLATES ASSUME A DOOR 1.75" THICK WITH .125" STILE WALL. DOORS WITH OTHER THICKNESS OR WALL WILL REQUIRE MODIFICATION TO THE

DEVICE AND TO TEMPLATES.

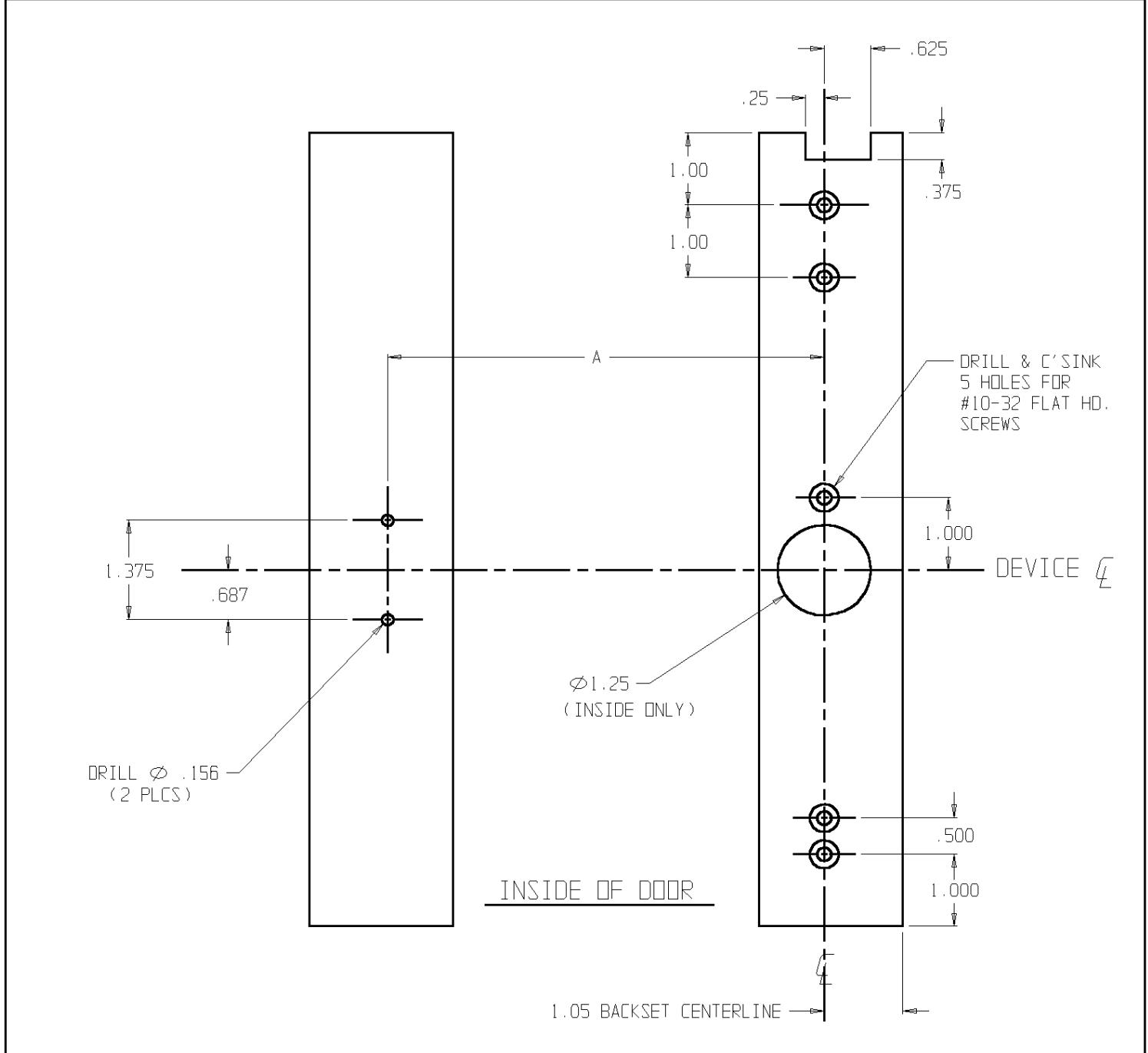

RHR PREPARATION SHOWN. SEE 10111 FOR LHR.

BACKSET	DOOR OPENING WIDTH
1.05"	30"	36"	42"	48"
DIM A	27.25	33.25	39.25	45.25

ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749

8600 CVR EXIT DEVICE RHR FOR ALUMINUM STILE DOORS

PART NO. 80-0180-51T

NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT

TEMPLATE No.:

DATE:

10110-1 03/14/95
