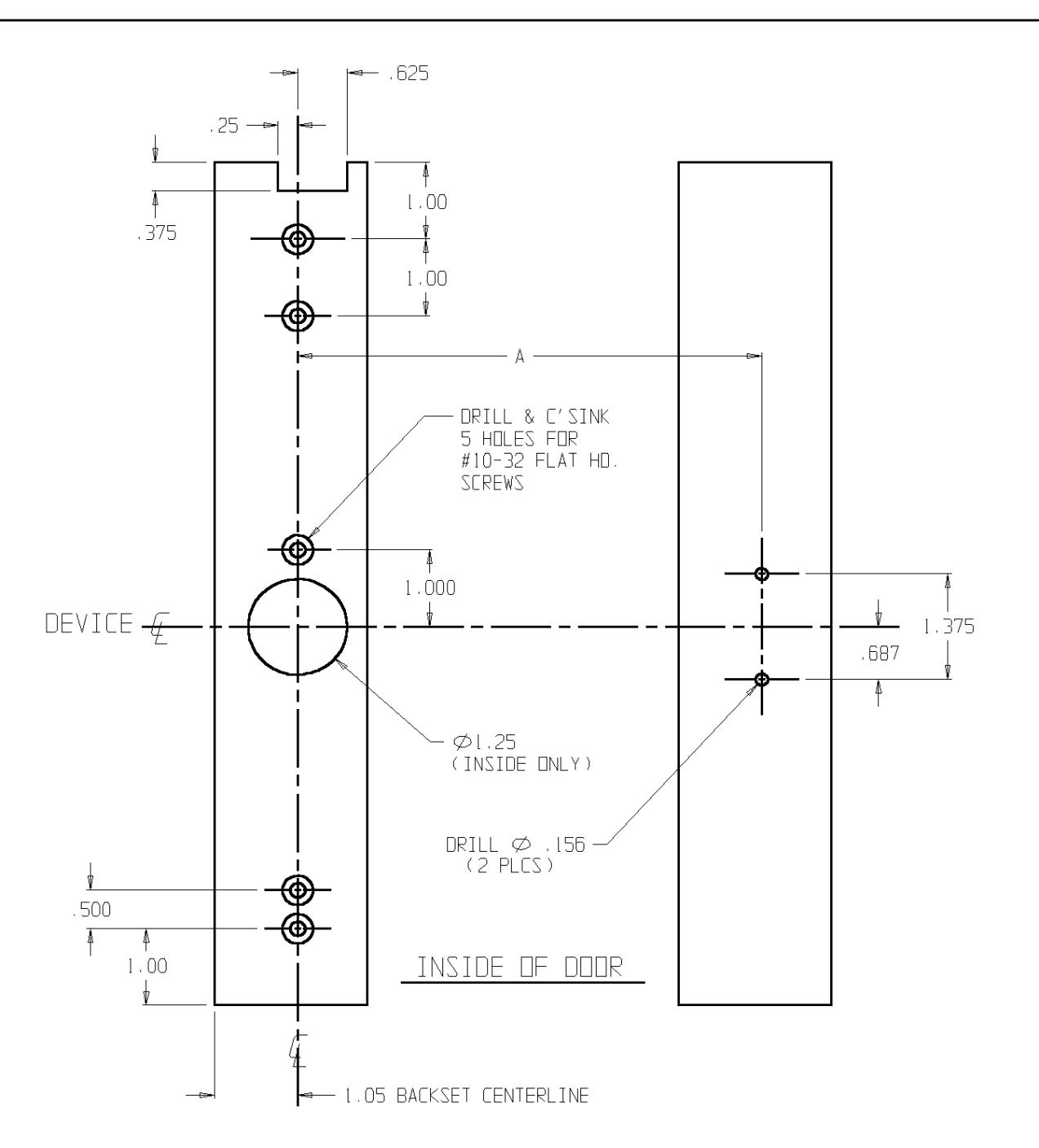

Adams Rite 8600 Exit Device (LHR) 10111 Template

NOTE: THESE DIMENSIONS AND TEMPLATES ASSUME A DOOR 1.75" THICK WITH .125" STILE WALL. DOORS WITH OTHER THICKNESS OR WALL WILL REQUIRE MODIFICATION TO THE DEVICE AND TO TEMPLATES.

<u>HR</u> PREPARATION SHOWN. SFE 10110 FOR RHR.

BACKSET	DOOR OPENING WIDTH
1.05"	30"	36"	42"	48"
DIM A	27.25	33.25	39.25	45.25

10111-1

ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749

8600 CVR EXIT DEVICE LHR FOR ALUMINUM STILE DOORS

PART NO. 80-0180-51T

NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT

TEMPLATE No.:

DATE:

09/13/95
