Adams Rite 8600, 8675 Exit Device Trim 20116 Template

ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749

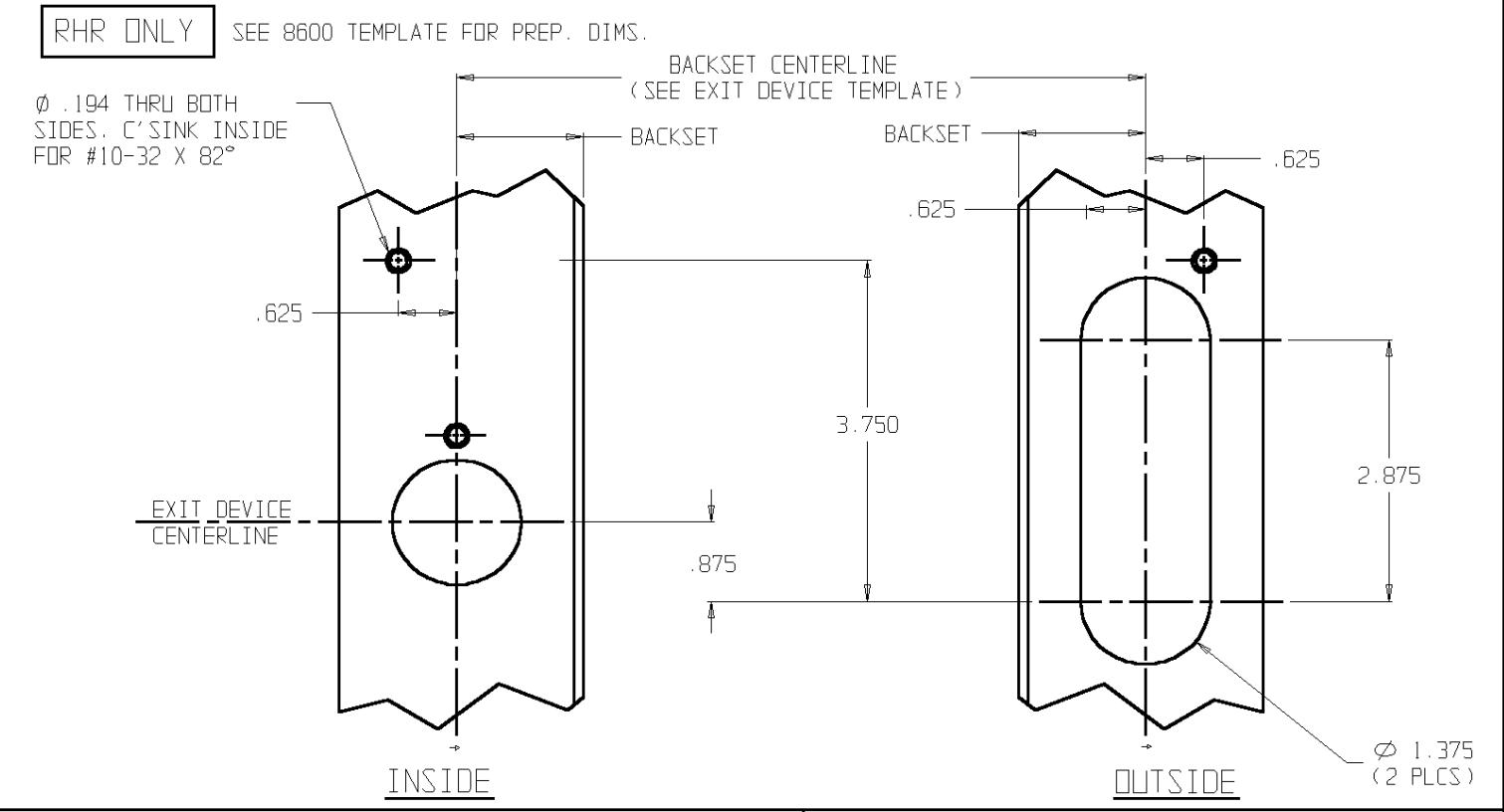

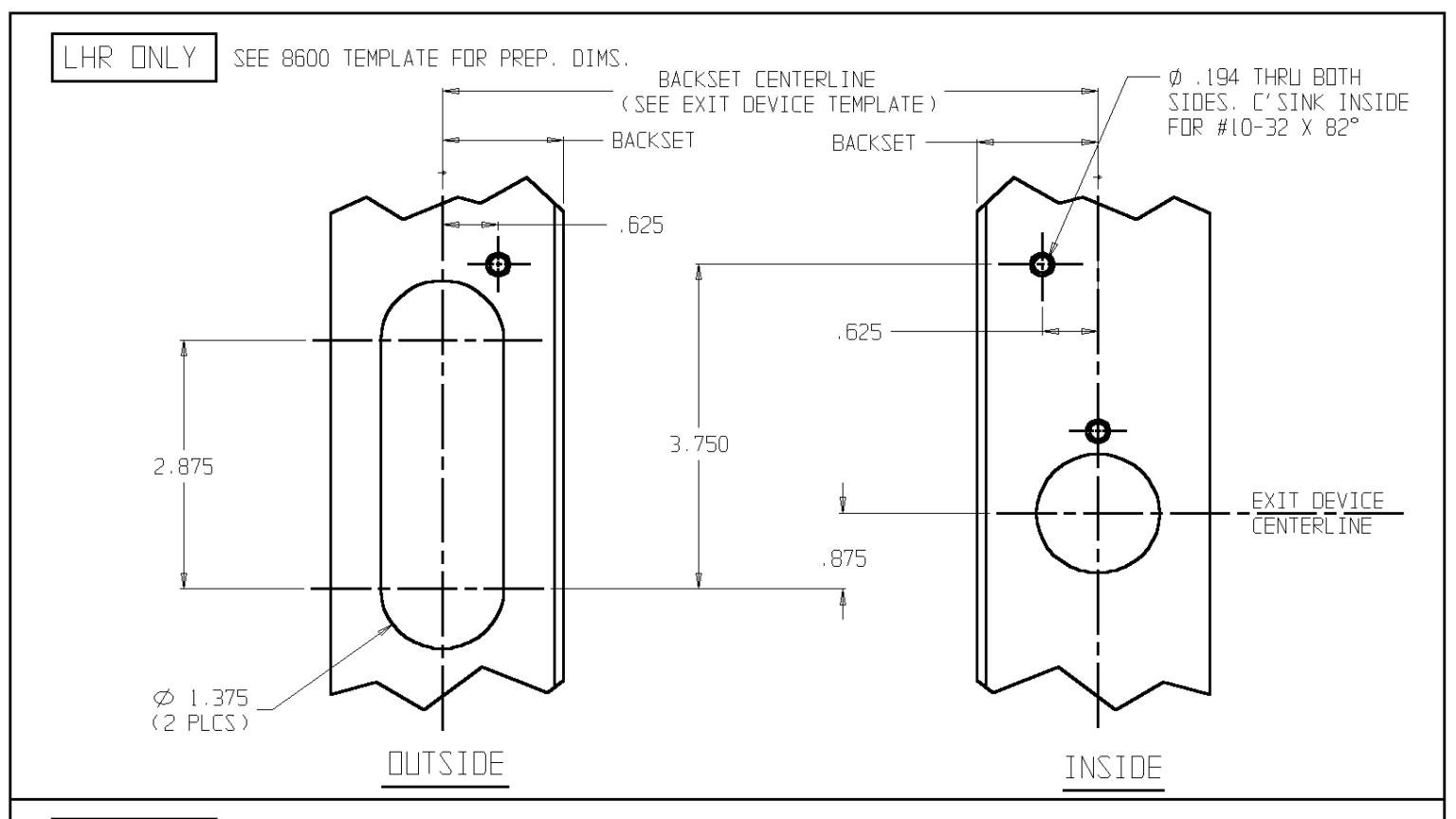

8066 ENTRY FUNCTION FOR 8600/8675 CVR ALUMINUM ALUMINUM STILE PREPARATION

PART NO.: DATE: ECN: TEMPLATE NO.: NOTE: SEE MASTER SHEET 10001 80-0180-30T 07-10-97 9629 20116-1 FOR SUGGESTED REINFORCEMENT
