Adams Rite 8500 Exit Device Trim 20106 Template

ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749

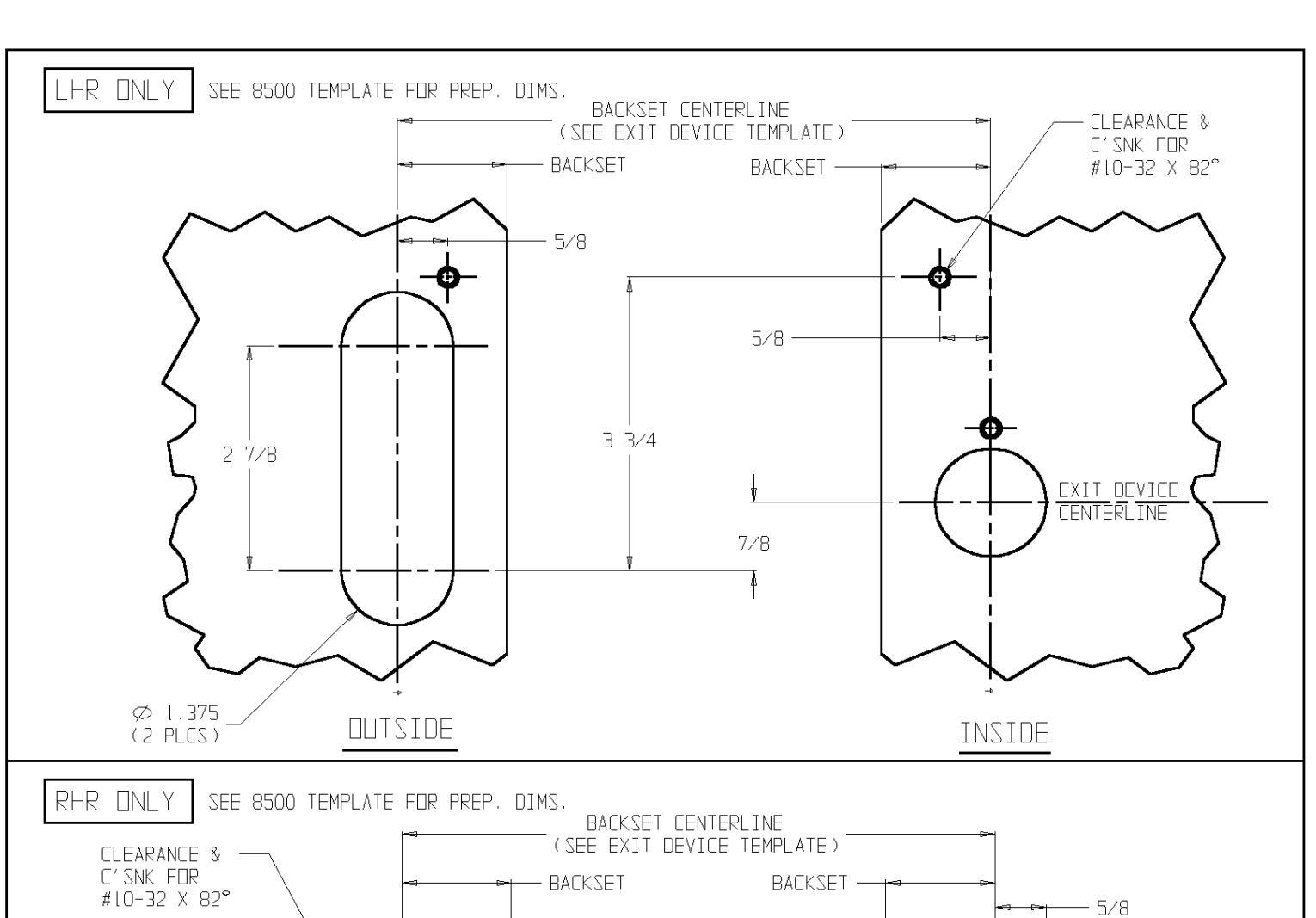

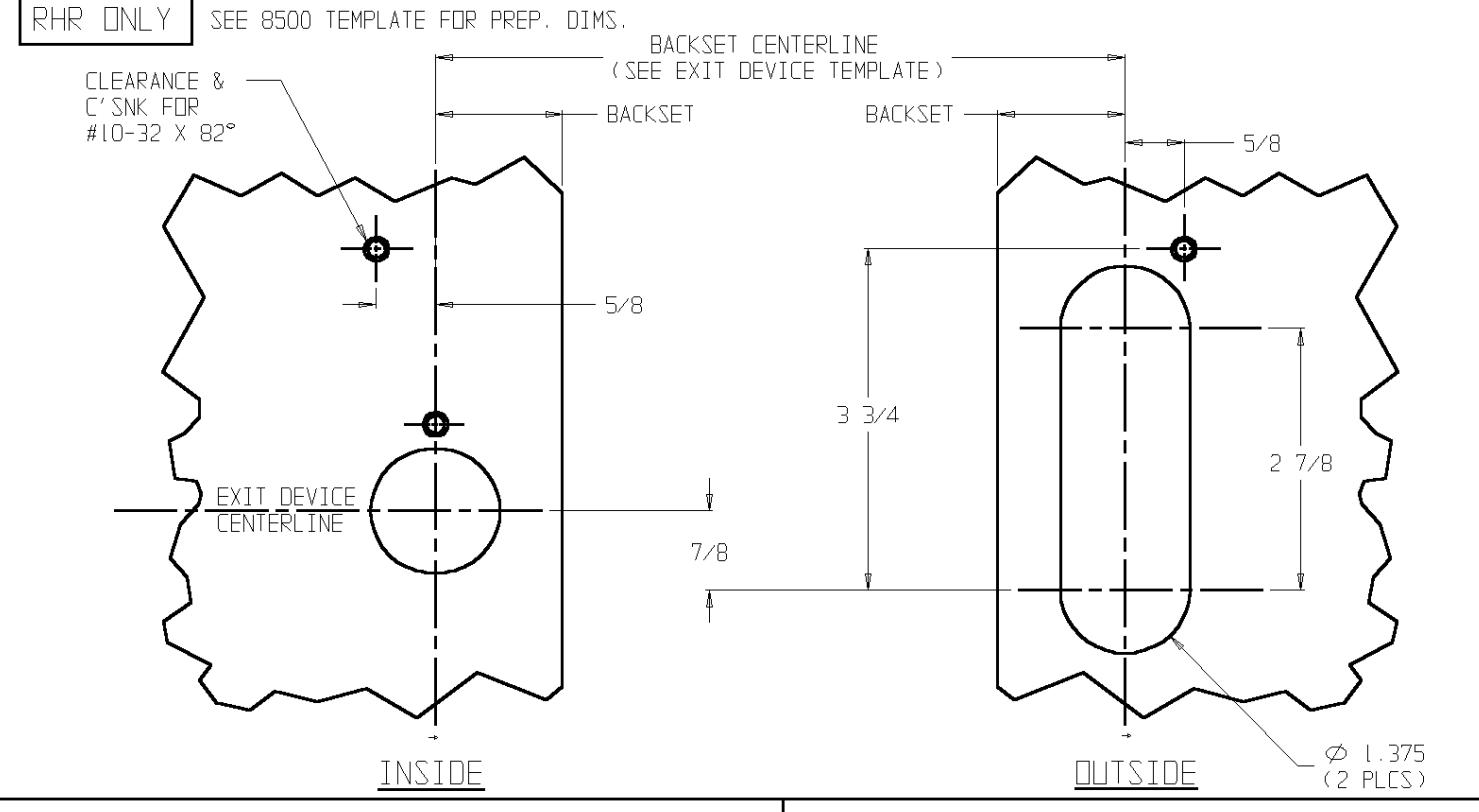

8066 ENTRY FUNCTION FOR 8500 CVR HOLLOW METAL DOOR PREPARATION

PART NO.: DATE: ECN: TEMPLATE NO.: NOTE: SEE MASTER SHEET 10001 80-0180-30T 07-10-97 9629 20106-1 FOR SUGGESTED REINFORCEMENT
