Adams Rite 8500 Exit Device Strikes, Top & Bottom 30100 Template

Open the original PDF document

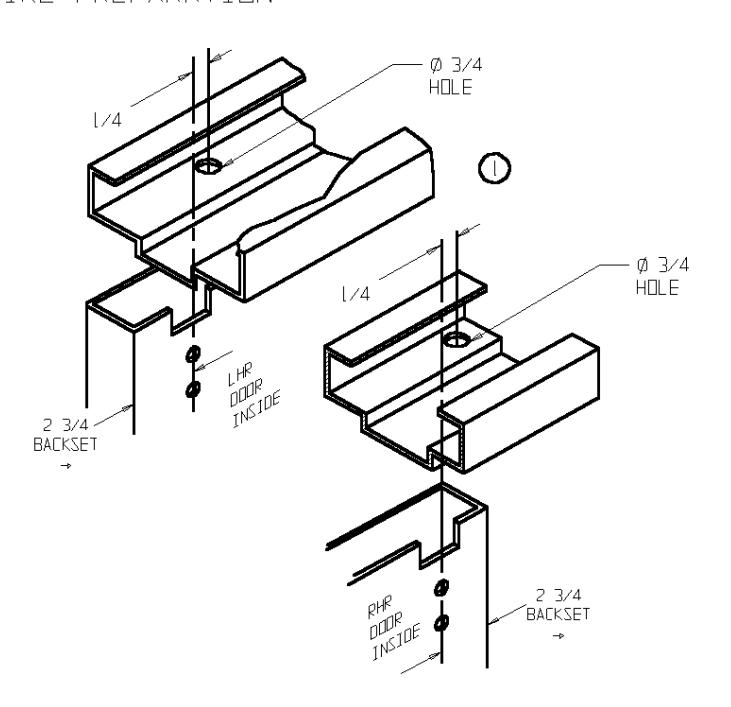

CVR TOP STRIKE PREPARATION

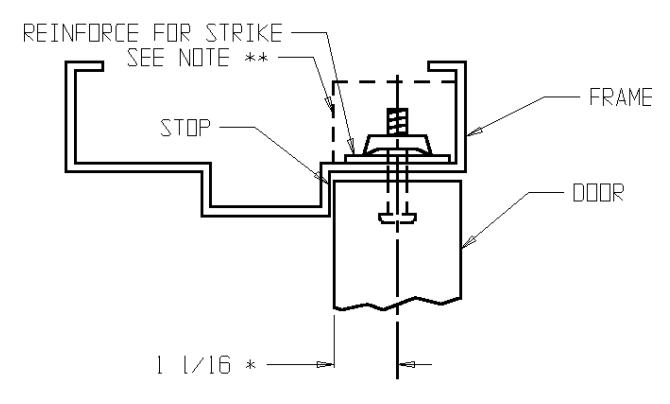

NOTE ** - GROUT FILLED FRAMES REQUIRE BLOCKING/MORTAR GUARD L 1/2" X 1 L/2" X 1 1/2" MINIMUM CENTERED ON 3/4" HOLE FOR TOP STRIKE ADJUSTMENT.

* MEASURED FROM THE INTERIOR DOOR SURFACE. BE SURE TO AJUST FOR DOOR SILENCERS IF USED.

(MORTISE IN FLOOR-NO PROJECTION)

ADAMS RITE MANUFACTURING COMPANY POMONA, CA 91749

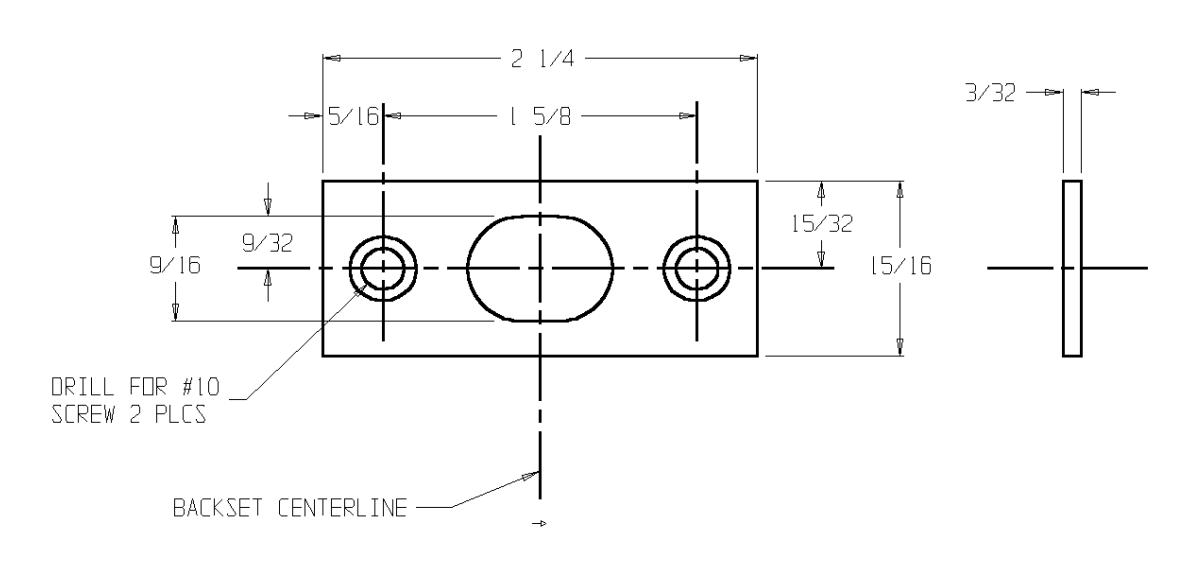

8500 CVR TOP & BOTTOM STRIKE PREPARATION

ECN NO. NOTE: SEE MASTER SHEET 10001 FOR 9981 SUGGESTED REINFORCEMENT

TEMPLATE No.:

DATE:

30100-2

09-13-95
