Adams Rite 8400, 8475 Exit Device Trim 20086 Template

Open the original PDF document

ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749

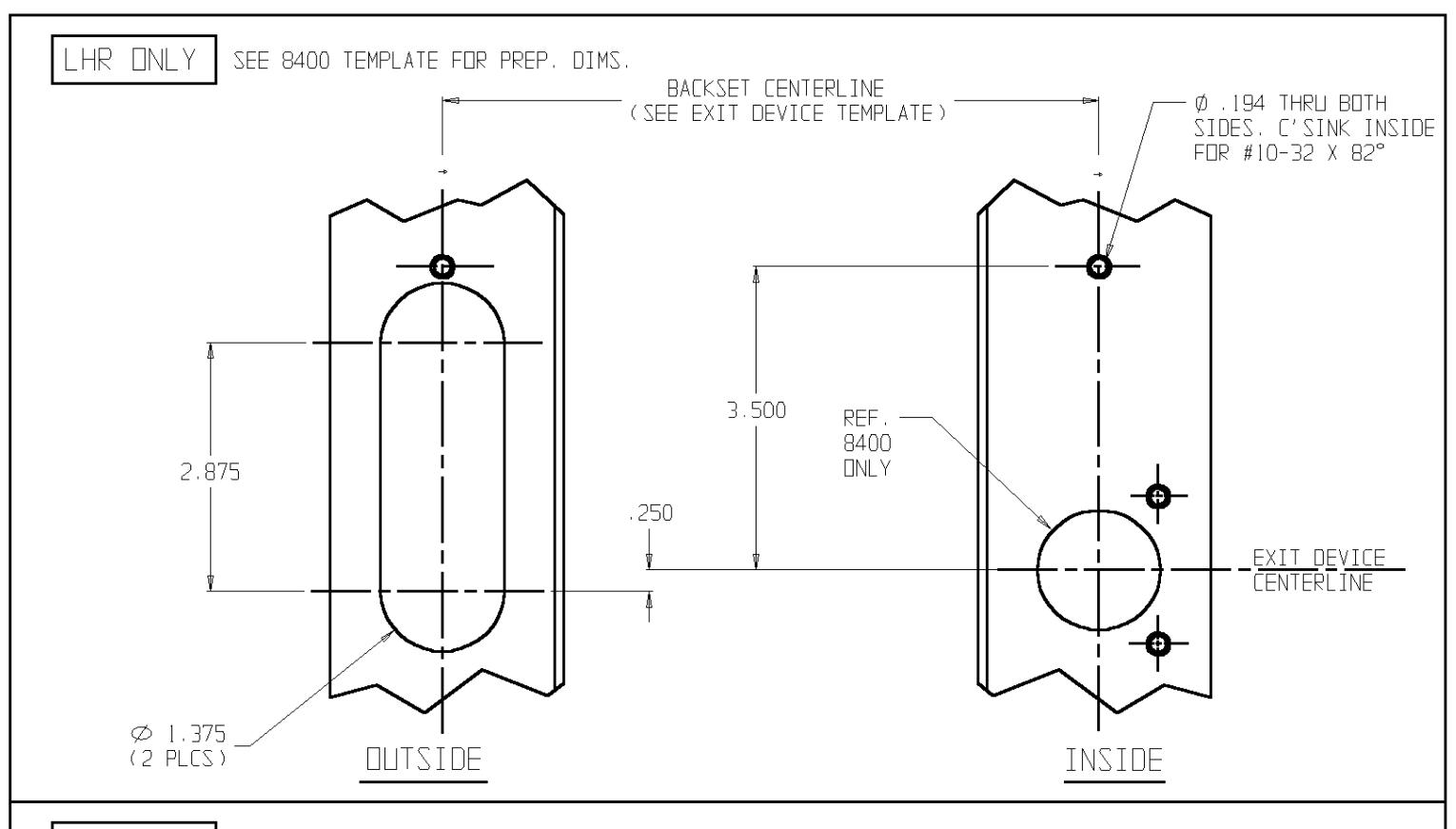

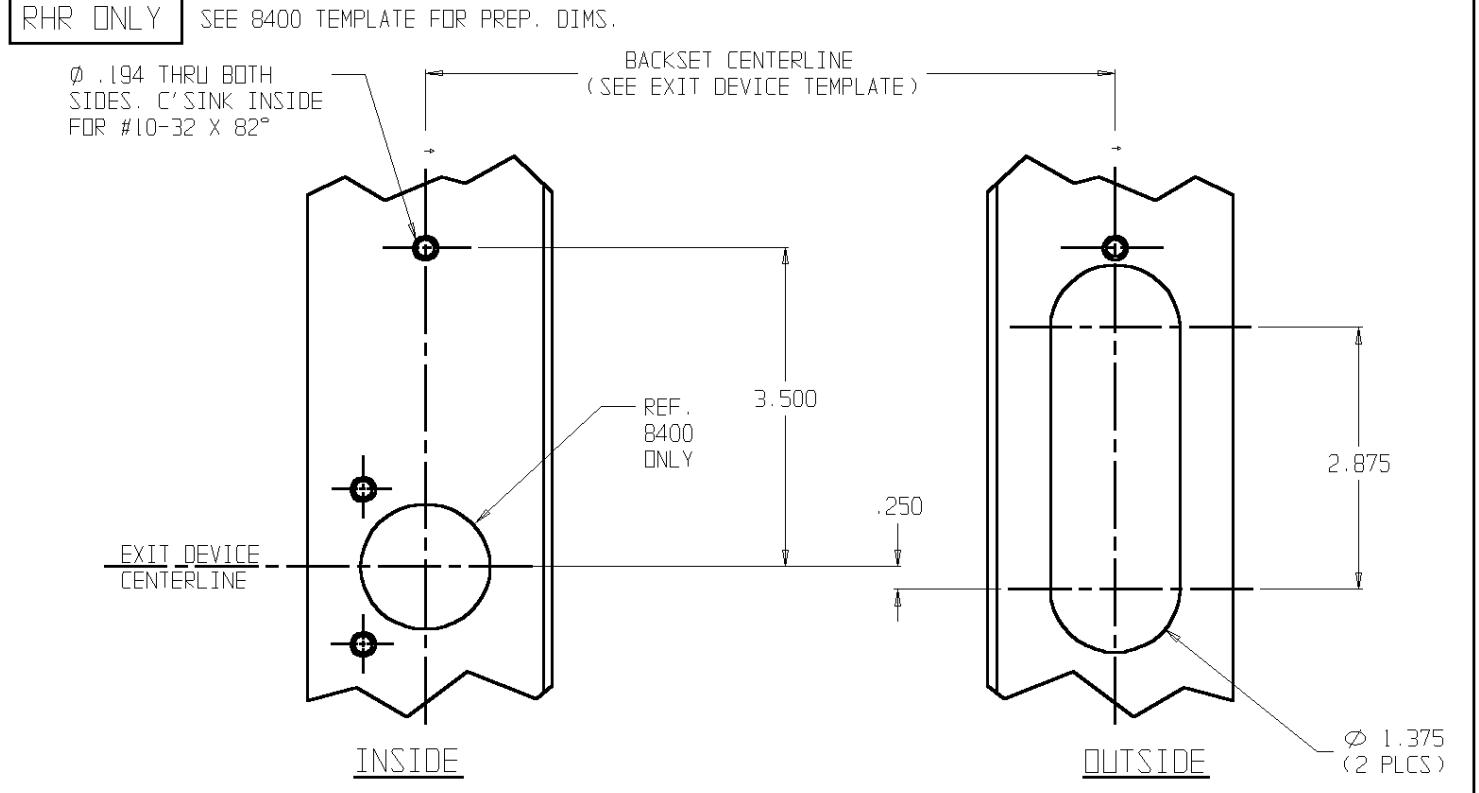

8066 ENTRY FUNCTION FOR 8400/8475 CVR ALUMINUM

PART NO.: DATE: ECN: TEMPLATE NO.: NOTE: SEE MASTER SHEET 10001 80-0180-30T 07-10-97 9629 20086-0 FOR SUGGESTED REINFORCEMENT
