Adams Rite 8300 Exit Device Trim (Metal Door) 20076 Template

FOR 8300 MORTISE EXIT

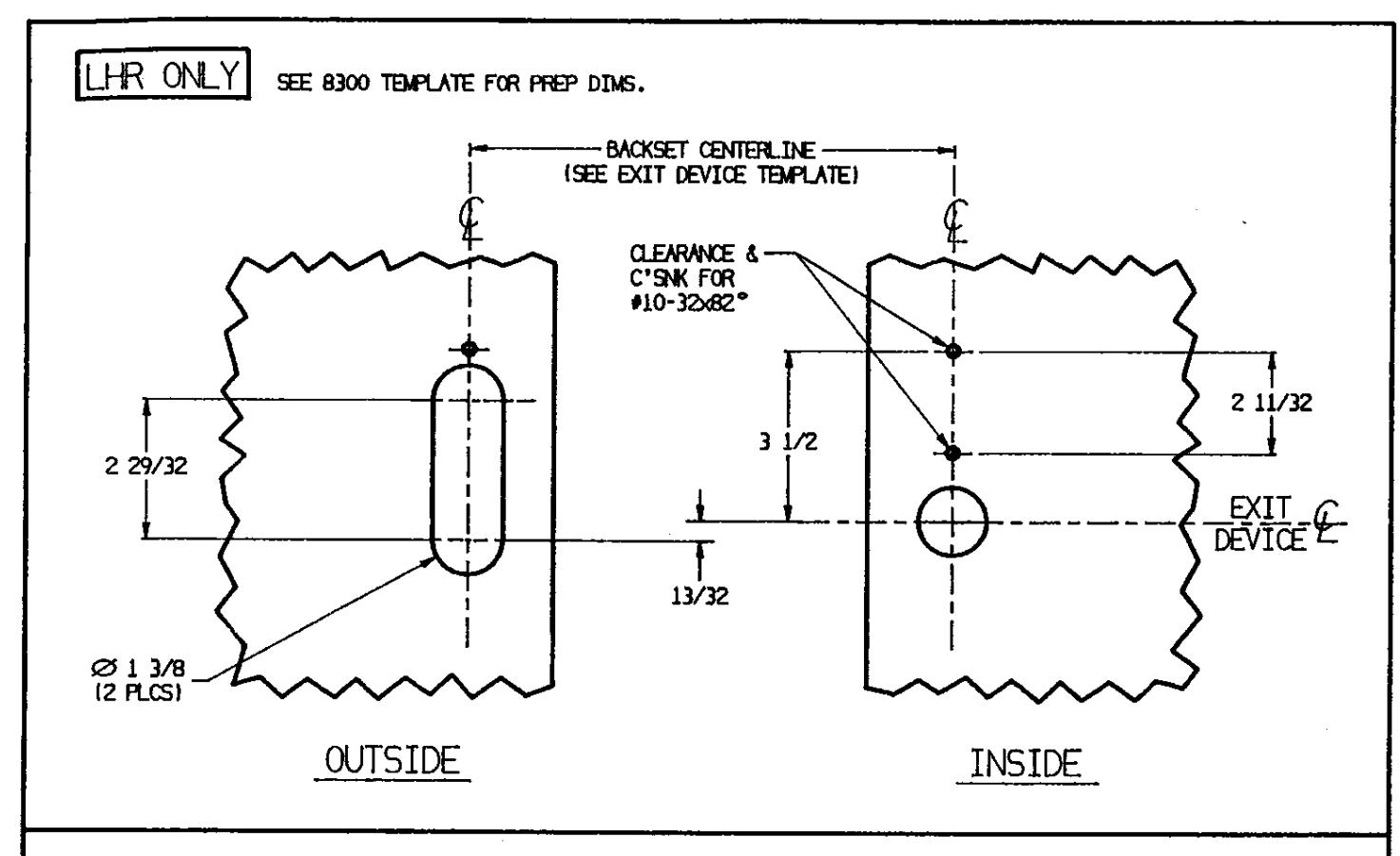

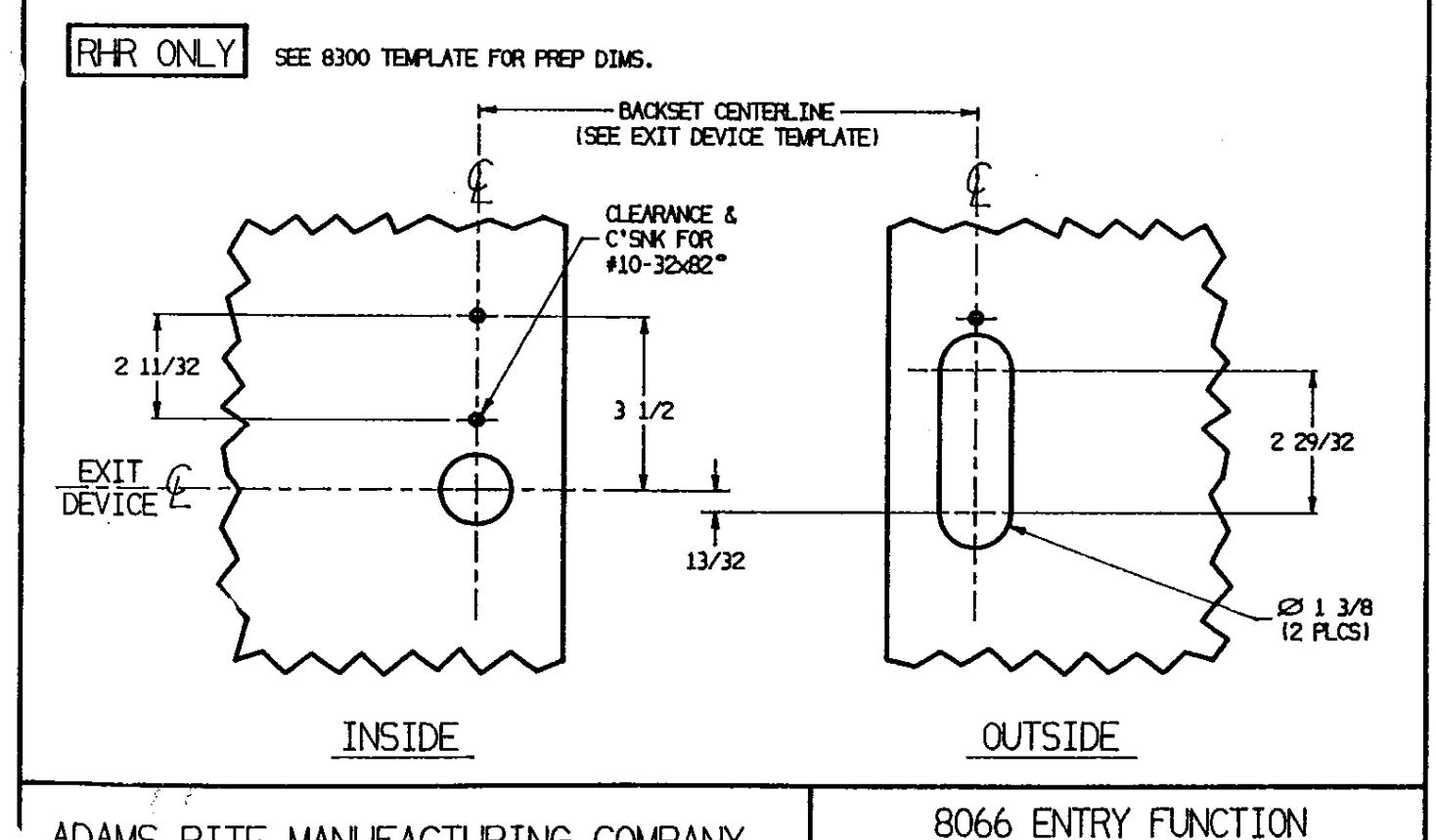

HOLLOW METAL DOOR PREPARATION

20076-0

DATE:

10/05/92

TEMPLATE NO.:

ADAMS RITE MANUFACTURING COMPANY

CITY OF INDUSTRY, CA 91749

NOTE: SEE MASTER SHEET 10001 FOR

SUGGESTED REINFORCEMENT

PART NO.

80-0180-30T
