Adams Rite 8200 Exit Device Trim 20066 Template

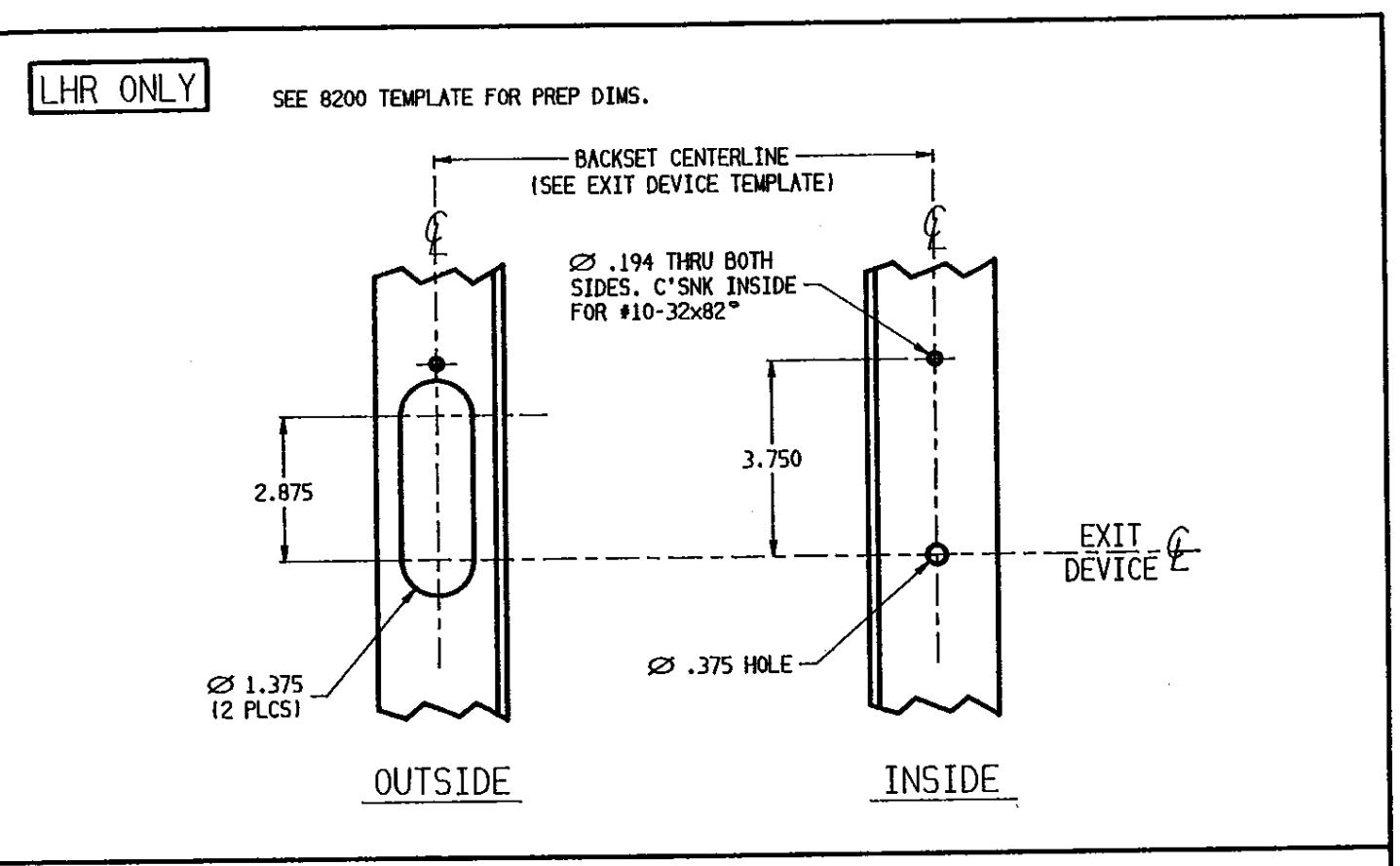

BACKSET CENTERLINE (SEE EXIT DEVICE TEMPLATE) 3.750 EXIT DEVICE SEE 8200 TEMPLATE FOR PREP DIMS. BACKSET CENTERLINE (SEE EXIT DEVICE TEMPLATE) 2.875 2.875

ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749

INSIDE

8066 ENTRY FUNCTION FOR 8200 SVR ALUMINUM STILE PREPARATION

PART NO. 80-0180-30T

NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT

TEMPLATE NO.: 20066-0

OUTSIDE

DATE: 10/05/92
