Adams Rite 8200 Exit Device Strikes, Top & Bottom 30060 Template

CITY OF INDUSTRY, CA 91749

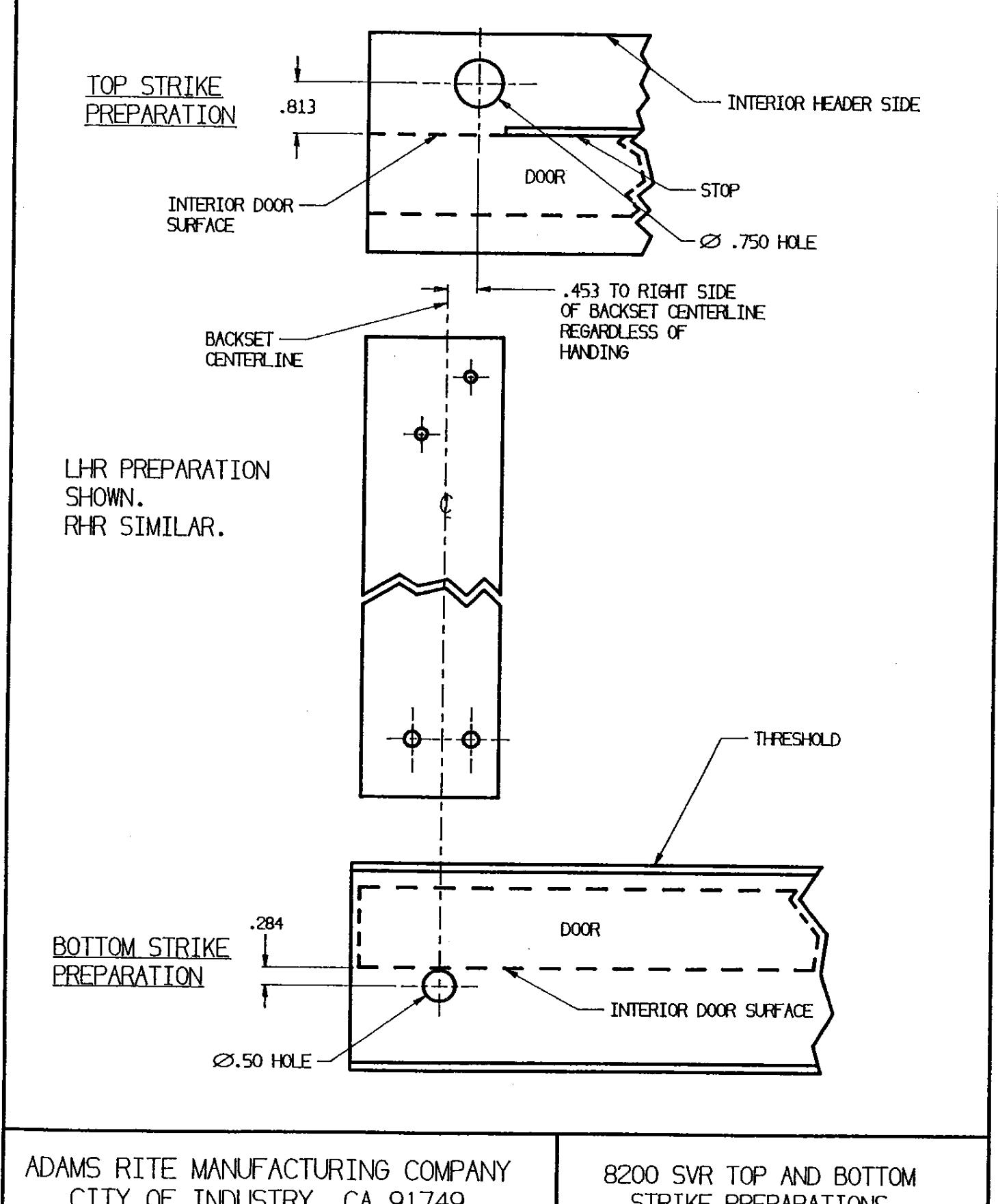

STRIKE PREPARATIONS

PART NO.: 80-0180-196T PAGE 2 OF 3

NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT

TEMPLATE NO.: 30060-0

DATE: 9-15-93
