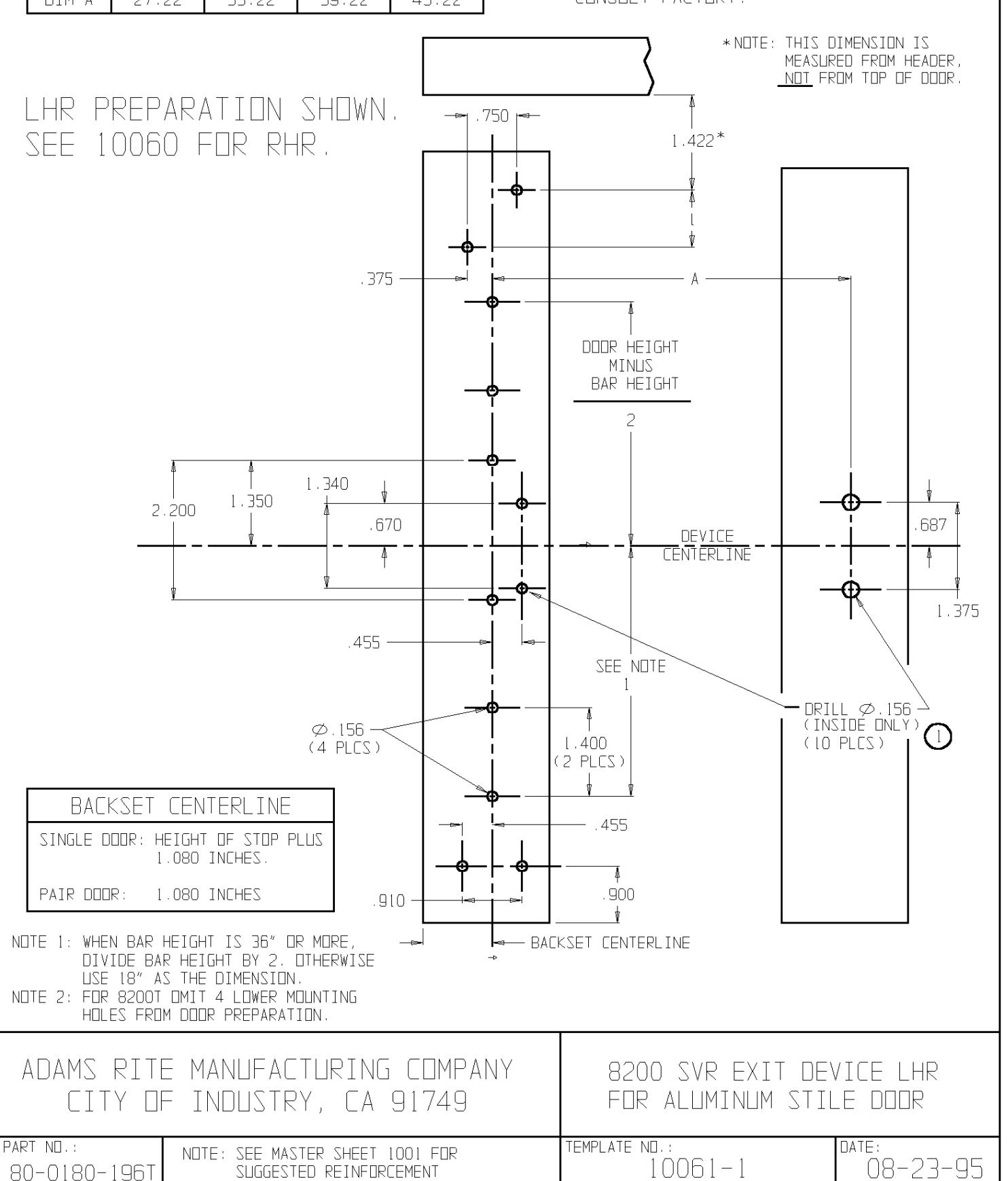

Adams Rite 8200 Exit Device (LHR) 10061 Template
Open the original PDF document
View PDF| DOOR OPENING WIDTH | ||||
|---|---|---|---|---|
| 30" | 36" | 42" | 48" | |
| DIM A | 27.22 | 33.22 | 39.22 | 45.22 |
NOTE: THESE DIMENSIONS AND TEMPLATES ASSUME A DOOR THICKNESS OF 1.75" WITH .125" WALL. FOR DOORS OF OTHER THICKNESS, CONSULT FACTORY.
