Adams Rite 8099-M Exit Device Monitored Pushbar Aluminum Door 40055 Template
Open the original PDF document
View PDF

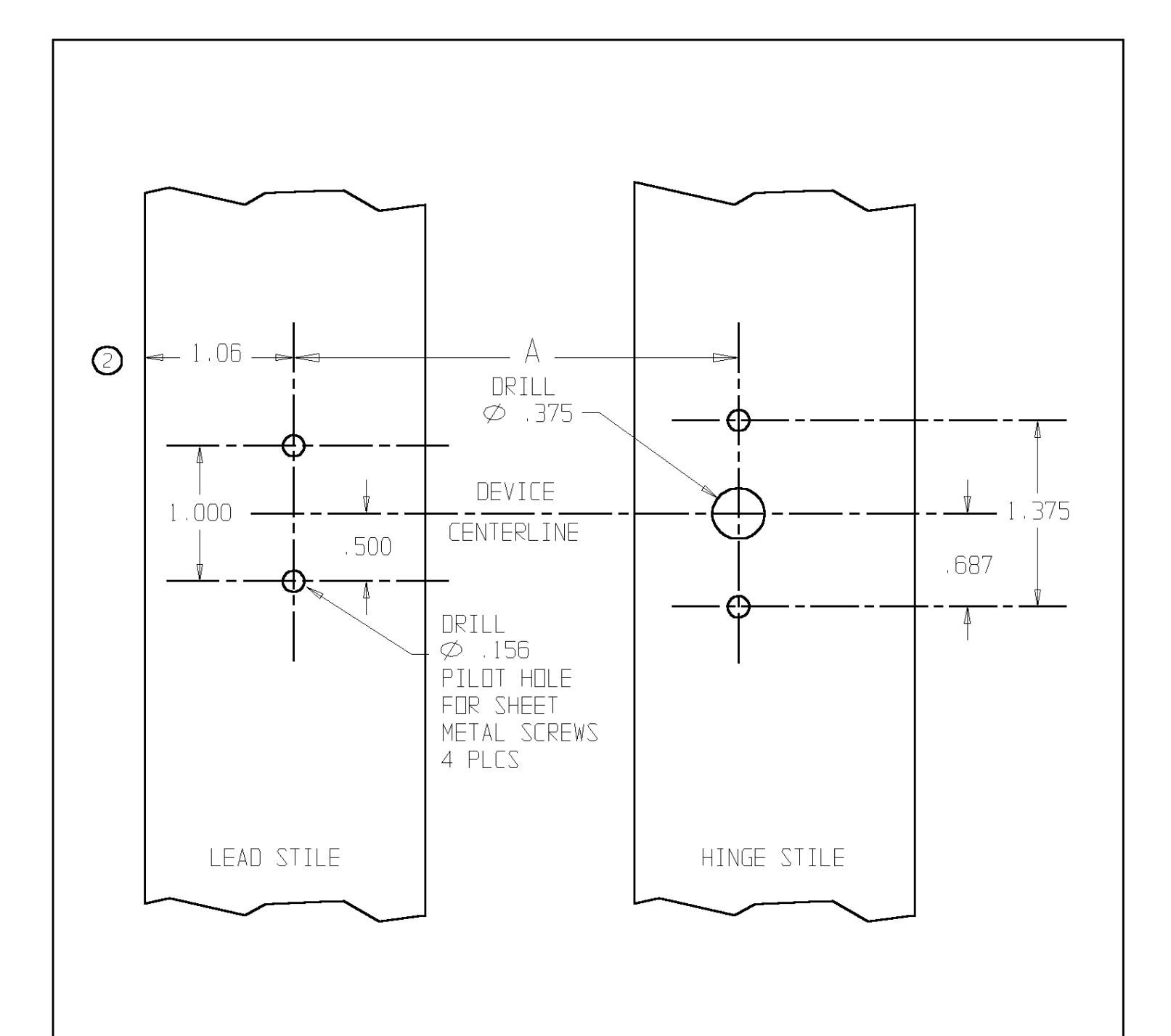

| DOOR OPENING WIDTH | ||||
|---|---|---|---|---|
| 30″ | 36" | 42" | 48" | |
| DIM A | 27 1/4" | 33 1/4″ | 39 1/4" | 45 1/4″ |
LHR SHOWN RHR OPPOSITE
ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749
8099M DUMMY MONITORED ACTIVE PUSHBAR FOR ALUMINUM / GLASS DOOR
NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT
ECN NO: 9784
TEMPLATE ND.: 40055-2
DATE:
08-25-98
