Adams Rite 8099 Exit Devices Installation Instructions

Adams Rite ASSA ABLOY

www.adamsrite.com Phone: 800-626-7590 800-872-3267

Fax: 866-582-4641 800-232-7329 Rev. C

80-0180-50

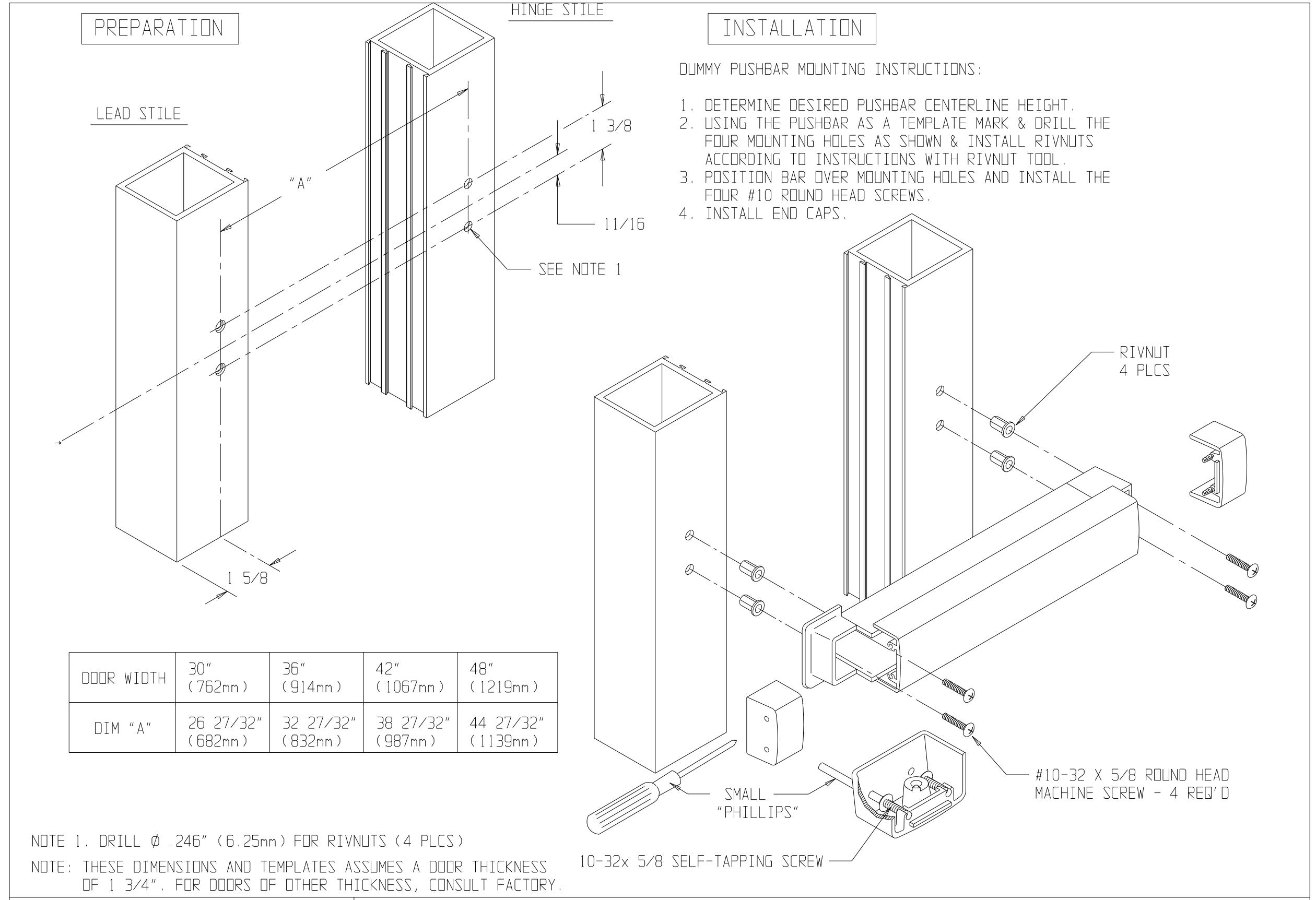

8099 DUMMY PUSHBAR FOR ALUMINUM / GLASS DOOR

INSTALLATION INSTRUCTIONS

Rev. C Ecn 11955D

Page 1 of 2 Date: 0720/12 Appvd: MP

1

NOTE: THESE DIMENSIONS AND TEMPLATES ASSUMES A DOOR THICKNESS

NOTE 1. DRILL PILOT HOLE FOR #10 SHEET METAL SCREW (4 PLCS)

www.adamsrite.com Phone: 800-626-7590 800-872-3267

Fax: 866-582-4641 800-232-7329

80-0180-50

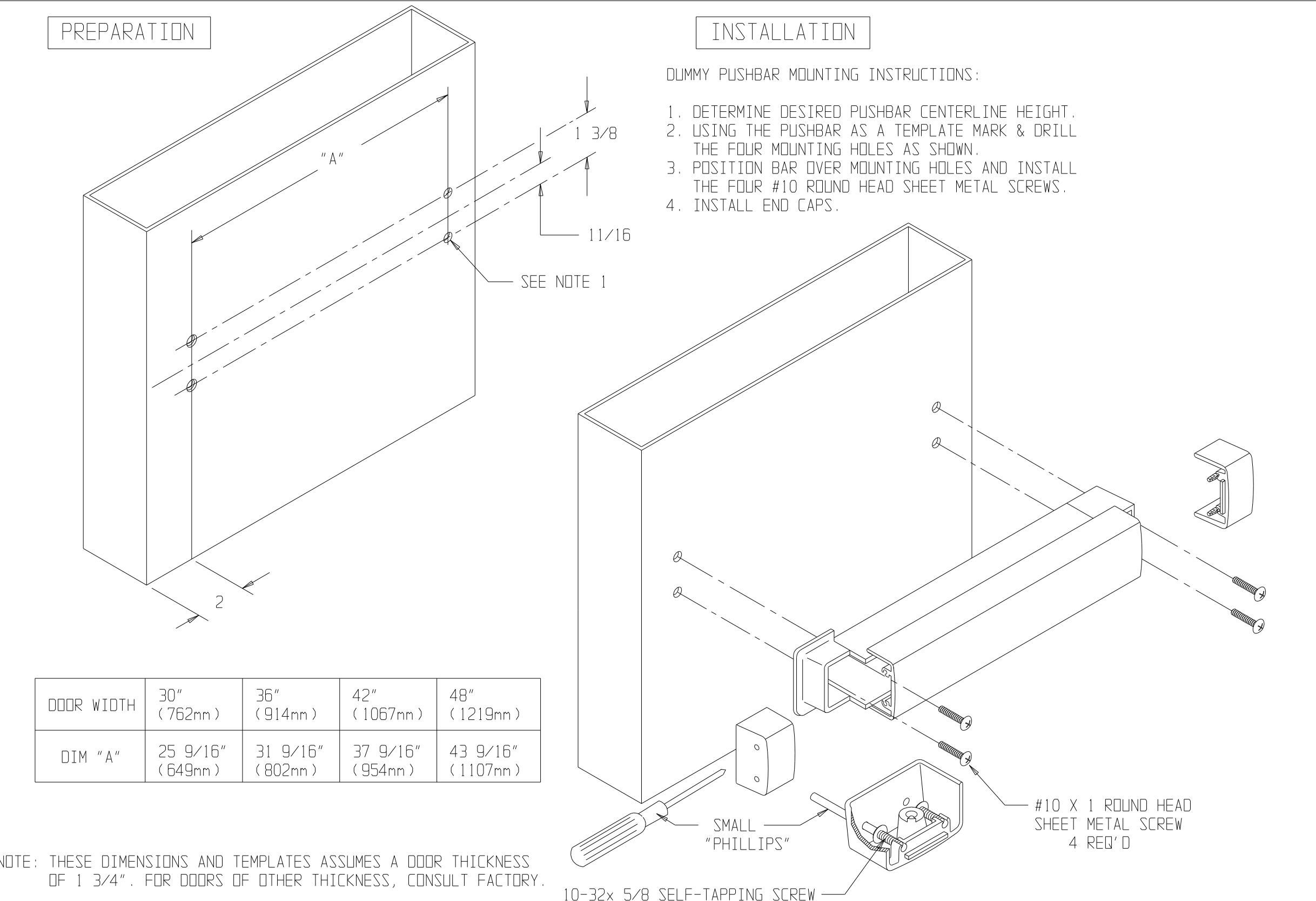

8099 DUMMY PUSHBAR FOR WOOD / HOLLOW METAL DOOR

INSTALLATION INSTRUCTIONS

Rev. C Ecn 11955D

Page 2 of 2 Date: 07/20/12 Appvd: MP
