| R OPEN | OPENING WI | |||
|---|---|---|---|---|
| 30" | 36″ | 42" | 48" | |
| DIM A | 26.84" | 32.84" | 38.84" | 44 . 84" |

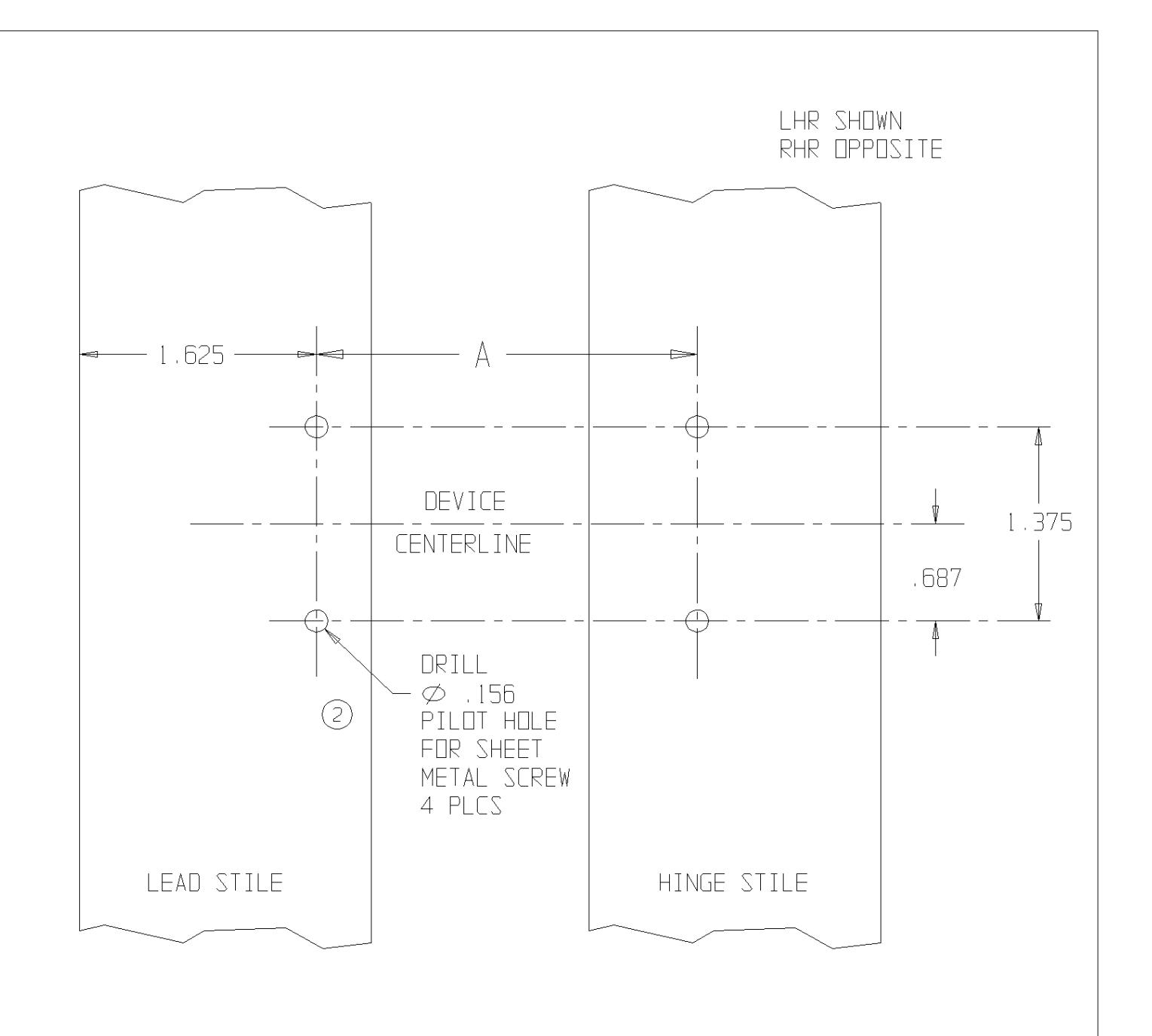

LHR SHOWN RHR OPPOSITE
ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749
8099 DUMMY PUSHBAR FOR ALUMINUM / GLASS DOOR
PART NO.: 80-0180-50T
NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT
TEMPLATE NO.:
40050-2
DATE: 08/31/95
