ELECTRIC STRIKE DIMENSIONS 1.125 . 990 .480 1.558 1.043 └<del>-</del>--- 1 . 750 · 0 ( 9.000 3.340 8.250

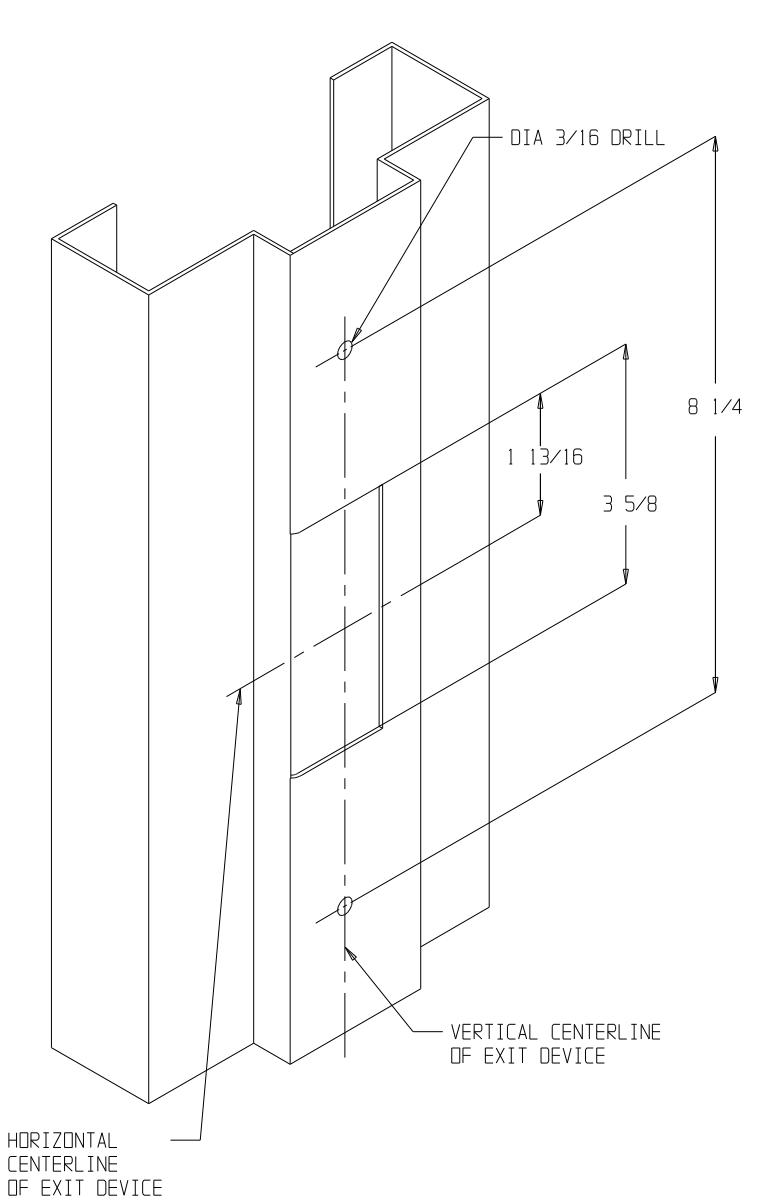

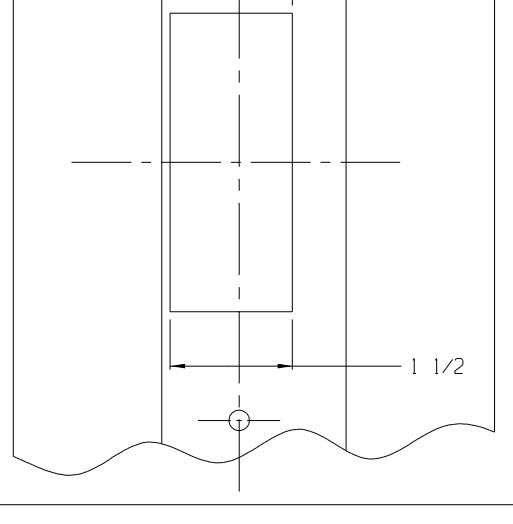

JAMB PREPARATION

- 1 9/16 - | 15/16 | - --- 1 1/2

INSTALLATION INSTRUCTIONS

• 1. PREPARE DOOR JAMB PER DRAWING.
• 2. USING WIRE NUTS PROVIDED, CONNECT WIRES FROM SOLENOID TO THE WIRES COMING FROM THE LOW VOLTAGE SIDE OF THE TRANSFORMER.

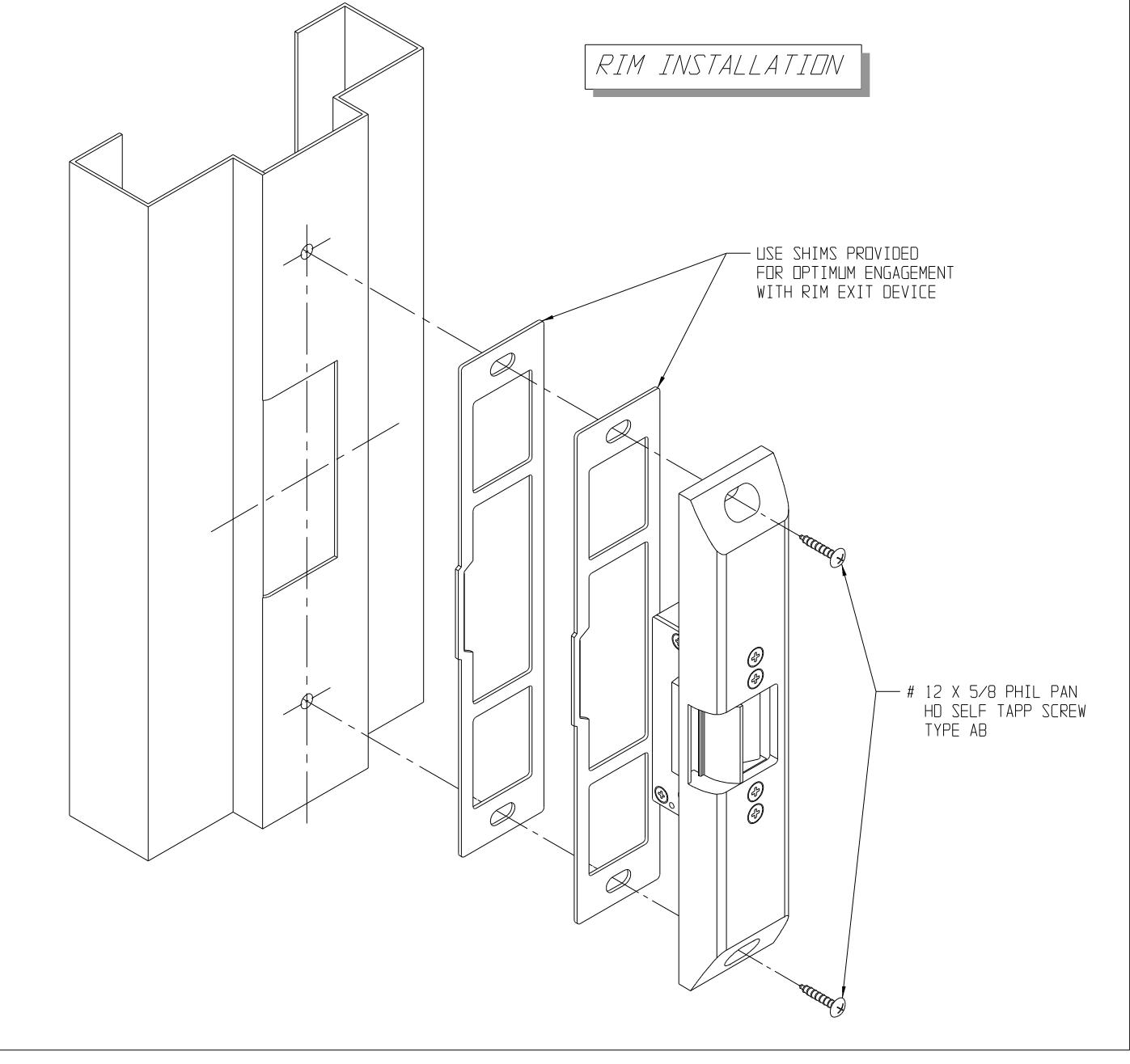

• 3. INSERT ELECTRIC STRIKE INTO JAMB. ATTACH WITH TWO #12 SCREWS.

STATIC STRENGTH	DYNAMIC STRENGTH	ENDURANCE
1500 lbs.	70-foot-pound-force	250,000 cycles

www.adamsrite.com Phone: 800-626-7590

800-872-3267

Fax: 866-582-4641 800-232-7329

71R1 ELECTRIC STRIKE FOR METAL JAMB

80-0180-383 11955D

: 07/20/12

PAGE 1 DF 2 PAGE 2 DF 2 IS 80-0180-381 REV. H

REF. TEMPLATE ND. : 53000-0

assa ablov

.875

Adams Rite
