View PDF7100 Series
Electric Strikes for Adams Rite Deadlatches & Cylindrical Locks
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications.
Remote electrical control of any door equipped with an Adams
7110
7140
Function
Certifications
UL 1034 burglary-resistant listed UL 294 listed
Features

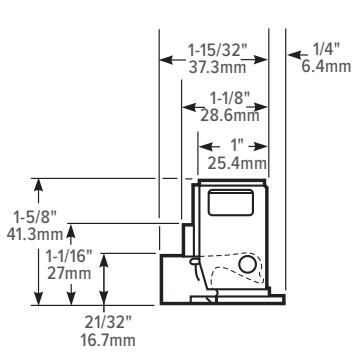

Case
1" x 3-3/8" x 1-5/8" deep [25.4 mm x 85.7 mm x 41.3 mm deep].
Strike Opening
5/8" x 1-7/16" x 1/2" deep [15.9 mm x 36.5 mm x 12.7 mm deep]. Bolt retaining keeper is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
Strike Lip
Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.
• Lip extension kits not available on 7101 or 7131.
Latchbolt Projection
1/2" to 5/8" [12.7 mm to 15.9 mm]
Faceplate
Available in a variety of architectural finishes. Faceplates are also available sold separately.
| 7100 |
1-1/4" x 4-7/8"
[31.8 mm x 123.8 mm] |
Flat with radius corners | ||
|---|---|---|---|---|
| 7101 |
1-1/4" x 4-7/8"
[31.8 mm x 123.8 mm] |
Radiused to match nose on inactive
leaf in a pair of narrow stile doors. |
||
| 7110 |
1-7/16" x 7-15/16"
[36.5 mm x 201.6 mm] |
Flat with radius corners | ||
| 7111 |
1-7/16" x 10-1/4"
[36.5 mm x 260.4 mm] |
Flat with radius corners | ||
| 7130 |
1-1/4" x 6-7/8"
[31.8 mm x 174.6 mm] |
Flat with radius corners | ||
| 7131 |
1-1/4" x 6-7/8"
[31.8 mm x 174.6 mm] |
Radiused to match nose on inactive
leaf in a pair of narrow stile doors |
||
| 7140 |
1-1/4" x 4-7/8"
[31.8 mm x 123.8 mm] |
Flat with square corners | ||
7130/7131: Large 6-7/8" faceplate is designed to cover strike opening when converting from an MS® pivotedbolt deadlock to deadlatch.
Standard Package
Individually boxed with mounting screws, mounting clips, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm].
7140 Includes mounting clips and adhesive shims for use where welded tabs are omitted.
Shipping Weight
2 lbs [0.91 kg].
Electrical
Voltage
Available in 12, 16, or 24 Volt AC and DC. DC continuous units are silent, AC intermittent units "buzz" on operation.
Current Draw
0.33 A at 12 VDC 1.42 A at 12 VAC 0.22 A at 16 VDC 0.63 A at 16 VAC 0.1 7A at 24 VDC 0.74 A at 24 VAC
Fail Safe | Fail Secure
Field selectable at time of installation. However, AC intermittent solenoid must not be used continuously in either.
Options
- Available with two Form 'C' monitoring switches to indicate when the latchbolt is engaged in the strike and whether the strike jaw is blocked. Not available on 7130/7131, 7140.
- Lip extension kits for various dimensions of door centerline to jamb edge; for flat faceplates only. Not available on 7101 or 7131.
• Modular Packaging
Match one strike body kit with one faceplate kit to make a complete electric strike. Faceplate kits contain all hardware to mount electric strike. Please contact factory or sales representative for details.
Related Products

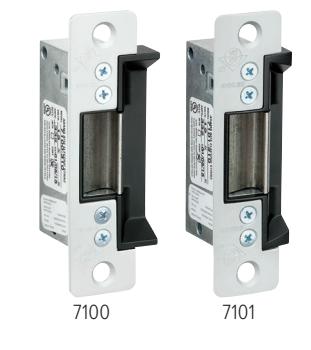

7100/7101, 7110/7111, 7130/7131, 7140
When purchasing this product, please consider the following related products, available separately:
| DEADLATCHES | EXIT DEVICES | ACCESSORIES | POWER |
|---|---|---|---|
|
4510, 4530, 4900, 4920AN
Series Deadlatches |
8300, 8400 Mortise Exit Device |
Lip Extension Kits, Modular Kits,
Monitor Kits, Faceplate Kits |
PS-1 Power Supply, 4603 Rectifier,
4605/4606 Transformer, Piezo Horn audible indicator, ElectroLynx connector |

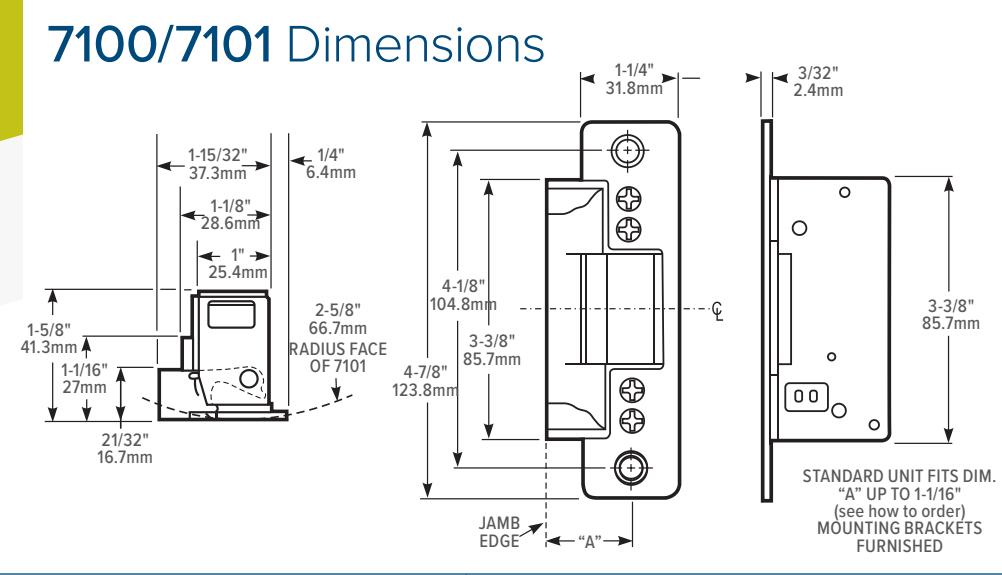

Jamb Preparation Ę 1-1/4' CYLINDER € OF ADAMS RITE LATCH 6-1/8" 155.8mm O 1-7/16" 4-7/8" 36.5mm 123.8mm HORIZONTAL Ç OF ELECTRIC STRIKE AND LATCHBOLT 3-3/8 5/32" 4mm R (4 PLACES) DRILL & CsK FOR 8-32 SCREW (2 PLACES) "A" 21/32" VERTICAL OF ELECTRIC STRIKE FACEPLATE DIRECTLY OPPOSITE OF DEADLATCH 16.7mm

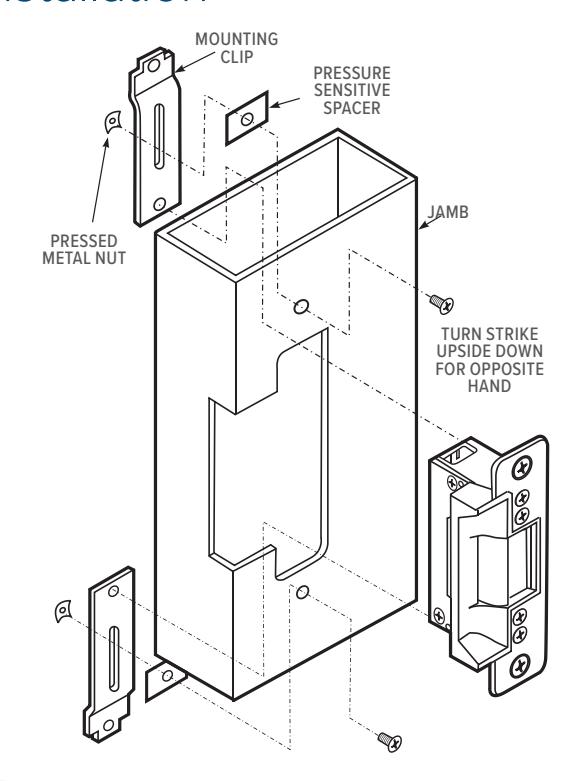

Installation
How to Order
7100/7101 Electric Strikes: Specify quantity and the following information. Order related products separately.
| MODEL |
FACEPLATE
SHAPE |
VOLTAGE | CURRENT AND DUTY | FEATURES* | FINISH** |
LIP EXTENSIONS (DIM. A)***
(DOOR CENTERLINE TO JAMB EDGE) |
|
|---|---|---|---|---|---|---|---|
| 710 | 0 | -3 | 1 | О | -628 | -00 | |
| 0 Flat | 3 12 Volt | 1 DC Continuous or Intermittent | 0 Standard/Fail-Secure | 313 Dark Bronze Anodized | 00 1-1/16" or less | 05 2" | |
| 1 Radius | Radius 4 16 Volt 4 AC Intermittent | 5 Fail-Safe | 335 Black Anodized | 01 1-1/2" | 07 2-1/4" | ||
| 5 24 Volt | 7 Monitored/ Fail-Safe | 626 Satin Chrome | 02 1-5/8" | 09 2-1/2" | |||
| 9 Monitored/ Fail-Secure | 628 Clear Anodized | 03 1-3/4" | 12 2-7/8" | ||||
*Fail-secure can be field converted to fail-safe or vice-versa. **7101 available in 313, 335, 628 only. ***Lip Extensions not available on 7101.
Wood

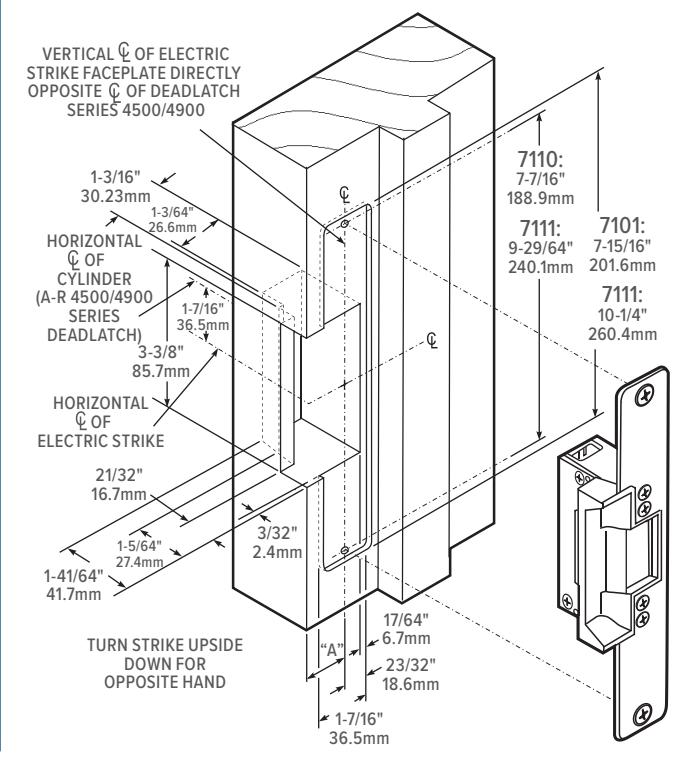

Jamb Preparation
Installation in Wood
How to Order

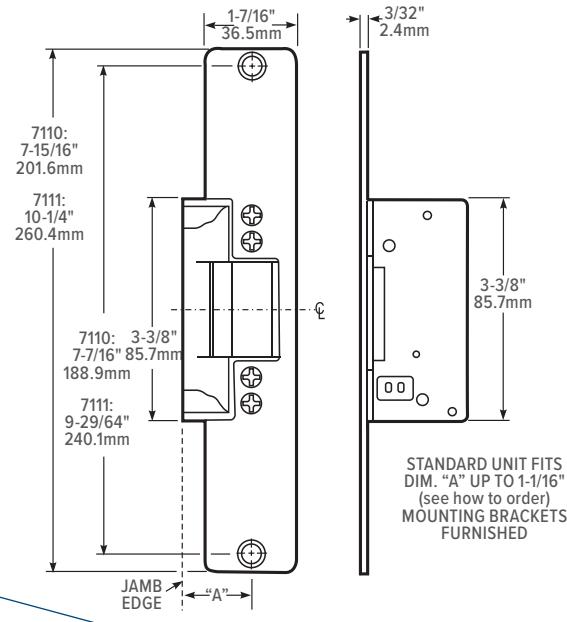

7110/7111 Electric Strikes: Specify quantity and the following information. Order related products separately.
| MODEL | FACEPLATE LENGTH | VOLTAGE | CURRENT AND DUTY | FEATURES* | FINISH |
LIP EXTENSIONS (DIM. A)
(DOOR CENTERLINE TO JAMB EDGE) |
|
|---|---|---|---|---|---|---|---|
| 711 | 0 | -3 | 1 | О | -652 | -00 | |
| 0 7-15/16" | 3 12 Volt | 1 DC Continuous or Intermittent | 0 Standard/Fail-Secure | 652 Satin Chrome | 00 1-1/16" or less | 05 2" | |
| 1 10-1/4" | 4 16 Volt | 4 AC Intermittent | 5 Fail-Safe | 01 1-1/2" | 07 2-1/4" | ||
| 5 24 Volt | 7 Monitored/ Fail-Safe | 02 1-5/8" | 09 2-1/2" | ||||
| 9 Monitored/Fail-Secure | 03 1-3/4" | 12 2-7/8" | |||||
* Fail-secure can be field converted to fail-safe or vice-versa

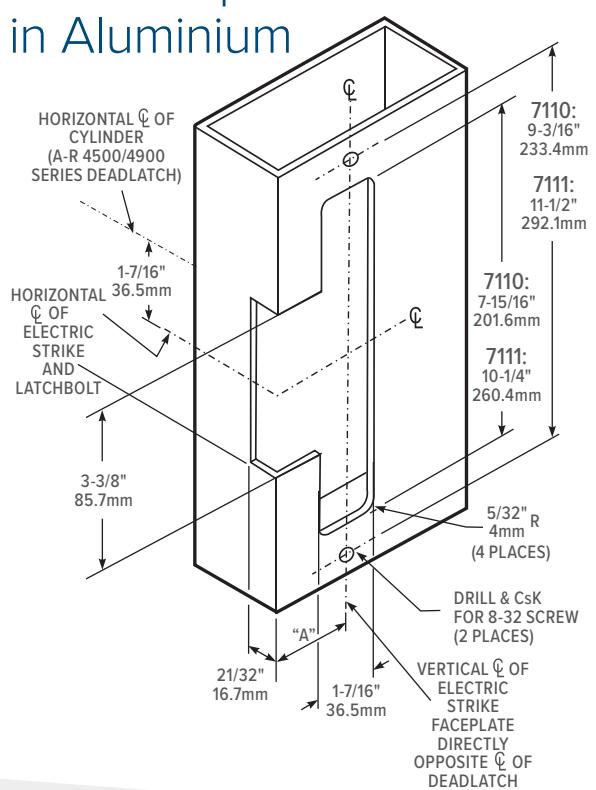

Aluminium
All measurements are approximate and are provided for informational purposes only Refer to the product Installation Instructions.

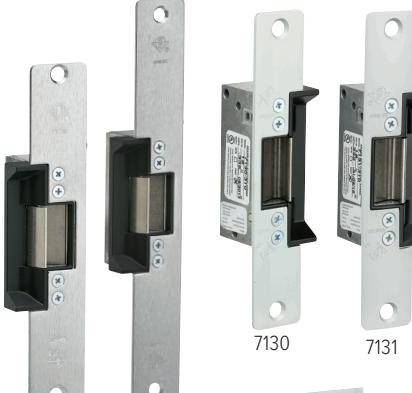

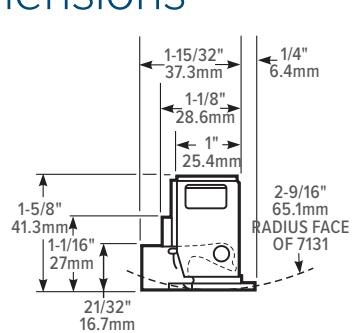

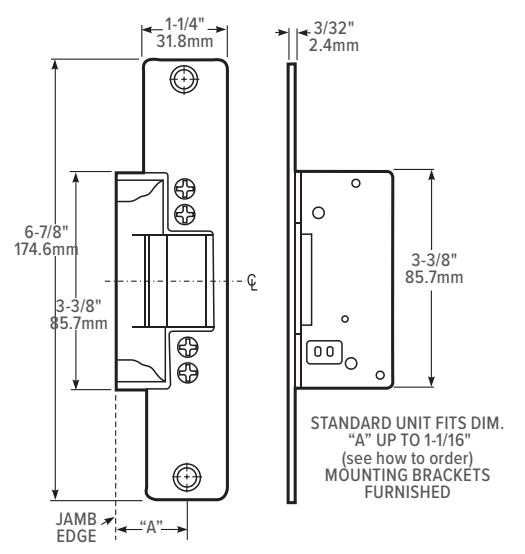

7130/7131

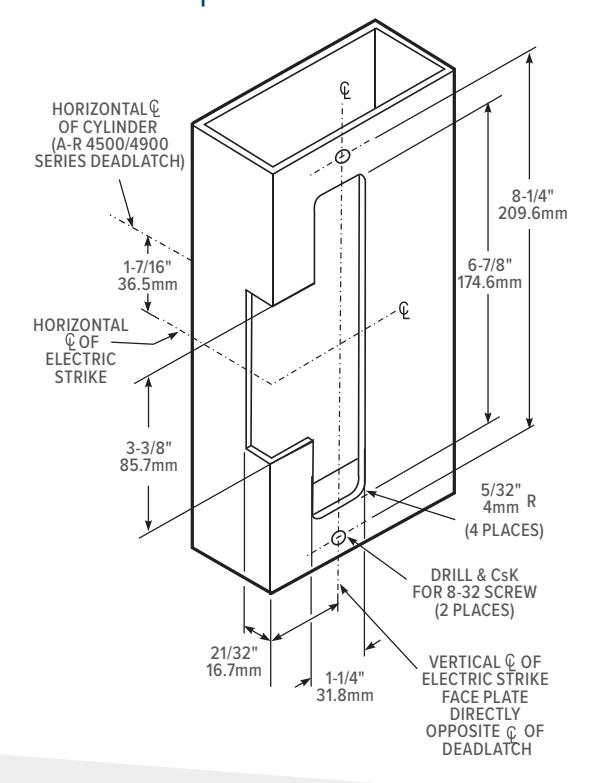

Jamb Preparation

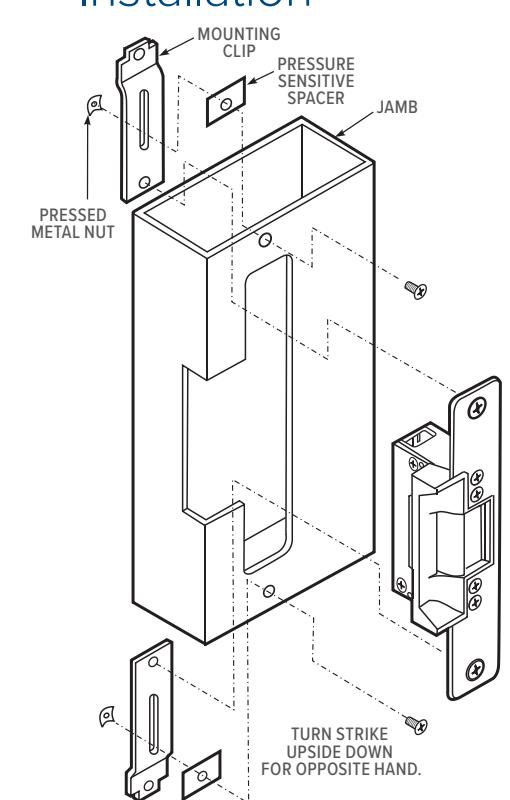

Installation
How to Order
7130/7131 Electric Strikes: Specify quantity and the following information. Order related products separately.
| MODEL |
FACEPLATE
SHAPE |
VOLTAGE | CURRENT AND DUTY | FEATURES* | FINISH |
LIP EXTENSIONS (DIM. A)**
(DOOR CENTERLINE TO JAMB EDGE) |
|
|---|---|---|---|---|---|---|---|
| 713 | 0 | -3 | 1 | 0 | -313 | -00 | |
| 0 Flat | 3 12 Volt | 1 DC Continuous or Intermittent | 0 Standard/Fail-Secure | 313 Dark Bronze Anodized | 00 1-1/16" or less | 05 2" | |
| 1 Radius | 4 16 Volt | 4 AC Intermittent | 5 Fail-Safe | 335 Black Anodized | 01 1-1/2" | 07 2-1/4" | |
| 5 24 Volt | 628 Clear Anodized | 02 1-5/8" | 09 2-1/2" | ||||
| 03 1-3/4" | 12 2-7/8" | ||||||
* Fail-secure can be field converted to fail-safe or vice-versa. **Lip Extensions not available on 7131.

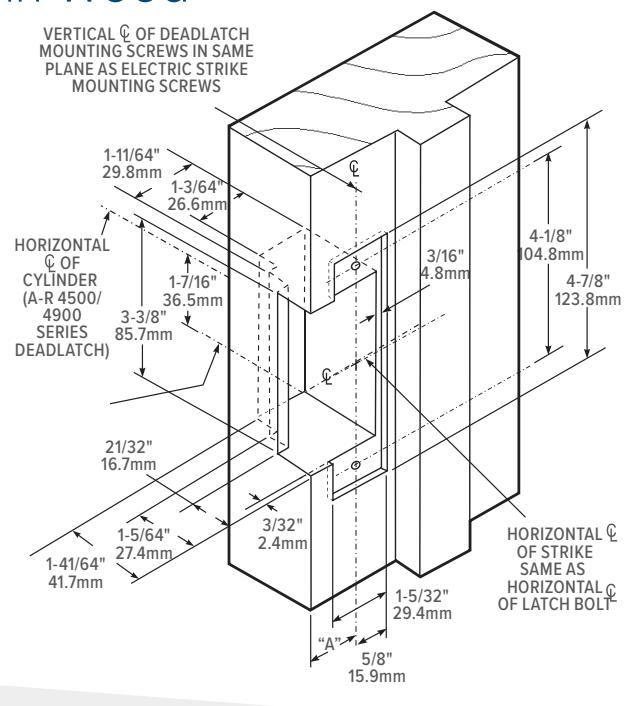

Jamb Preparation in Wood

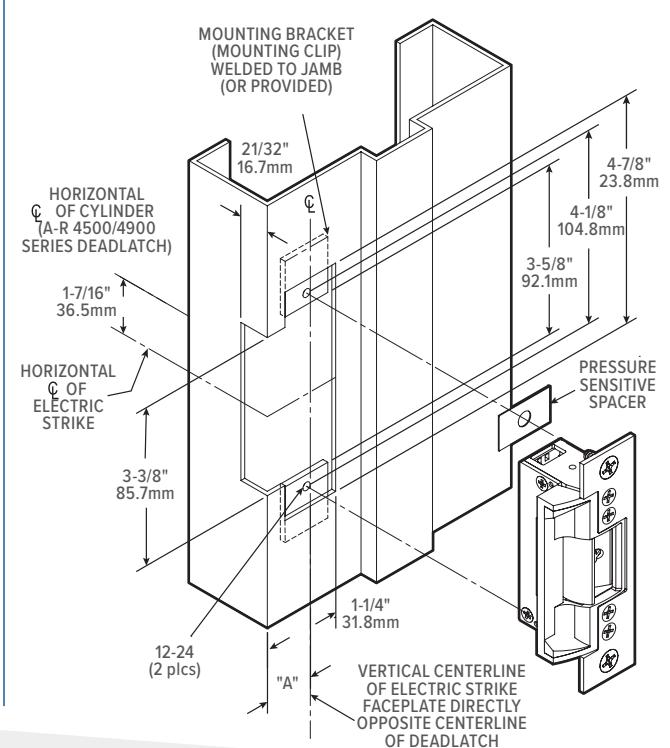

Jamb Preparation & Installation in Steel
How to Order

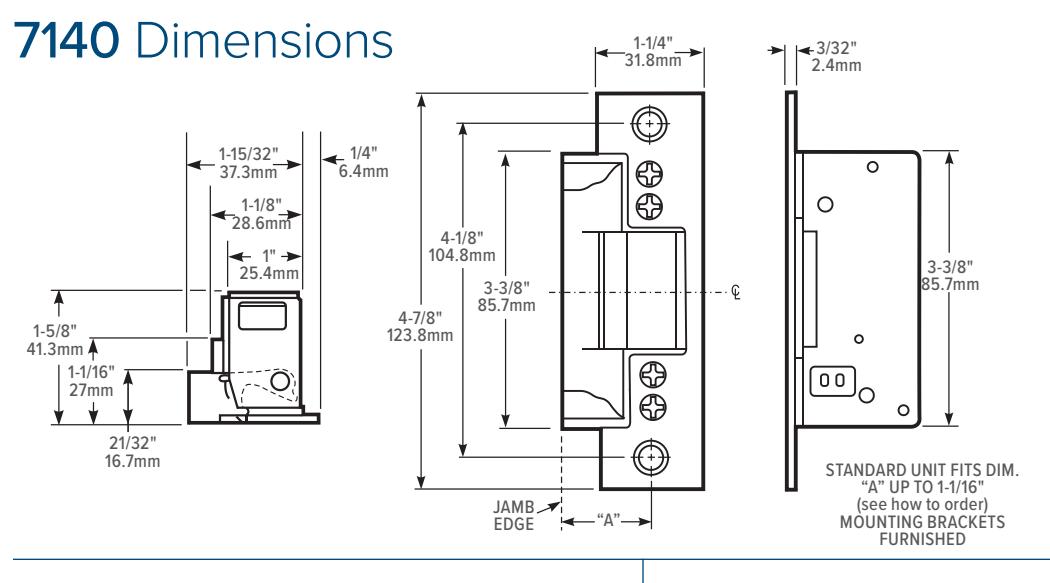

7140 Electric Strike: Specify quantity and the following information. Order related products separately.
| MODEL | VOLTAGE | CURRENT AND DUTY | FEATURES* | FINISH |
LIP EXTENSIONS (DIM. A)
(DOOR CENTERLINE TO JAMB EDGE) |
|
|---|---|---|---|---|---|---|
| 7140 | -3 | 1 | 0 | -628 | -C | 00 |
| 3 12 Volt | 1 DC Continuous or Intermittent | O Standard/Fail-Secure | 313 Dark Bronze Anodized | 00 1-1/16" or less | 05 2" | |
| 4 16 Volt | 5 Fail-Safe | 335 Black Anodized | 01 1-1/2" | 07 2-1/4" | ||
| 626 Satin Chrome | 02 1-5/8" | 09 2-1/2" | ||||
| 628 Clear Anodized | 03 1-3/4" | 12 2-7/8" | ||||
* Fail-secure can be field converted to fail-safe or vice-versa
