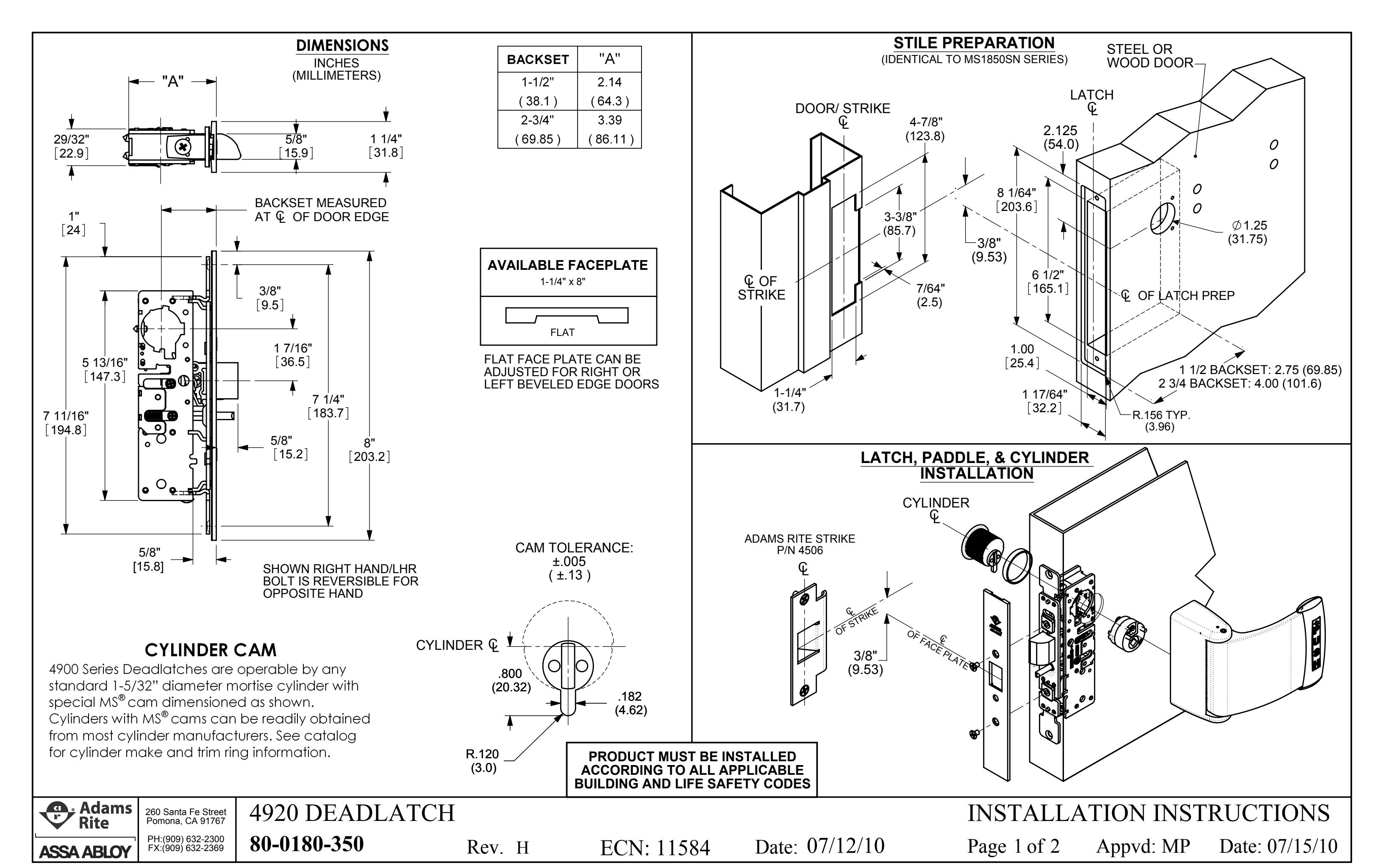

Adams Rite 4920AN Deadlatches Installation Instructions
Open the original PDF document
View PDF

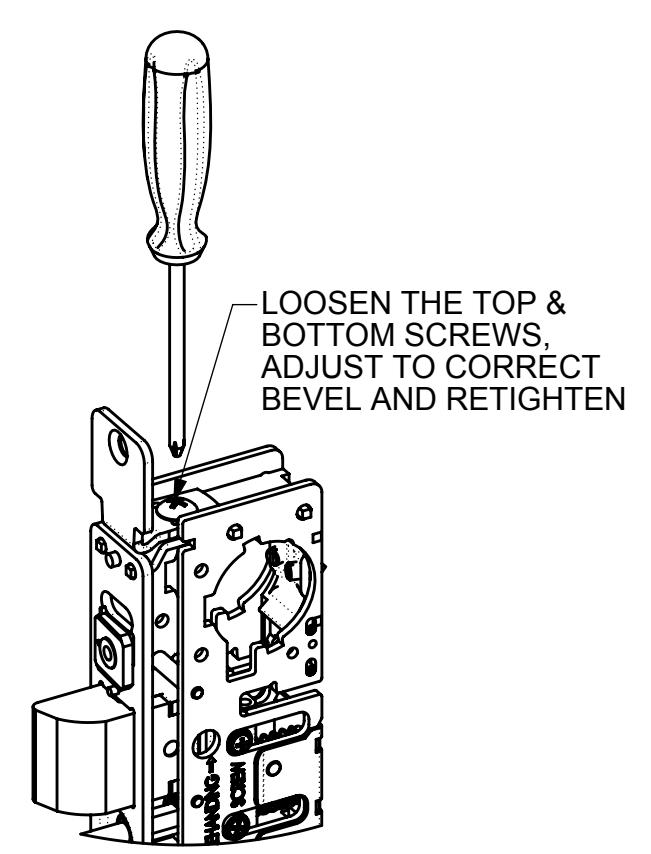

BEVEL ADJUSTMENT

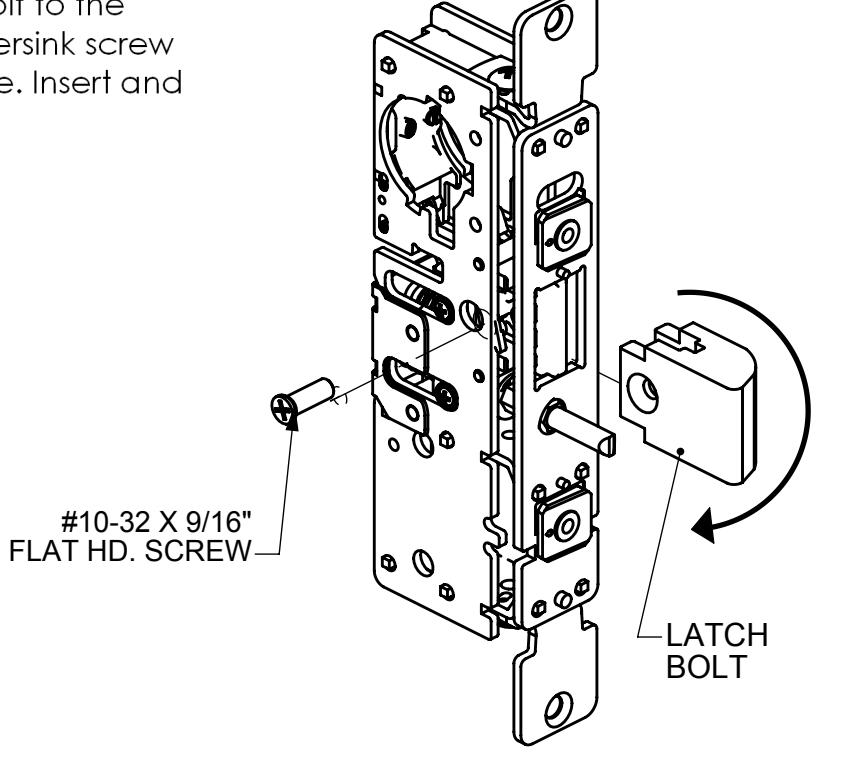

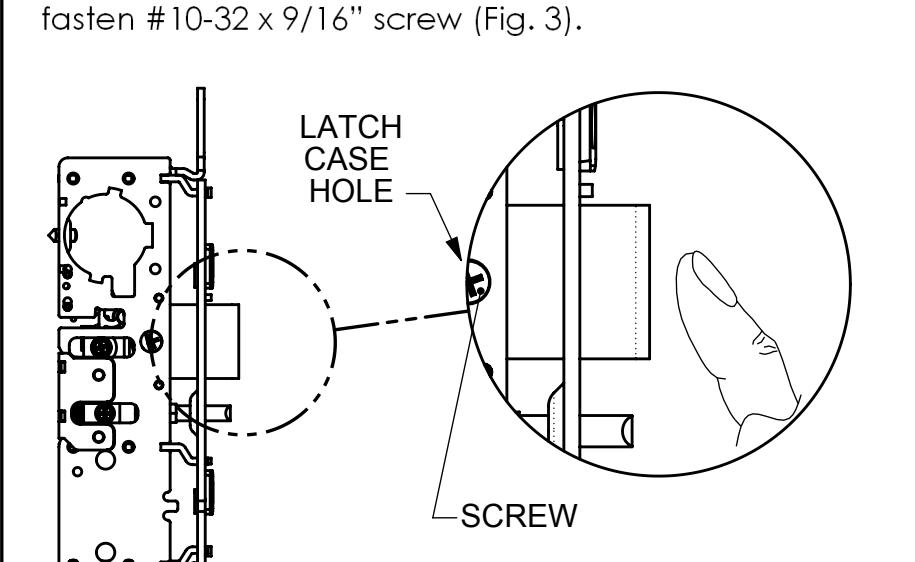

FIG. 1

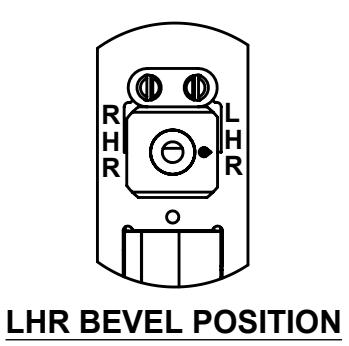

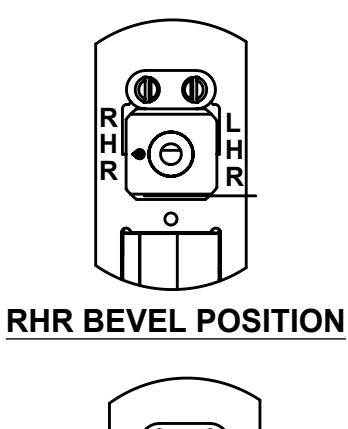

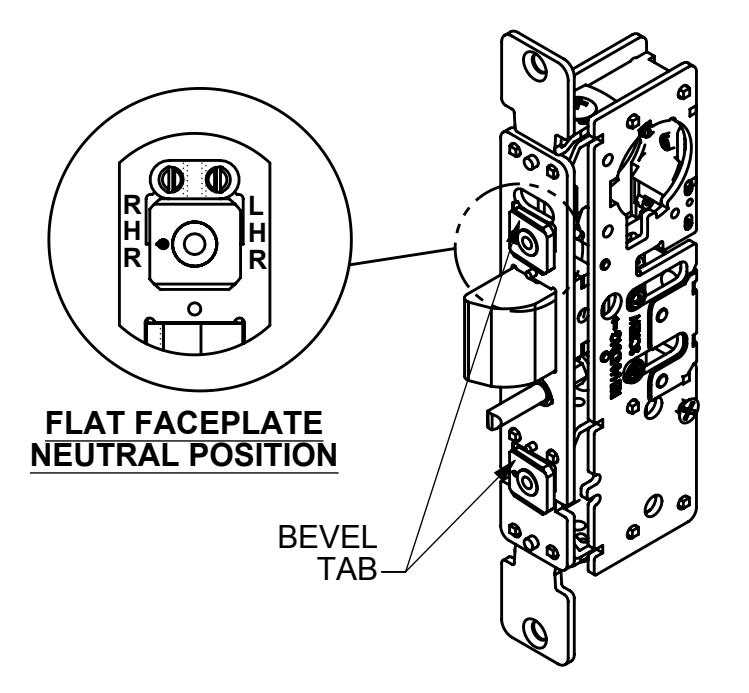

Rotate bevel tab to desired hand. Using the bevel adjustment allows the flat faceplate to work in beveled stiles. Flat faceplate is included.
LATCH HOLDBACK
A reverse turn of the key (while bolt is held fully retracted) retains the bolt, allowing the door to be free swinging.

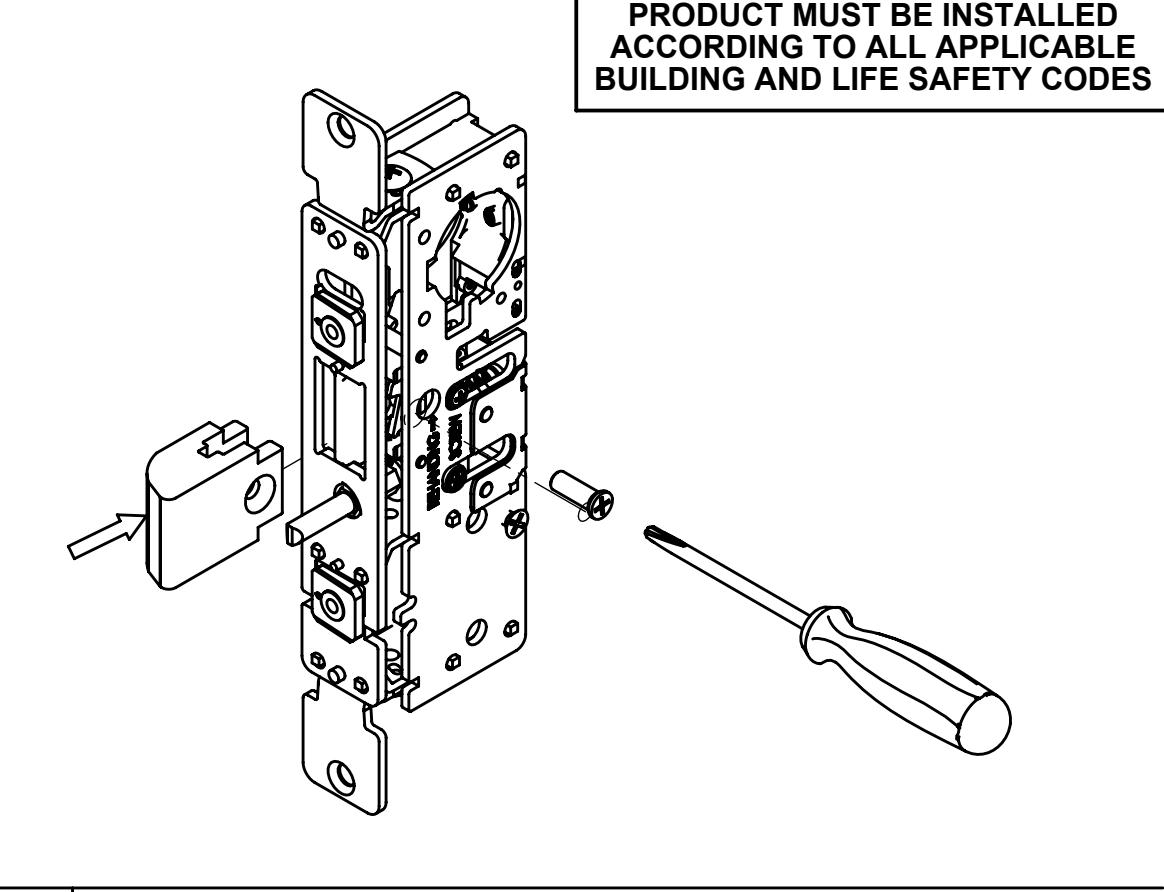

-#6-32 x 3/16" SCREW
TO BLOCK HOLDBACK FEATURE
Install #6-32 x 3/16" screw into case as shown before installing in door.
ASSA ABLOY
260 Santa Fe Street Pomona, CA 91767 PH:(909) 632-2300 FX:(909) 632-2369
4920 DEADLATCH
80-0180-350
Rev. H
ECN: 11584
Date: 07/12/10
INSTALLATION INSTRUCTIONS
Page 2 of 2
Appvd: MP
Date: 07/15/10
