INSTALLATION INSTRUCTION CHECKLIST

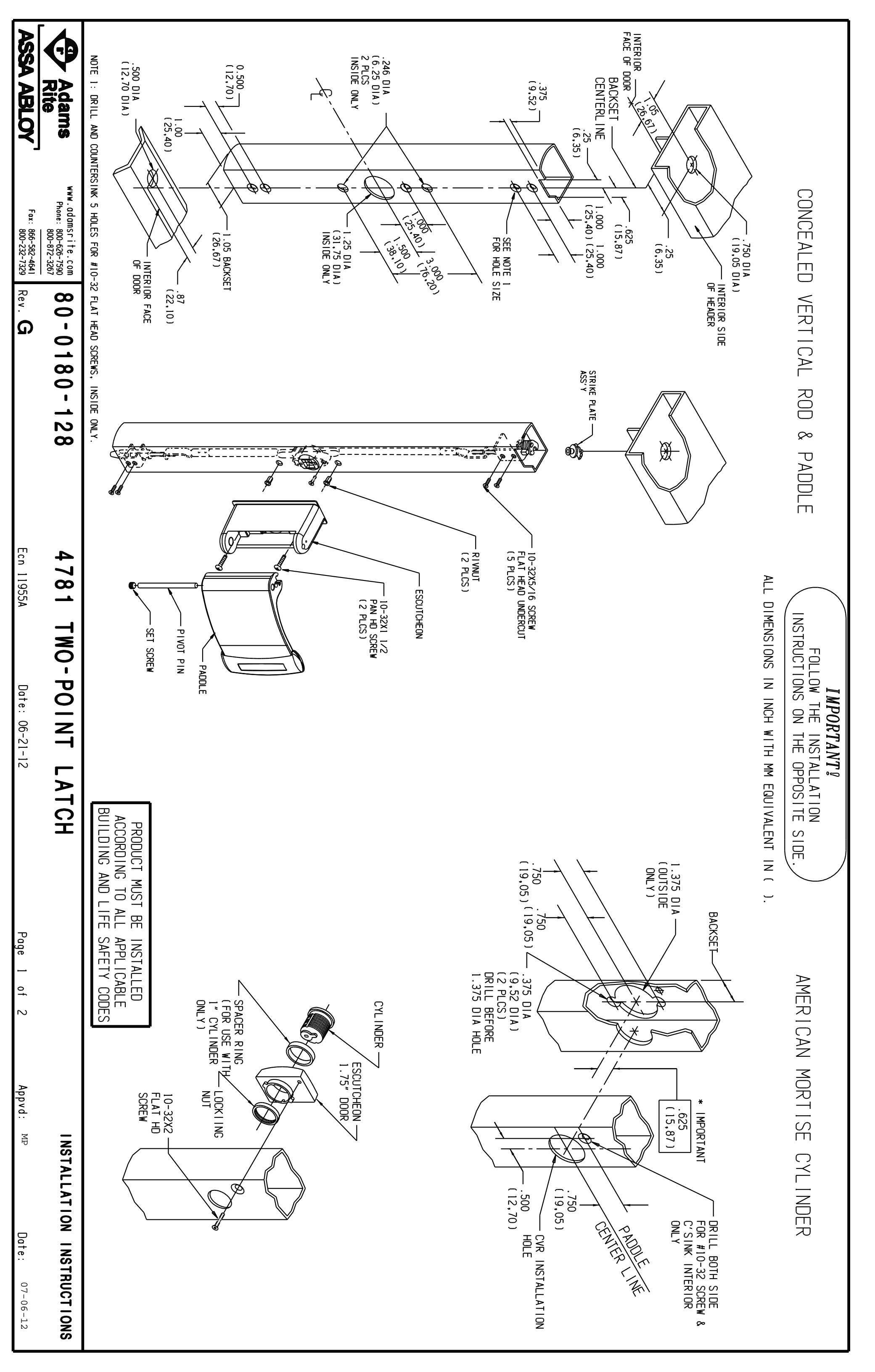

4781 TWO-POINT LATCH

IMPORTANT!

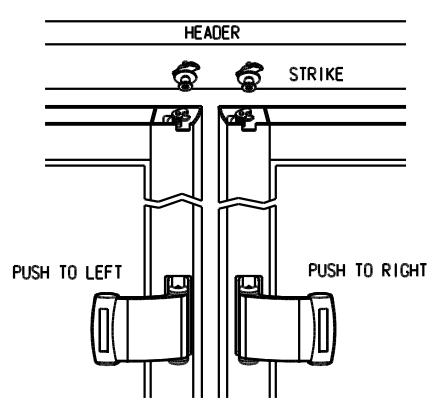

The rod mechanism is unhanded. It can be installed in either push to left or push to right without alteration. The doors' lead stile and header preparation are IDENTICAL not mirror image. Note in the sketch above that the yoke type bolt always faces right (as viewed from inside) and the strike post is toward the back of the backset centerline for both doors.

NOTE STEPS 1 THRU 5 ARE MORE EASILY ACCOMPLISHED IF DOOR IS NOT INSTALLED IN FRAME.

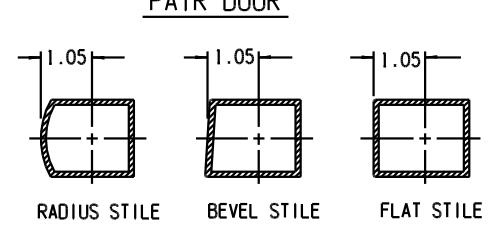

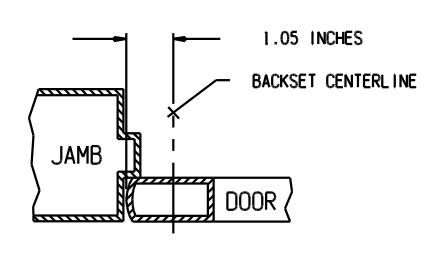

HOW TO FIND BACKSET

SINGLE DOOR

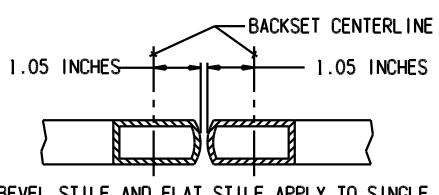

BEVEL STILE AND FLAT STILE APPLY TO SINGLE SINGLE DOOR ONLY. PAIR DOOR

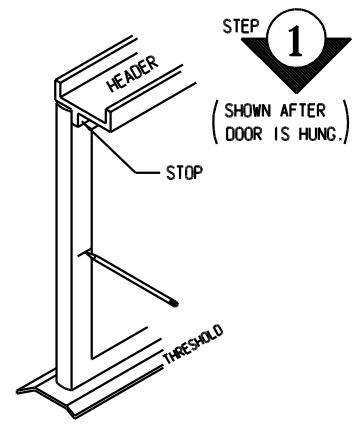

BACKSET IS MEASURED AT DOOR CENTERLINE, NOT THE EDGE.

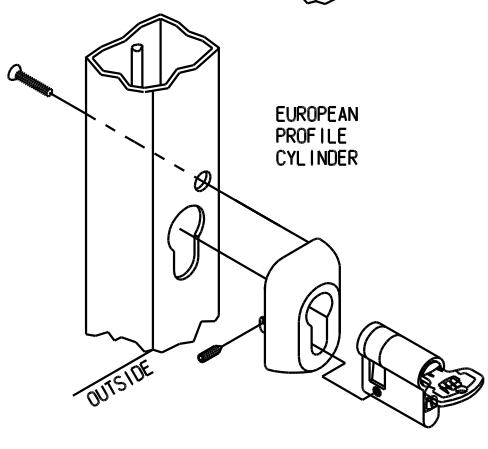

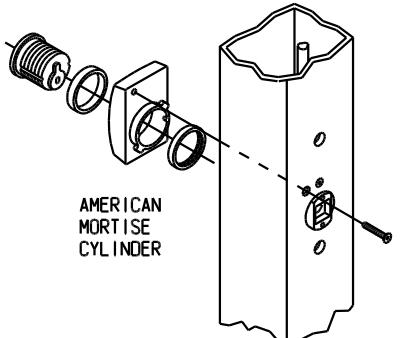

MARK PADDLE HEIGHT ON INSIDE OF DOOR STILE (AND ON OUTSIDE, IE CYLINDER WILL BE FITTED).

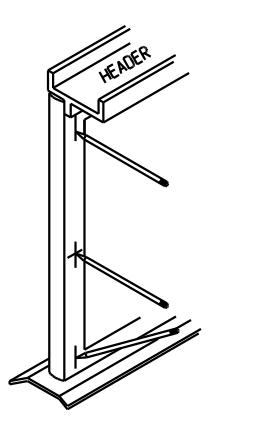

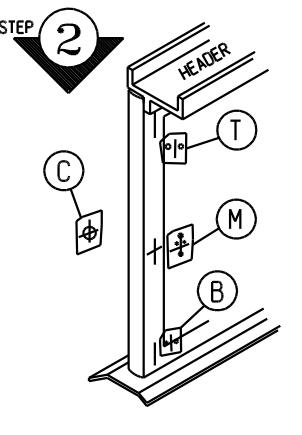

MARK BACKSET CENTERLINE AT TOP, PADDLE HEIGHT AND BOTTOM. (ALSO MARK ON OUTSIDE AT PADDLE HEIGHT IF CYLINDER TO BE FITTED)

PEEL OFF BACKING AND APPLY CLEAR STICK-ON TEMPLATES OVER THE PENCIL LINES. NOTCH, DRILL AND COUNTERSINK WHERE SHOWN.

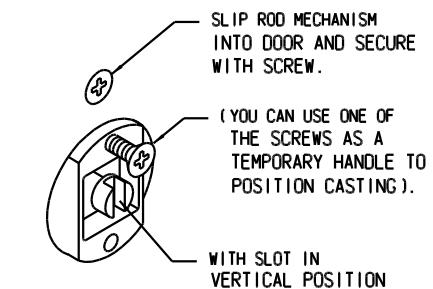

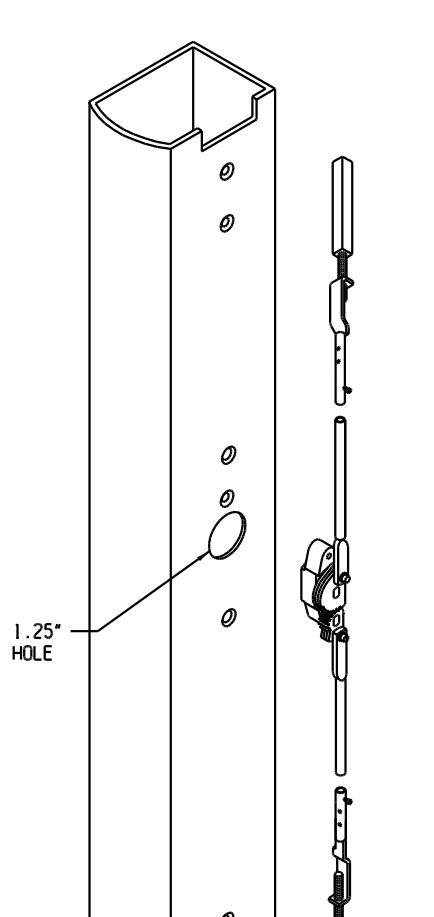

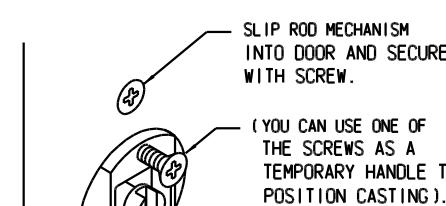

LAY ROD MECHANISM ON PREPARED DOOR WITH GEAR PLATES OUTWARD AND CASTING RESTING IN 1 1/4" DIAMETER HOLE IN DOOR AS SHOWN BELOW.

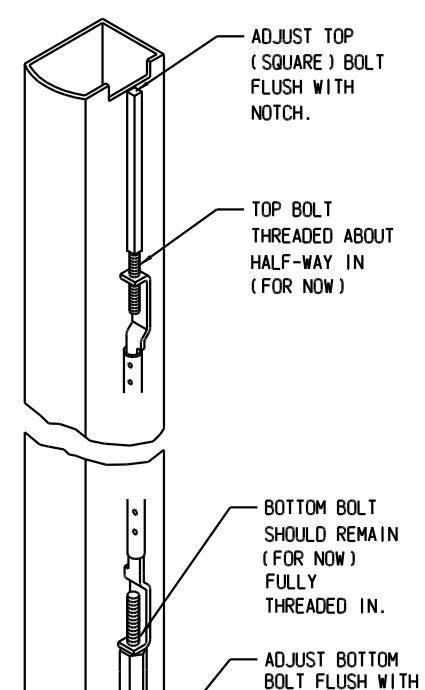

ADJUST RODS TO APPROXIMATE LENGTH. (ROUGH ADJUSTMENT FOR NOW)

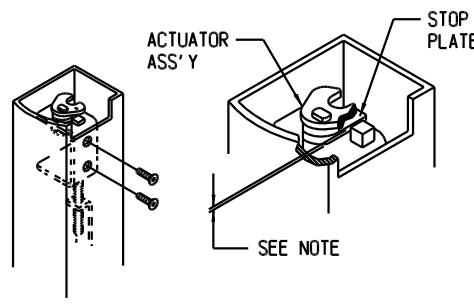

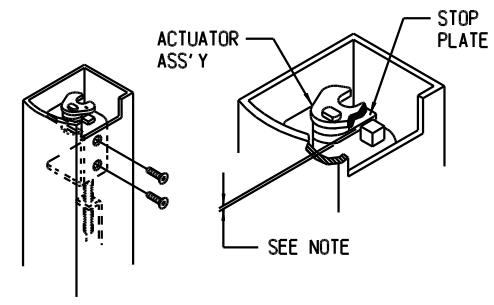

WITH TWO SCREWS. WITH ASSEMBLY IN LOCKED POSITION AND PUSH BAR RELEASED. END OF SQUARE BOLT SHOULD ENGAGE STOP PLATE AS SHOWN. (FOR FINE ADJUSTMENT, REMOVE ACTUATOR ASSEMBLY, ADJUST BOLT UP OR DOWN AND REINSTALL ASSEMBLY.)

SQUARE BOLT MUST BE FLUSH WITH TOP OF STOP PLATE TO 1/16 MAX. BELOW FLUSH.

WHEN ROUGH ADJUSTMENT OF RODS IS CORRECT. TIGHTEN METAL-PIERCING SCREWS ALL THE WAY THRU TUBE. YES! ALL THE WAY THROUGH AND TIGHT.

INSTALL TOP BOLT ACTUATOR ASSEMBLY AND SECURE

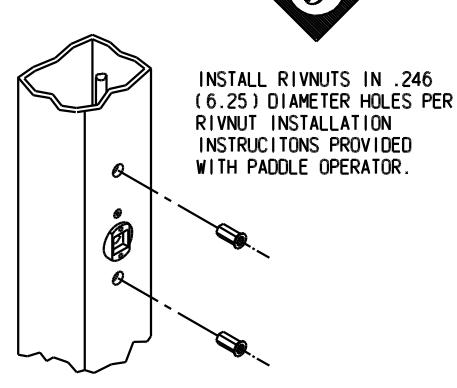

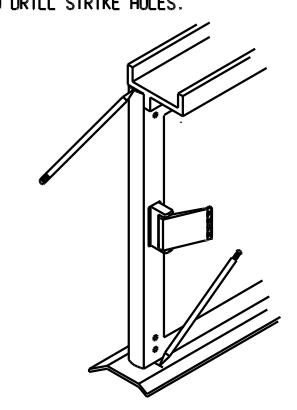

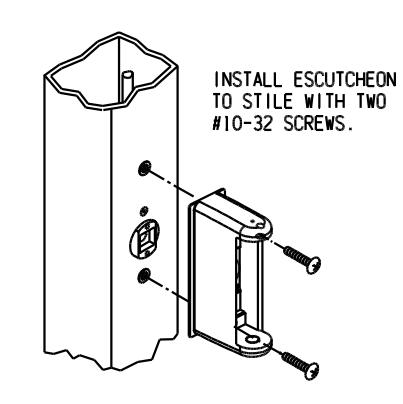

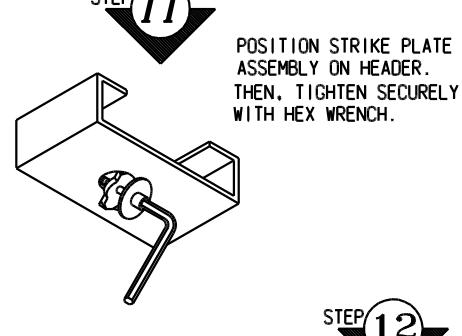

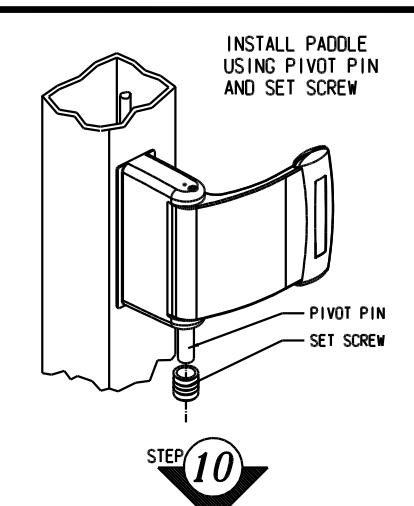

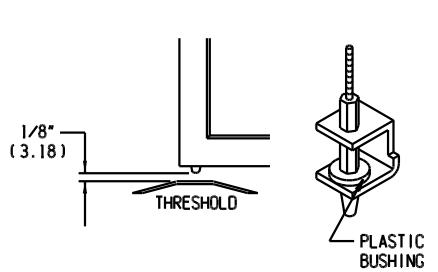

INSTALL DOOR IN FRAME. MARK BACKSET CENTERLINE ON HEADER AND THRESHOLD. ALSO MARK WHERE FACE OF CLOSED DOOR RESTS. APPLY CLEAR TEMPLATES (H) AND (F) AND DRILL STRIKE HOLES.
