Adams Rite 4590, 4591 Paddles Installation Instructions

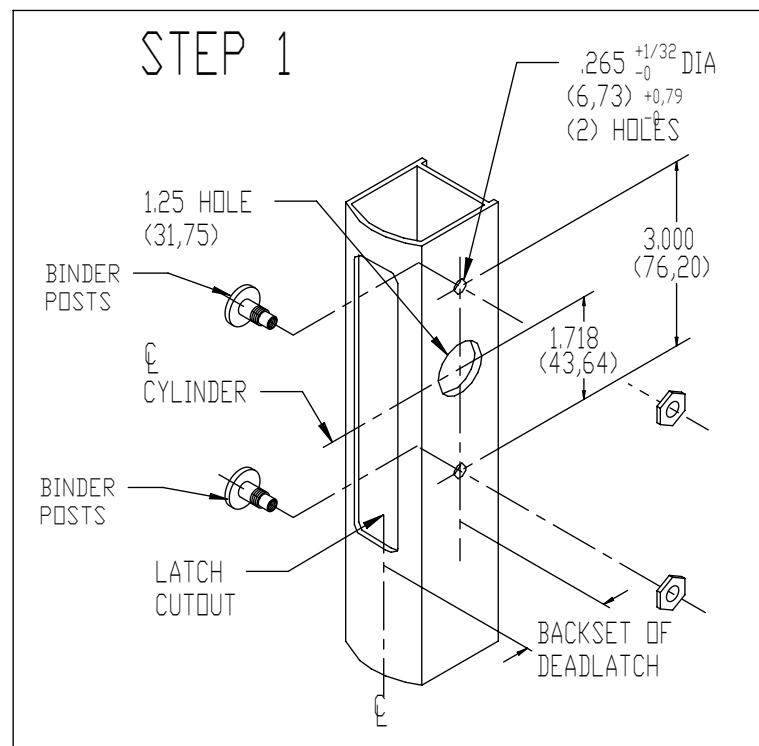

1.PREPARE STILE AS SHOWN. 2.INSERT BINDER POST THRU .265 DIA. HOLE IN STILE. 3.SECURE BINDER POST WITH 1/4-28 NUT. (CAUTION: DO NOT OVERTIGHTEN NUT)

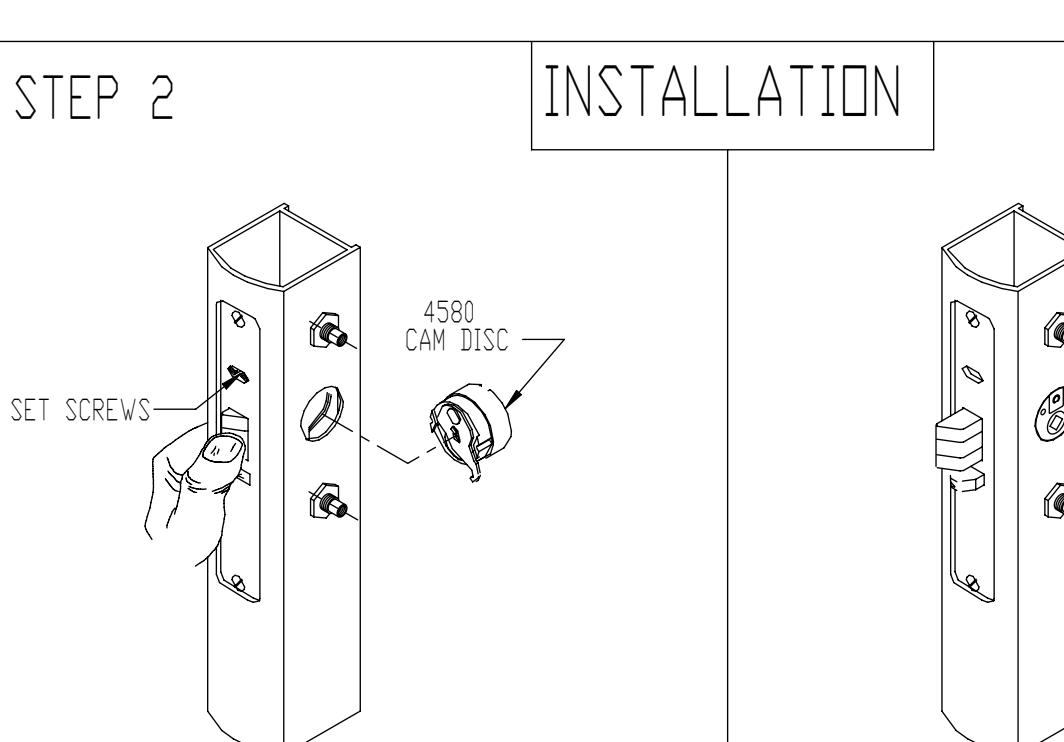

1.INSTALL 4500, 4700 AND 4900 SERIES DEADLATCH PER MOUNTING INSTRUCTIONS. 2.INSTALL 4580 CAM DISC ASSY. SECURE WITH SETSCREW

STEP 3

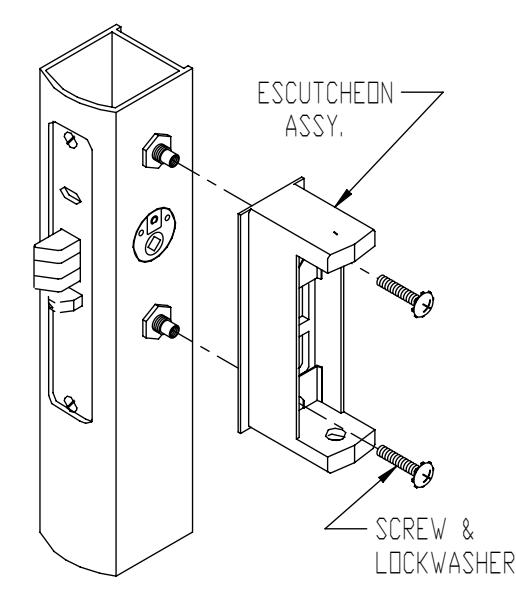

1.INSTALL ESCUTCHEON ASSY. 2.USING 8-32 SCREWS W/L TICKWASHER SECURE ESCUTCHEON ASSY, TO BINDER POST.

<u>IMPORTANT</u> TIGHTEN THESE SCREWS SECURELY.

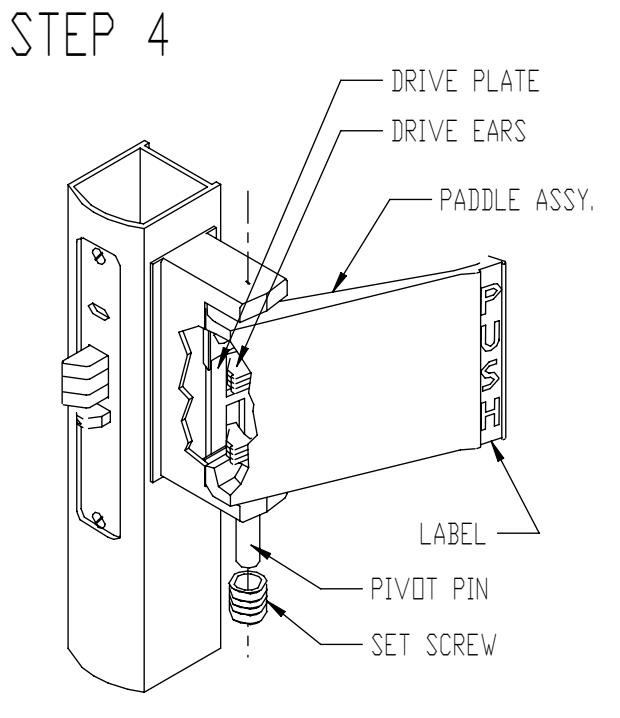

1,INSTALL PADDLE ASSY, ALIGN DRIVE EARS ON PADDLE WITH SLOT IN DRIVE PLATE. 2.INSTALL PIVOT PIN. 3.INSTALL PIVOT PIN SET SCREW. TIGHTEN SET SCREW FLUSH WITH BOTTOM OF ESCUTCHEON.

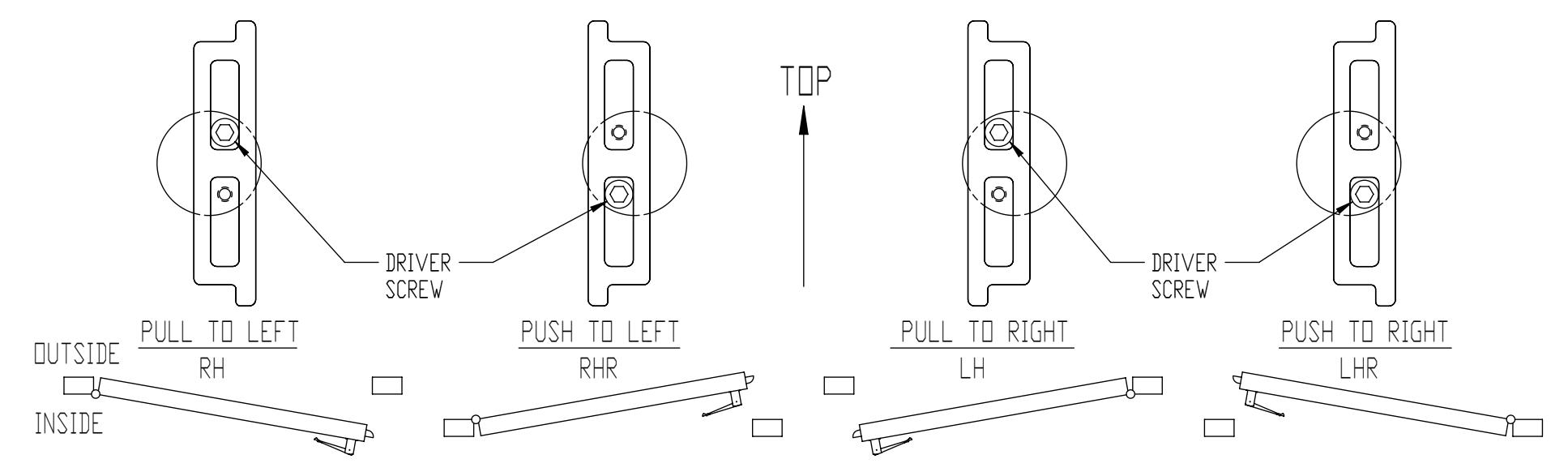

1,FIND DESIRED CONFIGURATION.

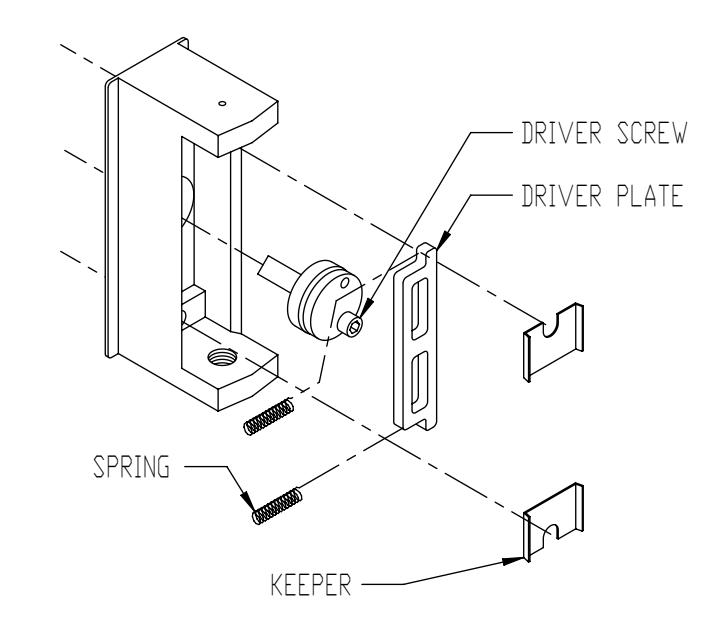

2.REMOVE KEEPERS TO SEE LOCATION OF SPRINGS & DRIVER PLATE.

3.REVERSE SPRINGS & DRIVER PLATE IF NECESSARY.

4.REMOVE DRIVER SCREW IF NECESSARY, AND PLACE IN DESIRED LOCATION.

5.REPLACE KEEPERS. 6.CONFIGURE CAM DISC. (SEE REVERSE)

Adams ASSA ABLO

www.adamsrite.com Phone: 800-626-7590 800-872-3267 Fax: 866-582-4641 800-232-7329

80-0180-200

Rev. $\{\backslash rm\; E\}$

Ecn 11955A

Date: 06-19-12

Page 1 of 2

4590 PADDLE OPERATOR

Appvd: MP

Date: 06-19-12

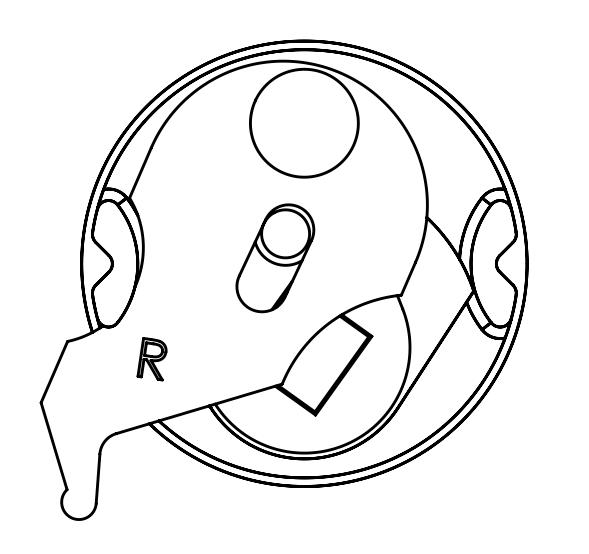

4580 CAM DISC HANDING

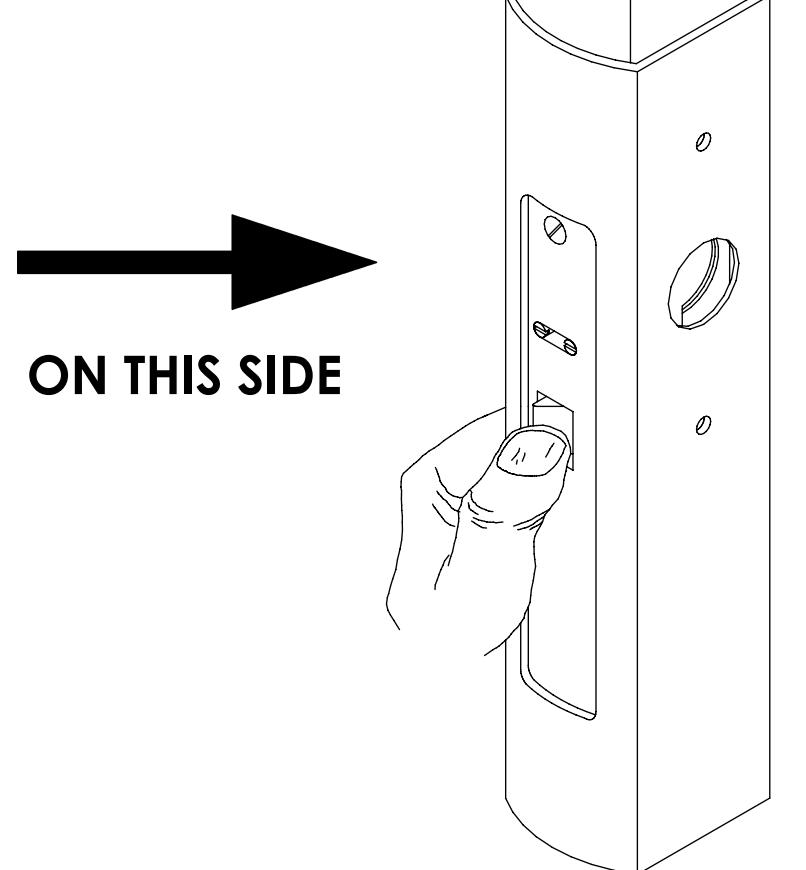

LOOKING AT THE EDGE OF THE DOOR, DETERMINE ON WHICH SIDE THE HANDLE OR OTHER OPERATOR IS TO BE INSTALLED.

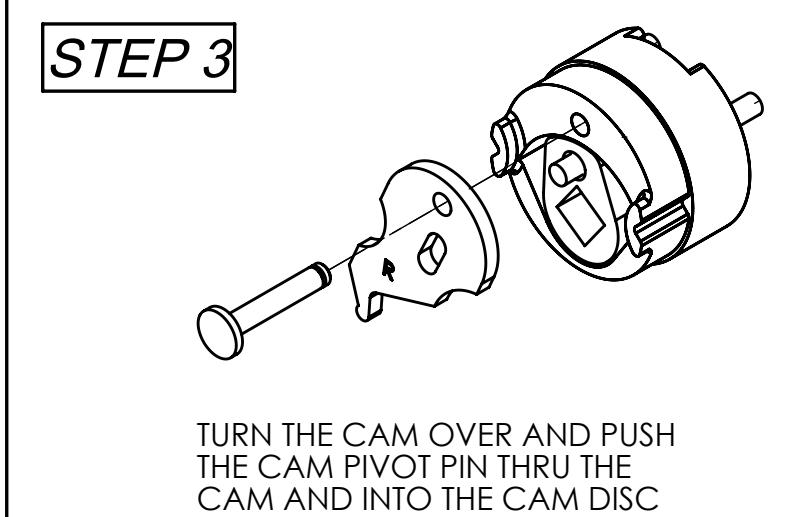

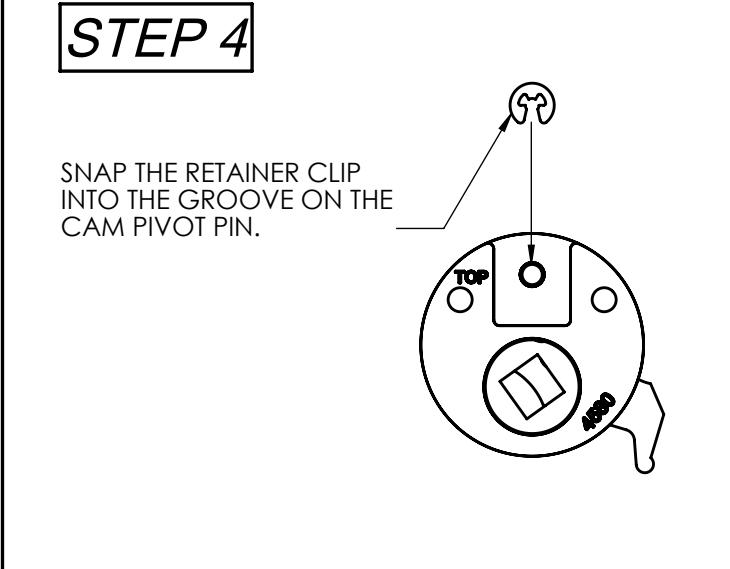

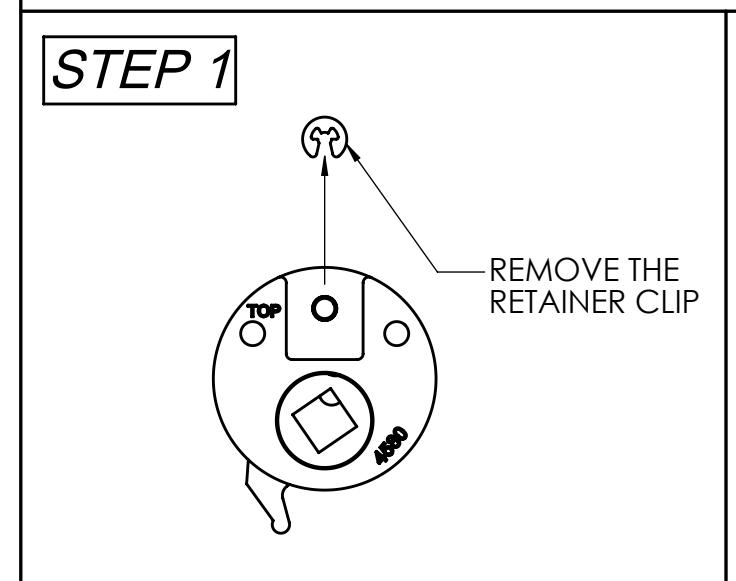

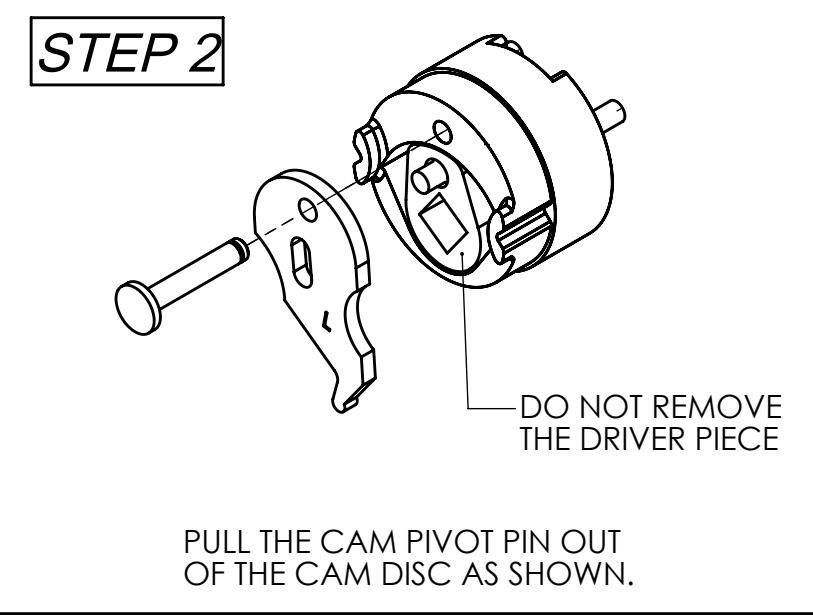

INSTRUCTIONS FOR CHANGING HAND OF 4580 CAM DISC

4591 PADDLE OPERATOR

INSTALLATION INSTRUCTIONS

Fax: 866-582-4641 800-232-7329 80-0180-200

www.adamsrite.com Phone: 800-626-7590 800-872-3267

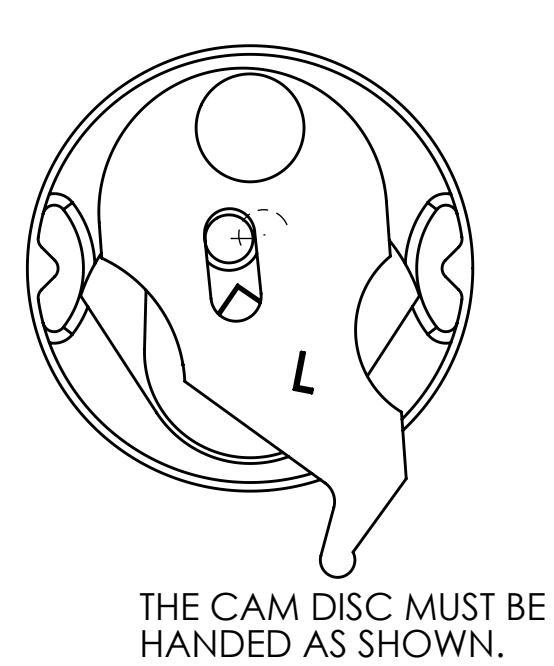

AS SHOWN.

Page 2 of 2 Rev. E ECN: 11955A Date: 06-19-12 Appvd: MP Date: 06-19-12
