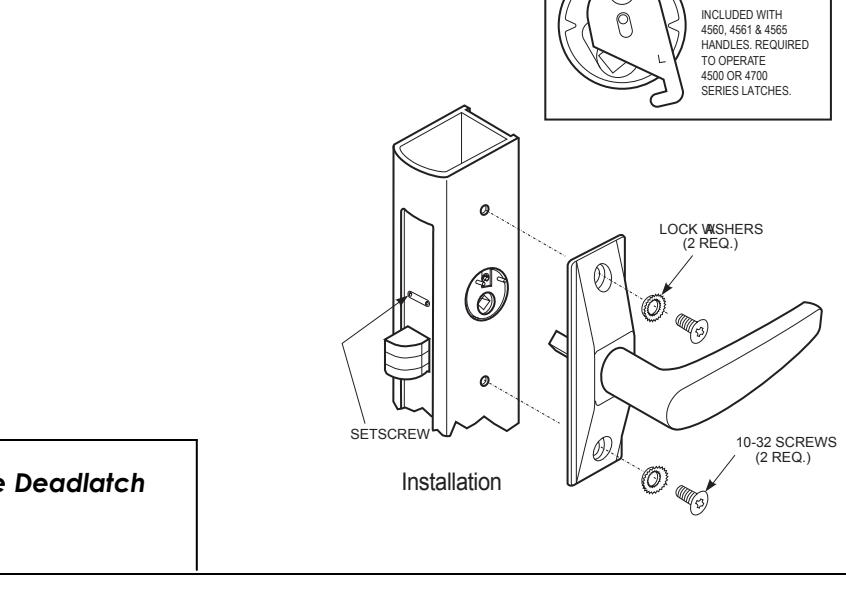

Adams Rite 4560, 4561, 4565 Installation Instructions

STILE E

LATCH CYLINDER

Narrow Stile Preparation

LATCH BACKSET

1.718 43.6

1.25_DIA.

TAP #10-32 (2 PLCS)

REVERSIBLE 4580 Cam Disc

ADAMS RITE MANUFACTURING CO.

260 Santa Fe Street, Pomona, CA 91767 Phone: (909) 632-2300 Fax: (909) 632-2369

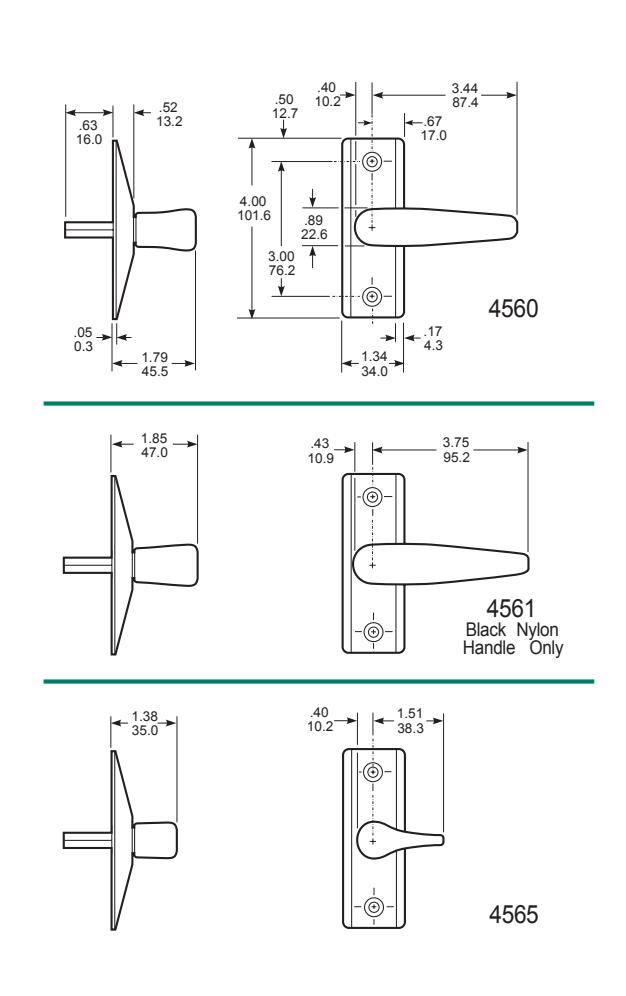

4560, 61, 65 - Eurostyle Deadlatch Handles for 4500/4700
