4510 Series and 4530 Series Deadlatch Installation Instructions

Phoenix, AZ 85044 Tel: 1-800-872-3267

Mon-Fri: 6:00am - 4:00pm PDT

Fax: 1-800-232-7329 www.adamsrite.com

4510 Series

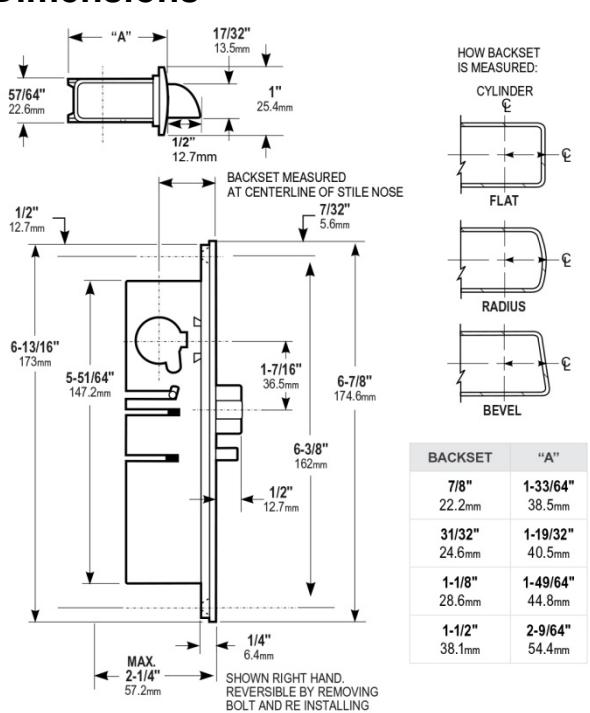

Dimensions

Available Faceplates

Related Hardware and Accessories

• 1. Handle Operators Specify 4560, 4561, 4565, 4568, or 4590
• 2. Cylinders are available from Adams Rite keyed different or keyed alike in pairs.
• 3. Cylinder Guard Specify MS 4043
• 4. Optional Strikes

See Catalog for additional details.

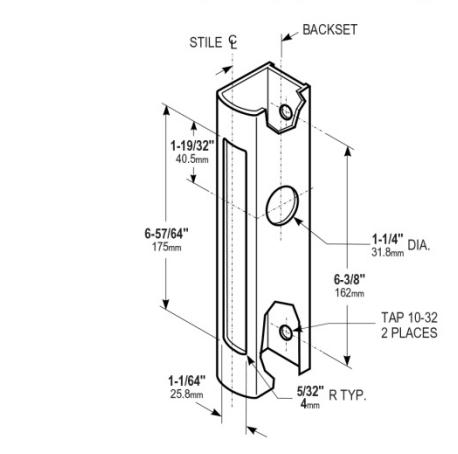

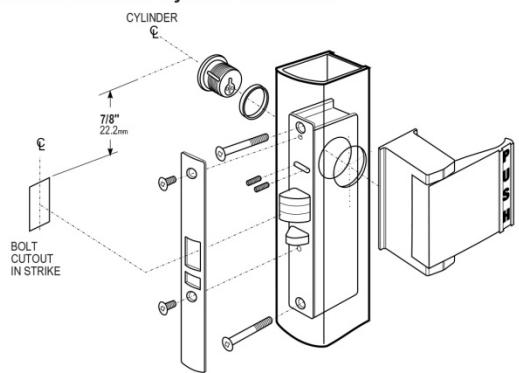

Installation

4530 Series

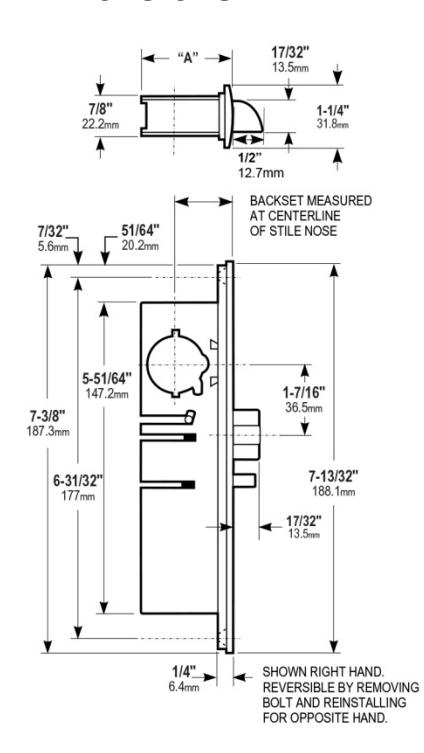

Dimensions

BACKSET	"A"
7/8" 22.2 mm	1-33/64" 38.5 mm
31/32" 24.6 mm	1-19/32" 40.5 mm
1-1/8" 28.6 mm	1-49/64" 44.8 mm

Available Faceplates

Related Hardware and Accessories

• 1. Handle Operators Specify 4560, 4561, 4565, 4568, or 4569
• 2. Cylinders are available from Adams Rite keyed different or keyed alike in pairs.
• 3. Optional Strikes

See Catalog for additional details.

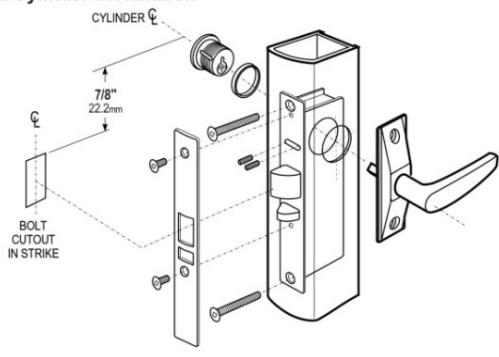

Installation
