INCHES

Nominal, subject to tolerance extremes.

.84 2.1 .63 1.0 25.4 "A" BACKSET MEASURED AT CENTERLINE OF STILE NOSE 5.12 130.0 .62 15.7 .25 6.3 5.63 143.0 4.38 111.0 .62 15.7 .22 5.62 141.0

BA CK SE T	"A "
7/ 8" 22 .2	1.5 7 39 .9
31 /3 2" 24 .6	1.6 3 41 .4
1-1 /8 " 28 .6	1.7 8 45 .2

4170 Trim Strike

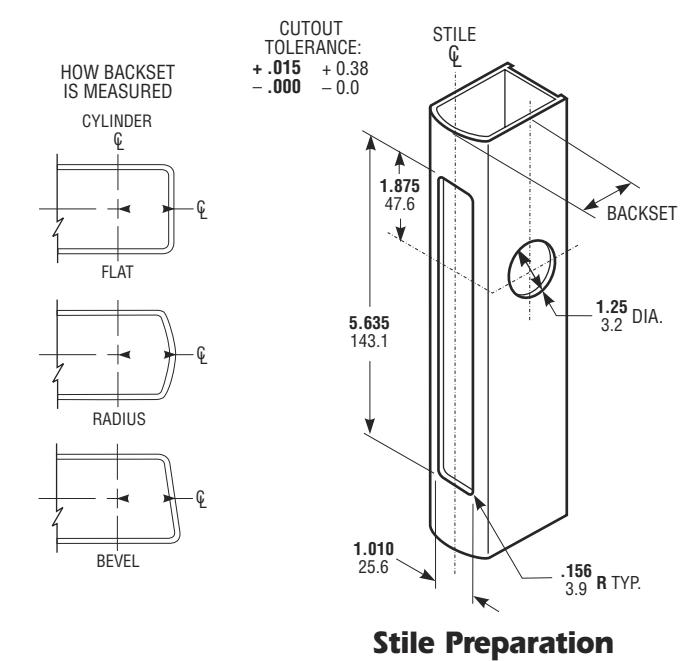

DIMENSIONS INSTALLATION

ADAMS RITE MANUFACTURING CO.

260 Santa Fe Street, Pomona, CA 91767 Phone: (909) 632-2300 Fax: (909) 632-2369

4070 Series Short Throw Deadbolt
