DIMENSIONS

INCHES MILLIMETERS

Nominal, subject to tolerance extremes.

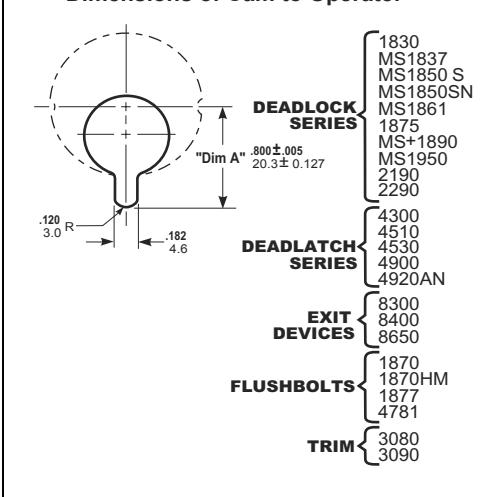

Dimensions of Cam to Operate:

This Cam Available From:

ADAMS RITE ARROW ASSA BEST CORBIN RUSSWIN DORMA FALCON KABA-ILCO MEDECO SARGENT SCHLAGE WEISER VALE

Dimensions of Cam to Operate: 4070 Series Deadlbolt

This cam available from above cylinder manufacturers on special order (or make from standard cam)

Dimensions of Cam to Operate: 2331 Deadbolt

This cam available from all cylinder manufacturers (standard cam)

CYLINDER TRIM RING TR DOOR STILE LOCK CASE CAM DOOR CENTERLINE

"TR" is trim ring length. "A" is cylinderheight(lessshoulderbut includingcam) "B" is one-halfof doorthickness.

Cylinder Trim Ring for Narrow Stiles

Narrow stiledoors require a trim ring to fill the gap remaining between the cylinder shoulder and stile when a standard mortise cylinder is used. If the security of the hardened steel Adams RiteMS4043 Cylinder Guard is not required, this ring may be simply a length of 1.171 I.D. tubing. Its length varies depending on door thicknessor cylinder make and number of pins. The specific length required can be quickly determined by the following formula:

FOR MS ⊕ LOCKS: FOR 4500 SERIES LATCHES: TR* = A + .125 - B TR* = A + .0312 - B

*TOLERANCE:060

ASSA ABLOY

ADAMS RITE

10027 S. 51st Street, Ste 102, Phoenix, AZ 85044 Phone: (623) 582-4626 Fax: (623) 582-4641

© 2014 Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company

MS4036, 4066 Mortise Cylinder & Thumbturn
