LHR SHOWN RHR OPPOSITE
OUTSIDE OF DOOR INSIDE OF DOOR

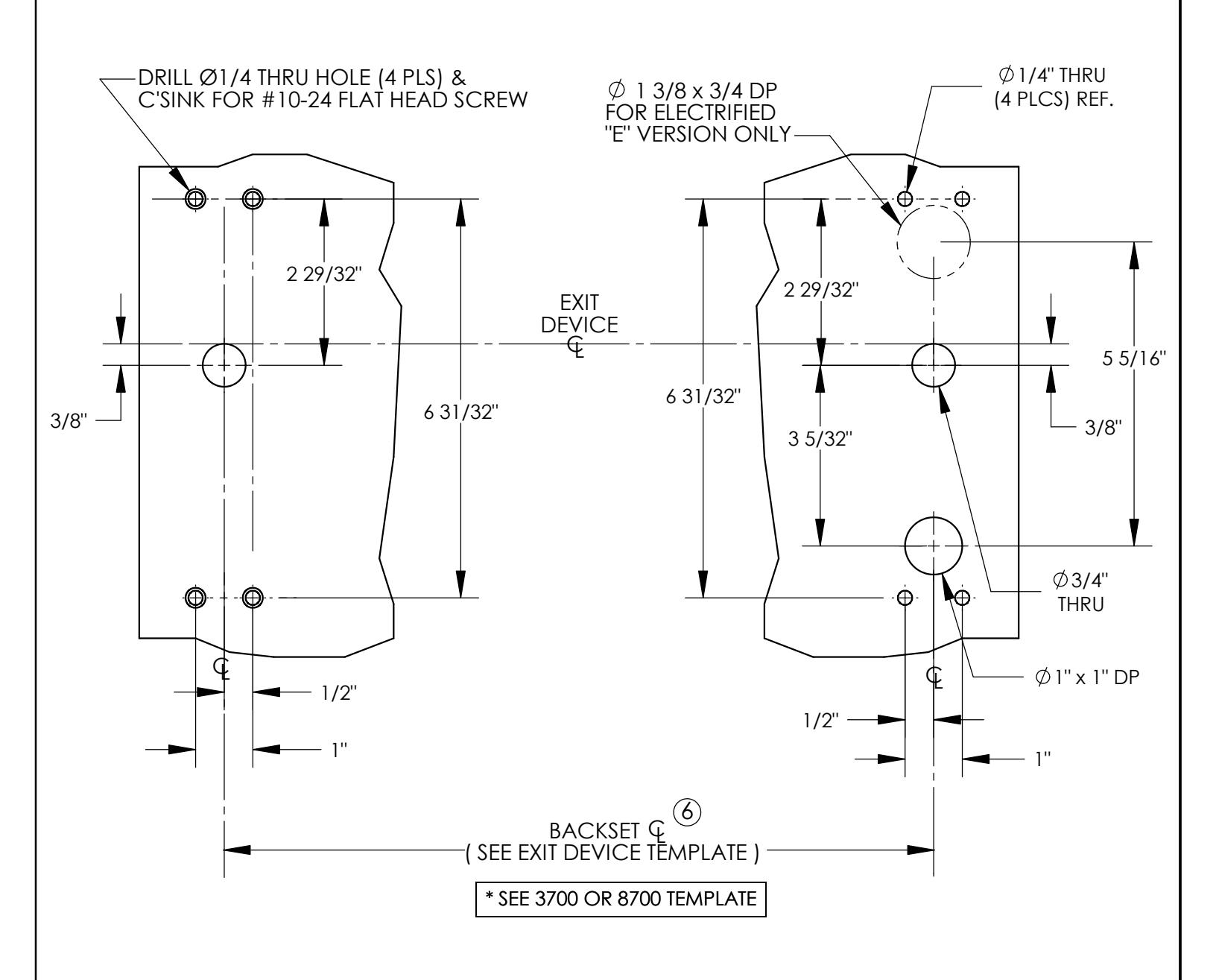

3081, 3082, 3083 (INCLUDING "E" VERSION) ENTRY TRIM FOR 3700/8700 RIM METAL/WOOD DOOR PREPARATION
NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT
TEMPLATE NO.: 20047-6 03/08/04
DATE:
