Adams Rite 3700, 8700 Exit Device Trim 20045 Template

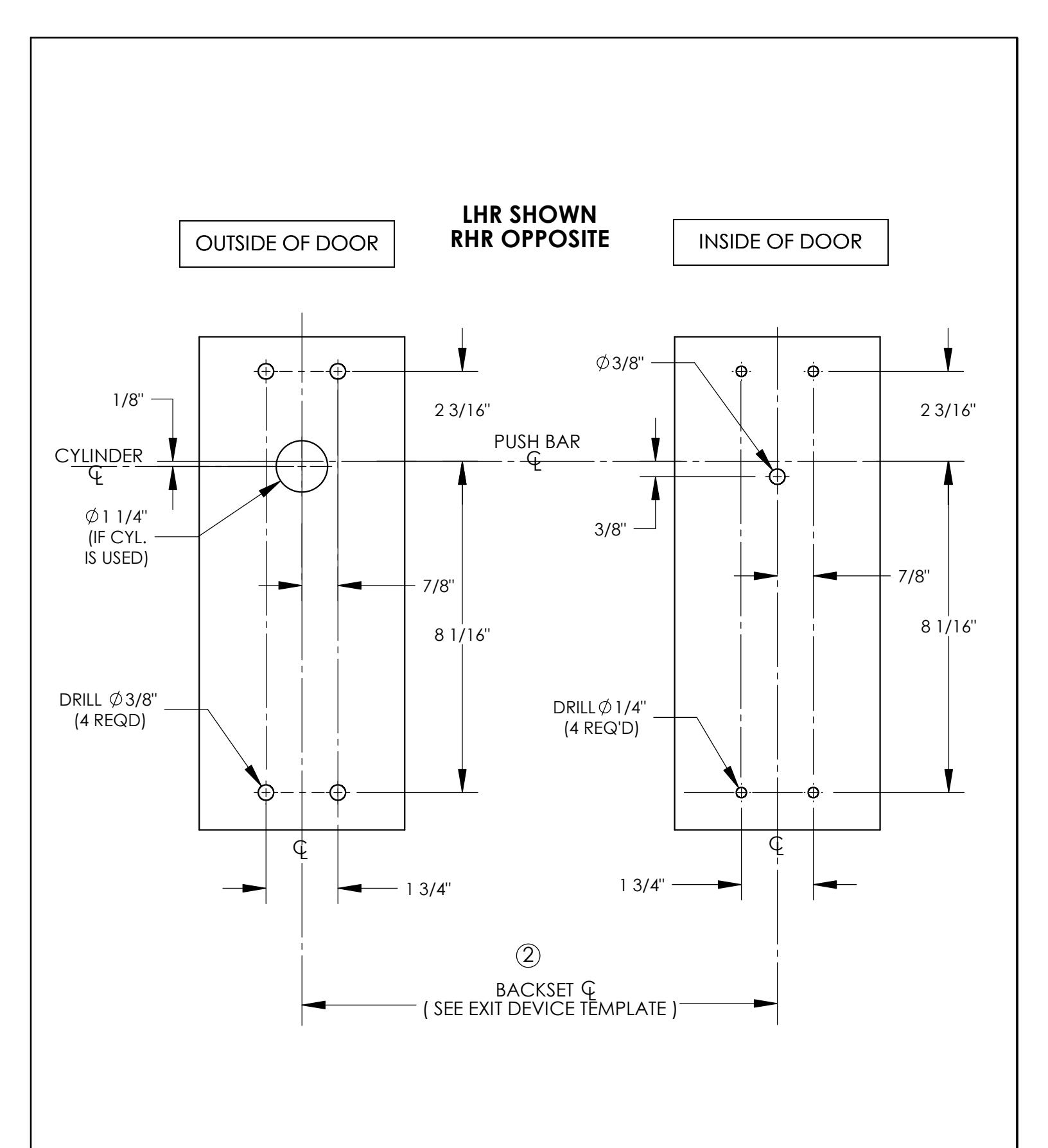

3001/3002 FIXED PULL FOR 3700/8700 RIM, WOOD OR HOLLOW METAL DOORS

NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT

TEMPLATE NO.: 20045-2

DATE: 03/04/04
