Adams Rite 3700, 8700 Exit Device Cylinder Preparation 10041 Template

FOR WOOD DOOR

LHR SHOWN RHR OPPOSITE

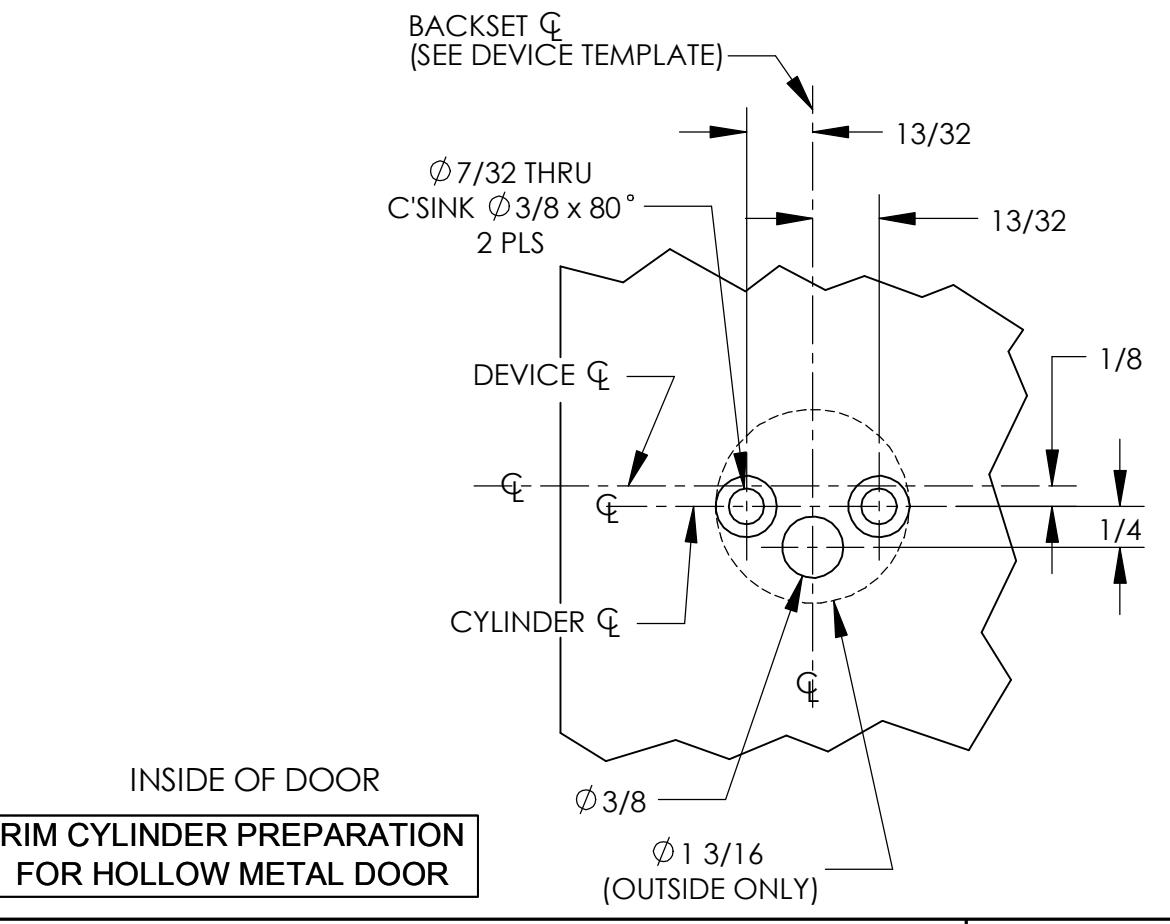

3700 & 8700 RIM EXIT DEVICES CYLINDER PREPARATION

NOTE: SEE MASTER SHEET 1001 FOR SUGGESTED REINFORCEMENT

TEMPLATE NO.: 10041-2

DATE: 03/04/04
