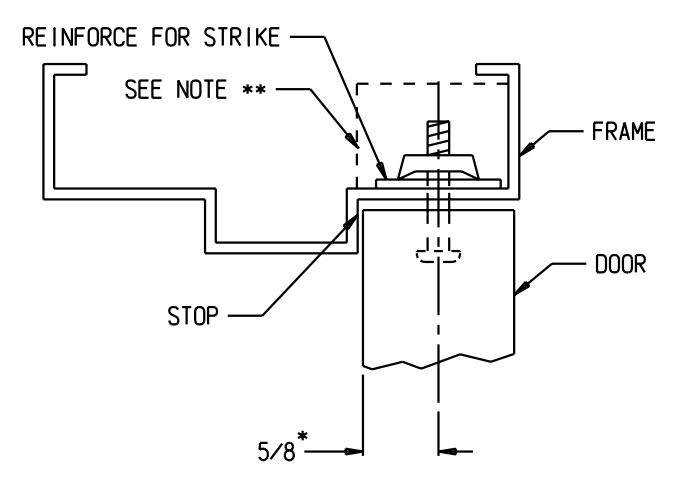

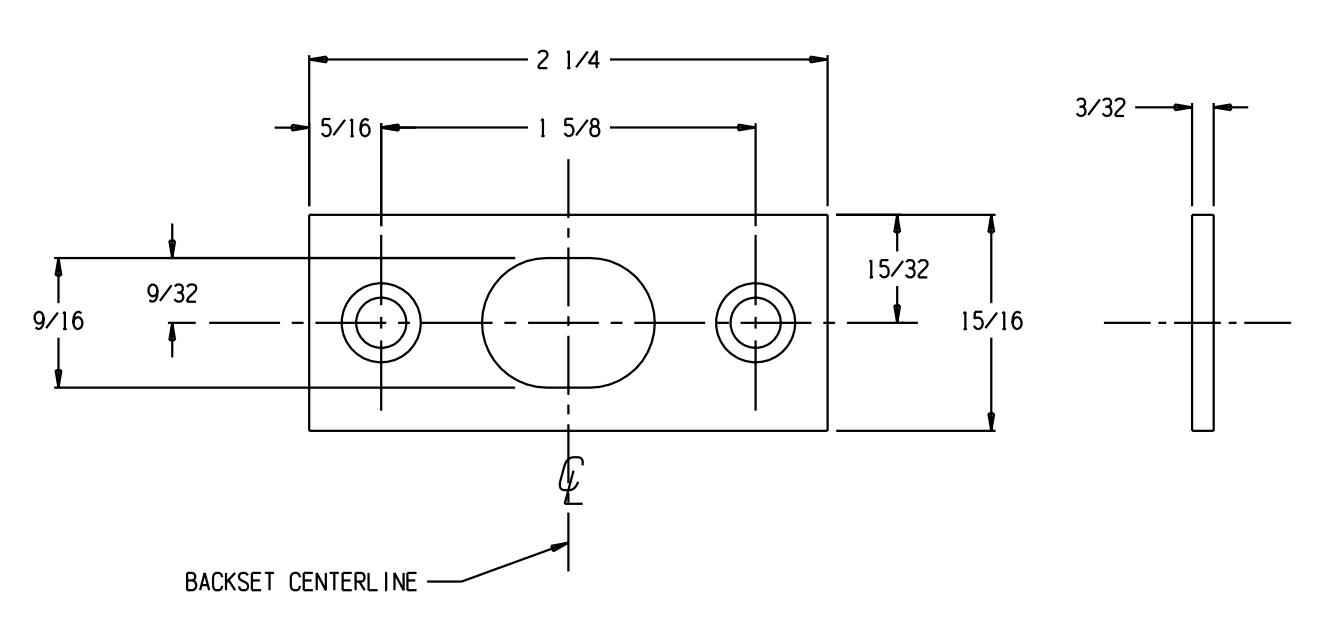

CVR TOP STRIKE PREPARATION

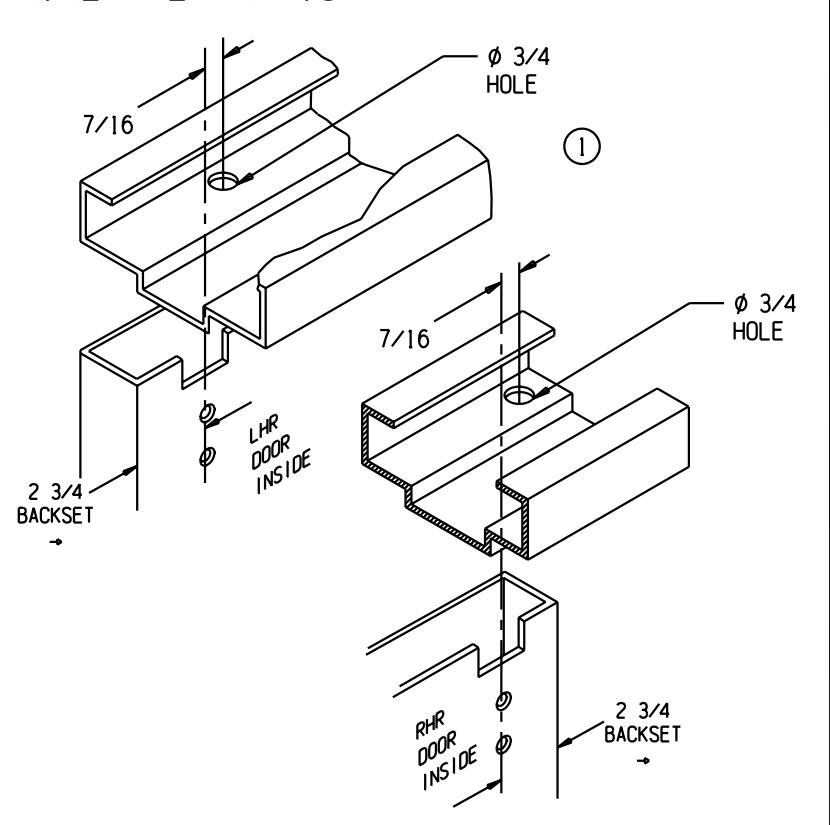

NOTE ** - GROUT FILLED FRAMES REQUIRE BLOCKING/MORTAR GUARD 1 1/2" X 1 1/2" X 1 1/2" MINIMUM CENTERED ON 3/4" HOLE FOR TOP STRIKE ADJUSTMENT.

*MEASURED FROM THE INTERIOR DOOR SURFACE. BE SURE TO ALLOW FOR DOOR SILENCERS IF USED.

(MORTISE IN FLOOR-NO PROJECTION)

NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT

Adams Rite Manufacturing Co. 260 Santa Fe Street, Pomona, CA 91767 Phone: 909-632-2300 Fax: 909-632-2369 www.adamsrite.com

30030-2

3600 CVR TOP & BOTTOM STRIKE PREPARATION

Ecn 11806

Date: 07/21/11
