Adams Rite 3600, 8500 Exit Device Cylinder Preparation 10032 Template

ADAMS RITE MANUFACTURING COMPANY CITY OF INDUSTRY, CA 91749

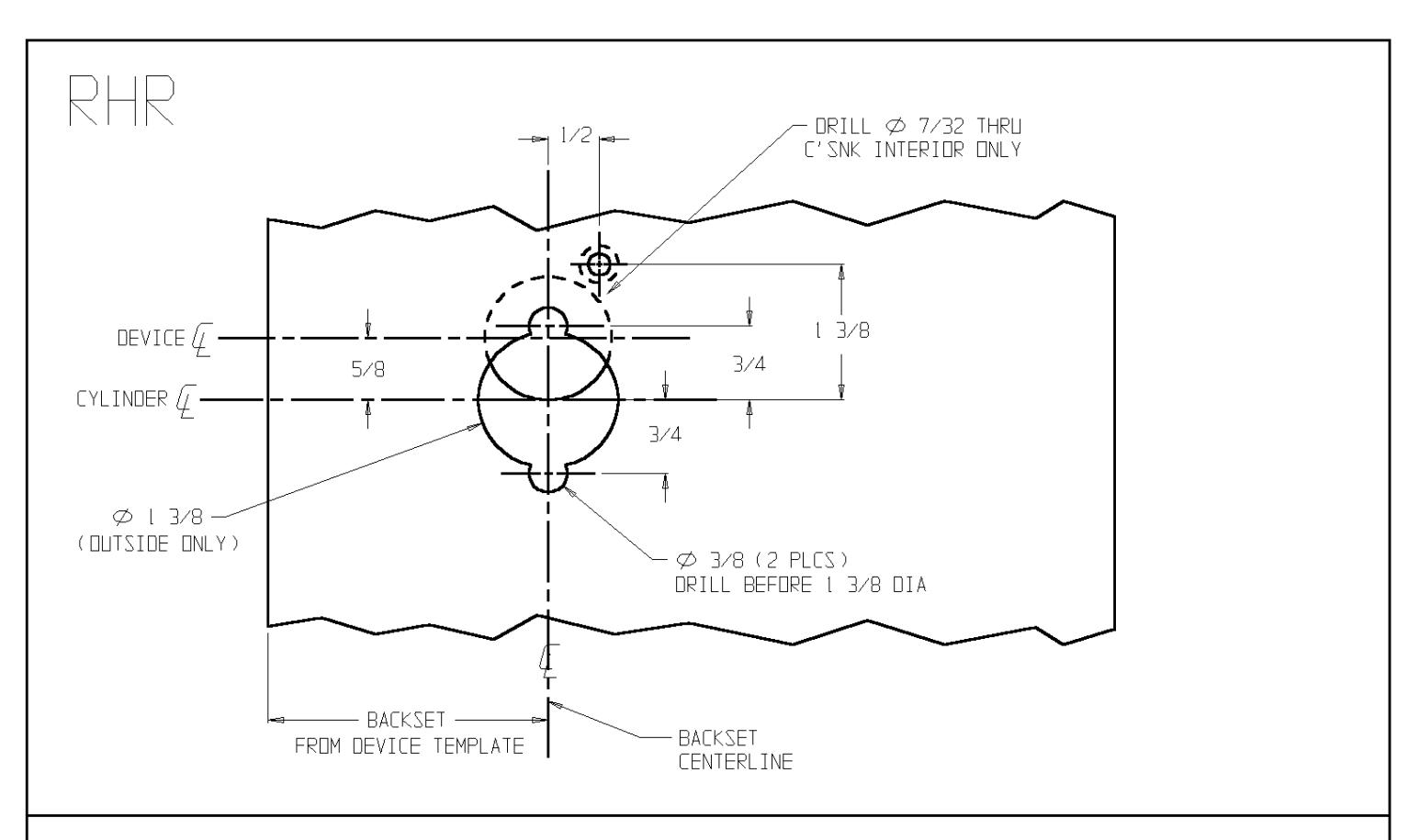

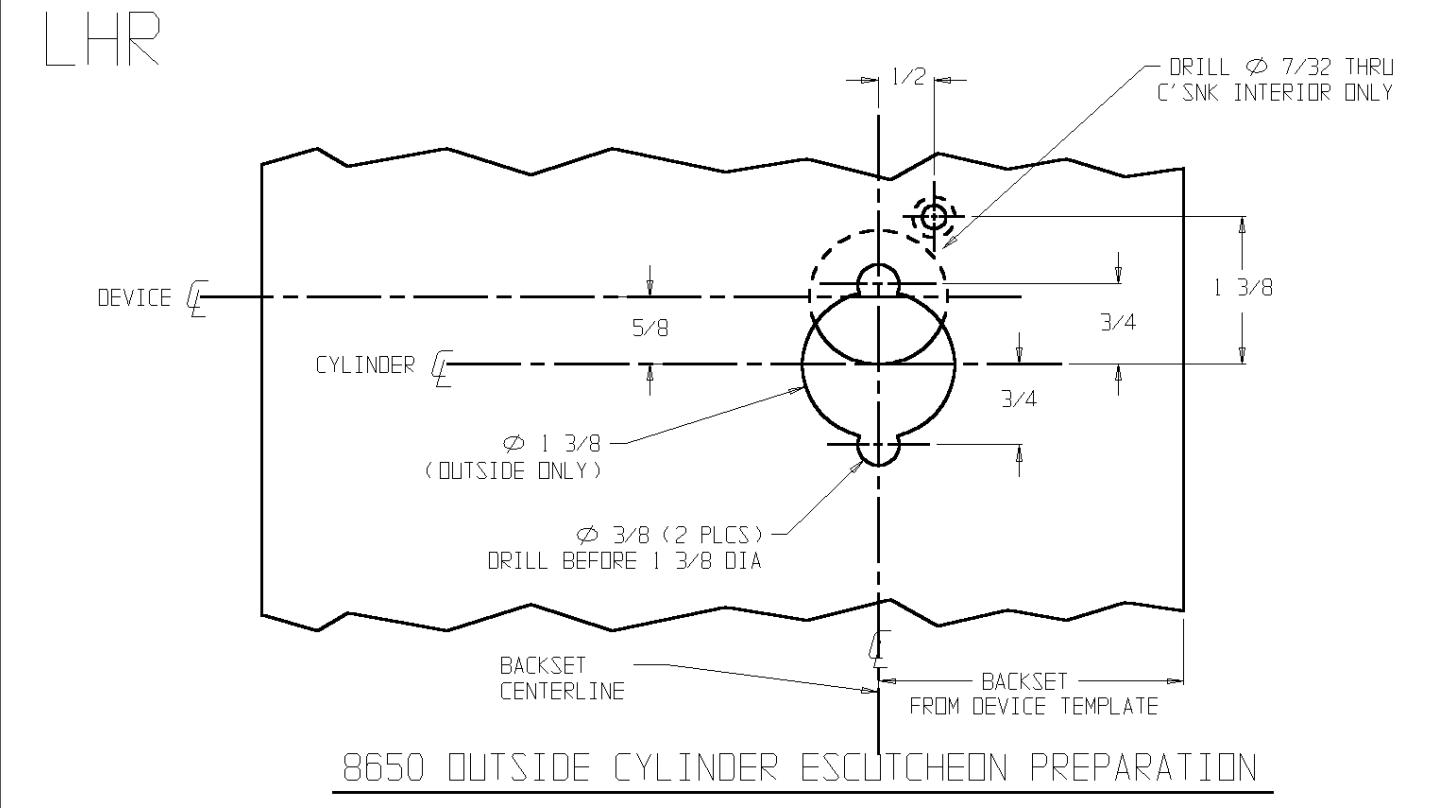

8650 CYLINDER ESCUTCHEON PREPARATION FOR 3600/8500 CVR EXIT DEVICES

10032-1

NOTE: SEE MASTER SHEET 10001 FOR

SUGGESTED REINFORCEMENT

TEMPLATE NO.:

DATE:

04-05-99
