Adams Rite 3100, 3900, 8900 Exit Device – Strikes, Top and Bottom 30010 Template

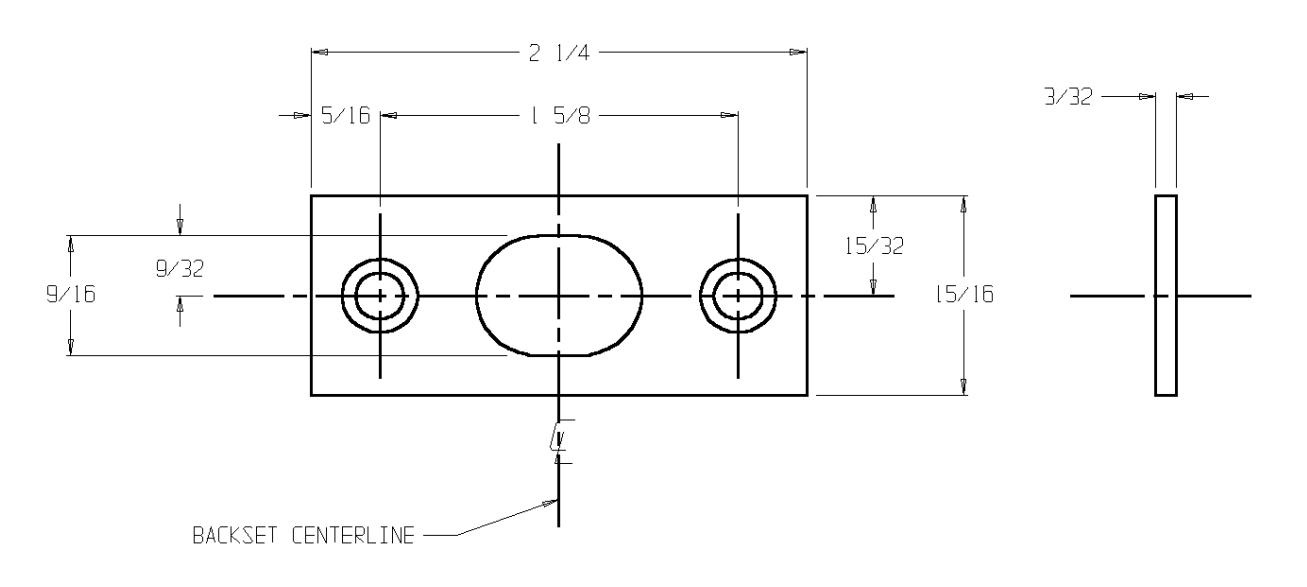

SVR BOTTOM STRIKE PREPARATION (3100 ONLY)

(MORTISE IN FLOOR-NO PROJECTION)

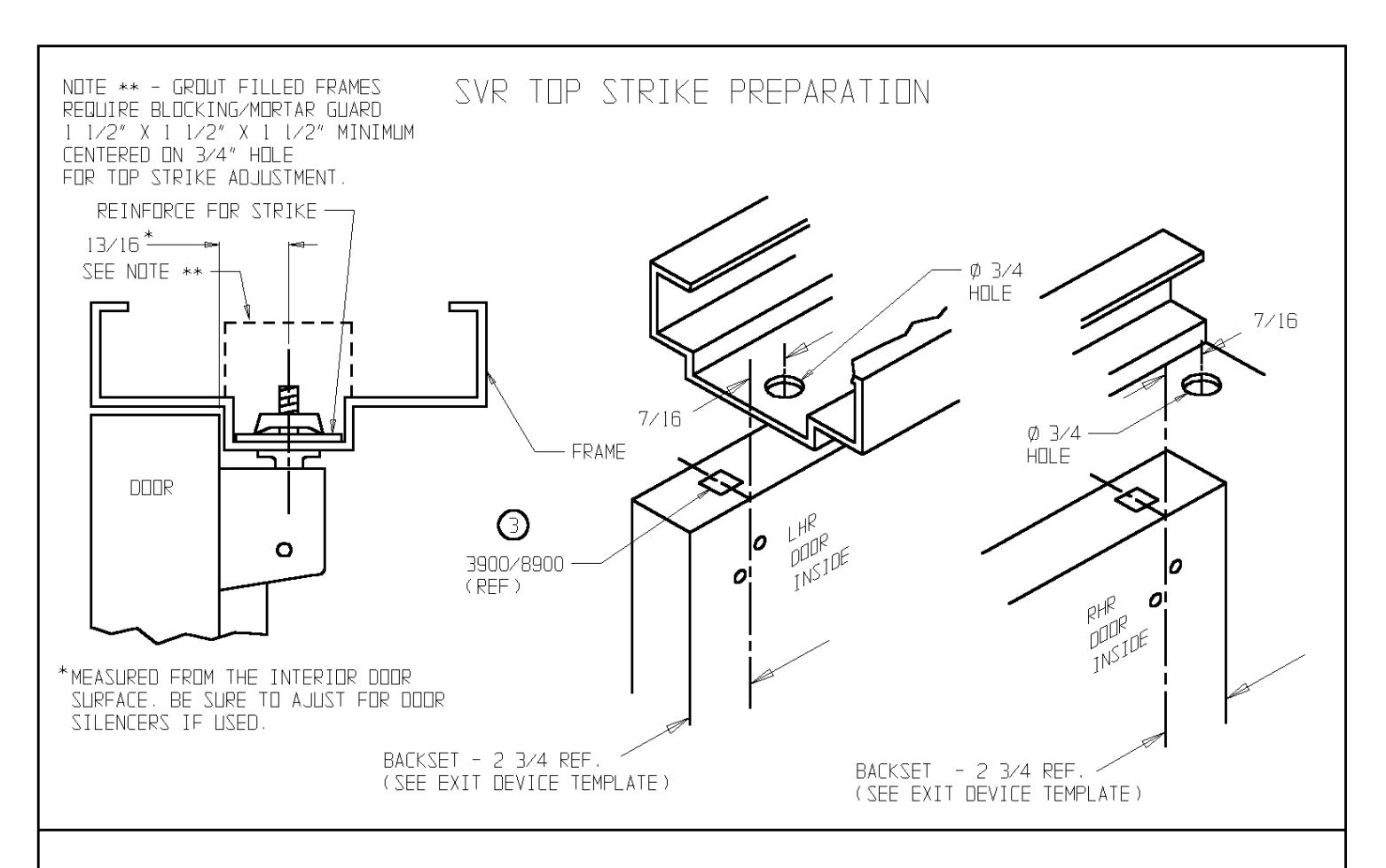

ADAMS RITE MANUFACTURING COMPANY POMONA, CA 91767 NOTE: SEE MASTER SHEET 10001 FOR SUGGESTED REINFORCEMENT 9981 3100/3900/8900 SVR 3 TOP & BOTTOM (3100) STRIKE PREPARATION DATE: 02-17-98
