Adams Rite 3080 Series Levers Installation Instructions

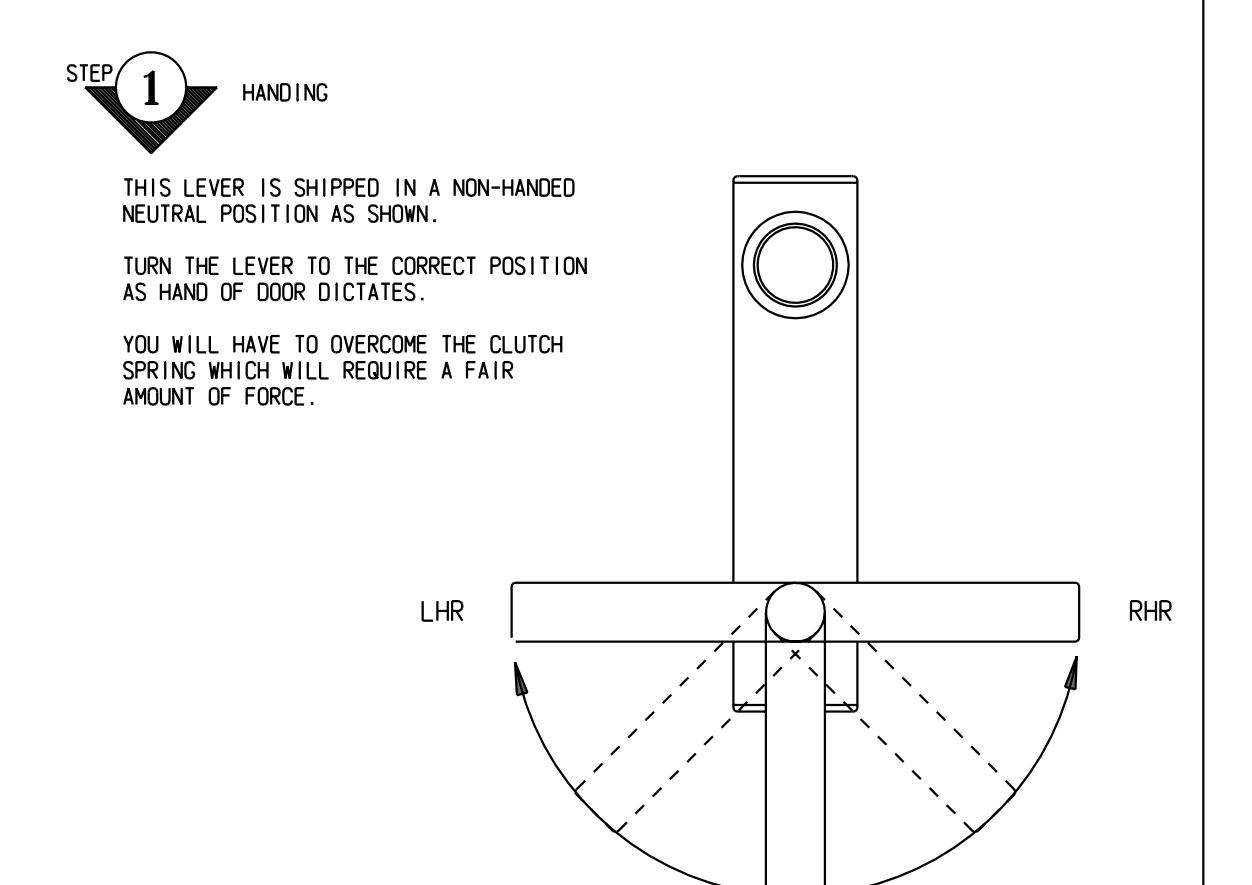

IF USING A LEVER WITH A BLANK ESCUTCHEON PROCEED TO STEP 3

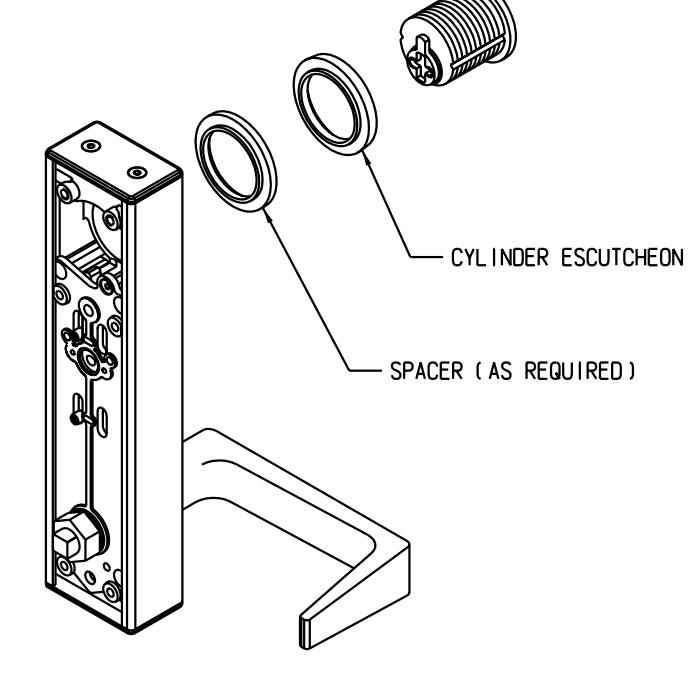

1) INSTALL CYLINDER WITH CYLINDER ESCUTCHEON (USE EXTRA SPACERS IF REQUIRED) THE NUMBERS OF SPACERS WILL VARY DEPENDING ON LENGTH OF CYLINDER (EXAMPLE: 1" USES CYLINDER ESCUTCHEON WITH 1 SPACER) SECURE WITH LOCKING NUT.

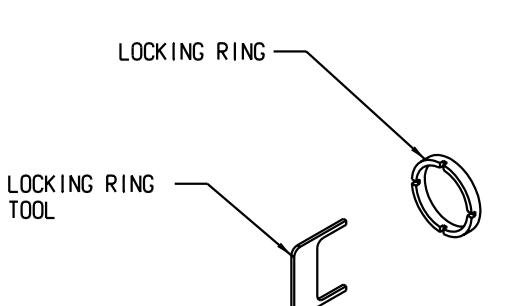

TOOL

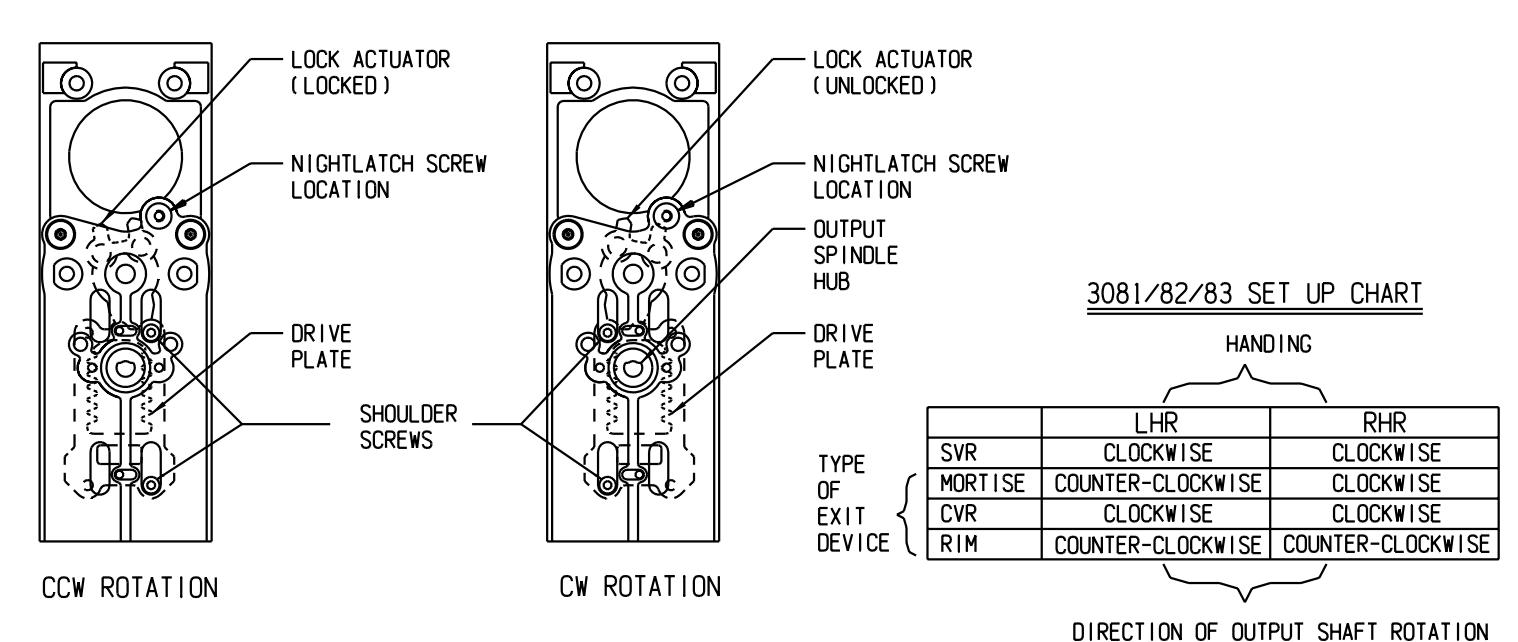

DEPENDING ON THE EXIT DEVICE AND HAND OF DOOR, THE SPINDLE OUTPUT ROTATION WILL VARY. THE LEVERS ARE SHIPPED FROM THE FACTORY WITH CW ROTATION. (WHEN VIEWED FROM SIDE SHOWN HERE) REFER TO CHART BELOW FOR EXIT DEVICE REQUIREMENTS. IF THE EXIT DEVICE REQUIRES A CLOCKWISE ROTATION PROCEED TO STEP 3. IF DEVICE REQUIRES A COUNTER-CLOCKWISE ROTATION PERFORM THE FOLLOWING STEPS TO REVERSE THE ROTATION.

CAUTION: DO NOT ROTATE THE LEVER WITH SHOULDER SCREWS REMOVED.

• 1) REMOVE THE TWO SHOULDER SCREWS WITH 5/64" ALLEN WRENCH. (PROVIDED)
• 2) IN THE SHOULDER SCREW HOLES, INSERT THE ALLEN WRENCH AND SHIFT DRIVE PLATE OVER AS SHOWN TO EXPOSE THE TAPPED HOLES ON THE OPPOSITE WINDOWS. REINSTALL SHOULDER SCREWS IN OPPOSITE WINDOWS.
• 3) IF FIXED LEVER (DUMMY) OPERATION IS REQUIRED FLIP THE LOCK ACTUATOR TO THE LOCKED POSITION AT THIS TIME.
• 4) FOR NIGHTLATCH FUNCTION, INSTALL SELF TAPPING #4-40 X 1/4" PAN HEAD SCREW.

DOOR PREPARATION

• 1) MARK BACKSET CENTERLINE (MOUNTING CENTERLINE FOR 3700/8700/8800) AND THE HORIZONTAL CENTERLINE OF EXIT DEVICE.
• 2) APPLY CLEAR TEMPLATE OVER THE CENTERLINE MARKS, SECURE WITH TAPE.
• 3) DRILL HOLES PER THE TEMPLATE INSTRUCTIONS.
• 4) REMOVE TEMPLATES.

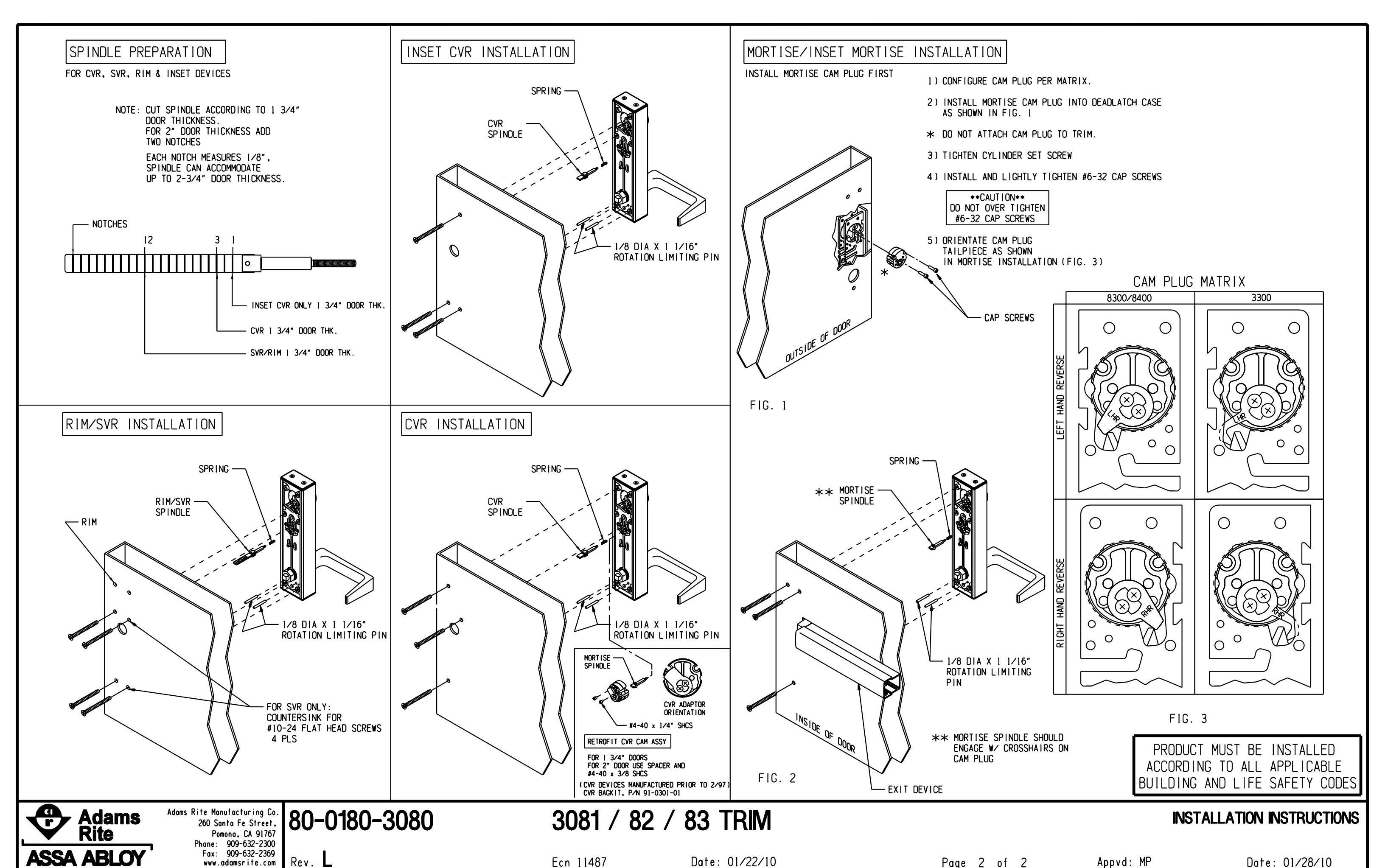

DOOR PREPARATION

REFER TO THE FOLLOWING ILLUSTRATIONS. FOR INSTALLATIONS

INSTALL THE ENTRY LEVER PRIOR TO EXIT BAR INSTALLATION

Adams Rite ABLO'

Adams Rite Manufacturing Co 260 Santa Fe Street, Pomono, CA 91767 Phone: 909-632-2300 Fax: 909-632-2369

www.adamsrite.com

|80-0180-3080

AS SHIPPED

3081 / 82 / 83 TRIM

(AS VIEWED FROM END OF OUTPUT SHAFT)

INSTALLATION INSTRUCTIONS

Rev. L

Ecn 11487

Date: 01/22/10

Page 1 of 2

Appvd: MP

Date: 01/28/10
