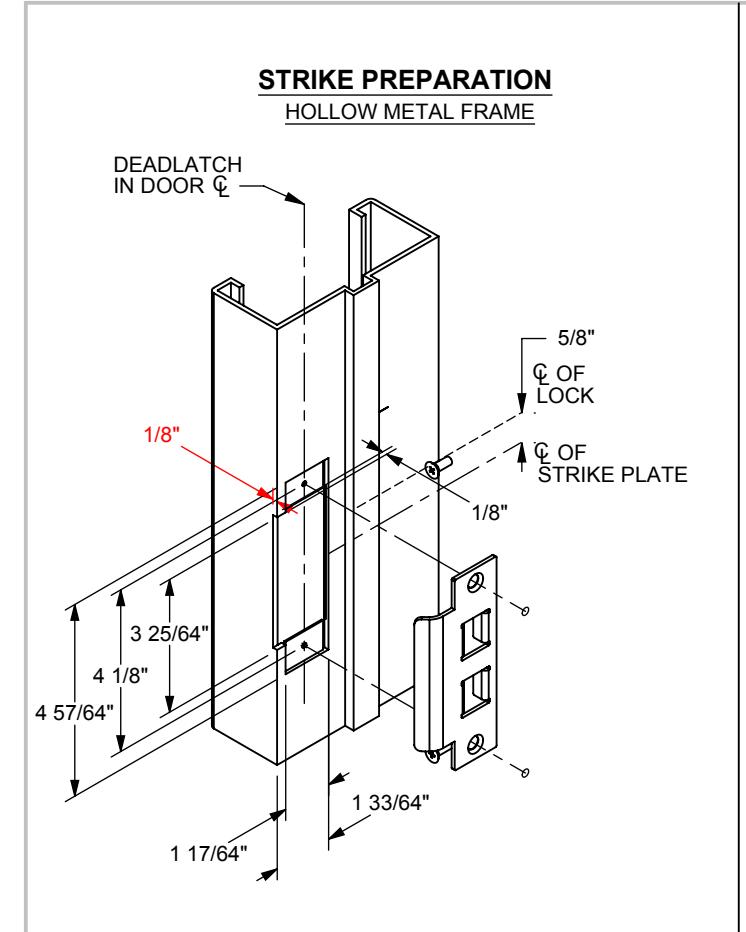

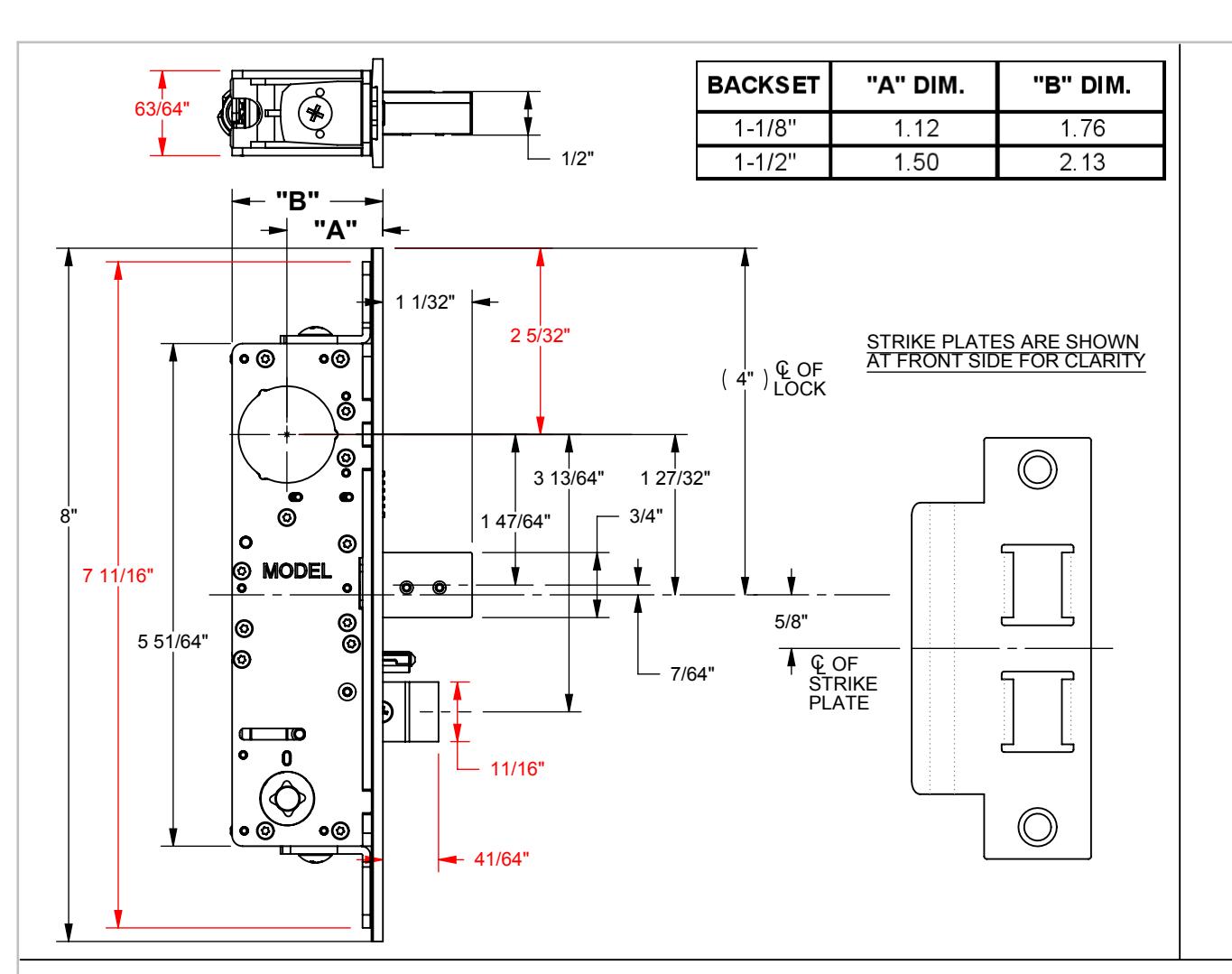

MOUNT STRIKE ONTO JAMB AND FASTEN WITH #10 FLAT HEAD SCREWS AS SHOWN.

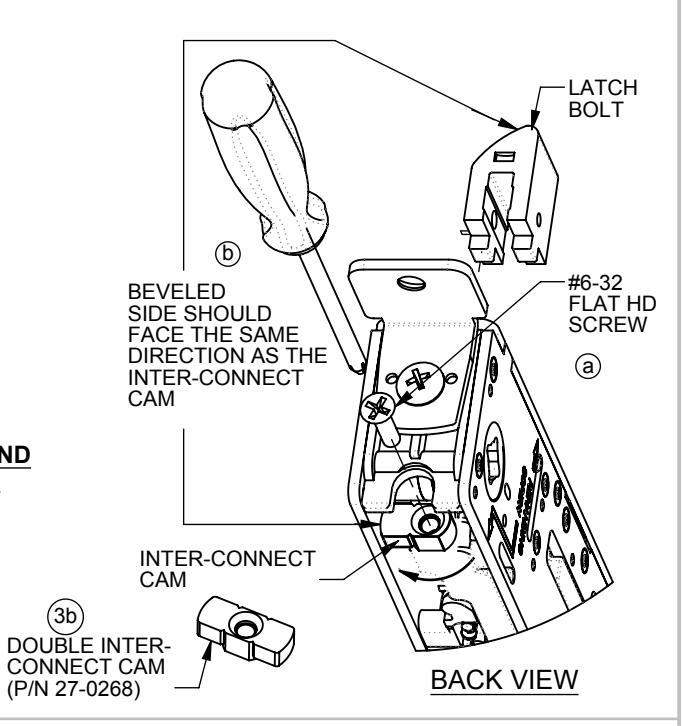

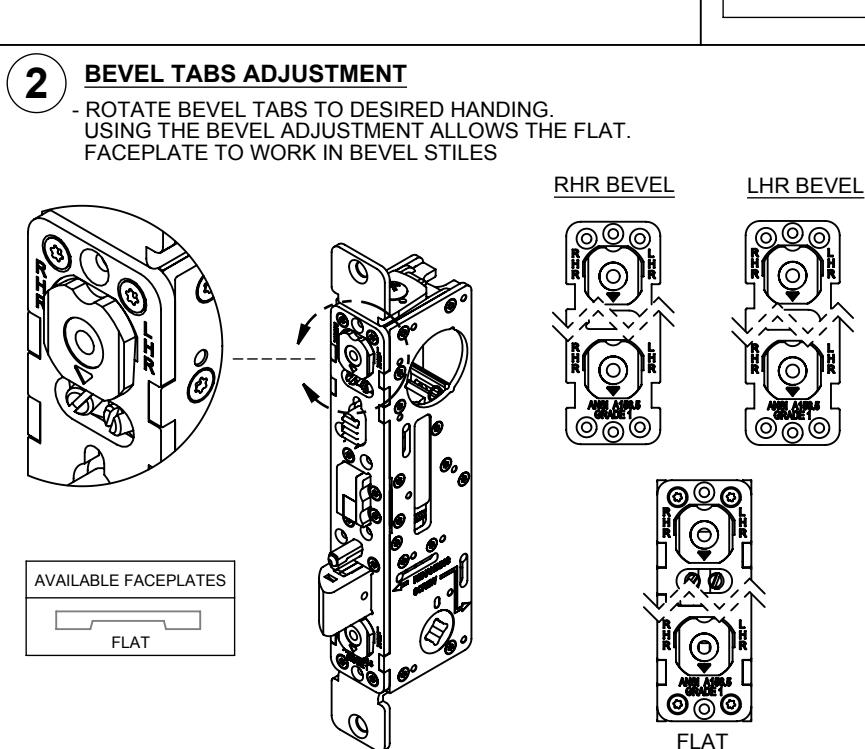

- YOU WILL ALSO HAVE TO RE-ORIENT THE INTER-CONNECT CAM:

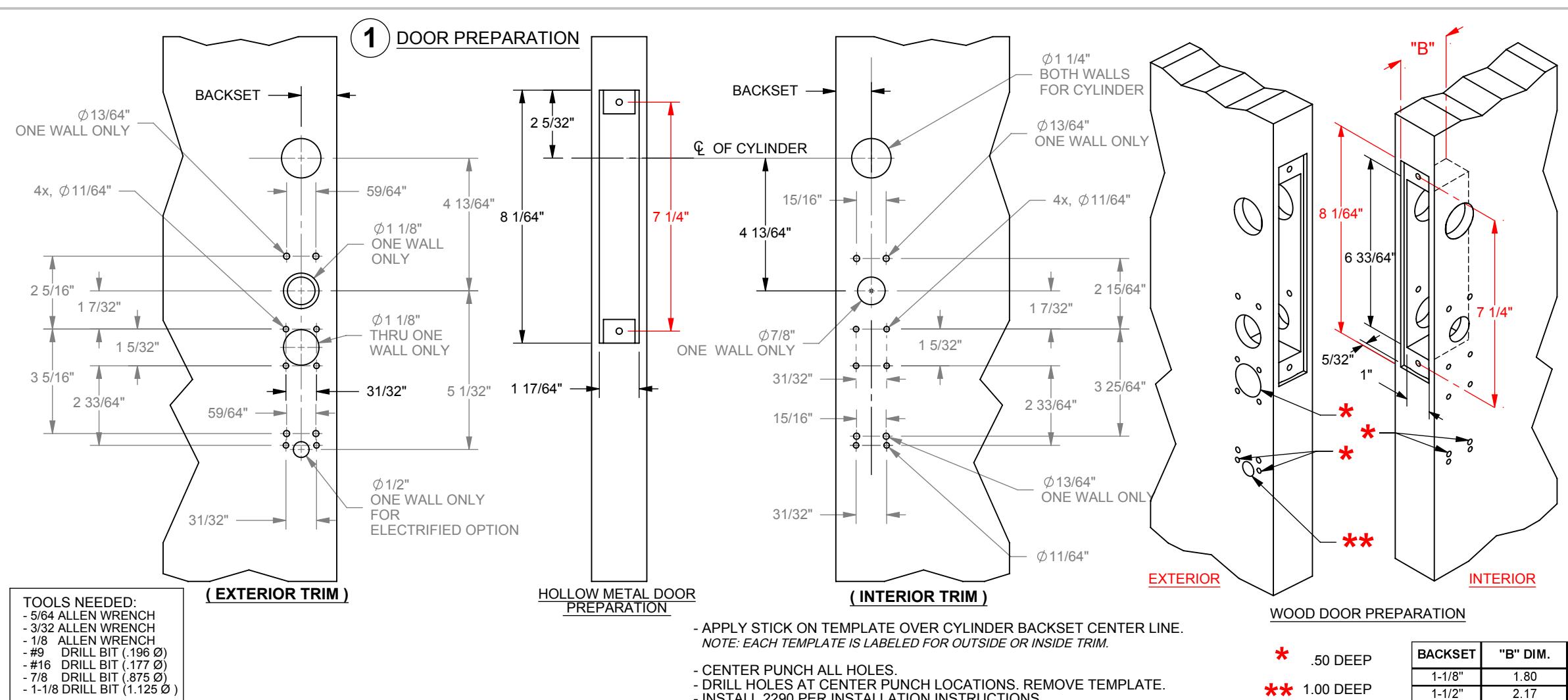

- INSTALL 2290 PER INSTALLATION INSTRUCTIONS.

• a) LOOSEN THE #6-32 FLAT HD SCREW AT THE BOTTOM OF THE LOCK.
• b) ROTATE THE INTER-CONNECT CAM TO THE OPPOSITE SIDE AND RETIGHTEN THE FLAT HEAD SCREW TO COMPLETE THE OPERATION
• TO BLOCK HOLDBACK FEATURE

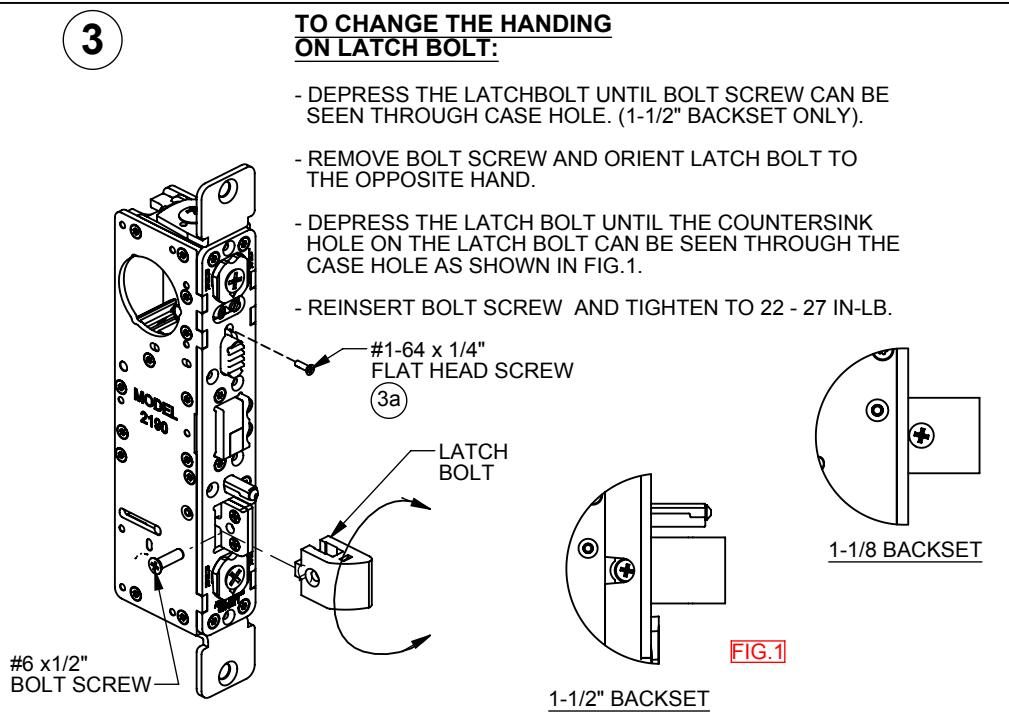

  • INSERT #1-64 x 1/4" FLAT HEAD SCREW INTO CASE AS SHOWN BEFORE INSTALLING IN DOOR.
• (3b) FOR APPLICATION THAT REQUIRE RETRACTION OF THE DEADBOLT AND DEARLATCH FROM BOTH SIDES OF DOOR.

-REMOVE THE INTER-CONNECT CAM, AND INSTALL THE OPTIONAL DOUBLE INTER-CONNECT CAM.

Adams Rite ASSA ABLOY

Adams Rite Manufacturing Co. 260 Santa Fe Street, Pomona, CA 91767 Fax: 909-632-2369

2290 INSTALLATION INSTRUCTIONS W/ HEAVY DUTY ENTRANCE LEVER SET

80-0180-420 www.adamsrite.com

Rev. C

ECN: 11735

INSTALLATION INSTRUCTIONS

Page 1 of 3 Appvd: B.C Date: 02/25/11

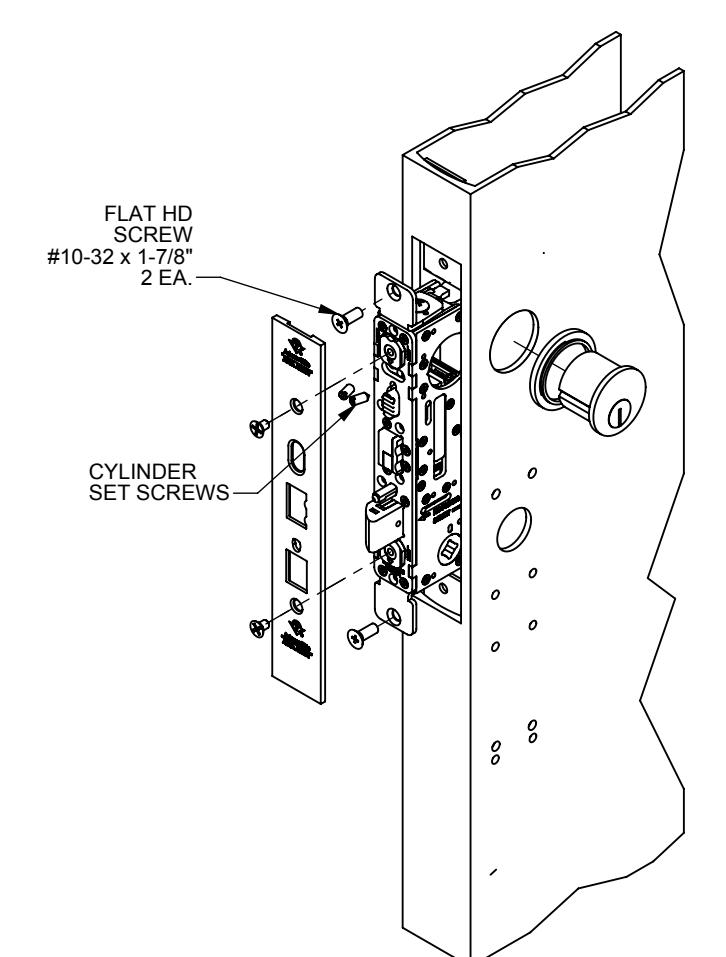

INSTALLING LOCK TO THE BACK OF THE DOOR

• INSERT LOCK ASSEMBLY INTO DOOR THRU CUTOUT. INSTALL AND FASTEN TWO (2) FLAT HEAD SCREWS #10-32 x 1-7/8" (OR #12, WOOD SCREW, P/N# 29-0271) TO SECURE THE LOCK ASSEMBLY ON DOOR.
• INSTALL CYLINDER AND SECURE WITH SET SCREWS. INSTALL FACE PLATE.

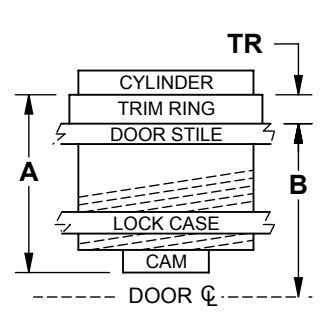

"TR" is trim ring length "A" is cylinder height (less shoulder but including cam) "B" is one-half of door thickness

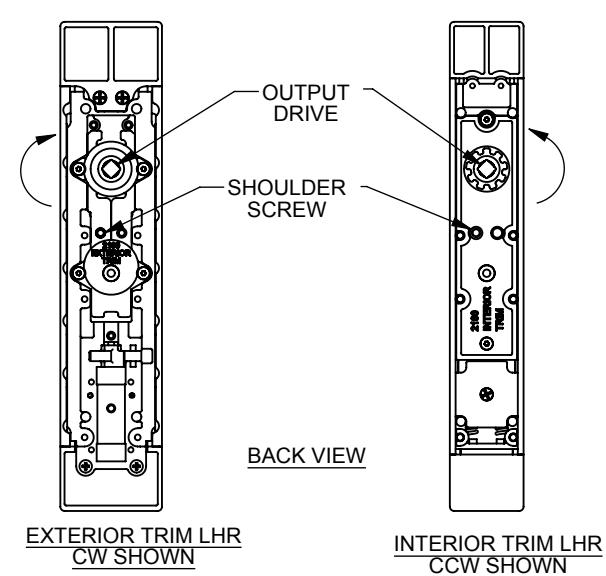

HANDING CONFIGURATION FOR 2290 TRIM

• THE OUTPUT DRIVE FOR THE EXTERIOR TRIM IS SHIPPED FROM THE FACTORY IN A CLOCKWISE ROTATION AND THE INTERIOR TRIM IS SHIPPED WITH A COUNTER-CLOCKWISE ROTATION. TO CHANGE THE OUTPUT DRIVE ROTATION, FOLLOW THESE STEPS:
• 1. REMOVE THE SHOULDER SCREW WITH A 5/64" ALLEN WRENCH.
• 2. REINSTALL SHOULDER SCREW ON THE OPPOSITE SIDE

REFER TO THE CHART BELOW FOR REHANDING THE TRIM AS NEEDED.

TRIM	HANDING -RHR	HANDING - LHR
	SPINDLE ROTATION
EXTERIOR	COUNTER-CLOCKWISE	CLOCKWISE
INTERIOR	CLOCKWISE	COUNTER-CLOCKWISE

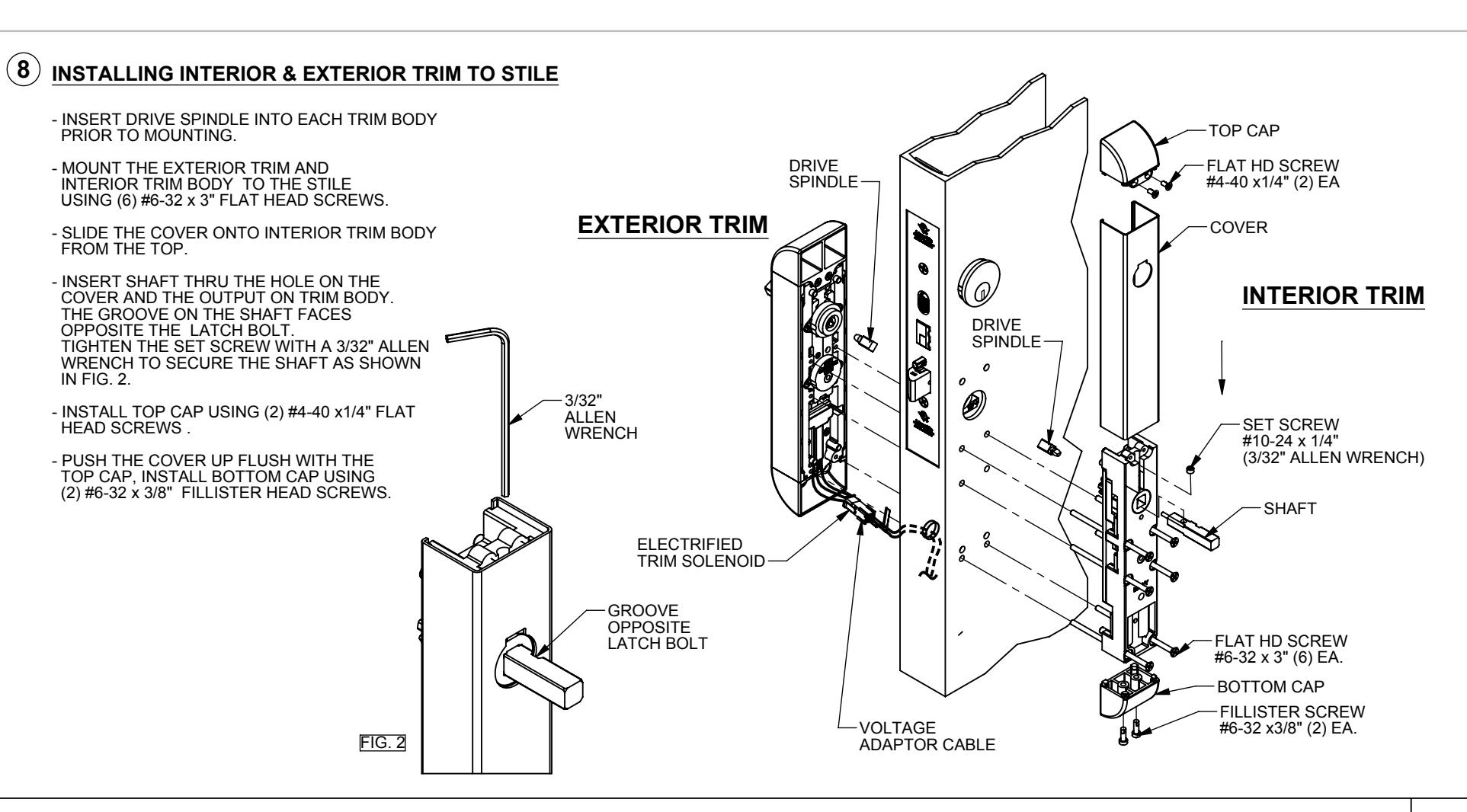

ASSEMBLE EXTERIOR TRIM

-SLIDE THE FINISH COVER ONTO BODY. THE COVER HAS CUTOUTS THAT FIT OVER THE GROOVES ON THE BODY.

· INSTALL BOTTOM CAP WITH (2) FLAT HEAD SCREWS (#4-40 x1/4") SUPPLIED. - * FOR EXTERIOR TRIM WITH ELECTRIFIED OPTION. INSERT THE SHIELD ASSY BETWEEN THE COVER AND THE EXTERIOR BODY BEFORE INSTALLING

- INSTALL TOP CAP WITH (2) FLAT HEAD SCREWS (#4-40 x1/4") SUPPLIED. CAP -FINISH COVER FLAT HD SCR -#4-40 x 1/4" 4 EA CUTOUTS: GROOVES FINISH EXTERIOR. COVER TRIM BODY EXTERIOR TRIM BODY *SHIELD BOTTOM-ASSY

ASSA ABLOY

Adams Rite Manufacturing Co. 260 Santa Fe Street, Pomona, CA 91767 Phone: 909-632-2300 Fax: 909-632-2369 www.adamsrite.com

2290 INSTALLATION INSTRUCTIONS W/ HEAVY DUTY ENTRANCE LEVER SET

80-0180-420

Rev. C

ECN: 11735

Page 2 of 3 Appvd: B.C Date: 02/25/11

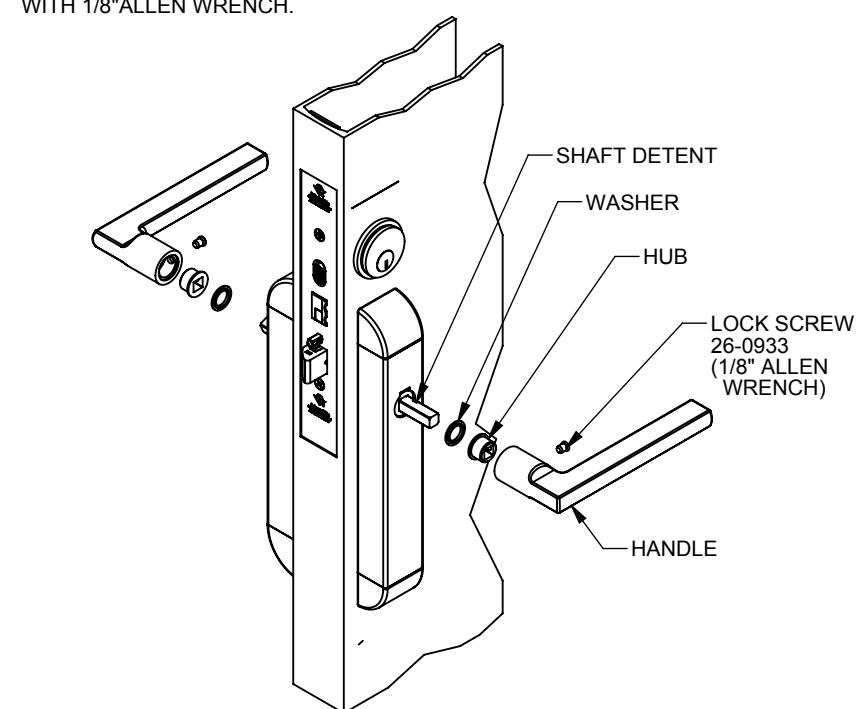

$(\backslash ,\; \{\backslash bf\; 9\}\backslash ,\; )$ INSTALLING HANDLE (INTERIOR / EXTERIOR)

• INSERT WASHER THEN INSERT HUB OVER SHAFT ON HANDLES 2290-01, 2290-02, 2290-03, THE HUB IS FACTORY INSTALLED. REMOVE LOCK SCREW WITH 1/8" ALLEN WRENCH AND PROCEED TO
• INSTALL HANDLE OVER THE HUB WITH THE HOLE ALIGNED WITH THE HOLE ON THE HUB.

NOTE: THE SHAFT DETENT SHOULD BE ALIGNED WITH THE LOCKING SCREW.

• MOVE THE HANDLE IN UNTIL IT IS AGAINST THE TRIM COVER. FASTEN THE LOCK SCREW 26-0933 TO SECURE THE HANDLE WITH 1/8"ALLEN WRENCH.

LATCH HOLD BACK FEATURE

• IN THE LOCK POSITION, INSERT KEY, TURN KEY 180° TO RETRACT THE DEADBOLT.
• TURN KEY 315° TO RETRACT THE LATCHBOLT.
• HOLD IN THIS POSITION AND PUSH DOWN THE HOLD BACK BUTTON TO RETAIN LATCHBOLT.
• RETURN KEY TO NEUTRAL POSITION AND REMOVE KEY.

-KEY OR THUMB TURN

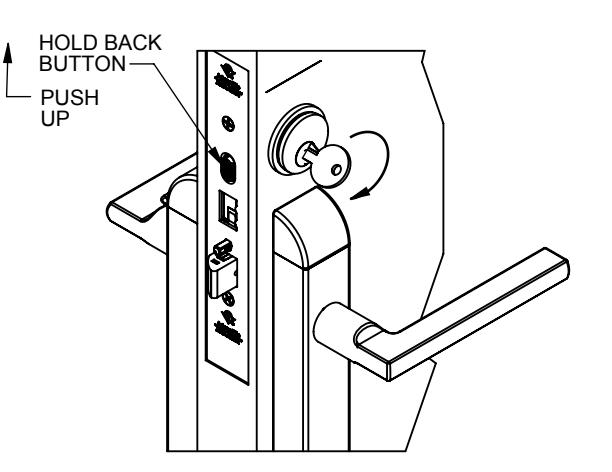

TO RELEASE HOLD BACK

• INSERT KEY, TURN KEY OR THUMB TURN ABOUT 135° AND HOLD.
• PUSH UP THE HOLD BACK BUTTON TO RELEASE THE LATCH BOLT.
• RETURN KEY TO THE NEUTRAL POSITION AND REMOVE KEY

TEST OPERATION

• EXTEND DEADBOLT WITH KEY OR THUMBTURN.
• PUSH DOWN ON INTERIOR LEVER THE DEADBOLT AND LATCH SHOULD FULLY RETRACT.
• IF LATCH ONLY RETRACTS REFER TO STEP 4 FOR INTER-CONNECTION CONFIGURATION.
• IF NEITHER RETRACT REFER TO STEP 11 FOR DRIVE SPINDLE INSTALLATION.
• PUSH DOWN ON EXTERIOR LEVER THE LATCH ONLY SHOULD RETRACT.

ELECTRIFIED TRIM SOLENOID SPECIFICATION

SOLENOID AVAILABLE VOLTAGES 12V DC CONTINUOUS DUTY, 24V DC CONTINUOUS DUTY.

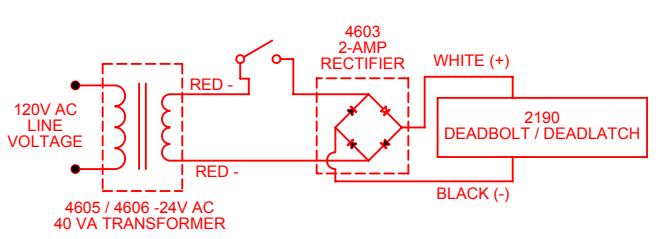

2190 WIRING DIAGRAM INTERMITTENT / CONTINUOUS DUTY 12 / 24V DC

• WIRED THE VOLTAGE ADAPTOR CABLE TO THE PROPER POWER SUPPLY THROUGH THE HOLE
• CONNECTED THE CABLE TO THE EXTERIOR TRIM SOLENOID BEFORE INSTALLING THE TRIM ONTO

VOLTAGE ADAPTOR CABLE
P/N#	WIRE COLOR	APPLICATION	SOLENOID
F/14#			CURRENT DRAW
VA7400-12	BLACK	12V DC	0.44 AMPS
VA7400-24	RED	24V DC	0.23 AMPS

PRODUCT MUST BE INSTALLED ACCORDING TO ALL APPLICABLE BUILDING AND LIFE SAFETY CODES

INSTALLATION INSTRUCTIONS

ASSA ABLOY

HOLD BACK

BUTTON-

DEADBOL⁷

LATCH BOLT

Adams Rite Manufacturing Co. 260 Santa Fe Street, Pomona, CA 91767 Phone: 909-632-2300 Fax: 909-632-2369 www.adamsrite.com

2290 INSTALLATION INSTRUCTIONS W/ HEAVY DUTY ENTRANCE LEVER SET

80-0180-420

BUTTON-

PUSH DOWN

Rev. C

ECN: 11735

Page 3 of 3 Appvd: B.C Date: 02/25/11
