Dual Force® 2190/2290 Series Interconnected Deadbolt/Deadlatch

Function Chart

Safety on the Inside. Free Egress

Secured from the Outside. Controlled Access

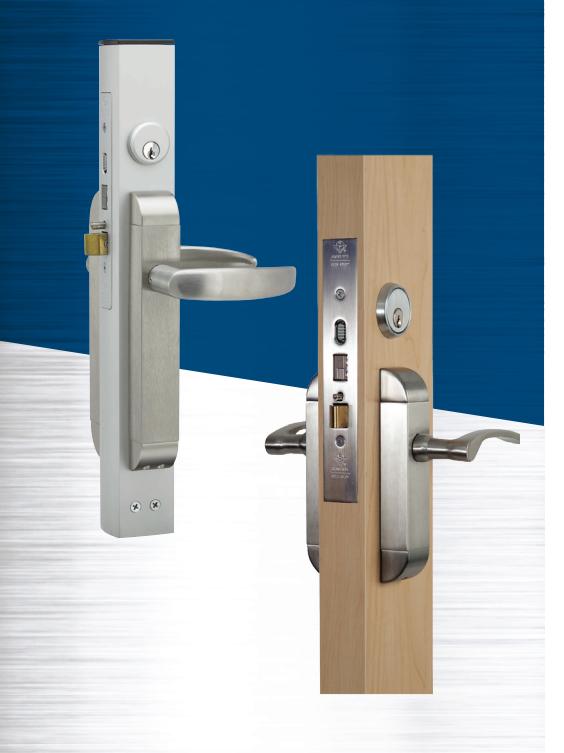

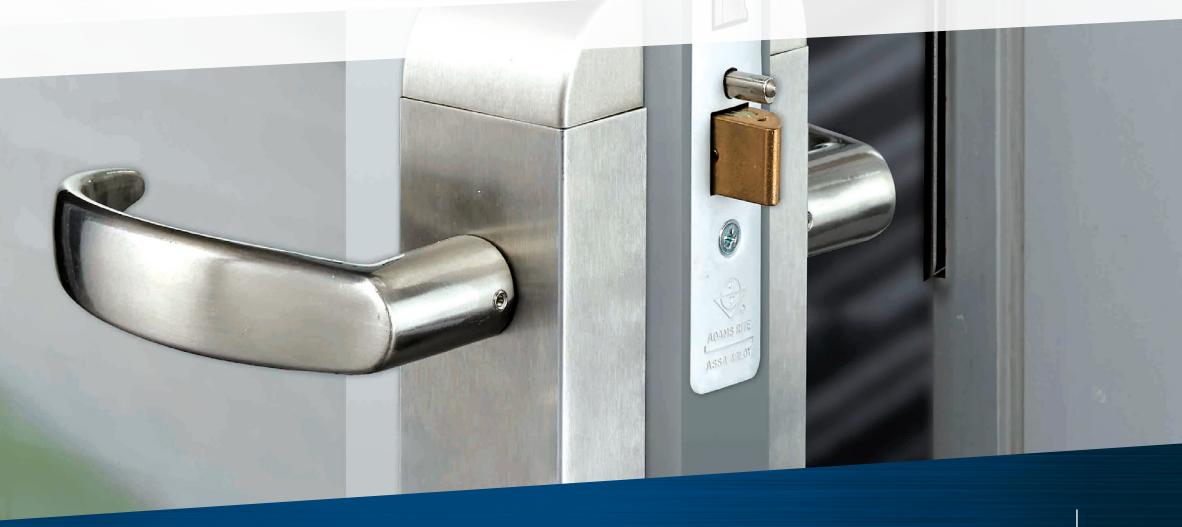

The 2190/2290 Series Interconnected Deadbolt/ Deadlatch provides access control and security for narrow stile aluminum (2190), hollow metal and wood (2290) doors. Deadlatch and deadbolt capabilities are combined for panic-proof exiting.

The 2190/2290 combines the access control capabilities of a latch with the security of a deadbolt. With the deadbolt projected, a simple turn of the inside lever retracts both the latch and deadbolt simultaneously, providing code-compliant single-motion, panic-proof exiting. The Dual Force is available with electrified trim for easy integration into an existing access control system. Standard and electrified trim sets are for out-swinging doors only; low profile trim set designed for in-swinging doors only.

Functions

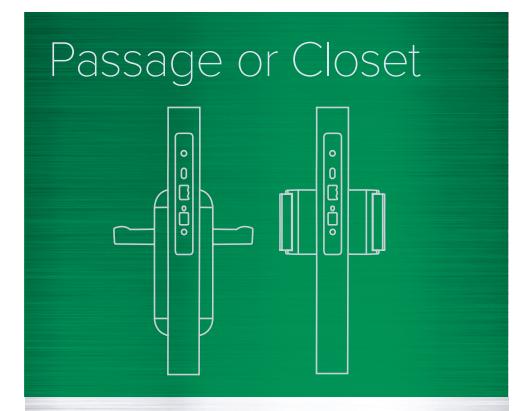

• Latchbolt operated by lever from either side at all times NOTE: Do not prepare door for cylinders

Ordering

• 2190/2290 small format trim set (alt. 4591 push/pull paddle set)
• 4066 Mortise Thumbturn
• Mortise Cylinder

ANSI*/BHMA: F01

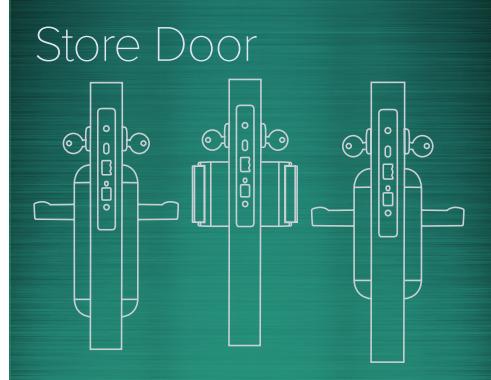

Functions

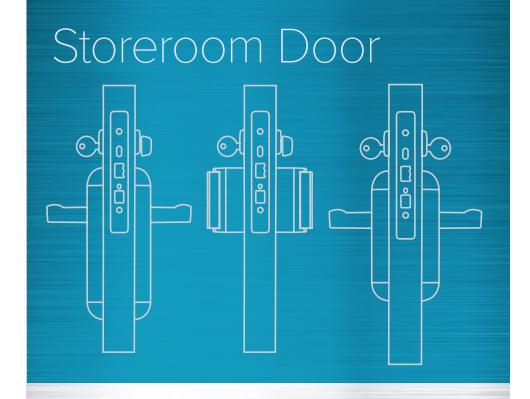

• Latchbolt operated by lever or paddle from either side
• Deadbolt projected by key from outside and thumbturn from inside
• Operating inside lever/paddle retracts both bolts

Ordering

• 2190/2290 with clutched or small format trim set (alt. 4591 push/pull paddle set)
• 4066 Mortise Thumbturn
• 1 each Mortise Cylinder

ANSI*/BHMA: F13

Functions

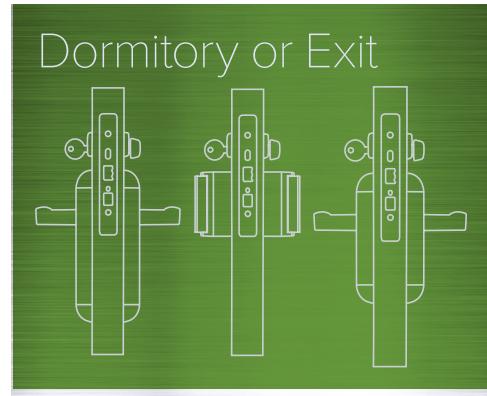

• Latchbolt operated by lever from either side
• Deadbolt operated by key from either side NOTE: Field configurable – must remove interconnect cam (consult with local AHJ for specific restrictions pertaining to this function).

Ordering

• 2190/2290 with clutched or small format trim set (alt. 4591 push/pull paddle set)
• 2 each Mortise Cylinders

ANSI*/BHMA: F14

Functions

• Latchbolt operated by lever from either side
• Deadbolt operated by key from outside and thumbturn from inside NOTE: Field configurable – must remove interconnect cam (consult with local AHJ for specific restrictions pertaining to this function).

Ordering

• 2190/2290 with clutched or small format trim set (alt. 4591 push/pull paddleset)
• 4066 Mortise Thumbturn
• Mortise Cylinders

ANSI*/BHMA: F21

Functions

• Latchbolt operated by lever or paddle from either side
• Rotating inside thumbturn or key from outside extends deadbolt to locked position
• Both deadbolt and latchbolt are retracted by operating inside lever or paddle

Ordering

• 2190/2290 with clutched or small format trim set (alt. 4591 push/pull paddle set)
• 4066 Mortise Thumbturn
• Mortise Cylinders

ANSI*/BHMA: N/A

Functions

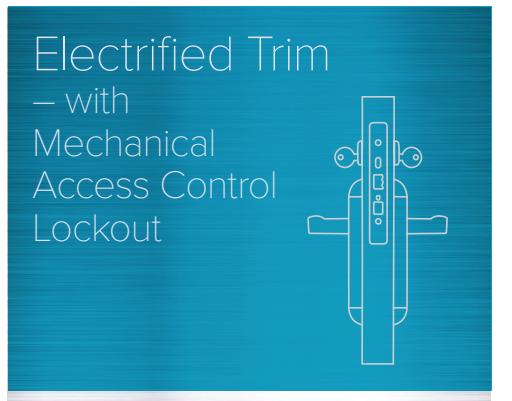

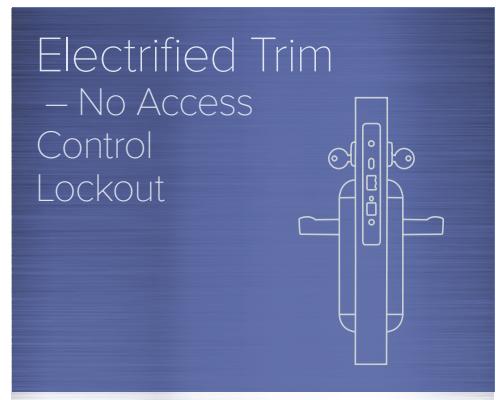

• Outside lever unlocked by 12/24 VDC
• Latchbolt (only) retracted by outside lever when energized
• Inside lever always free for immediate egress
• Deadbolt operated by key to provide lockout function for access control

Ordering

• 2190/2290 with electrified clutched trim set
• 2 each Mortise Cylinders

ANSI*/BHMA: N/A

Functions

• Outside lever unlocked by 12/24 VDC
• Latchbolt and deadbolt retracted by outside lever when energized
• Inside lever always free for immediate egress
• Deadbolt throws and retracts by key
• Function for access control NOTE: Field configurable – must install double interconnect cam (supplied) at installation

Ordering

• 2190 with electrified clutched trim set
• 2 each Mortise Cylinders

ANSI*/BHMA: N/A

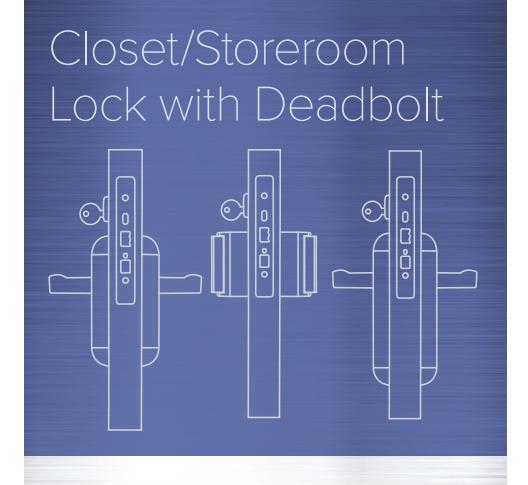

Functions

• Latchbolt retracted by lever/ paddle from either side
• Deadbolt operated by outside key or inside lever

Ordering

• 2190/2290 with clutched or small format trim set (alt. 4591 push/pull paddle set)
• Mortise Cylinders

ANSI*/BHMA: N/A

Functions

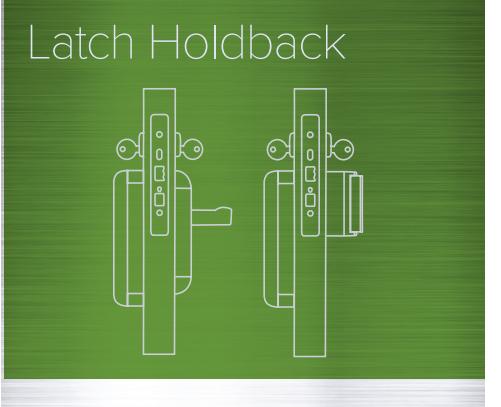

• Latchbolt operated by inside lever or paddle
• Deadbolt/latchbolt operated by key from either side
• Retract latch via key and operate slide button to engage holdback mechanism
• Fixed pull on exterior
• Inside lever/paddle always free for immediate egress

Ordering

• 2190/2290 small format trim (4600) from inside only (alt. 4591 push paddle)
• Mortise Cylinders
• Fixed pull supplied by door manufacturer

ANSI*/BHMA: N/A

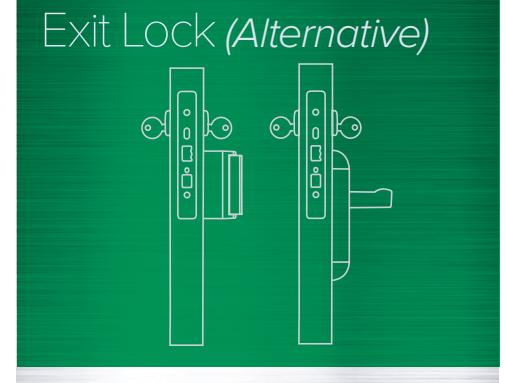

Functions

• Latchbolt operated by inside lever or paddle
• Deadbolt/latchbolt operated by key from either side
• Inside lever/paddle is always free for immediate egress

Ordering

• 2190/2290 small format (4600) from inside only (alt. 4591 push/pull paddle)
• Mortise Cylinders

ANSI*/BHMA: N/A

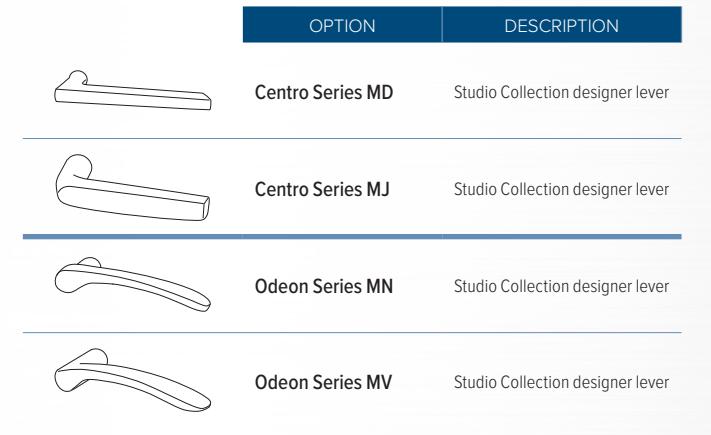

Options & Accessories

The 2190/2290 Series offers a combination of finish and handle options that will satisfy any design or function requirement. Designer handles are available in 11 different styles to blend with existing architecture or create a new design statement.

OPTION	DESCRIPTION
Standard Series 01	Standard lever, curved
Standard Series 02	Standard lever, round
Standard Series 03	Standard lever, square
Aventura Series ME	Studio Collection designer lever
Aventura Series MG	Studio Collection designer lever
Aventura Series MI	Studio Collection designer lever
Aventura Series MW	Studio Collection designer lever
