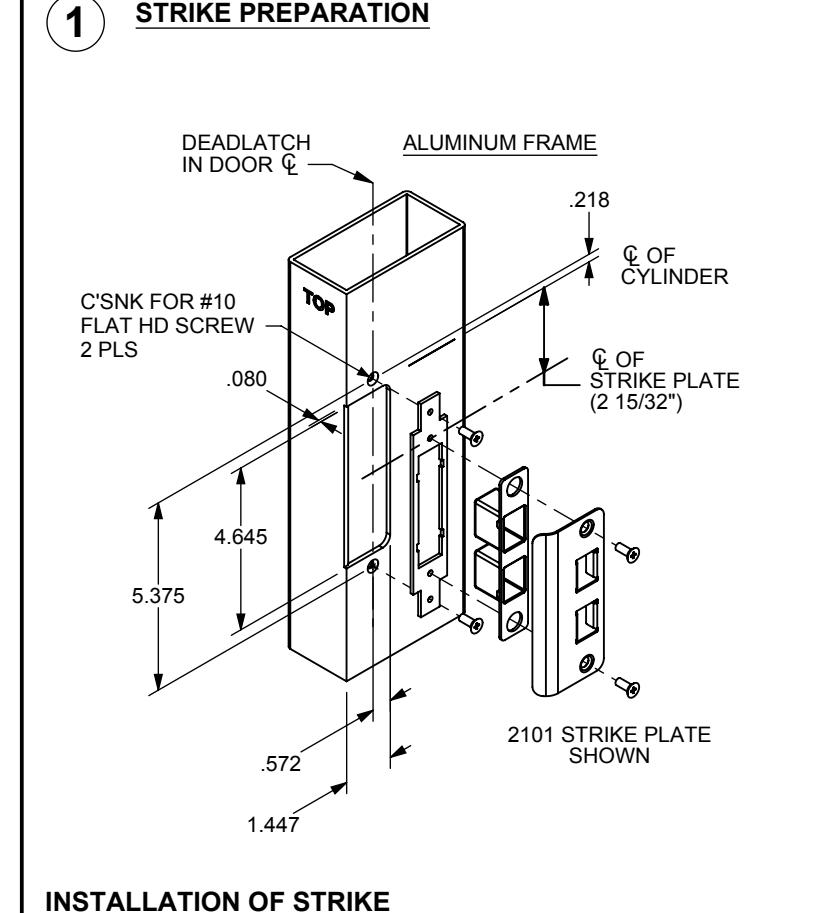

  • INSERT MOUNTING BACK PLATE BEHIND JAMB AND FASTEN WITH #10 FLAT HEAD SCREWS.
  • INSERT TRIM BOX WITH 2101 STRIKE PLATE AND FASTEN WITH #10 FLAT HEAD SCREWS TO BACK PLATE AS SHOWN.

FOR INSWING DOORS USE SMALL FORMAT LEVERS (4600) AND REFER TO 4600 INSTRUCTION WITH 2190 BACKSET Ø1.250 BOTH WALLS FOR CYLINDER BACKSET 1.594 1.340 Ø.196 ONE WALL ONLY CYLINDER Ø.196 6.885 928 .938 ONE WALL ONLY 4.200 6.375 ) 4x, Ø.177 6.375 4x, Ø.177 Ø1.125 4 200 ONE WALL ONLY 2.310 2.238 1.212 1.212 Ø1.125 THRU ONE Ø.875 1.160 1.160 WALL ONLY ONE WALL ONLY R.156 3.306 .968 3.390 5 025 2.520 2.520 .928 .938 1.010 #10-32 Ø.196 ONE WALL ONLY Ø.500 ONE WALL ONLY ONE WALL ONLY FOR .968 968 ELECTRIFIED OPTION Ø.177 TOOLS NEEDED: - 5/64 ALLEN WRENCH (INTERIOR TRIM) APPLY STICK ON TEMPLATE OVER CYLINDER BACKSET CENTER LINE. BACK OF LOCK STILE 3/32 ALLEN WRENCH (EXTERIOR TRIM) NOTE: EACH TEMPLATE IS LABELED FOR OUTSIDE OR INSIDE TRIM. - 1/8 ALLEN WRENCH - #9 DRILL BIT (.196 Ø) -#16 DRILL BIT (.177 Ø) - CENTER PUNCH ALL HOLES.

OUTSWING LOCK STILE PREPARATION ONLY

- 7/8 DRILL BIT (.875 Ø) - 1-1/8 DRILL BIT (1.125 Ø

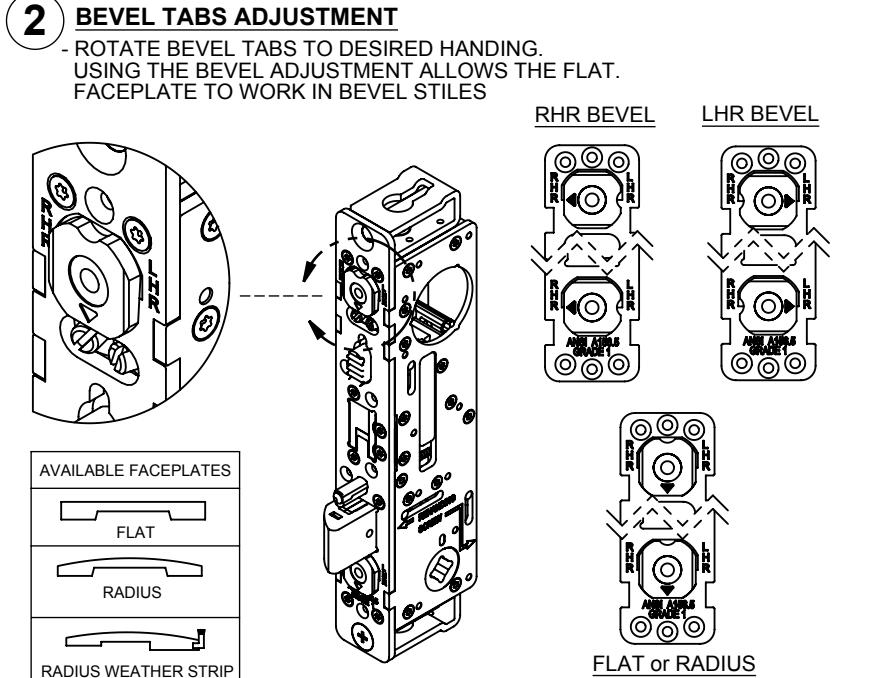

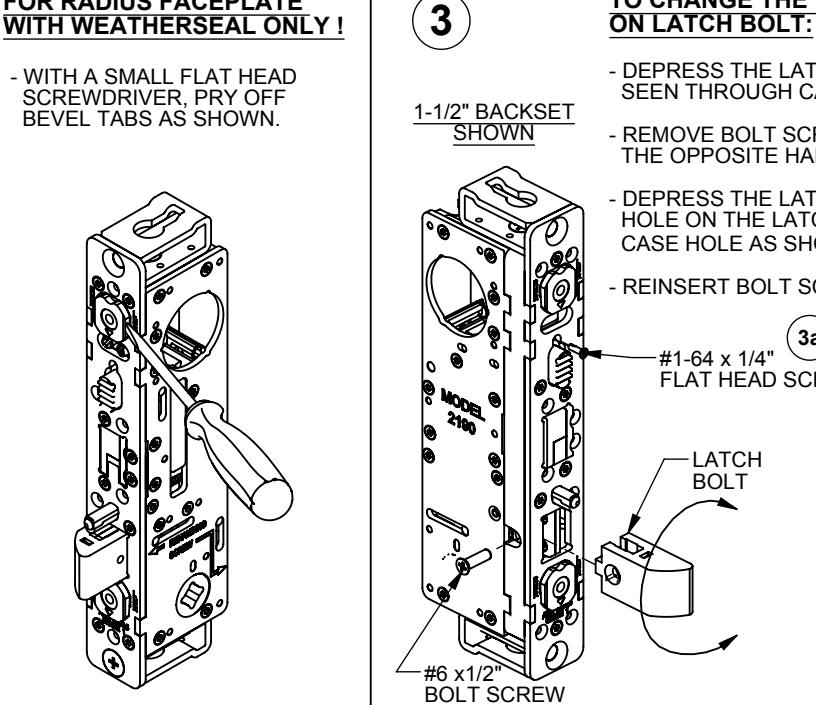

FOR RADIUS FACEPLATE

Rev. D

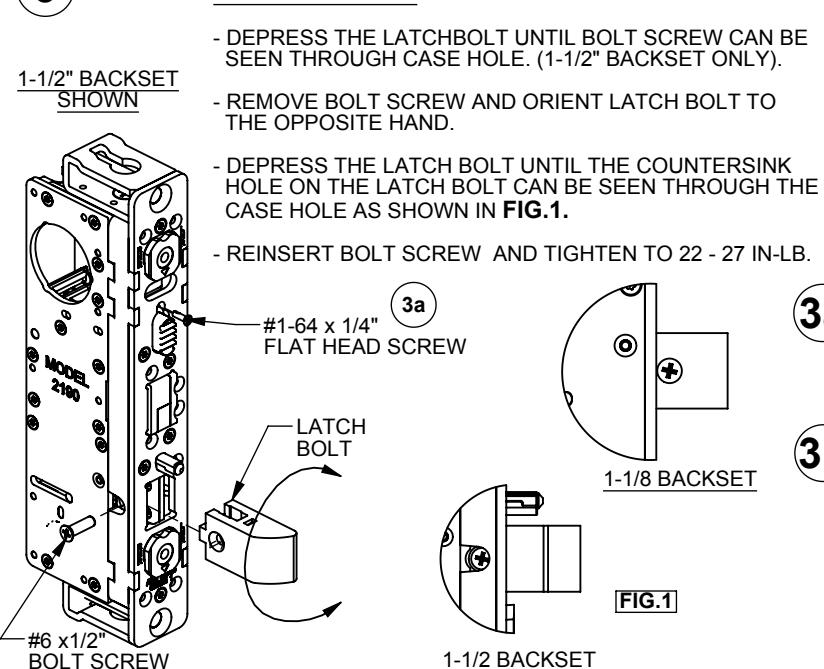

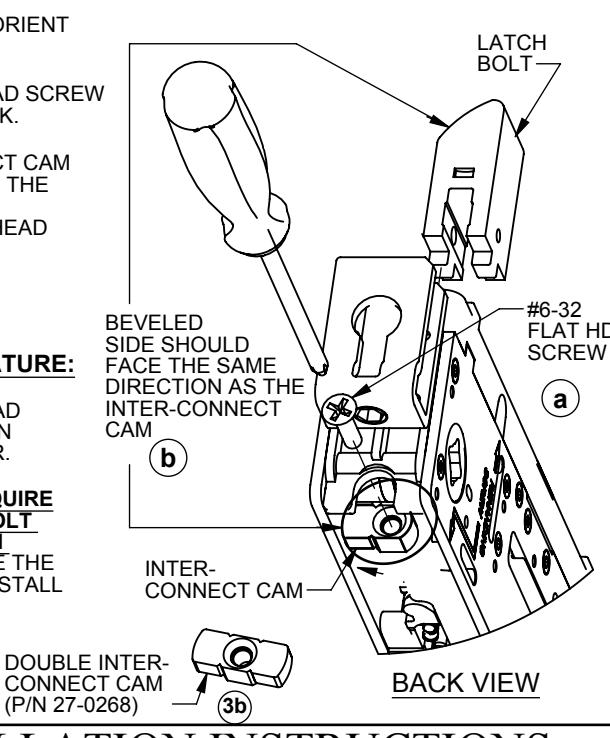

TO CHANGE THE HANDING

- YOU WILL ALSO HAVE TO RE-ORIENT THE INTER-CONNECT CAM:

- DRILL HOLES AT CENTER PUNCH LOCATIONS. REMOVE TEMPLATE. - INSTALL 2190 PER INSTALLATION INSTRUCTIONS.

  • a) LOOSEN THE #6-32 FLAT HEAD SCREW AT THE BOTTOM OF THE LOCK.
  • b) ROTATE THE INTER-CONNECT CAM TO THE SAME DIRECTION AS THE LATCH BOLT BEVEL. RETIGHTEN THE #6-32 FLAT HEAD SCREW TO COMPLETE THE OPERATION.

TO BLOCK HOLDBACK FEATURE:

SCREW INTO CASE AS SHOWN BEFORE INSTALLING IN DOOR.

FOR APPLICATIONSTHAT REQUIRE RETRACTION OF THE DEADBOLT AND DEADLATCH FROM BOTH SIDES OF THE DOOR. REMOVE THE INTER-CONNECT CAM, AND INSTALL THE OPTIONAL DOUBLE INTER-CONNECT CAM.

Rite

ASSA ABLOY

Adams Adams Rite Manufacturing Co. 260 Santa Fe Street, Pomona, CA 91767 Phone: 909-632-230 Fax: 909-632-2369

www.adamsrite.com

2190 INSTALLATION INSTRUCTIONS

W/ HEAVY DUTY ENTRANCE LEVER SET

80-0180-410

ECN: 11883 Date: 02/03/2012

INSTALLATION INSTRUCTIONS

Appvd: BC Date: 02/09/12 Page 1 of 3

Date: 02/03/2012

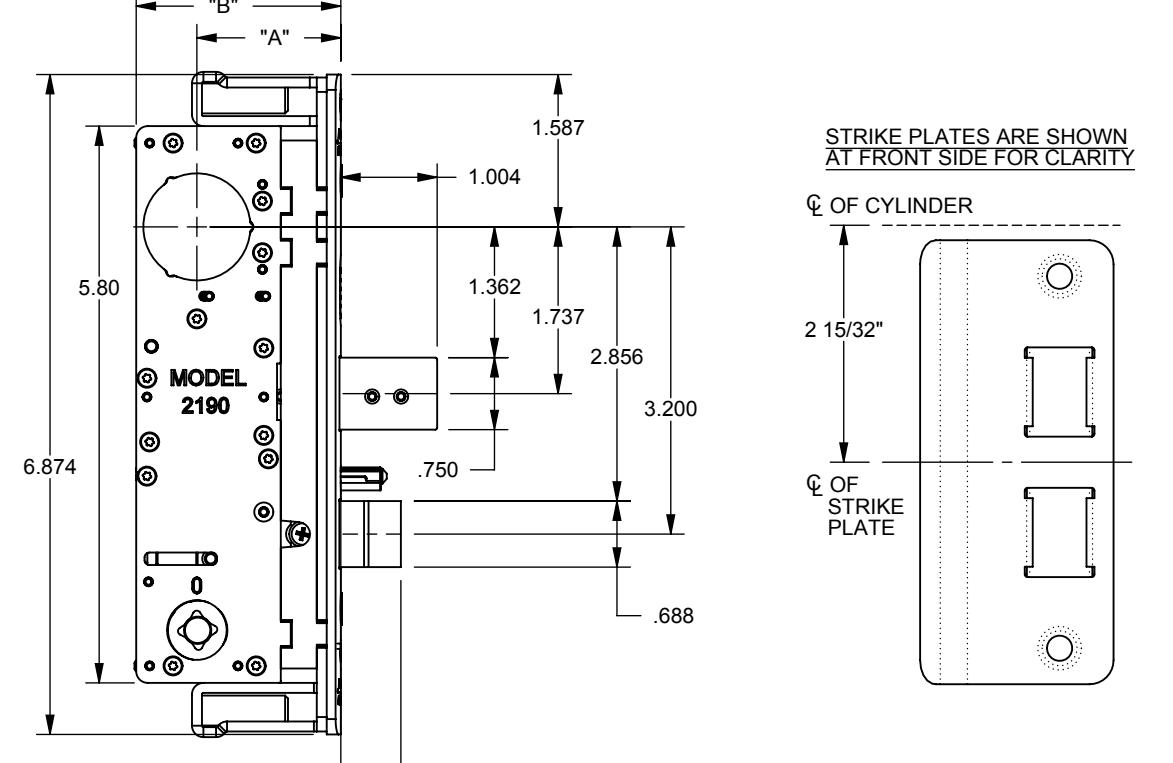

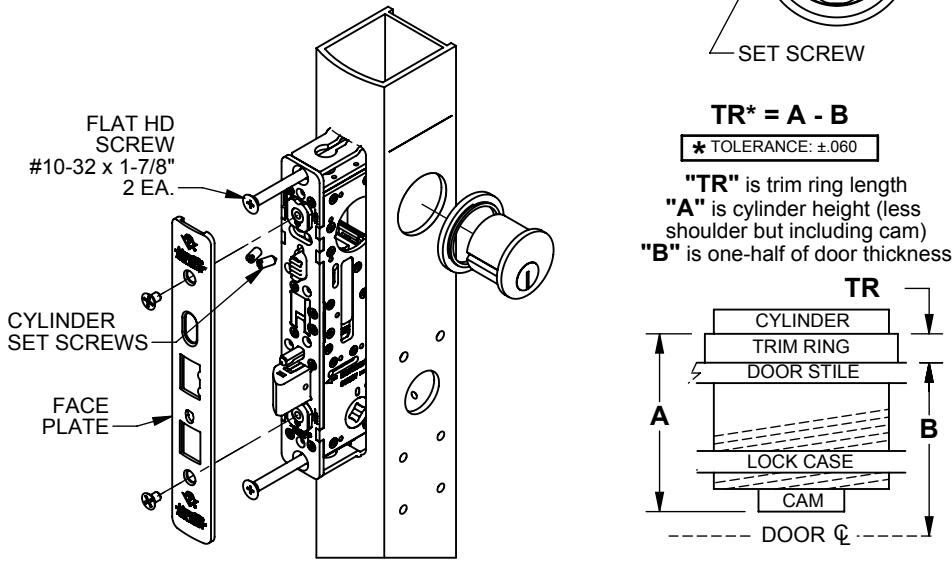

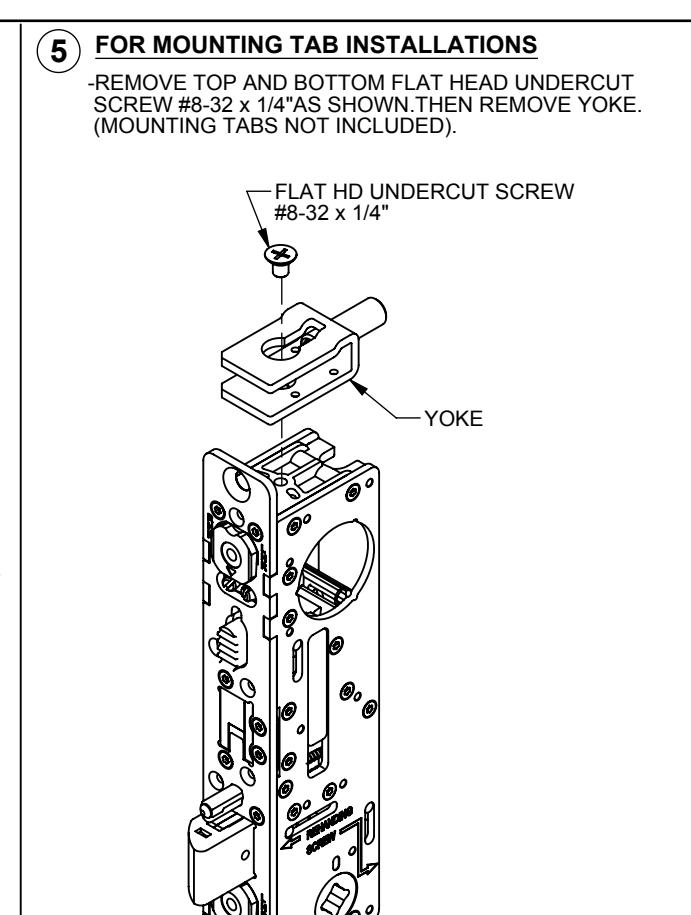

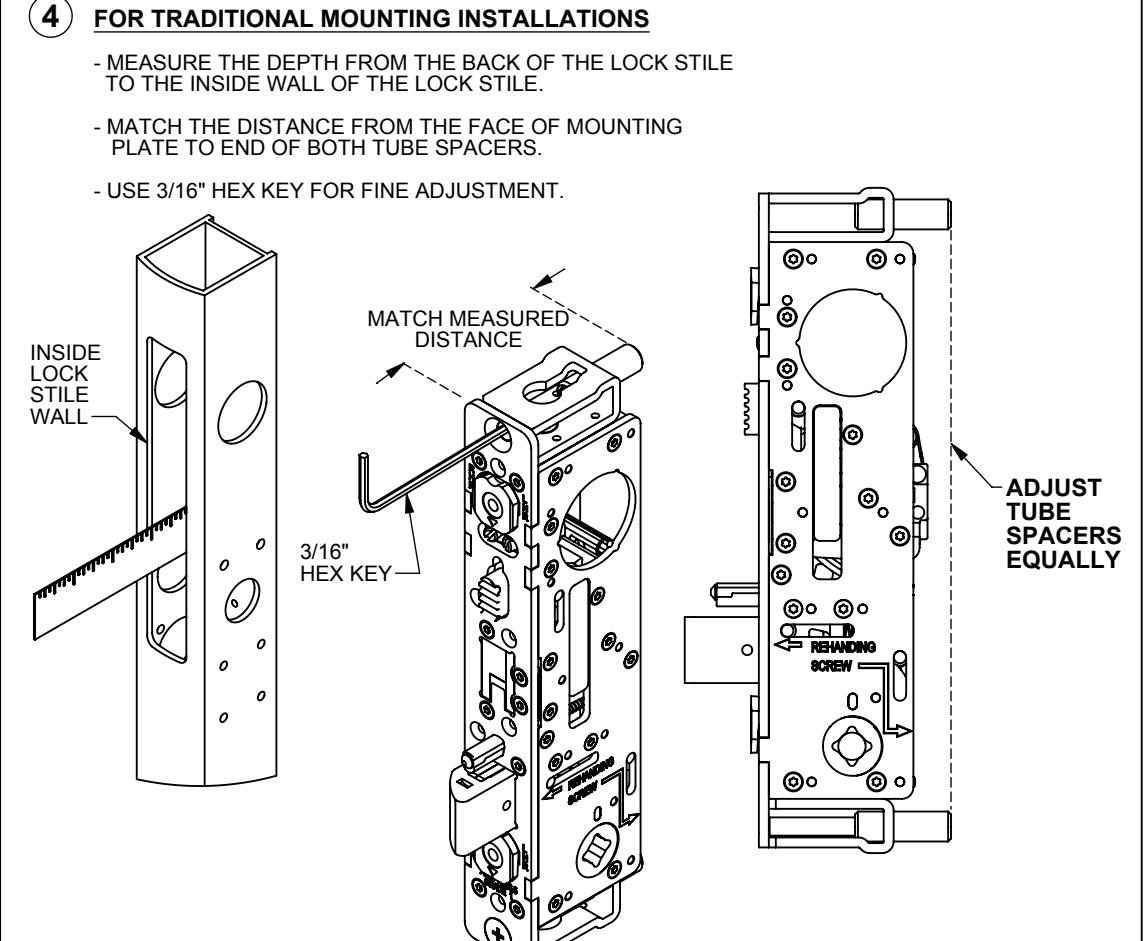

INSERT LOCK ASSEMBLY INTO LOCK STILE THRU CUTOUT.

- INSTALL AND FASTEN TWO (2) FLAT HEAD SCREWS #10-32 x 1-7/8" TO SECURE THE LOCK ASSEMBLY ON STILE.

- INSTALL CYLINDER AND SECURE WITH SET SCREWS.

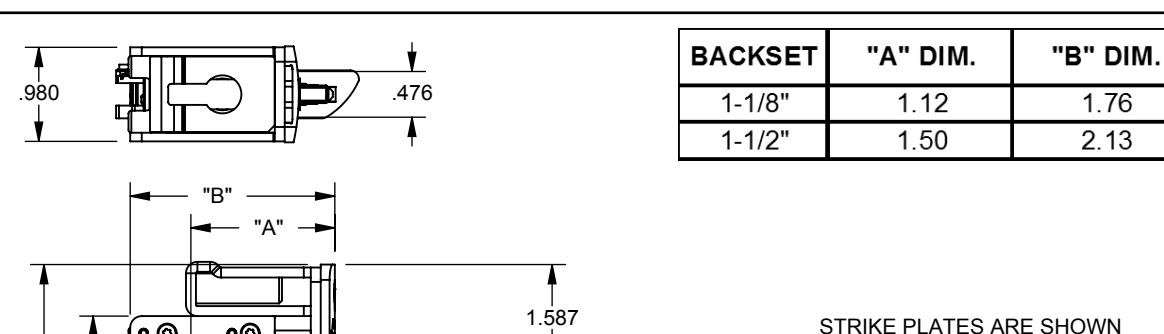

.626

- INSTALL FACE PLATE.

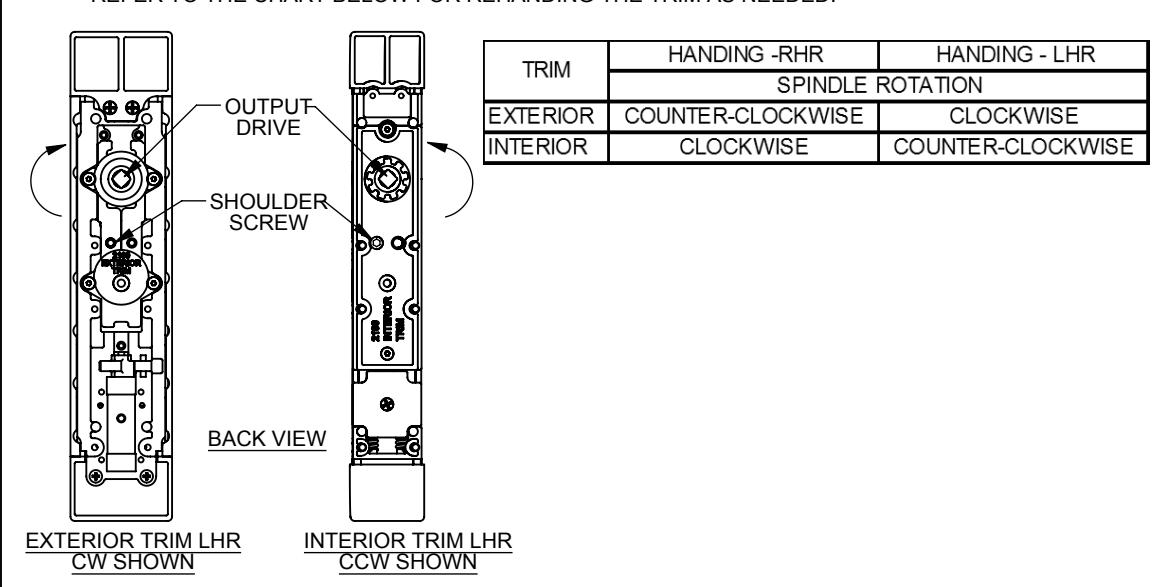

HANDING CONFIGURATION FOR 2190 TRIM

  • THE OUTPUT DRIVE FOR THE EXTERIOR TRIM IS SHIPPED FROM THE FACTORY IN A CLOCKWISE ROTATION AND THE INTERIOR TRIM IS SHIPPED WITH A COUNTER-CLOCKWISE ROTATION. TO CHANGE THE OUTPUT DRIVE ROTATION, FOLLOW THESE STEPS:
  • 1. REMOVE THE SHOULDER SCREW WITH A 5/64" ALLEN WRENCH. 2. REINSTALL SHOULDER SCREW ON THE OPPOSITE SIDE

REFER TO THE CHART BELOW FOR REHANDING THE TRIM AS NEEDED.

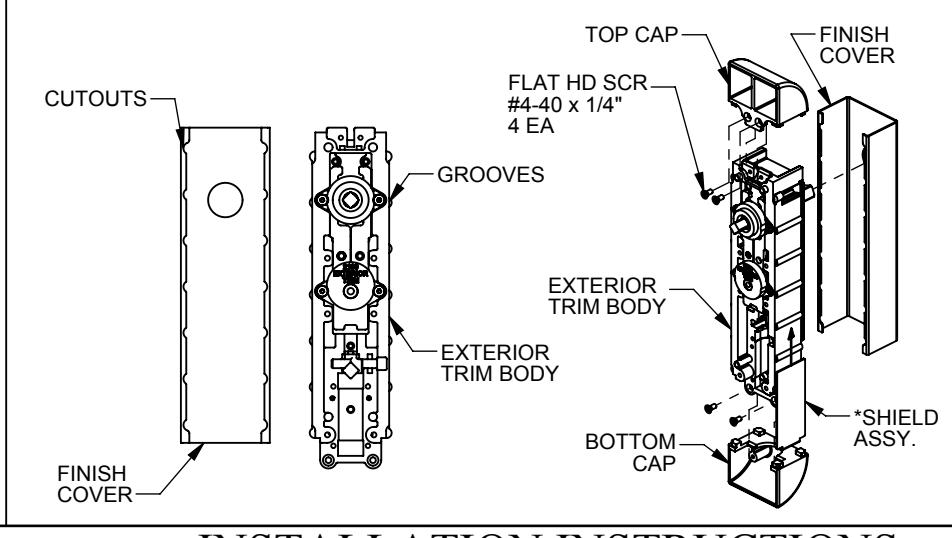

ASSEMBLE EXTERIOR TRIM (9)

  • SLIDE THE FINISH COVER ONTO BODY. THE COVER HAS CUTOUTS THAT FIT OVER THE GROOVES ON THE BODY
  • INSTALL TOP CAP WITH (2) FLAT HEAD SCREWS (#4-40 x1/4") SUPPLIED.
  • *FOR EXTERIOR TRIM WITH ELECTRIFIED OPTION. INSERT THE SHIELD ASSY BETWEEN THE COVER AND THE EXTERIOR TRIM BODY BEFORE INSTALLING THE BOTTOM CAP.
  • INSTALL BOTTOM CAP WITH (2) FLAT HEAD SCREWS (#4-40 x1/4") SUPPLIED.

ASSA ABLOY

Adams Rite Manufacturing Co. 260 Santa Fe Street, Pomona, CA 91767 Phone: 909-632-230 Fax: 909-632-2369 www.adamsrite.com

2190 INSTALLATION INSTRUCTIONS W/ HEAVY DUTY ENTRANCE LEVER SET

-CYLINDER

80-0180-410 ECN: 11883 Rev. D

INSTALLATION INSTRUCTIONS

Page 2 of 3 Appvd: BC Date: 02/09/12

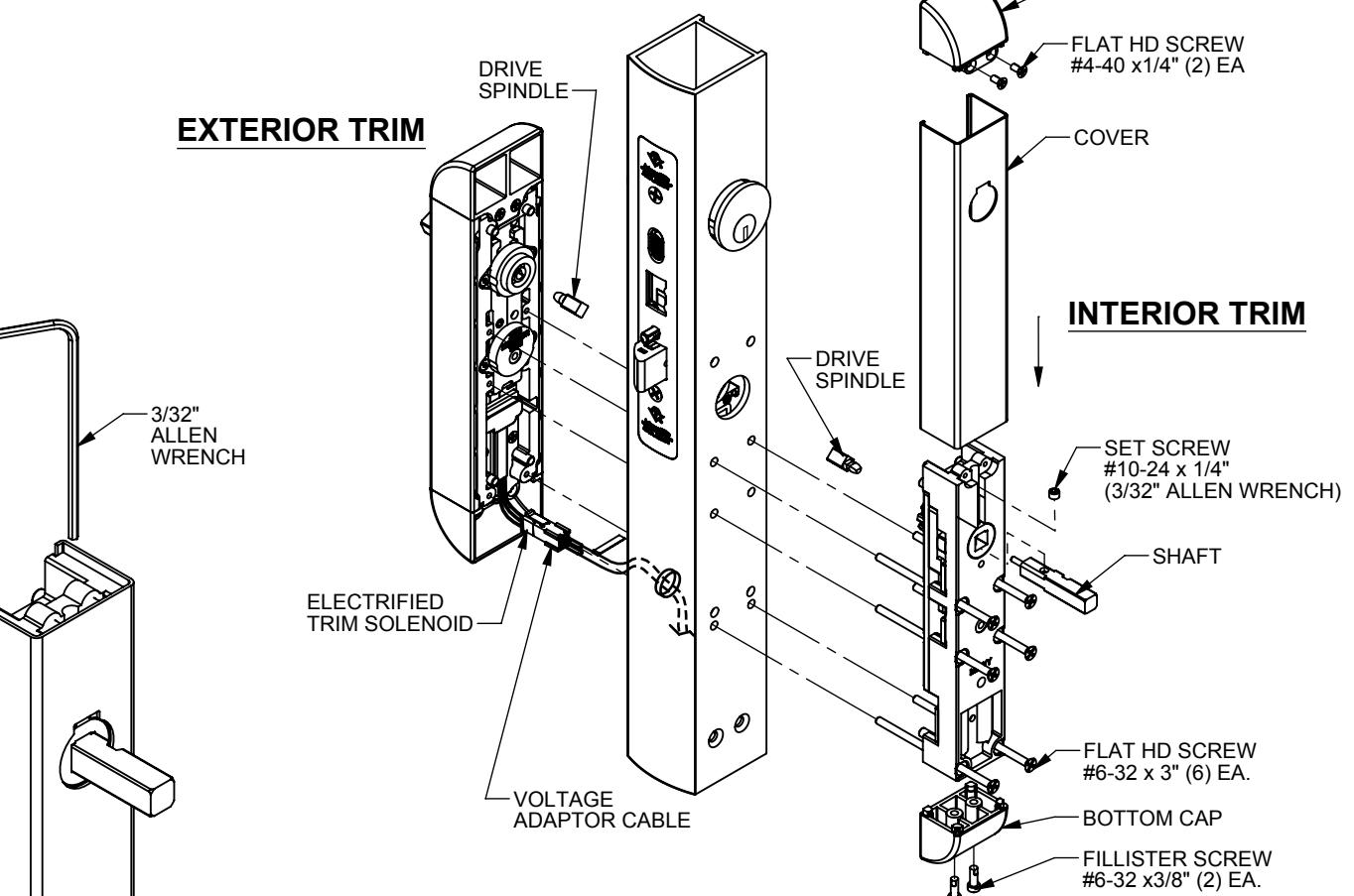

  • INSERT DRIVE SPINDLE INTO EACH TRIM BODY PRIOR TO MOUNTING.
  • MOUNT THE EXTERIOR TRIM AND INTERIOR TRIM BODY TO THE STILE USING (6) #6-32 x 3" FLAT HEAD SCREWS.
  • SLIDE THE COVER ONTO INTERIOR TRIM BODY FROM THE TOP
  • INSERT SHAFT THRU THE HOLE ON THE COVER AND THE OUTPUT ON TRIM BODY. THE GROOVE ON THE SHAFT FACES OPPOSITE THE LATCH BOLT. TIGHTEN THE SET SCREW WITH A 3/32" ALLEN WRENCH TO SECURE THE SHAFT AS SHOWN IN FIG. 2 .
  • INSTALL TOP CAP USING (2) #4-40 x1/4" FLAT HEAD SCREWS.
  • PUSH THE COVER UP FLUSH WITH THE TOP CAP, INSTALL BOTTOM CAP USING (2) #6-32 x 3/8" FILLISTER HEAD SCREWS.

ELECTRIFIED TRIM SOLENOID SPECIFICATION

SOLENOID AVAILABLE VOLTAGES 12V DC CONTINUOUS DUTY, 24V DC CONTINUOUS DUTY.

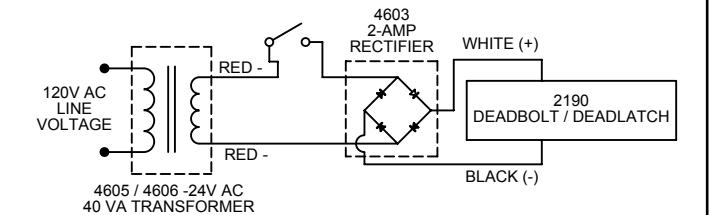

2190 WIRING DIAGRAM INTERMITTENT / CONTINUOUS DUTY 12 / 24V DC

  • EXTEND THE WIRE RUN FROM THE POWER SORCE AND THROUGH THE ACCESS HOLE ON THE EXTERIOR SIDE OF THE STILE.
  • ATTACH VOLTAGE ADAPTOR CABLE TO 2190 AS SHOWN.

VOLTAGE ADAPTOR CABLE
P/N# WIRE COLOR APPLICATION SOLENOID
CURRENT DRAW
VA7400-12 BLACK 12V DC 0.44 AMPS
VA7400-24 RED 24V DC 0.23 AMPS

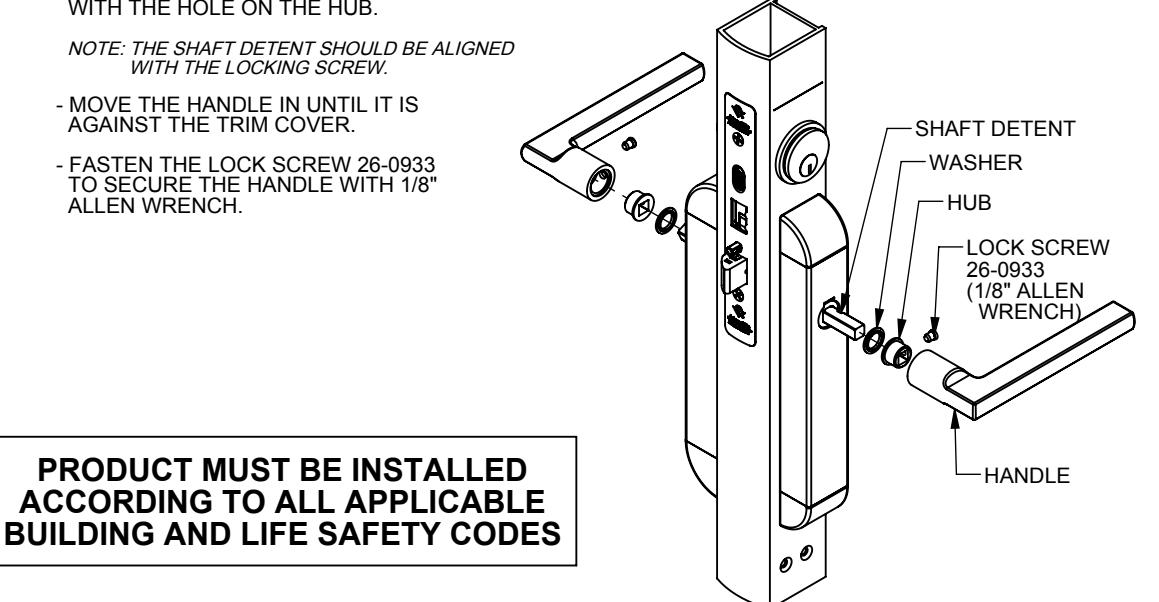

INSTALLING HANDLE (INTERIOR / EXTERIOR)

INSERT WASHER THEN INSERT HUB OVER SHAFT. ON HANDLES 2190-01, 2190-02, 2190-03, THE HUB IS FACTORY INSTALLED. REMOVE LOCK SCREW WITH 1/8" ALLEN WRENCH AND PROCEED TO NEXT STEP.

FIG. 2

- INSTALL HANDLE OVER THE HUB WITH THE HOLE ALIGNED WITH THE HOLE ON THE HUB.

NOTE: THE SHAFT DETENT SHOULD BE ALIGNED WITH THE LOCKING SCREW.

  • MOVE THE HANDLE IN UNTIL IT IS AGAINST THE TRIM COVER.
  • FASTEN THE LOCK SCREW 26-0933 TO SECURE THE HANDLE WITH 1/8" ALLEN WRENCH.

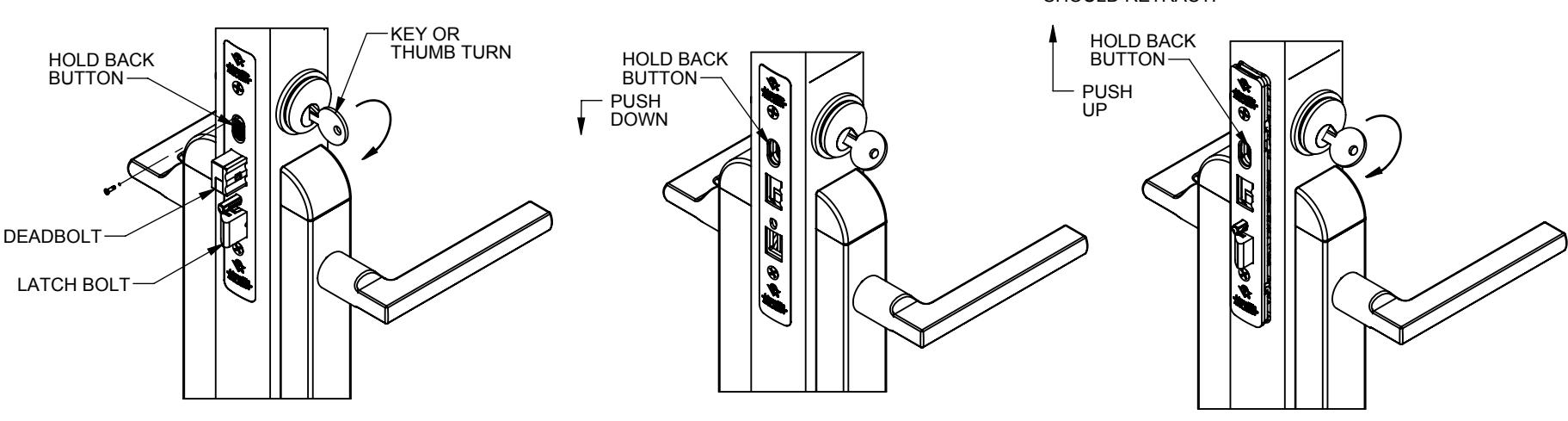

LATCH HOLD BACK FEATURE

  • IN THE LOCK POSITION, INSERT KEY, TURN KEY 180° TO RETRACT THE DEADBOLT.
  • TURN KEY 315° TO RETRACT THE LATCHBOLT.
  • HOLD IN THIS POSITION AND PUSH DOWN THE HOLD BACK BUTTON TO RETAIN LATCHBOLT
  • RETURN KEY TO NEUTRAL POSITION AND REMOVE KEY

TOP CAP

TO RELEASE HOLD BACK

  • INSERT KEY, TURN KEY OR THUMB TURN ABOUT 135° AND HOLD.
  • PUSH UP THE HOLD BACK BUTTON TO RELEASE THE LATCH BOLT.
  • RETURN KEY TO THE NEUTRAL POSITION AND REMOVE KEY.

TEST OPERATION

  • EXTEND DEADBOLT WITH KEY OR THUMBTURN.
  • PUSH DOWN ON INTERIOR LEVER. THE DEADBOLT AND LATCH SHOULD FULLY RETRACT
  • IF LATCH ONLY RETRACTS REFER TO STEP 4 FOR INTER-CONNECTION CONFIGURATION.
  • IF NEITHER RETRACT REFER TO STEP 11 FOR DRIVE SPINDLE INSTALLATION.
  • PUSH DOWN ON EXTERIOR LEVER THE LATCH ONLY SHOULD RETRACT.
